Lockheed Martin triangular nozzle from 1996

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
876
wonder what for it was intended...
http://www.pointwise.com/apps/trinoz.shtml

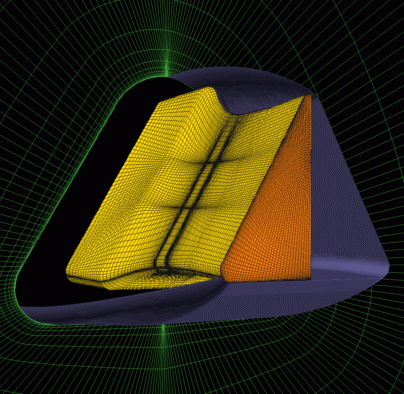

Triangular Cross Section Aircraft Engine Nozzle
[1996] - Engineers at Lockheed Martin Tactical Aircraft Systems in Fort Worth, Texas used Gridgen to create this grid for the internal and external regions of a conceptual nozzle design. The purple surfaces are the geometry model on which the grid was built, the yellow surfaces are the grids on the interior nozzle walls, the orange surface is the grid at the nozzle exit plane, and the green lines are the grid lines at the exterior flowfield plane.


Attachments

  • trinoz40.gif
    65.6 KB · Views: 97

hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
237
Reaction score
3
Didnt early thrust vectoring use 3 plates pushed into/out of the jet stream to vector the jet?
like on the x31?

Possibly an nozzle specifically designed for those plates?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,403
Reaction score
1,443
flateric said:
wonder what for it was intended...
http://www.pointwise.com/apps/trinoz.shtml

Triangular Cross Section Aircraft Engine Nozzle
[1996] - Engineers at Lockheed Martin Tactical Aircraft Systems in Fort Worth, Texas used Gridgen to create this grid for the internal and external regions of a conceptual nozzle design. The purple surfaces are the geometry model on which the grid was built, the yellow surfaces are the grids on the interior nozzle walls, the orange surface is the grid at the nozzle exit plane, and the green lines are the grid lines at the exterior flowfield plane.

Could be an experimental design for something like JASSM.
