Lockheed Laminar Flow Control LFC wing aircraft of 1993

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,084
Reaction score
3,763
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19870012416_1987012416.pdf


Attachments

  • LFC transpot of 1993.JPG
    LFC transpot of 1993.JPG
    24.8 KB · Views: 360

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,084
Reaction score
3,763
Hi,

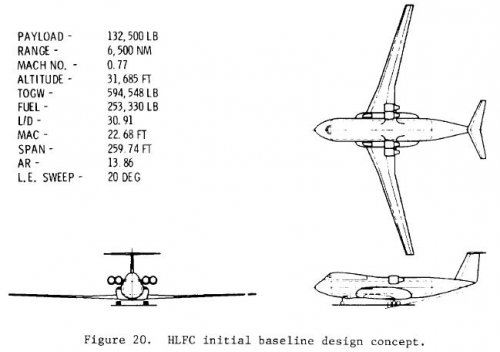

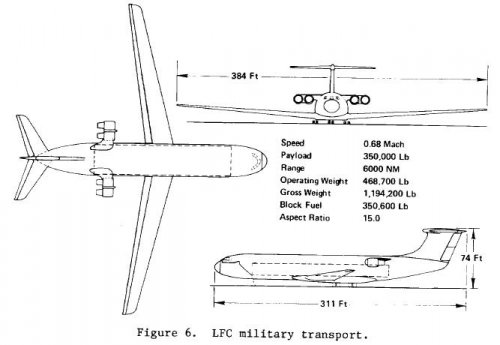

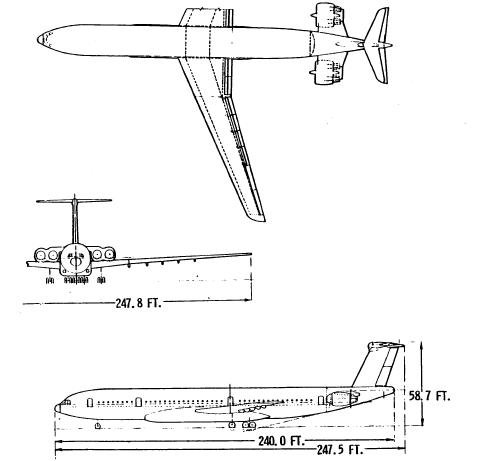

anther Lockheed LFC aircraft,notice the differents between the projects for military
aircraft.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19900003190_19990003190.pdf


Attachments

  • LFC military (4).JPG
    LFC military (4).JPG
    33.2 KB · Views: 64
  • HLFC military (3).JPG
    HLFC military (3).JPG
    31.3 KB · Views: 320
  • LFC military (2).JPG
    LFC military (2).JPG
    39.8 KB · Views: 331
  • LFC military (1).JPG
    LFC military (1).JPG
    35.9 KB · Views: 341
  • Lockheed LFC civil.JPG
    Lockheed LFC civil.JPG
    17.2 KB · Views: 337

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
563
Website
deeptowild.blogspot.com
Getting a "404: Page Not Found" error from the link above.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19900003190_1990003190.pdf


Lange, Roy H. Lockheed Laminar-Flow Control Systems Development and Applications Lockheed-Georgia Company (Dec 1, 1987)

Abstract:
Progress is summarized from 1974 to the present in the practical application of laminar-flow control (LFC) to subsonic transport aircraft. Those efforts included preliminary design system studies of commercial and military transports and experimental investigations leading to the development of the leading-edge flight test article installed on the NASA JetStar flight test aircraft. The benefits of LFC on drag, fuel efficiency, lift-to-drag ratio, and operating costs are compared with those for turbulent flow aircraft. The current activities in the NASA Industry Laminar-Flow Enabling Technologies Development contract include summaries of activities in the Task 1 development of a slotted-surface structural concept using advanced aluminum materials and the Task 2 preliminary conceptual design study of global-range military hybrid laminar flow control (HLFC) to obtain data at high Reynolds numbers and at Mach numbers representative of long-range subsonic transport aircraft operation.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
563
Website
deeptowild.blogspot.com

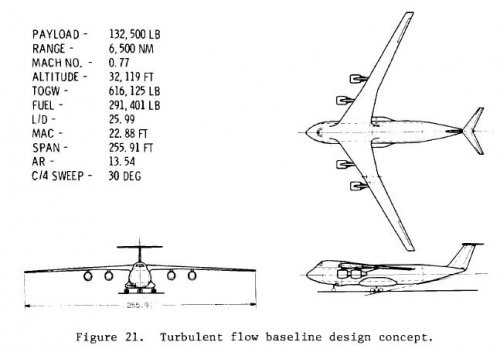

Lange, Roy H. Application of Hybrid Laminar Flow Control to Global Range Military Transport Aircraft Lockheed-Georgia Co. (Apr 1, 1988)

Abstract:
A study was conducted to evaluate the application of hybrid laminar flow control (HLFC) to global range military transport aircraft. The global mission included the capability to transport 132,500 pounds of payload 6500 nautical miles, land and deliver the payload and without refueling return 6500 nautical miles to a friendly airbase. The preliminary design studies show significant performance benefits obtained for the HLFC aircraft as compared to counterpart turbulent flow aircraft. The study results at M=0.77 show that the largest benefits of HLFC are obtained with a high wing with engines on the wing configuration. As compared with the turbulent flow baseline aircraft, the high wing HLFC aircraft shows 17 percent reduction in fuel burned, 19.2 percent increase in lift-to-drag ratio, an insignificant increase in operating weight, and a 7.4 percent reduction in gross weight.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19880011740_1988011740.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,084
Reaction score
3,763

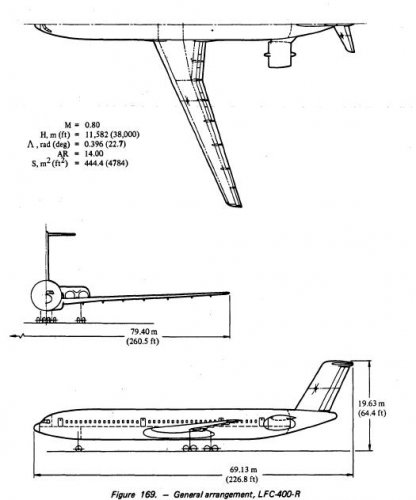

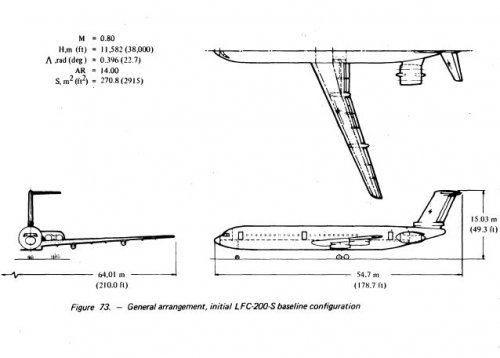

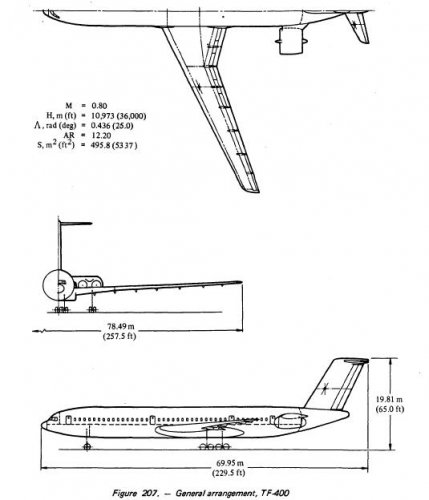

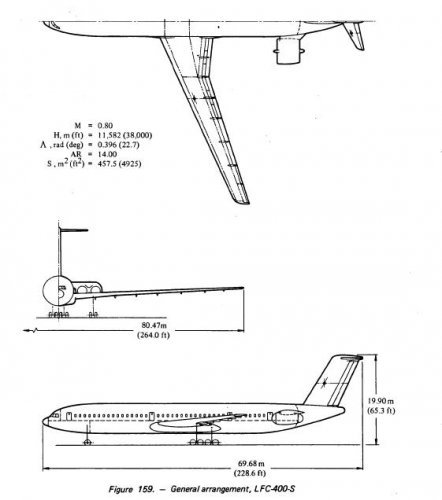

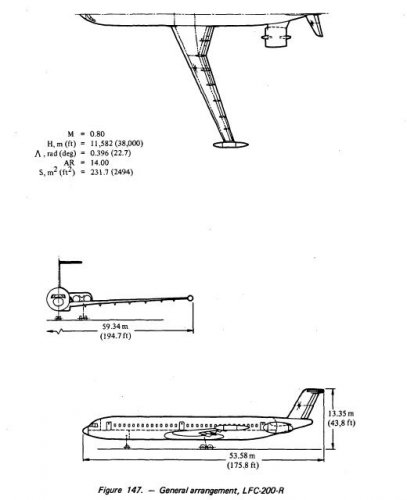

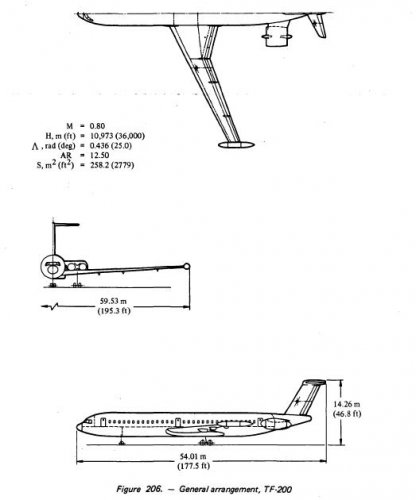

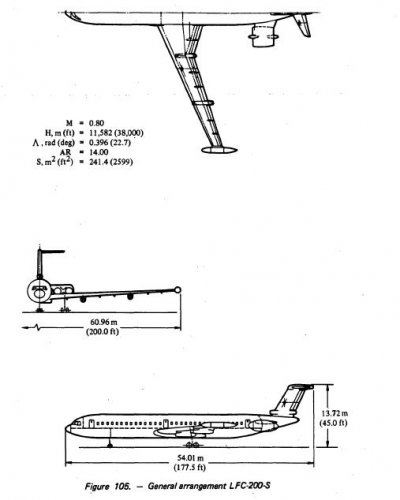

The Lockheed designations for those Laminar Flow Control aircraft is in the NASA
report; 19760017057_1976017057.


Attachments

  • TF-200.JPG
    28 KB · Views: 12
  • LFC-400-R.JPG
    34.2 KB · Views: 15
  • LFC-400-S.JPG
    32.8 KB · Views: 16
  • LFC-200-R.JPG
    26.9 KB · Views: 17
  • LFC-200-S  1.JPG
    LFC-200-S 1.JPG
    29.5 KB · Views: 21
  • LFC-200-S.JPG
    28.5 KB · Views: 21
  • TF-400.JPG
    34.3 KB · Views: 14
