Lockheed CL 408 (SST from 1958)

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,370
Reaction score
2,456
i locking for Info about this SST proposal

Lockheed CL 480 from 1958
http://www.secretprojects.co.uk/forum/index.php/topic,483.msg7916.html#msg7916

Wat me instrest is
Cruise speed, Range, Capacity and Internal look of the passenger cabin


Attachments

  • Lockheed CL 480 1.jpg
    Lockheed CL 480 1.jpg
    144 KB · Views: 385

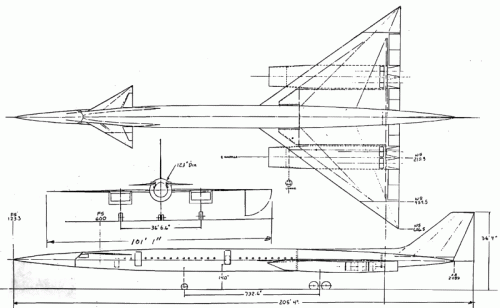

  • Lockheed CL 480 2.gif
    Lockheed CL 480 2.gif
    64.7 KB · Views: 345

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
209
Not 480, it's CL-408, more precisely CL-408-15. That iteration was the heaviest, GTOW at 257.200 lbs. Passenger max 124, cruise speed Mach 3 and circa 70.000 feet. Sorry, no internal arrangement.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,543
In The Aeroplane 1/1960 it's described as built for a speed of M 3 to 3.5 and a
weight of around 250.000lb, IF the development costs of around
160 million $ would be made available .
Then, unit price should have been about 9 million $ for a production run
of 200 a/c ... :D


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,370
Reaction score
2,456
Not 480, it's CL-408-15
that why i dint find it in internet :mad:

built for a speed of M 3 to 3.5
means stainless steel or titanium, and only 9 million $ for a production unit ?

still open question is the range
with 257.200 lbs is around Concorde (245,000 lb) last has range of 4,500 mi of 7250 km)
but with M 3 to 3.5 the range of CL 408-15 is under 4,250 mi of 6,400 km ?

no internal arrangement.
sad, but with 123 inch ø = 3,1242 Meter ø would be like this: 3 seat - small corridor - 2 Seat ?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
209
AFAIK, the first SST projects requested by the Air Force as a dual (civil and military) trisonic multipurpose aircrafts were meant as trancontinental ranged (2000 miles). Yep, five abreast would make sense. And, BTW, the 3views and the art aren't of the same aircraft, probably different 408 iterations.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
There's a marked difference between the color illustration and
the 3-view shown us...
Probably two different designs ?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
209
Yes, Paul, two different iterations of the 408 model number


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,370
Reaction score
2,456
Skybolt said:
AFAIK, the first SST projects requested by the Air Force as a dual (civil and military) trisonic multipurpose aircrafts were meant as transcontinental ranged (2000 miles).

2000 miles is to Short for civil transatlantic flight!
and the civil airlines will not buy K-135 Tankerplane for mid air refuel :-\

you need:
3450 miles range (N.Y. -> London)
3870 miles for N.Y. -> Frankfurt an Main (Germay)
but that to short for transpacific flight there you need 4000 miles rage
A.L. -> Hawaii refuel -> Tokyo

IMHO 4000 miles must be range


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,543

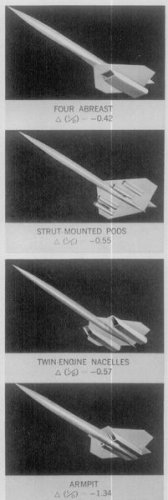

Another view of CL-408 and four different engine arrangement, which were windtunnel tested
for this design (the different wing planform wasn't mentioned in the translated article by
H.L.Hibbard and R.A.Bailey)
(from Interavia 10/1959)


Attachments

  • CL-480.JPG
    18.6 KB · Views: 262
  • engine-arrangement.JPG
    20.9 KB · Views: 267

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
209
Umm, I have an old Interavia in which the 408 has this last wingform but with four separated engine on the rear part of wing with rather long exhaust pipe. I'll look for it.
