Lockheed/Boeing A/F-X (AFX-653)

Evil Flower

ACCESS: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
4
Being built for Wings over Israel.

Some artistic license here and there, hope you don't mind.


Attachments

  • afx_render2.jpg
    583.2 KB · Views: 724

Woody

Passionate about the advancement of technology
Joined
Mar 8, 2007
Messages
291
Reaction score
12
Website
www.freewebs.com
Very cool - I want one. I take it 'Wings Over Israel' is an upcoming game? Got anymore info?

Cheers, Woody


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
13
Woah, this is one of the best representations of NATF I've seen!



Yeah, hope Wings over Israel comes out for X360 ;D


Evil Flower

ACCESS: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
4
I went and made it a little fatter since I thought it a bit too sleek, and it now looks like this:


Attachments

  • afx_render3.jpg
    421 KB · Views: 719

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,286
Just call me Ray said:
Woah, this is one of the best representations of NATF I've seen!

A/F-X, actually


Attachments

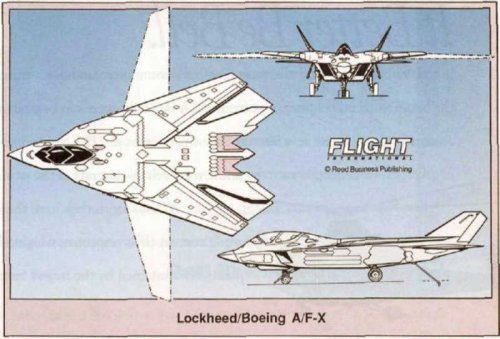

  • lockheed-boeing-af-x.jpg
    45.4 KB · Views: 634

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
What's the point of the swing-wings? Lot of weight, modern airfoil with an aircraft with the strength built in from the get-go to withstand carrier launches and recoveries, should be able to do the job okay with the right high-lift-devices (The F-4 was 40,000 lbs at combat weight, from the beginning with 1958 technology -- with composites and all that I'm sure we can do at least as good) and it reveals to your enemy your energy state in a very obvious fashion.

Kendra


Evil Flower

ACCESS: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
4
KJ_Lesnick said:
What's the point of the swing-wings? Lot of weight, modern airfoil with an aircraft with the strength built in from the get-go to withstand carrier launches and recoveries, should be able to do the job okay with the right high-lift-devices (The F-4 was 40,000 lbs at combat weight, from the beginning with 1958 technology -- with composites and all that I'm sure we can do at least as good) and it reveals to your enemy your energy state in a very obvious fashion.

Kendra
They probably included the swingwings on purpose due to the popularity of the Tomcat.


Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
2
Evil Flower said:
KJ_Lesnick said:
What's the point of the swing-wings? Lot of weight, modern airfoil with an aircraft with the strength built in from the get-go to withstand carrier launches and recoveries, should be able to do the job okay with the right high-lift-devices (The F-4 was 40,000 lbs at combat weight, from the beginning with 1958 technology -- with composites and all that I'm sure we can do at least as good) and it reveals to your enemy your energy state in a very obvious fashion.

Kendra
They probably included the swingwings on purpose due to the popularity of the Tomcat.

I doubt it. Swing-wings have their purpose. Improved loiter time and carrier bring back capability are some of the benefits. The F-4 used blown flaps and the Navy has had some bad experience (very difficult maintenance ).


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
Maki said:
I doubt it. Swing-wings have their purpose. Improved loiter time and carrier bring back capability are some of the benefits. The F-4 used blown flaps and the Navy has had some bad experience (very difficult maintenance ).

I was talking about a plane with F-22 like wing-loading, extra strength designed in from the beginning, and composite construction. That should be able to fall within 40,000 lbs and allow handing that would be quite good. To my knowledge the F-22 can fly quite far even while subsonic, although it can supercruise.

I knew the F-4 used some kind of bleed-air system to augment lift (I remember being told though that there were also bleed-air nozzles behind the LED's as they drooped, the nozzles activated blowing extra air across the front of the wing -- I'm not sure though if that's true though) although I actually did not know the specifics. Hard to believe it would need it as the F-4's wings aren't exactly small and aren't exactly thin (they have camber, and their leading edges aren't exactly razor sharp).

Were the blown flaps the only maintenance difficulty with the F-4?


Kendra Lesnick
BTW: What does "carrier bring-back capability" mean?


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
"Carrier bring-back capability" refers to the ability to land on the carrier with un-used ordnance (missiles/bombs etc). Often aircraft had to jettison their un-used ordnance prior to landing - mighty expensive these days!!!

Regards,

Greg


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
43
I could understand that being a useful capability. Out of curiousity, could the F-15 and F-22 land okay with all it's ordinance still on?


Kendra Lesnick


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,864
Reaction score
2,126
KJ_Lesnick said:
I could understand that being a useful capability. Out of curiousity, could the F-15 and F-22 land okay with all it's ordinance still on?


Kendra Lesnick

Not on a carrier.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,068
Reaction score
162
Nor could the F-14 with a full load of AAM weapons. I'm surprised that the USN had problems with the F-4's blown flaps actually. How did the RN go with the Scimitar and Buccaneer blown wings?


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,784
Reaction score
170
rickshaw said:
Nor could the F-14 with a full load of AAM weapons. I'm surprised that the USN had problems with the F-4's blown flaps actually. How did the RN go with the Scimitar and Buccaneer blown wings?

For the F-14, it depended on how much fuel was aboard. More importantly, in the underpowered F-14A could not meet the single -engine waveoff climb requirement when coming back aboard carrying six AIM-54s and two AIM-9s. The F-14B and D could ($9,000 lbs+ bringback), but by the time they entered service the kind of mission that required carrying six AIM-54s (loitering Fleet Air Defense) was not considered as relevant as it had been during the "heat" of the Cold War, and even the F-14 was "draggy" carrying that kind of load.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,068
Reaction score
162
F-14D said:
rickshaw said:
Nor could the F-14 with a full load of AAM weapons. I'm surprised that the USN had problems with the F-4's blown flaps actually. How did the RN go with the Scimitar and Buccaneer blown wings?

For the F-14, it depended on how much fuel was aboard. More importantly, in the underpowered F-14A could not meet the single -engine waveoff climb requirement when coming back aboard carrying six AIM-54s and two AIM-9s. The F-14B and D could ($9,000 lbs+ bringback), but by the time they entered service the kind of mission that required carrying six AIM-54s (loitering Fleet Air Defense) was not considered as relevant as it had been during the "heat" of the Cold War, and even the F-14 was "draggy" carrying that kind of load.

OK. I think I understand that. What exactly though does "$9,000 lbs+ bringback" mean?


Lampshade111

ACCESS: Confidential
Joined
Oct 5, 2008
Messages
151
Reaction score
4
Hey, I was going to pick up one of the Wings Over _____ games and I was wondering if this great looking aircraft was released. If so could you direct me to the link.

Also doesn't the nose look a bit too short for a powerful radar?


Evil Flower

ACCESS: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
4
Sometimes it's better to just start anew than try to polish a turd, so I went and made a completely new model:
