Hi,

in the French competition of 1935 for long range maritime flying
boat,the tenders were; Breguet Br.730,CAMS-141,Late-610 and
LeO H-440,who know more info about this project ?.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
147
Hi Hesham
In 1935 navy asked for a 20 tonnes flying boat.
crew 10-12
speed 300 km/h
Cams 141 - late 610-611 - Breguet 710 - 720 - 730
and Leo 440
1 gun 20 m/m + 4 : 7.5m/m - 800- 1000 kgs bombs
15.000 liters kerosene in wings
The Leo 440was only a project.
A monoplan hull flying boat with
4 hispano 14ha 1000 hp
or
4 gnome rhone 14klrs
No more
(from an old "aviation magazine" article from
Jean Liron) no drawing
Bye


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,952
Reaction score
975

Attachments

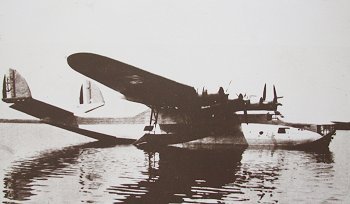

  • Latécoère 611 Achernar.jpg
    Latécoère 611 Achernar.jpg
    15.2 KB · Views: 745

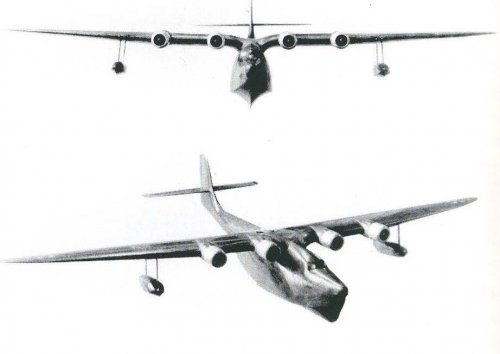

  • LeO H-440.JPG
    LeO H-440.JPG
    45.4 KB · Views: 772

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,474
Reaction score
6,158
Excellent my dear Arjen,

and about the "Lioré et Olivier" by Gérard Hartmann, E-T-A-I, 2002,
was it a book or just article in a magazine ?.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,952
Reaction score
975
It's a 192-page book. Some of the pictures are tiny, but the printers did a great job: scan the pictures and enlarge them to get the fine detail.


Aviostoria

ACCESS: Restricted
Joined
Jun 8, 2008
Messages
22
Reaction score
0
In the journal "Les Ailes Francaises - Les Hydravions à coque - Part 2" Edition ARTIPRESSE write about the Latécoère 611 Achernar. Derived from the technical program MP/C. T.P. of 01 May 1935 concerning "l'Hydravion de croisière" (hydro cruise). It refers to eight projects were presented and four selected: Breguet 730, CAMS 141, Lioré & Olivier H-440 and Latécoère 610 then evolved in 611.
The eight projects were presented.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,474
Reaction score
6,158
Aviostoria said:
In the journal "Les Ailes Francaises - Les Hydravions à coque - Part 2" Edition ARTIPRESSE write about the Latécoère 611 Achernar. Derived from the technical program MP/C. T.P. of 01 May 1935 concerning "l'Hydravion de croisière" (hydro cruise). It refers to eight projects were presented and four selected: Breguet 730, CAMS 141, Lioré & Olivier H-440 and Latécoère 610 then evolved in 611.
The eight projects were presented.


Hi Aviostoria,


what was the other four projects ?,just their names.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
147
Hi Hesham
Perhaps interesting ?
Bye


Attachments

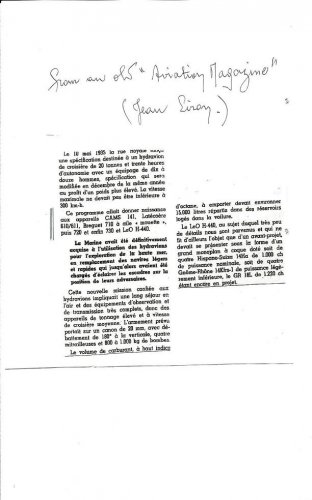

  • Scan.jpg
    76 KB · Views: 512

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,885
Reaction score
1,556
toura's scan reading something like this:

A May 10 1935 specification for a 20 tonne seaplane with thirty hour endurance carrying a crew of 10-to-12. This specification was modified in Dec 1935 to allow for a higher weight. Maximum speed was to be at least 300 km/h. This program gave rise to the CAMS 141, Latecoere 610/611, Breguet 70 with a gull-wing more like Br.720 then Br.730, and LeO H-440.

The Navy had been definitively acquired has l' use of the seaplanes for l' exploration of the open sea, to replace the light ships and rapids which jusqu' then had been loads d' to light the squadrons known the position of their adversaries.

The high weight of the project was dictated by the need to remain airborne for extended periods at cruising speed while carrying complete observation and transmission equipment. Armament envisaged consisted of a 20 mm cannon with 180 degree traverse, four machine-guns, and 800-to-1000 kg of bombs.

Wing fuel tanks were to carry 15000 liters of high-octane fuel. The little known LeO H-44 as a preliminary draft was presented as a large monoplane powered by either four Hispano-Suiza 14Ha of 1000 ch or of four slightly lower-powered Gnome-Rhône 14Kfrs-1 (the GR.18L of 1220 ch still being a project at that stage).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,474
Reaction score
6,158
Thank you my dears Toura and Apophenia,


but the member Aviostoria spoke about eight designs,and in the article,they

spoke about seven designs only,there is one proposal missing.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
52
Website
cmeunier.chez-alice.fr
In the Trait d'Union magazine Nr238 March/April 2008 is this information (I translate):
"On May 10th 1935 is published a spec. for a cruise flying boat of 20 tons with a range of 30 hours. The crew would be 10 to 12 men. In December the take off weight is increased and the maximum speed should not be below 300km/h. Weapons should include one 20mm gun, with 180° vertical ability, 4 machine guns, and a bomb weight between 800kg and 1,000kg. The Lioré et Olivier company designed a preliminary project coded H-44 or H-440. It was a big monoplane all-metal flying boat with four 1,000hp Hispano-Suiza 14Ha engines, or slightly less powerfull Gnôme-Rhône 14 Kfrs-1, or projected 1,220hp Gnôme-Rhône 18L. These engines are located on the leading edge of the wing. Fuel tanks of 15,000 liters are also included in the wing. In flight variable pitch propellers are provided. The high wing, of more than 40 meters span, has a gull shape. A variant for 20 passengers on the North Atlantic is even imagined, but works on it stop at the wind tunnel model step."
No picture of it there.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,218

Attachments

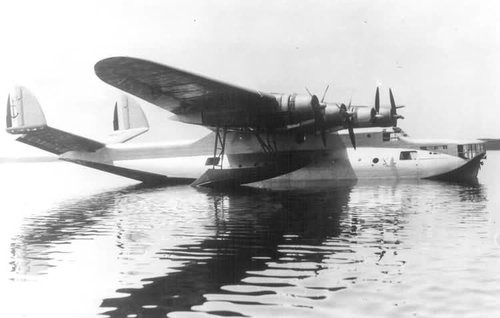

  • 61yxA01cInL.jpg
    83.1 KB · Views: 45

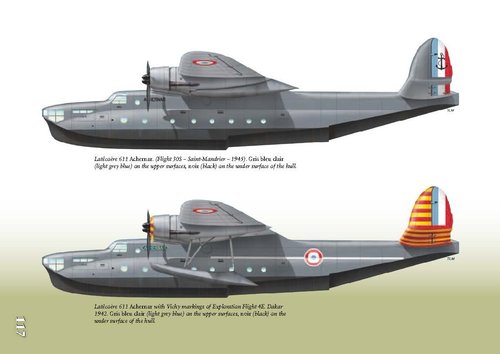

  • 4549L.jpg
    24.4 KB · Views: 44
