LII Turbolyot walkaround from Monino

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559

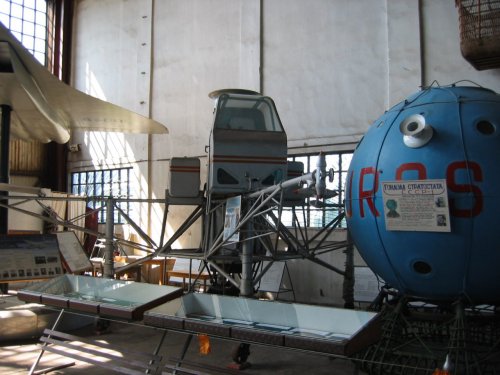

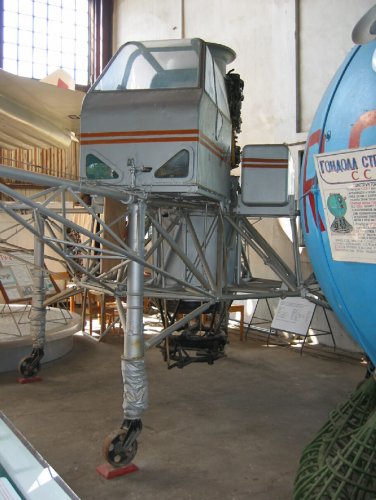

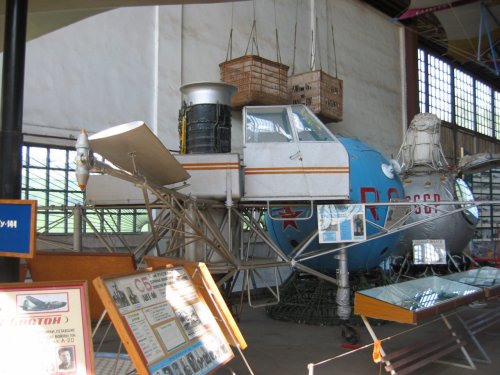

Tell me if someone's interested in walkaround of this ugly beast (about 65 pics from ca.2001)


Attachments

  • IMG_2104.jpg
    216.8 KB · Views: 33
  • IMG_2084.jpg
    225.5 KB · Views: 28
  • IMG_2090.jpg
    258 KB · Views: 34
  • ts_turbolet.jpg
    63.4 KB · Views: 40

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
16
Well, perhaps its just me, but I do have a high degree of interest in space-related test, development, and proof-of-concept equipment. It's really fascinating to see how engineers overcame the problems of early space and extraterrestrial flight.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559

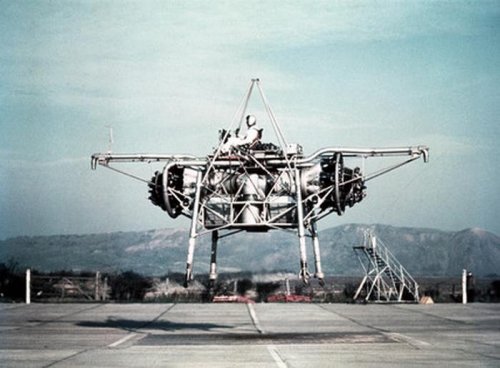

Actually this was a Soviet analog of Rolls-Royce Thrust Measuring Rig (TMR) or 'Flying Bedstead'


Attachments

  • FlyingBedstead0.jpg
    46.4 KB · Views: 22
  • FlyingBedstead1.jpg
    67.4 KB · Views: 13
  • FlyingBedstead2.jpg
    59.7 KB · Views: 11

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559
"Rolls-Royce Thrust Measuring Rig ('Flying Bedstead')

The TMR was a rig only, made of tubular steel and comprising two opposed Nene 101 engines with most of the thrust directed immediately downwards with 9% of the power being bled off to puffer pipes projecting fore and aft. The first of two rigs, without serial but later XJ314, flew on 9 July 1953 tethered and on 3 August 1954 free and 224 tethered and 16 free flights had been completed by December 1954. It went to the RAE where it eventually crashed on 16 September 1957. The second rig, XK426, flew on 12 November 1956 but it crashed on 27 November 1957 on a tethered flight after hitting the gantry and killing the pilot, Wg Cdr H G F Larson. The TMR had a design thrust to weight ratio of 1.25:1 but the actual figure was slightly less with fuel for about 15 minutes 'flight'. "

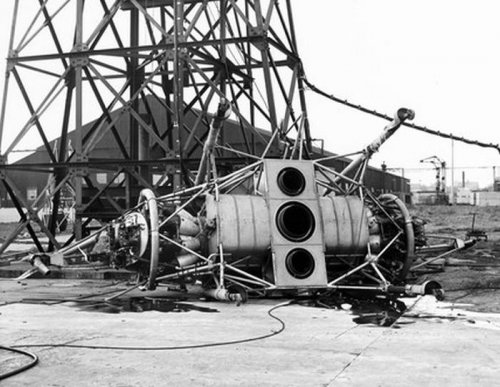

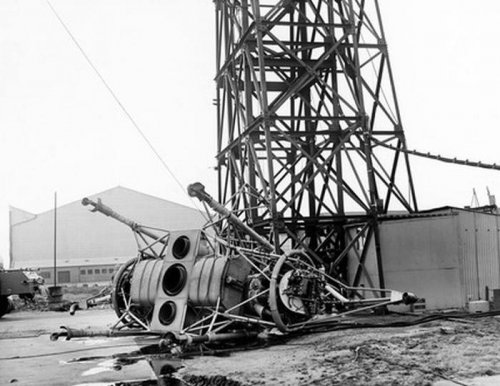

http://www.scienceandsociety.co.uk/results.asp?txtkeys1=Flying+Bedstead - more incident photos

http://www.youtube.com/watch?v=f8W2SI4c93s


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559

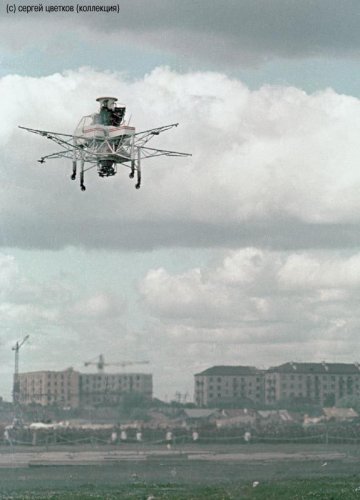

Of course here should be a Turbolyot video as well...

http://www.youtube.com/watch?v=5vwYupK-Q7g


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559
Walkaround archive http://narod.ru/disk/640109000/Turbolet.rar.html


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559
Another video...note different cockpit designs

http://youtube.com/watch?v=7o_AzOVWu90


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
860
Reaction score
201
note different cockpit designs

Looks like tests for position of a tailsitter's pilot - for Sukhoi Shkval? Or was it part of space training? (Just pure speculation.)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559

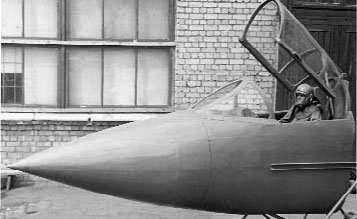

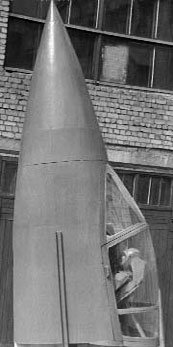

I think of Shkval as well, not sure of LLRV-like usage, because lunar landings simulators were based on Mi-4 to my knowledge.


Attachments

  • schkval1.jpg
    35.3 KB · Views: 19
  • schkval2.jpg
    26.9 KB · Views: 15
