Hi !

The B-29 is my favorit plane and I would like to build a 1/14 model. Is there someone who make it ? My project is whith 4 electric engines for propulsion and approximative scale propellers (dia 14"). I have made an ugly draft for the forward cabin from some revues and internet plans because nothing does'nt exist on this subject with good accuracy ( only Tu-4 drawings have great dimensions !) ... May be someone could tell me if something exists for a better result ?

Regards


Attachments

  • 2017-B-29-SECTION1003.jpg
    628.1 KB · Views: 913

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70


Hi !

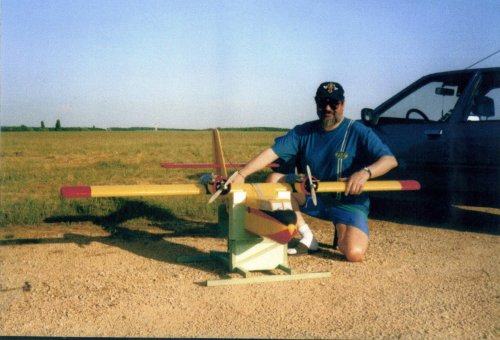

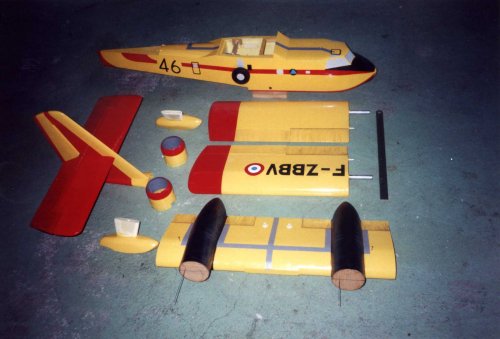

My first model was a CL-215 (it still exists but does not fly any more) motorized with 2 OS .20 Max and at 1/14 scale (ws = 2040 mm). It was not under powerred because very light (styro + balsa wood + Kraft paper < 3500 g) and I would build the B-29 with same materials.

Regards


Attachments

  • CANADAIR008.jpg
    156.6 KB · Views: 847
  • CANADAIR2000001.jpg
    1.5 MB · Views: 809

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,319
Reaction score
1,403
As I understand, the size of the drawing is the problem ? There should be accurate 3-views on the net, but
scaling them to the 1/14 scale actually may not be the best solution.
But from wiki, you can download a 3-view as a svg- (vector graphic) file (https://de.wikipedia.org/wiki/Datei:Boeing_B-29_Superfortress_3-view.svg,
which can be enlarged without loss of quality. And modifying and improving it, is quite simple, too. And you
probably don't need the postion of every rivet, do you ?
There are commercial drawings available, but I don't know, if they really are better.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,374
Reaction score
2,274
Website
www.aerospaceprojectsreview.com
Jemiba said:
There are commercial drawings available, but I don't know, if they really are better.

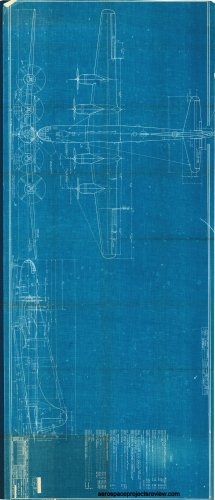

Hmmm, I wonder where a guy, just an average Joe, could go to find a pretty snazzy *ginormous* accurate drawing of a B-29 (ahem "Air Drawing 39" ahem)
http://www.aerospaceprojectsreview.com/catalog/drawndoc.htm



Attachments

  • B-29 10 percent.jpg
    B-29 10 percent.jpg
    673.9 KB · Views: 680

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
[/quote]

Hi !

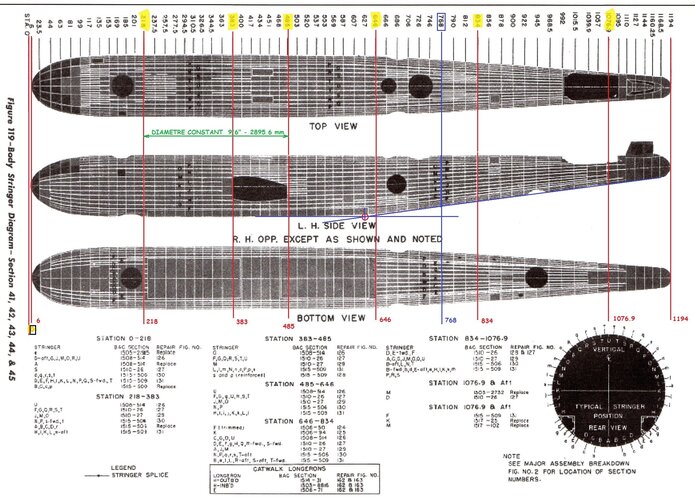

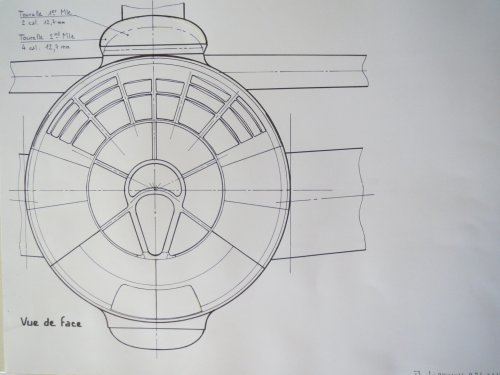

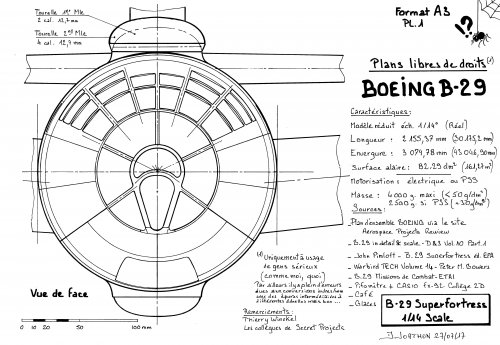

Thanks Jemiba and Orionblamblam ! However I knew that drawings ! I also used of them for my draft. But I need something more accurate as a plan to know exactly the curve of the front of the fuselage (plans of coordinates), if that exists, because contrary to appearances, purity of lines does not rhyme necessarily with simplicity !

I drew the front view from the blue print and from the photos in AirTec on Superfortress

@+++

Tonton


Attachments

  • 2017-B-29-FACE FUSO001.jpg
    2017-B-29-FACE FUSO001.jpg
    1.7 MB · Views: 132

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
Hi !

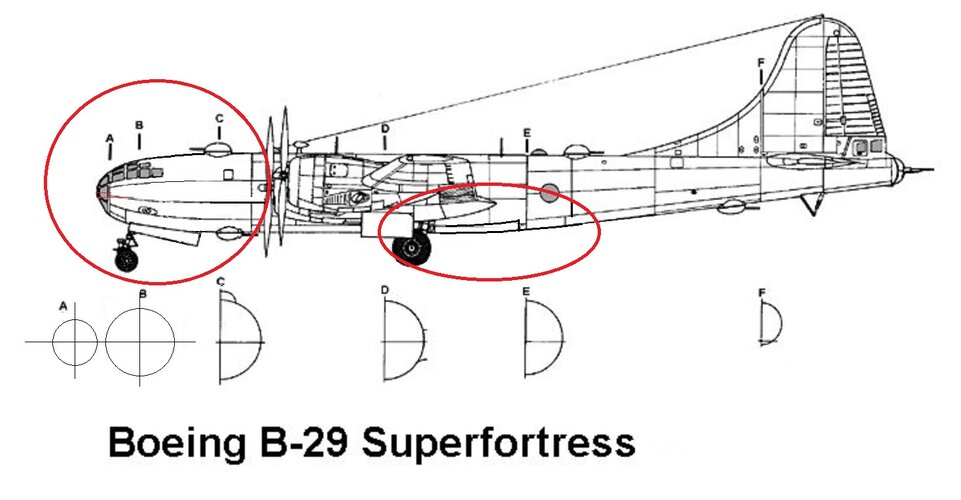

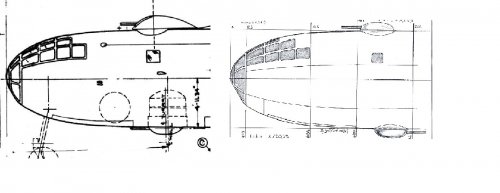

To the left the definition Boeing, to the right mine... Small distortion on the length of the dome of the bomber but I think of being right (pride?) further to analysis of photos in several works. Besides I assert that 90 % of the plans 3 views (except facsimile!) in the works are false : the section before is of circular section centered on all its length! B-29 has no nose which sticks up upward or subsides downward ! It is perfectly symmetric on all the axes ...

@+++

Tonton


Attachments

  • B-29PLAN-comparaison.jpg
    124.9 KB · Views: 174

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
Hi !

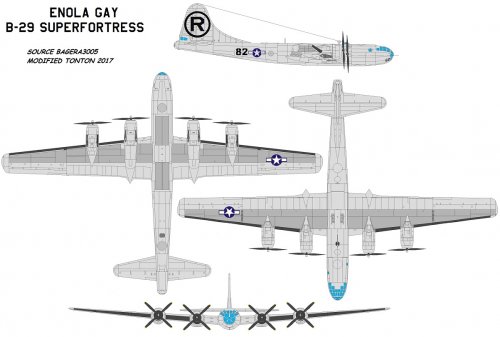

I've slightly modified with Paint the Bagera's drawing of Enola Gay for better accuracy. It's far to be perfect but it seems the pure lines of the Superfort better without turrets and blisters. Many people prefers another American bomber, B-17 essentialy, but the Superfort synthesize what will be the aviation according to war ...



@+++

Tonton


Attachments

  • Enola_Gay_B_29_Superfortress_by_bagera3005modifiéDJ2.jpg
    162.5 KB · Views: 181

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
Hi !

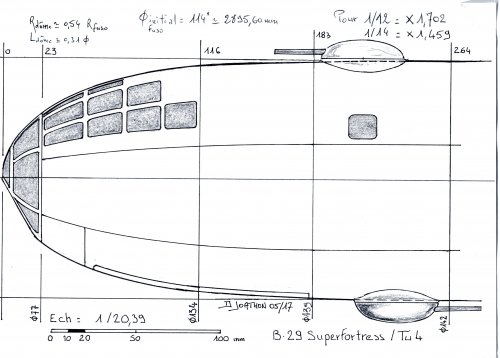

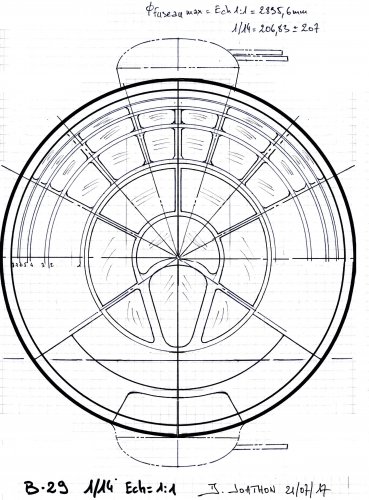

Well, here is my interpretation of the forward pressurized section of the B-29. The couples are positioned as shape as I know, and for their diameters, I find the resembling silhouette ! If one day
I launch the manufacturing, it is from there that I shall make it !

Go! It is only the beginning !


Attachments

  • B-29-FACE1-PETIT.jpg
    386.7 KB · Views: 129
  • B-29-AVG1-PETIT.jpg
    366.8 KB · Views: 119

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
Jemiba said:
As I understand, the size of the drawing is the problem ? There should be accurate 3-views on the net, but
scaling them to the 1/14 scale actually may not be the best solution.
But from wiki, you can download a 3-view as a svg- (vector graphic) file (https://de.wikipedia.org/wiki/Datei:Boeing_B-29_Superfortress_3-view.svg,
which can be enlarged without loss of quality. And modifying and improving it, is quite simple, too. And you
probably don't need the postion of every rivet, do you ?
There are commercial drawings available, but I don't know, if they really are better.

Dear Jemiiba,

I do apologize for not having answered immediately something most detailled :-[, but my English is approximate ::) and a health worry tortures me a little. My objective is not of course to draw a hyperdetailed model but at less give it the best exact forms because as said higher the simplicity of the forms is not necessarily the easiest to be reproduced. Besides in one of my reference docs (B&S Vol.10 p.29 better than Warbirdtech Vol.14 p.11?) I indeed found the reproduction of the location of the frames of fuselage as well as ribs of wings and stabilizing plans. There is neither diameters nor length of the nervures other than extremities (I bought the plans Aerospace, but the most beautiful girl of the world cannot give that what she has...). However it is already that and I progress to give something usable and totaly free rights for fans who would like build a "little" 1/14 B-29, electical engined or PSS ... has condition to know how to stick two pieces of wood and of polystyrene. What I do not doubt ;D !

Regards

Tonton


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70

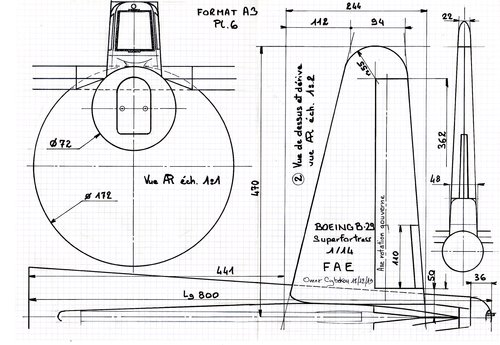

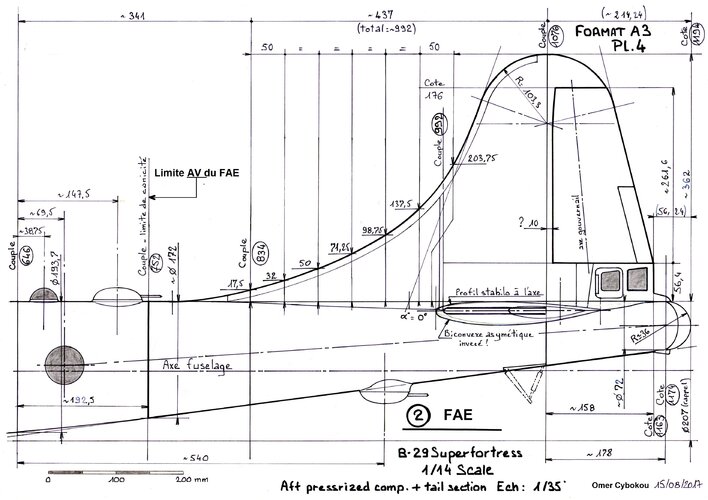

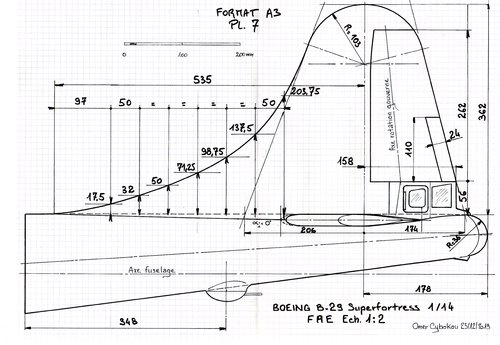

After several weeks of silence due to intense physical poverties (the old age is a wreck said the General!), I decide to publish my interpretation of the back fuselage of B-29 1/14 scale. If you have criticisms ...


Attachments

  • IMG_3992.JPG
    1.8 MB · Views: 135

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70

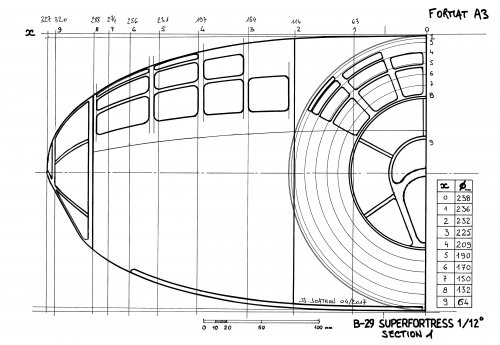

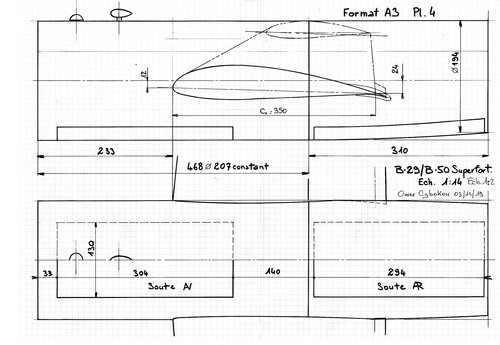

The acquisition of a scanner A3 allow me to put this plan in 1/12 of the section 1 of the fuselage of the Superfort


Attachments

  • B-29-1%12-SECTION1.jpg
    1.6 MB · Views: 94

Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70

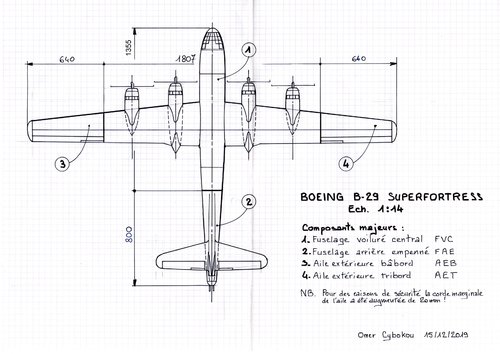

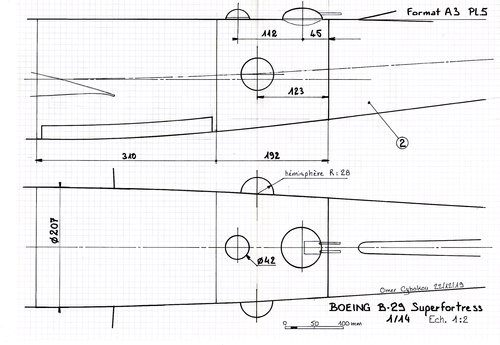

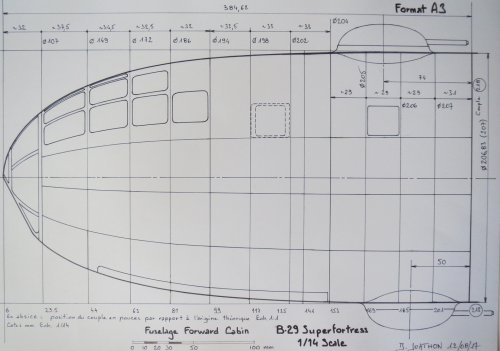

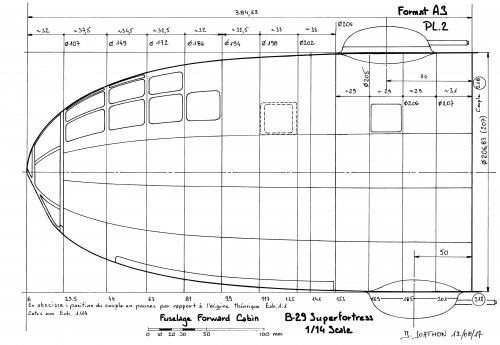

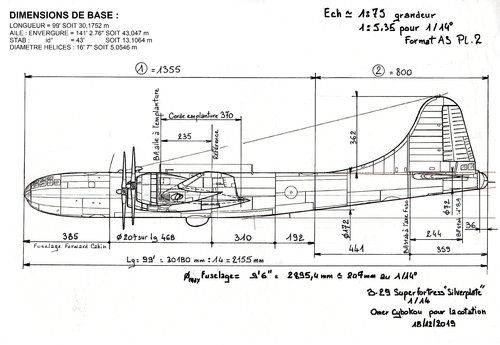

Well, well, that's made ... I have just scanned in A3 with my new scanner the first 2 boards of my B-29 in 1/14!

@+++

Tonton


Attachments

  • B-29-1%14-DJ.jpg
    2 MB · Views: 103
  • B-29-1%14-DJ_0001.jpg
    1.3 MB · Views: 104
Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,136
Reaction score
4,579
Kudos and "bravo" to you. You are one brave modeler to tackle such big projects.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,159
Reaction score
1,072
Nicely done, Sir. A great thing you do.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559

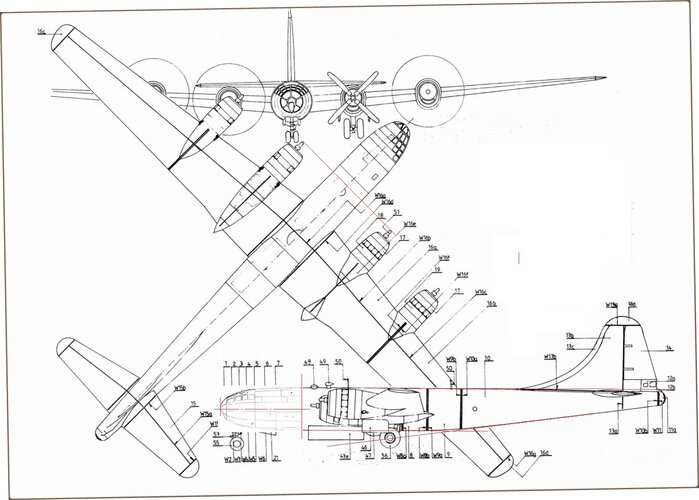

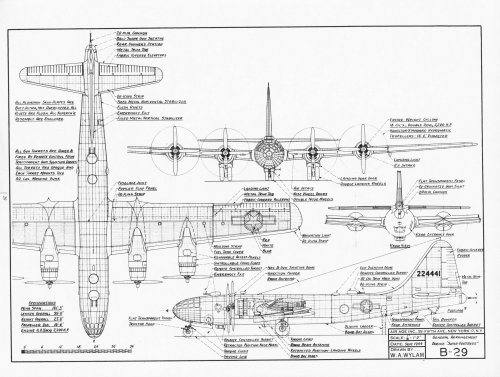

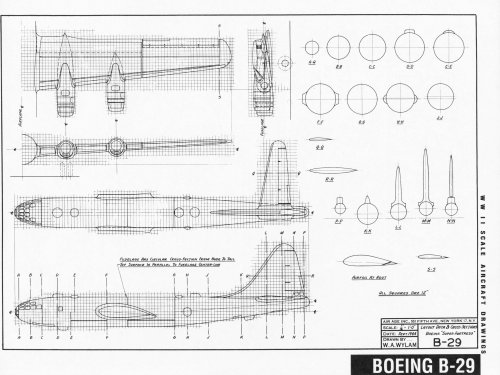

It's always funny to compare scale drawings of the same aircraft from the various ages and sources...


Attachments

  • S021_Boeing B-29_AIR Age.jpg
    S021_Boeing B-29_AIR Age.jpg
    640.5 KB · Views: 151
  • S020_Boeing B-29_AIR Age.jpg
    S020_Boeing B-29_AIR Age.jpg
    777.6 KB · Views: 151

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,159
Reaction score
1,072
Not that long ago there was a B-29 salvage attempt, an aircraft on the ice in Greenland I think. Ended up completely burned out which was a crying shame. What a missed opportunity.


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
flateric said:
It's always funny to compare scale drawings of the same aircraft from the various ages and sources...

Hi !

Thank's to all guys !

I knew these drawings but they are completely wrong ;D ;D ;D ! That's why I do the mines from pictures and Boeing plans !!! Very modestly, of course B)

There is many years I began to draw the B-29 ...

@+++

Tonton


Attachments

  • BOEING B-29 -DJ01.jpg
    994.9 KB · Views: 151
  • BOEING B-29 -DJ02.jpg
    BOEING B-29 -DJ02.jpg
    591.7 KB · Views: 222

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,559
That's an aircraft that deserves it. My respect for your enormous effort.


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
flateric said:
That's an aircraft that deserves it. My respect for your enormous effort.

My favorite American bomber of the Second World War ... ;)


m1lkman

ACCESS: Restricted
Joined
Oct 3, 2006
Messages
18
Reaction score
1
Foo Fighter said:
Not that long ago there was a B-29 salvage attempt, an aircraft on the ice in Greenland I think. Ended up completely burned out which was a crying shame. What a missed opportunity.
I saw that video - I had the tears welling up in my eyes at the end. Still one of the most frustrating pieces of film I ever saw. Heartbreaking - after all that work they put in. Considering how close the came actually flying the plane. As I said, gut wrenching...


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
m1lkman said:
Foo Fighter said:
Not that long ago there was a B-29 salvage attempt, an aircraft on the ice in Greenland I think. Ended up completely burned out which was a crying shame. What a missed opportunity.
I saw that video - I had the tears welling up in my eyes at the end. Still one of the most frustrating pieces of film I ever saw. Heartbreaking - after all that work they put in. Considering how close the came actually flying the plane. As I said, gut wrenching...

It is sad to cry indeed ! So much spent energy and currency also to finish so brutally !

Tonton attristé

https://www.youtube.com/watch?v=PpR2S_gu5I8


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70
B-29 AILE 1.jpg

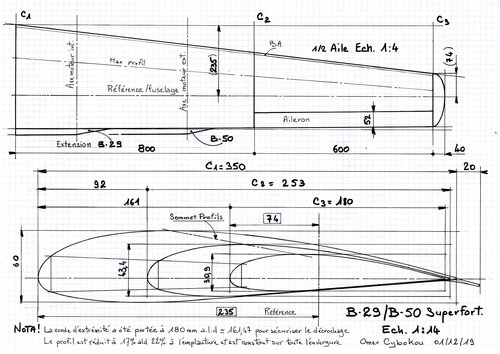

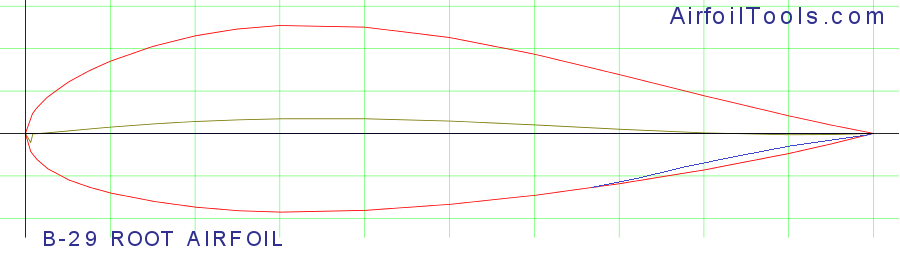

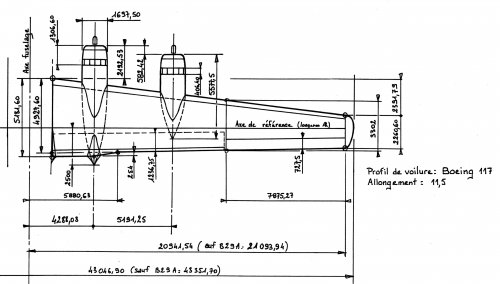

That is my design for the wings. Because the scale is 1/14 I've increased 20 mm the the wingtip for better caracteristic at low speed. The airfoil is constant on the wingspan and less thick at the root and more at the wingtip. I hope that will be better for a flying model. The airfoil is largely inspired from NACA 44xx series ...


Tonton-42

ACCESS: Confidential
Joined
May 10, 2014
Messages
85
Reaction score
70

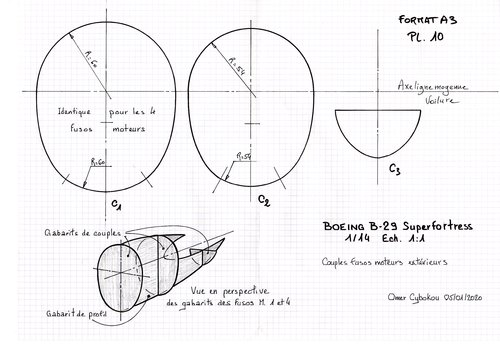

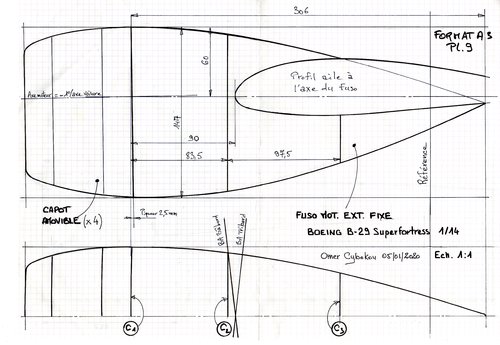

It was very hard to do perfect view of the external engines structure from only pictures and fake drawings I must appreciate ... this is my personal interpretation of the forms ... but likelihood is not truth, alas ! I think the internal engines will be too difficult because they support the legs of the main undercarriage and nothing is right !..
9-B-29 1%14 FUSO MOT EXT 1%2.jpg 9-B-29 1%14 FUSO MOT EXT 2%2.jpg


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,159
Reaction score
1,072
I was quite disappointed that the US Air force did nothing to assist recovery of a piece of their heritage.

On topic, your project is a marvel and I feel very privileged to see it taking shape. Thank you.
