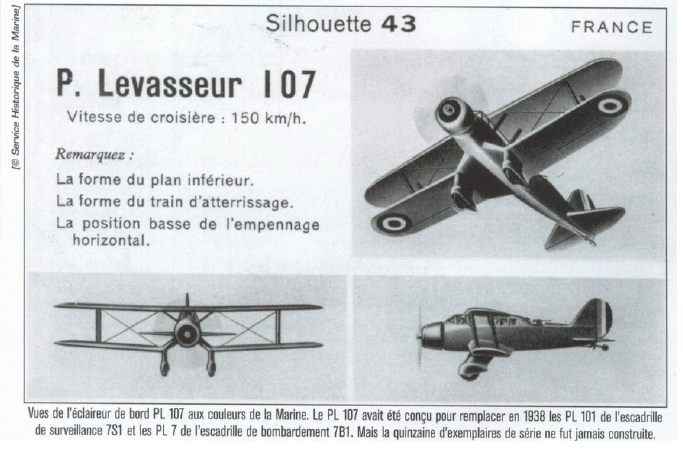

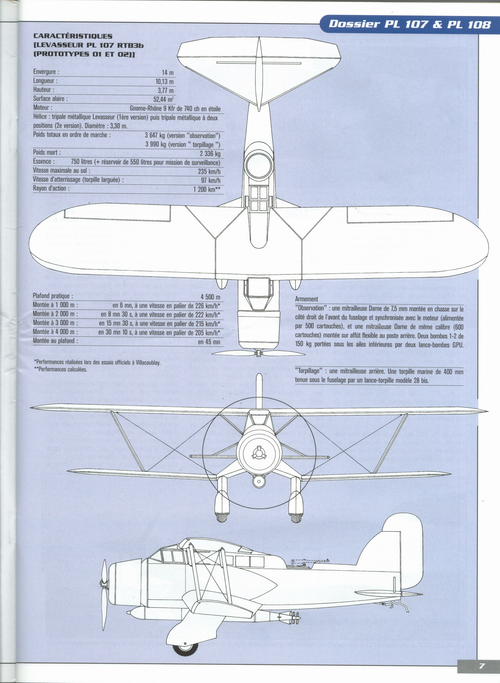

Hi! Levasseur PL.107 and PL.108 torpedo bomber.
https://en.wikipedia.org/wiki/Levasseur_PL.10

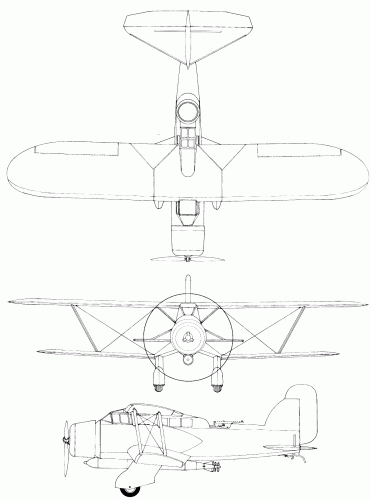

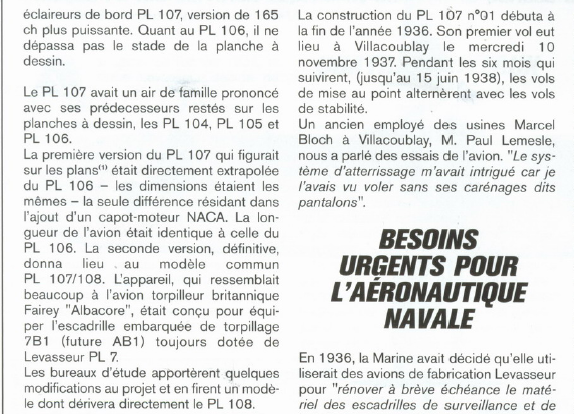

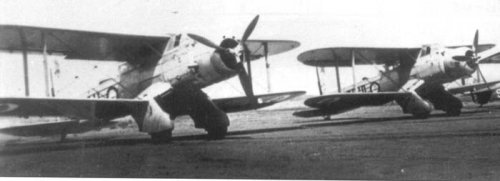

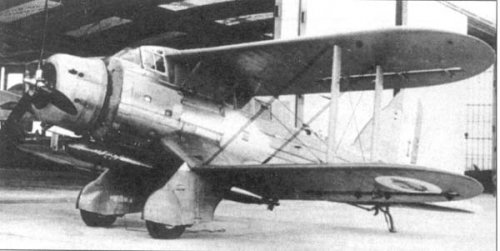

"The PL.10 also radically revised in the PL.107 torpedo bomber prototypes of 1937. These featured a fully enclosed cockpit that also enclosed the mounting between the fuselage and upper wing, therefore moving the fuselage higher in the interplane gap. To compensate for this, the lower wing was replaced with one of inverse gull design, and the main undercarriage units were moved to its "low points" and provided with spats. Two prototypes were evaluated and rejected by the Aéronavale. Levasseur then made one final attempt to sell the PL.10 design in the PL.108, which was generally similar to the PL.107s. This first flew on 26 September 1939, but proved no more promising than its predecessors."
"PL.10 - original version with Hispano-Suiza 12Lb engine (30 built)
PL.101 - revised version with Hispano-Suiza 12Lb engine, wider-track undercarriage, and slight sweepback on the wings (30 built)

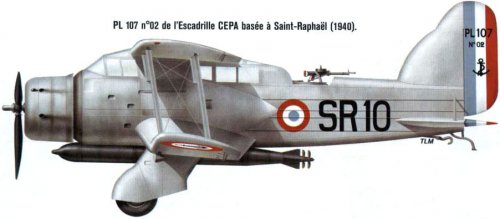

PL.107 - torpedo bomber version with enclosed cockpit, new lower wing, spatted undercarriage and Gnome-Rhône 9Kfr engine (2 built)

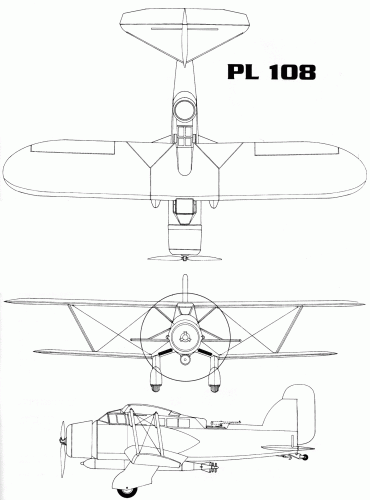

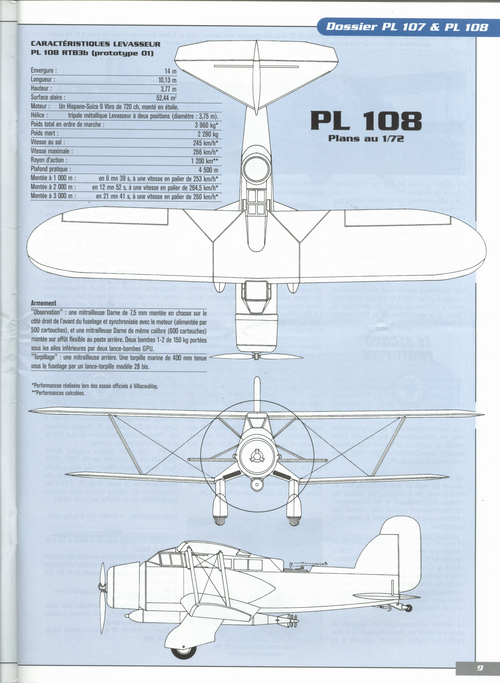

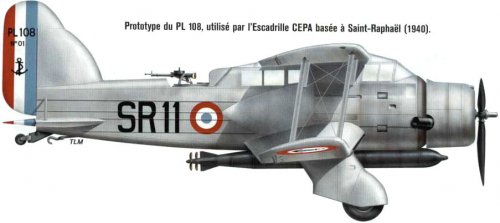

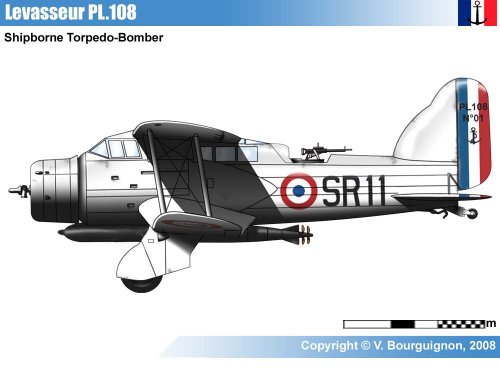

PL.108 - similar to PL.107, but with Hispano-Suiza 9Vbrs (1 built)"
https://en.wikipedia.org/wiki/Levasseur_PL.10
"The PL.10 also radically revised in the PL.107 torpedo bomber prototypes of 1937. These featured a fully enclosed cockpit that also enclosed the mounting between the fuselage and upper wing, therefore moving the fuselage higher in the interplane gap. To compensate for this, the lower wing was replaced with one of inverse gull design, and the main undercarriage units were moved to its "low points" and provided with spats. Two prototypes were evaluated and rejected by the Aéronavale. Levasseur then made one final attempt to sell the PL.10 design in the PL.108, which was generally similar to the PL.107s. This first flew on 26 September 1939, but proved no more promising than its predecessors."
"PL.10 - original version with Hispano-Suiza 12Lb engine (30 built)
PL.101 - revised version with Hispano-Suiza 12Lb engine, wider-track undercarriage, and slight sweepback on the wings (30 built)
PL.107 - torpedo bomber version with enclosed cockpit, new lower wing, spatted undercarriage and Gnome-Rhône 9Kfr engine (2 built)
PL.108 - similar to PL.107, but with Hispano-Suiza 9Vbrs (1 built)"
