Large Letov Airliner Concepts - 1924

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
From Flight, 19 June 1924 http://www.flightglobal.com/pdfarchive/view/1924/1924%20-%200399.html

Three wild and wonderful monoplane airliner designs from Alois Smolík at Letov.

The first has four unspecified Hispano-Suiza engines (Skoda-built 8Fb, perhaps?) in a tandem push-pull arrangement. Otherwise the layout is fairly conventional.

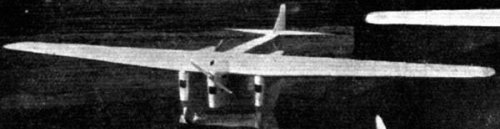

The second is a high-winged trimotor - nose-mounted tractor and wing nacelle pushers. Both fuselage nose and nacelles are very deep (the latter acting as spats for the main undercarriage).

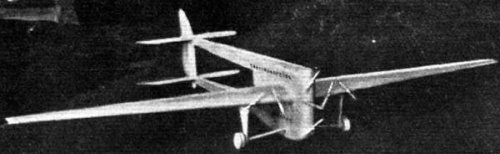

The third is for Tophe ;D This aircraft has seven tractor propellers. Four engines are buried in the thick wings. The other three are stacked vertically in the extremely deep nose.

The fuselage is a vertically-arranged twin-boom and pod design. Passengers rode above and below the mid-placed wing.

The photo of the model is hard to read. There may be a third row of passenger windows directly below the wing. If so, the three passenger cabins are stacked vertically just like the fuselage-mounted engines :eek:


Attachments

  • letov-s15-concept-4engine-flight.jpg
    24.2 KB · Views: 443
  • letov-s15-concept-3engine-flight.jpg
    23.3 KB · Views: 411
  • letov-s15-concept-7engine-flight.jpg
    27.3 KB · Views: 428

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
There seems to have been a strong french influence, these designs remind me to
some Bleriot or Farman designs of the same era, weird and ugly, nevertheless
very interesting ! ;D


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
Yes, definitely something Farman Jabiru-ish about those noses :D I don't recall anything quite like that seven-engined number 3 concept, though.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
??? :-\ ???
Some changes in the designation, according to V. Nemechek "Czechoslovak aircraft 1918-1945" Volume 1.,

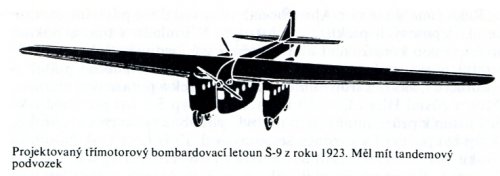

where should that photo number 2, trimotor bomber S-9 / 1923 / (although the Czech transcription correct to say Sh-9),

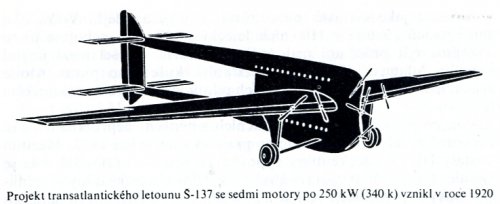

In the picture number 3, project transatlantic airliner S-137 / 1920 /


Attachments

  • Letov S-9.jpg
    Letov S-9.jpg
    87.3 KB · Views: 373
  • Letov S-137.jpg
    Letov S-137.jpg
    111.4 KB · Views: 372

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
borovik said:
Some changes in the designation, according to V. Nemechek "Czechoslovak aircraft 1918-1945" Volume 1.,
where should that photo number 2, trimotor bomber S-9 / 1923 / (although the Czech transcription correct to say Sh-9),
In the picture number 3, project transatlantic airliner S-137 / 1920 /

Thanks Borovik. I went with 'S' because I wasn't sure if the forum would support the hachek.

The designations are confusing! The simplest explanation is that the Flight correspondent hear one designation (S-15) and assuming that this applied to all three models.

Your drawing are much clearer than the Flight photos. The S-9 may well have been a bomber but the images show airliner-like rows of windows. Perhaps there was more than one derivative planned?

The S-137 designation is even more confusing. Whatever happened to the S-37? ??? I'm going to assume that the S-137 is derived from a currently unknown S-37.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

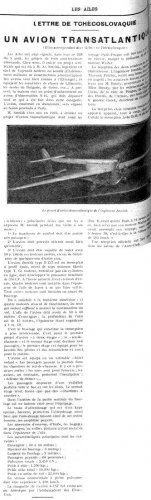

The Smolik S.137 from Les Ailes, 9 September 1926:


Attachments

  • Smolik S-137.jpg
    Smolik S-137.jpg
    106.4 KB · Views: 57

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

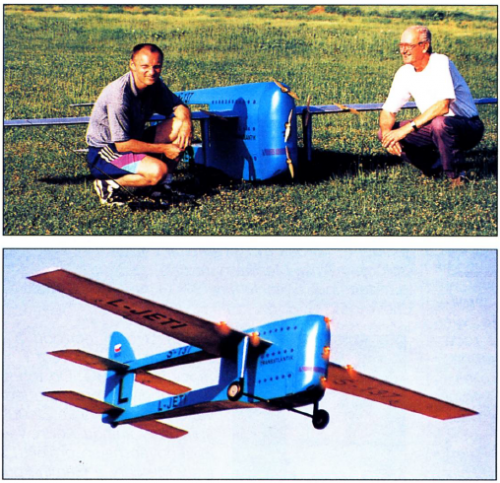

here is a recently Model to S-137.

Letectvi a Kosmonautika 1998-22


Attachments

  • 1.png
    570.2 KB · Views: 48

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Any idea what the designers were attempting to achieve with the S-137?
