Lasserre Libellule, twin-boom 1946

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr

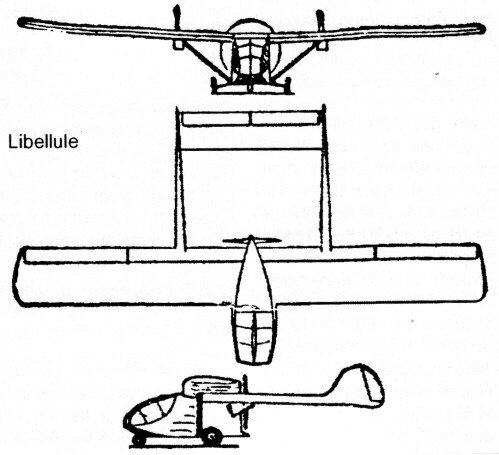

In the Trait d'Union #244 (March-April 2009) is presented the Lasserre Libellule (dragonfly), revealed in "L'Aviation Française" of 1946. M. Lasserre was engineer at the SNCASO ('Sud-Ouest') company and wanted to create a fuel efficient airplane. It was being built in 1946 by the Pierre Trébod air-club but never finished it seems. Side by side two-seater with double commands. All in wood. Landing speed as low as 50km/h. Span 13m, Length 7.5m, Height 1.9m, Total weight 550kg, Max speed 130km/h."
I think I know it as "Aerosudouest Libellule" from another source. I have to check.


Attachments

  • r_tu244.JPG
    46.1 KB · Views: 444

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr

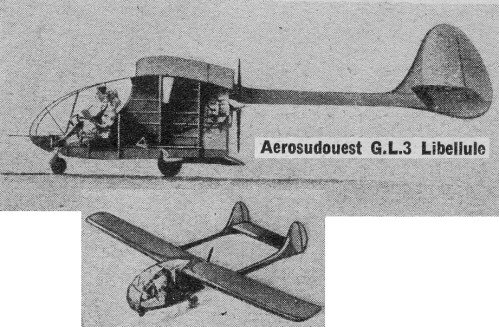

Yes: in The Aeroplane Spotter Vol. VII No. 177 I found confirmation.
The reason of the twin-boom layout seems good visibility and easy access with a pusher propeller, like in many pre-war projects and prototypes.


Attachments

  • r_AeSp177r.JPG
    61.1 KB · Views: 427

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,953
Reaction score
2,972
Tophe said:
It was being built in 1946 by the Pierre Trébod air-club but never finished it seems. Side by side two-seater with double commands.

Would I be right in thinking that engine availability, or rather lack of it, is what killed off the Libellule? Quite a few French projects in the immediate post-war period fell by the wayside because of lack of suitable engines, or so I believe.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
Maybe. The type of engine is not mentionned. It is only explained that the goal was 10 liters of fuel for 100 kilometers at 100km/h (almost like a car of that time I think), a 4-hour flight should have been possible.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr

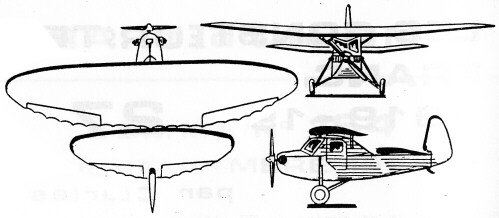

The name "Libellule" was also used for a French aircraft designed "after-hours" by an engineer of a public company: Henri Brouard of SNCAM in 1937. It had tandem wings but was not of the "Pou du Ciel" principle, simply with classical controls.
(Source: Trait d'Union #164, Nov-Dec 1995)


Attachments

  • r_tu164.JPG
    26.1 KB · Views: 401

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
Grey Havoc said:
Tophe said:
It was being built in 1946 by the Pierre Trébod air-club but never finished it seems. Side by side two-seater with double commands.

Would I be right in thinking that engine availability, or rather lack of it, is what killed off the Libellule? Quite a few French projects in the immediate post-war period fell by the wayside because of lack of suitable engines, or so I believe.

AFAIK, it was the lack of FRENCH engines, that could be obtained without the need for spending foreign currencies.
US engines would have been available, but only for payment in US $, which were in short supply in the European
countries during the early post-war years, not only in France.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

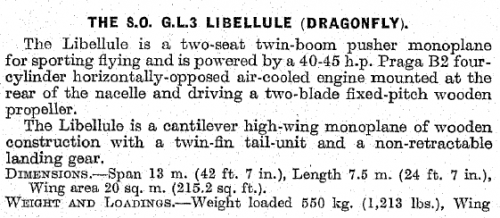

From JAWA 1947.


Attachments

  • 1.png
    36.6 KB · Views: 128
  • 2.png
    11 KB · Views: 128

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

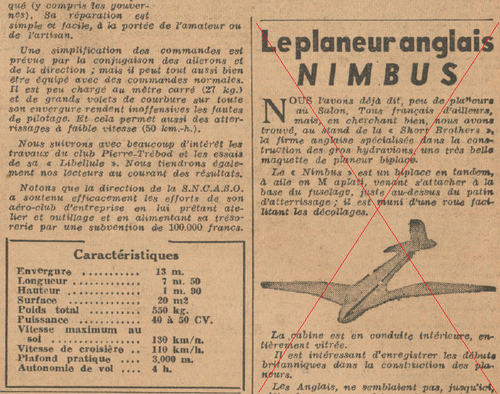

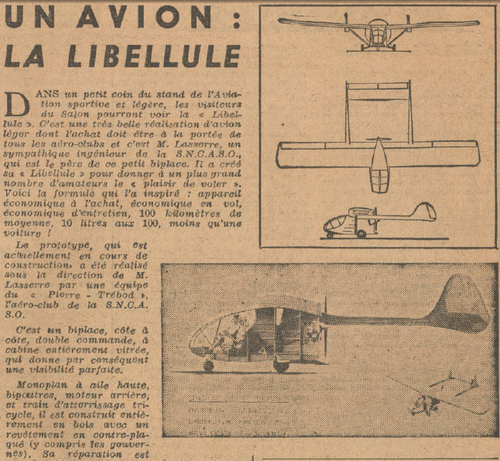

From Aviation Francaise 1946.


Attachments

  • 1.png
    816.8 KB · Views: 24
  • 2.png
    715.3 KB · Views: 28

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
The name "Libellule" was also used for a French aircraft designed "after-hours" by an engineer of a public company: Henri Brouard of SNCAM in 1937. It had tandem wings but was not of the "Pou du Ciel" principle, simply with classical controls.
(Source: Trait d'Union #164, Nov-Dec 1995)

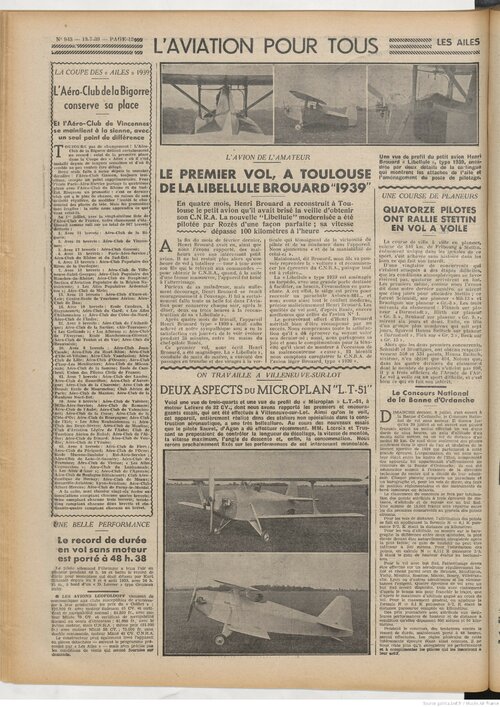

From Ailes.


Attachments

  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k6554703p_12.jpeg
    1.9 MB · Views: 14
