Hi,

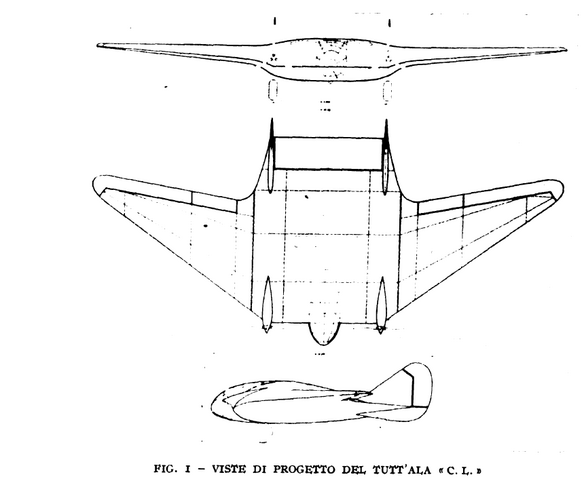

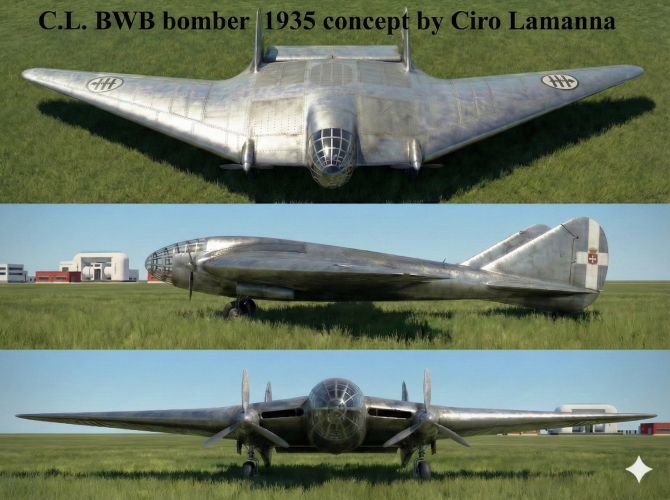

a flying wing bomber or BWB by recent language,it was tested
in model wing tunnel form in 1935.


Attachments

  • Lamanna bomber.jpg
    Lamanna bomber.jpg
    23.1 KB · Views: 542

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
Lamanna 1935 and the name of the magazine L'Aerotecnica sounds Italian
or French ... I dont know but the illustration comes from:

http://www.twitt.org/PreBurnelliPatents.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206

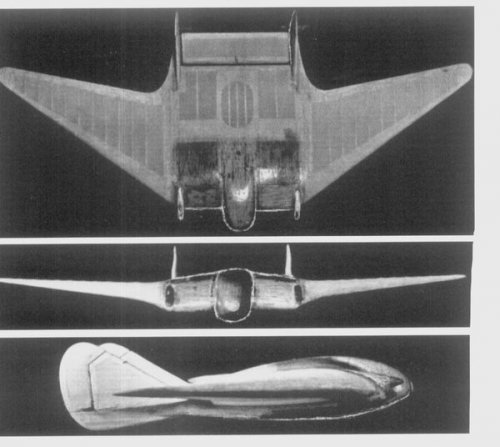

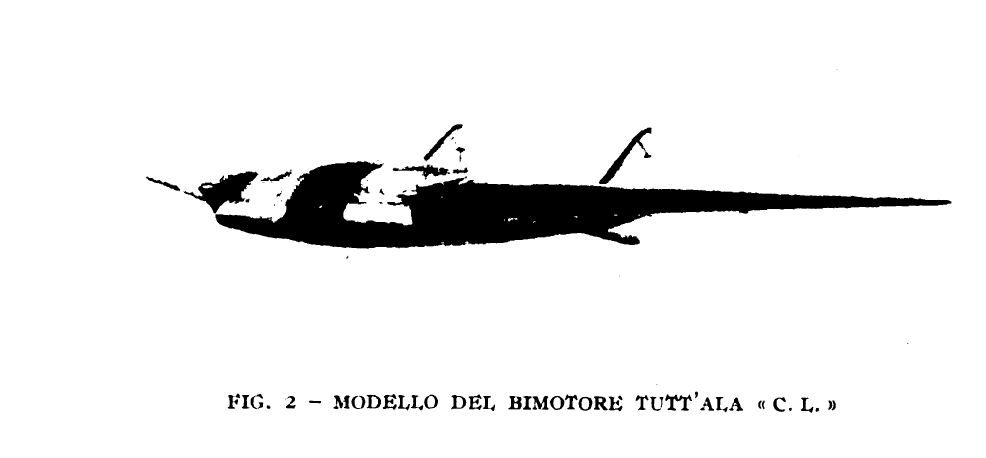

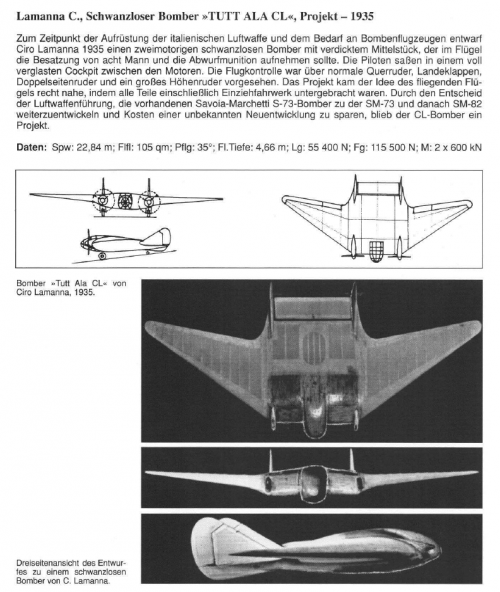

The same drawing was published in in R.Storck "Flying Wings", with
the additional pictures of what may have been a wind tunnel model.
Designed by Ciro Lamanna under the designation "Tutt Ala CL" in 1935,
it would have been a twin engined bomber with a crew of eight.
Span was 22,84m, wing sweep 35° and wing area 105 qm.


Attachments

  • Lamanna.JPG
    41 KB · Views: 409

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
Jemiba said:
The same drawing was published in in R.Storck "Flying Wings", with
the additional pictures of what may have been a wind tunnel model.
Designed by Ciro Lamanna under the designation "Tutt Ala CL" in 1935,
it would have been a twin engined bomber with a crew of eight.
Span was 22,84m, wing sweep 35° and wing area 105 qm.


My dear Jemiba,


can I ask you if this designer was French or not ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
lark was faster, thank you ! ;)
No other information in the mentioned book besides that the project was axed
by the decision of the airforce to develop the Savoia-Marchetti S-73 into the SM-73
andf then the SM-82 and so to spare the money needed for this completely new type.


!Mark

ACCESS: Restricted
Joined
Aug 4, 2019
Messages
25
Reaction score
18

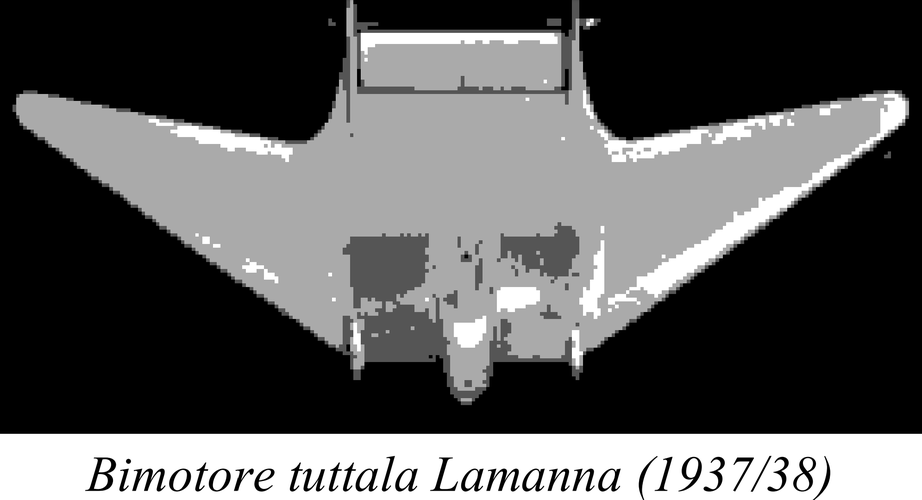

I had found this in a pdf file but the quality is bad, I'm glad that I found more about this plane!


Attachments

  • bimotore tuttala lamanna.png
    bimotore tuttala lamanna.png
    53.2 KB · Views: 35
