Kleinst-Uboottyp XXXII

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hello :),

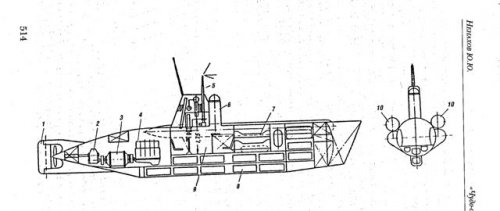

let me show a drawing I found in a russian book, "Chudo Orujie Tretego Reixa".
The author calls it a "Walross", Walrus in english, but crossing it`s characteristics with data on Eberhard Roessler`s "Geschichte des Deutschen Ubootbaus", band 2, page 469, It most probably matches the "Kleinst-Uboottyp XXXII", Type XXXII mini-submarine. Larger than the "Seehund", it would have the same propulsion plant. Notice the torpedo arrangement not below the hull, as usual.


Attachments

  • Submarino.jpg
    27 KB · Views: 245

shaba

ACCESS: Confidential
Joined
Jan 28, 2008
Messages
124
Reaction score
2
nice find wurger i had always thought it was based on the seehund but this looks more like a biber derivative.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
26
To Wurger: Thanks for this drawing !
I am searching for a drawing of the "Tümmler" ?

Many greetings


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
986
Reaction score
131
Hi guys :),

nice to have Kriegsmarine fans around here. On the Type XXXII, probably a bit of "Biber" and "Seehund". Regarding the "Tümmler", I do not know about any drawings. Roessler does mention the project, but no pics.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
228
Looks like an improved Seehund. Having the torpedoes at the top allows them to be reloaded without removing the mini-sub from the water, assuming a radical stern down attitude or using divers. That is it makes it a lot easier to do tied up beside a wharf!
