Kentron GATP aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840019651_1984019651.pdf


Attachments

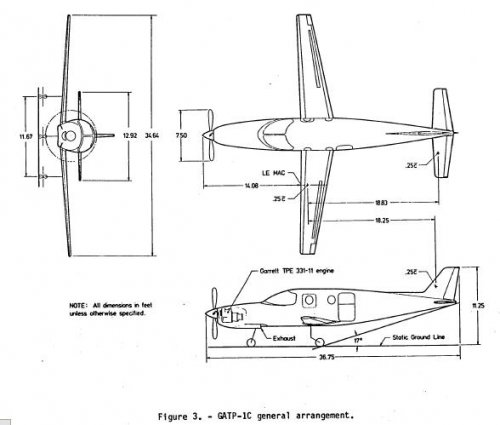

  • GATP 1.JPG
    GATP 1.JPG
    31.9 KB · Views: 230

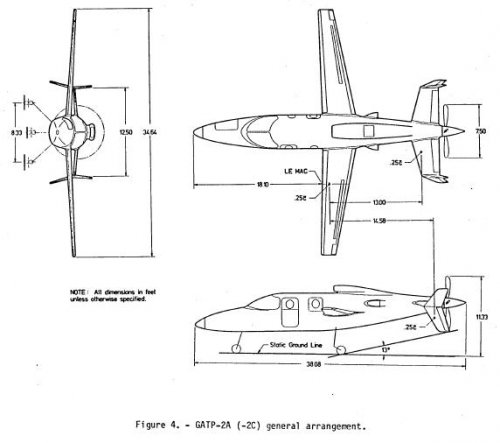

  • GATP 2.JPG
    GATP 2.JPG
    31.5 KB · Views: 237

kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,314
Reaction score
136
TinWing said:
hesham said:
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840019651_1984019651.pdf

Any relationship between these designs and the failed ACE (All Composite Evaluator) program?

http://www.airliners.net/search/photo.search?regsearch=ZU-AHE&distinct_entry=true

The South African company Kentron was a missile design house and missile manufacturer. The ACE or Ovid was designed by Aerotek and built by Atlas Aircraft, who would have been the manufacturer had it been chosen to replace the SAAF Harvards.

I assume this Kentron in the first post is a US company?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459
More Kentron in this report (here described as an LTV company, so possibly distinct from the Australian eponymous company):

A study was conducted to determine whether a general aviation airplane powered by one turboprop engine could be configured to have a speed, range, and payload comparable to current twin-engine turboprop aircraft and also achieve o'" a significant increase in fuel efficiency. An airplane configuration was developed which can carry six people for a no-reserve range of 2 408 km (l 300 n.mi.) at a cruise speed above 154 m/s (300 kt) and a cruise altitude above 9 144 m (30 000 ft). This cruise speed is comparable to that of the fastest of the current twin turboprop-powered airplanes.

DESIGN AND ANALYSIS OF A FUEL-EFFICIENT SINGLE-ENGINE, TURBOPROP-POWERED, BUSINESS AIRPLANE, August 1981


Attachments

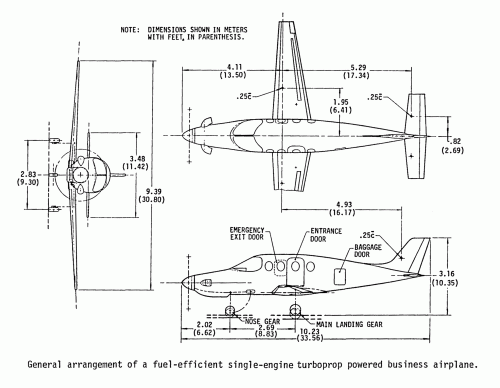

  • Fuel-efficient single-engine turboprop-powered business airplane - General arrangement.gif
    Fuel-efficient single-engine turboprop-powered business airplane - General arrangement.gif
    387.5 KB · Views: 167

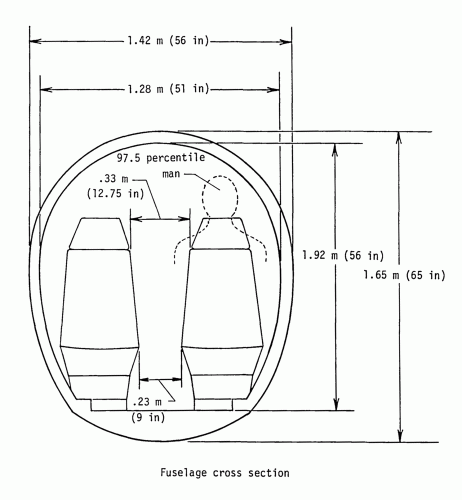

  • Fuel-efficient single-engine turboprop-powered business airplane - fuselage cross section.gif
    Fuel-efficient single-engine turboprop-powered business airplane - fuselage cross section.gif
    220.6 KB · Views: 145

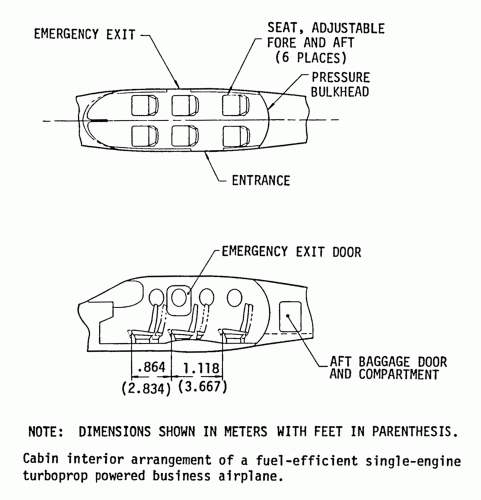

  • Fuel-efficient single-engine turboprop-powered business airplane - Cabin interior arrangement.gif
    Fuel-efficient single-engine turboprop-powered business airplane - Cabin interior arrangement.gif
    231 KB · Views: 128
