Kawasaki PX-L/GK 520 ASW, Prototypes, Projects & Contenders

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
56

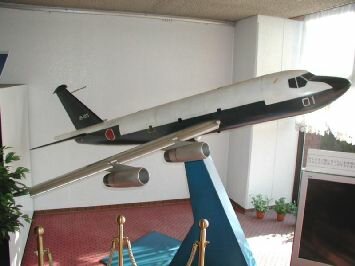

The Kawasaki PX-L was a late 1970s concept for a turbofan powered Maritime Patrol Aircraft to replace the P-2J Neptune. At the time, Japan opted instead for the licensed production of the Lockheed P-3C.

The original print version of the Flight International article featured a picture of a PX-L model.

It should noted that the current Kawasaki PX is not merely a continuation of the cancelled PX-L, despite obvious similarities in size and overall concept.


Source:
http://www.flightinternational.com/Articles/1997/06/11/3716/USA+and+Japan+study+MPA.html

Image Source: Unknown?


Attachments

  • PX-L_1.jpg
    41.7 KB · Views: 1,795

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,539
Reaction score
3,792
Air International, June 1976 has a small item on Kawasaki P-XL having a greatly enhanced chance of being built as the result of abandoning plans to procure the P-3 as an interim solution, with the P-2J production line being retained. Development cost of the P-XL was estimated as £110m, and unit price £7.6m unequipped, and £15.5m - £18m fully equipped with ASW equipment.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147

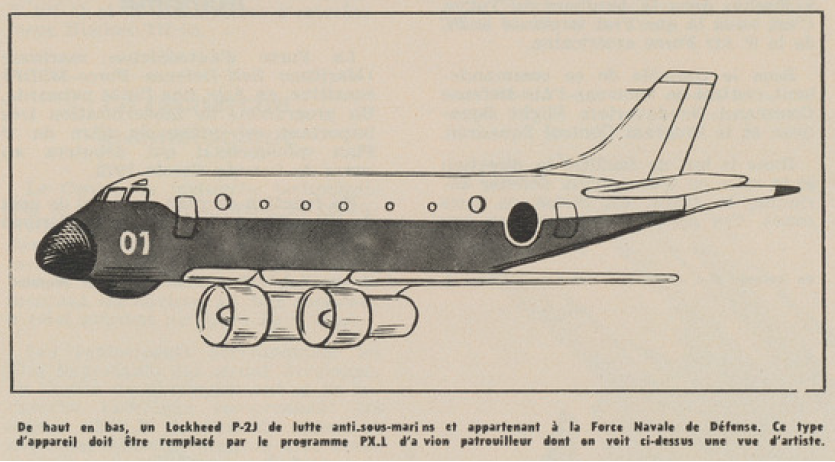

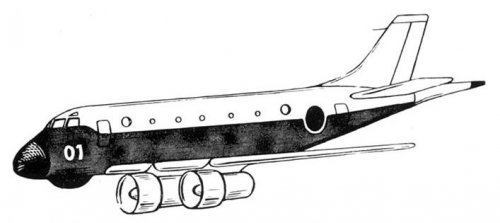

Is there anybody from Japan in the secret projects forum? "Der Flieger" 2/1972 forwarded a simple Sketch from the "Aviation Magazine" (issue?) and asked if this could be the new (Japanese) PX-L submarine hunter.

Were there different contenders for the PX-L requirement?


Attachments

  • PX-L.jpg
    27.2 KB · Views: 1,566

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5
It's alive! Or, perhaps, what goes around, comes around. Japan's idea of a four-jet MPA was reborn as the Kawasaki P-X, but this time in a joint programme with the C-X, a replacement for Kawasaki's C-1 airlifter. Hard to see on the surface what these two have in common, but apparently they share common components.

The C-X airlifter is powered by a pair of General Electric CF6-80C2s, the P-X patroller by four XF7 turbofans developed by Japan's IHI. The P-X will replace Japan's Kawasaki-built Lockheed P-3s. There was supposed to be a joint roll-out in March, but there appears to be a problem. Check this link:

http://www.flightglobal.com/articles/2007/02/13/212042/production-fault-hits-kawasaki-transport-and-mpa-projects.html


Attachments

  • Kawasaki C-X and P-X.jpg
    Kawasaki C-X and P-X.jpg
    92 KB · Views: 1,654

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,887
Reaction score
2,025

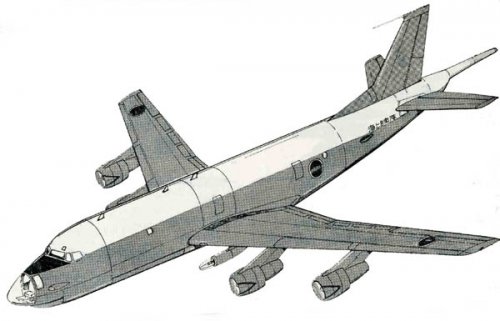

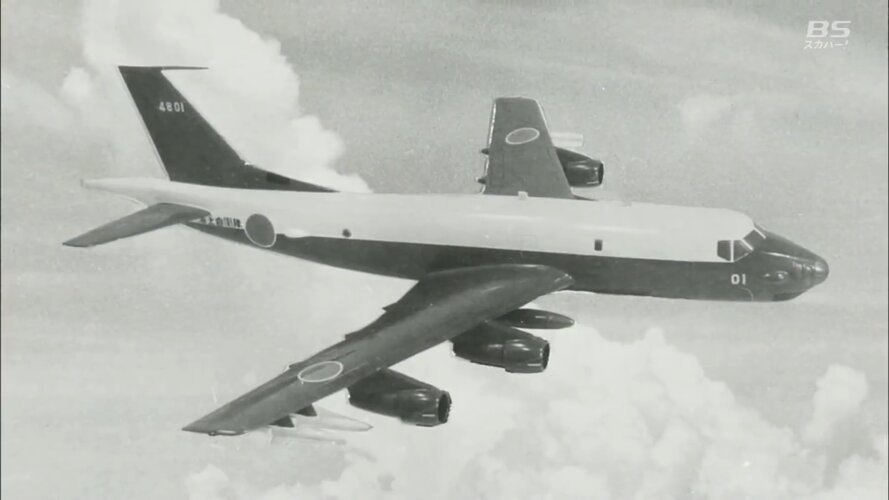

H/t phounaojamtom over at MilitaryPhotos.net for this artist impression of the PX-L (from during the period it was a TRDI project?).



The future aircraft of interest, however, is next generation ASW plane,
a four engine turbofan 50-ton experimental land-based
patrol aircraft (PXL) being managed presently by the TRDI
at a reported cost of 1500 million yen (4.2 million dollars)
for basic design work in 1971 alone; expected costs
over the next ten years total 35 billion yen (97.2 million dollars).29
<hr>
29 Japan Press Exchange Aviation Report Weekly,
August 17, 1970.

EDIT: Should have clarified, the text did not accompany the image, it's from THE POSTWAR SEA FORCES OF MARITIME JAPAN, 1945-1971. Vol. II by James E. Auer.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,036
Reaction score
111
Do you have any further information on the four-engined 737? Such as dimensions (even better a three view), engines, etc.?


zebedee

ACCESS: Confidential
Joined
Mar 18, 2007
Messages
190
Reaction score
165
Website
www.flickr.com
Afraid not... there is a copy of this picture for sale on ebay at the moment, not by me I should add... the reverse features a small description...


Zeb


Attachments

  • jmsdf737-reverse.jpg
    78.2 KB · Views: 797

NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
173
Reaction score
34
I wonder how much in common the current P-X has in common with the old indigenous proposals. Obviously the overall configuration is the same, but technology has progressed forty years.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
PaulMM (Overscan) said:
Air International, June 1976 has a small item on Kawasaki P-XL having a greatly enhanced chance of being built as the result of abandoning plans to procure the P-3 as an interim solution, with the P-2J production line being retained. Development cost of the P-XL was estimated as £110m, and unit price £7.6m unequipped, and £15.5m - £18m fully equipped with ASW equipment.


My dear Paul,

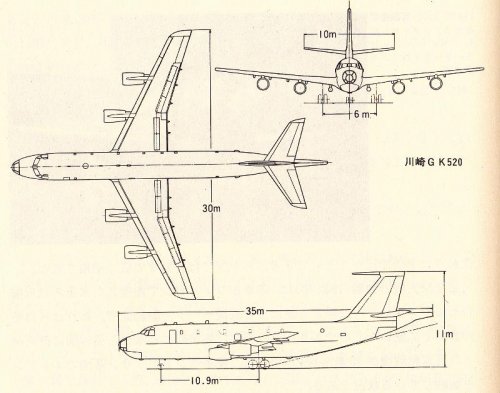

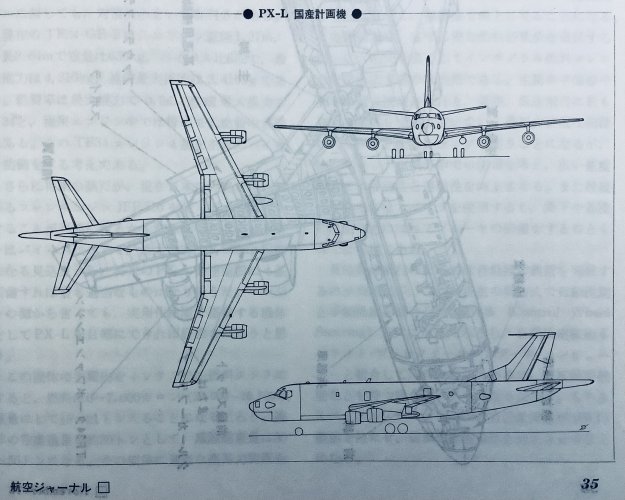

here is the Kawasaki P-XL 3-view drawing,from JP4 magazine.


Attachments

  • P-XL.JPG
    29.8 KB · Views: 157

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,888
Reaction score
237
Excellent work gents!!
Please keep at it :p

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,252
Reaction score
1,007
Kadija_Man said:
Do you have any further information on the four-engined 737? Such as dimensions (even better a three view), engines, etc.?

Sorry, a bit late, I somehow overlooked this question.

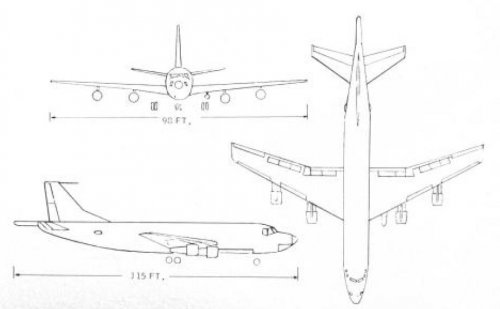

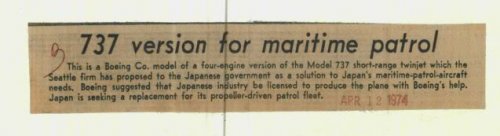

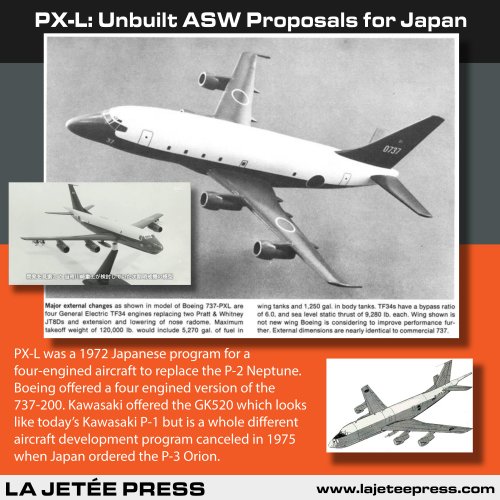

Here's the same picture from Aviation Week 1974, answering at least some questions, I think.


Attachments

  • Boeing-737PXL.jpg
    119.7 KB · Views: 84

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,468
Reaction score
2,735

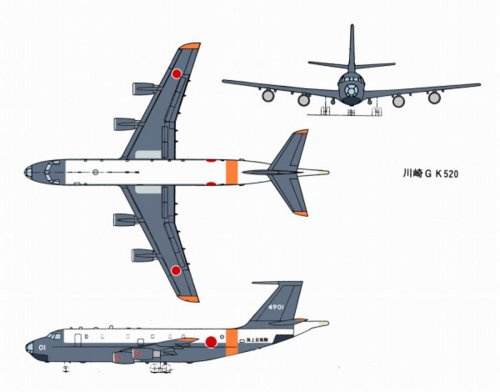

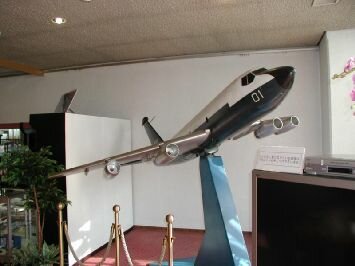

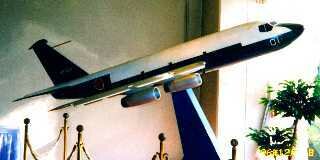

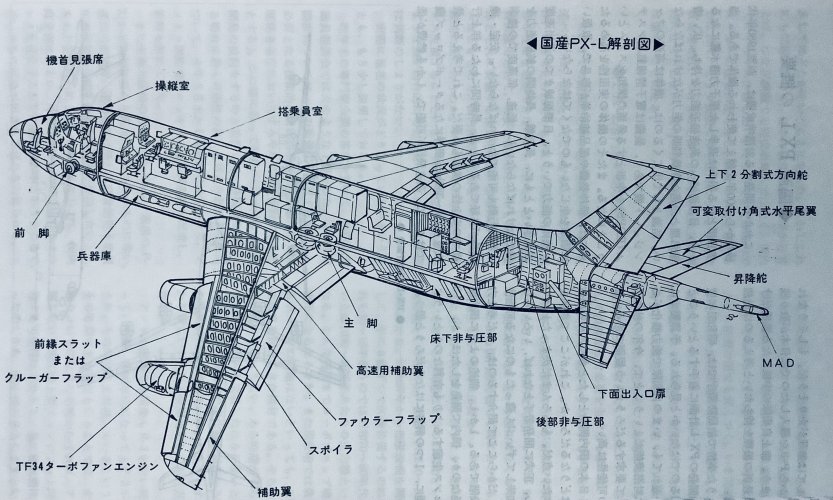

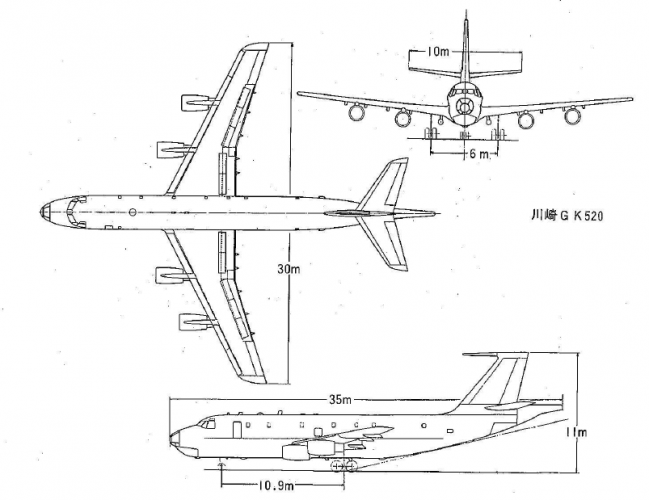

Hi! Kawasaki GK520 ASW.
Source : ISBN4-87357-014-X (as you already know.)


Attachments

  • Kawasaki GK520 ASW.jpg
    Kawasaki GK520 ASW.jpg
    65.8 KB · Views: 530

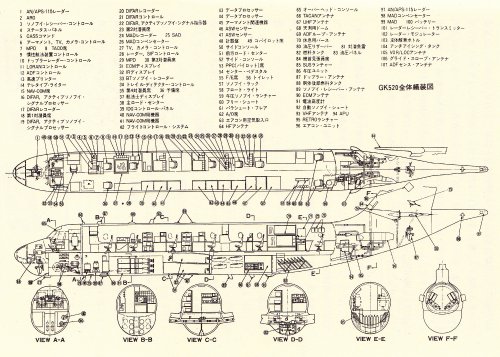

  • GK520 general arrangement.jpg
    GK520 general arrangement.jpg
    760.7 KB · Views: 530
  • GK520.jpg
    289.9 KB · Views: 476

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,468
Reaction score
2,735
Oh sorry. GK520 was the PX-L. GK520 was a name in Kawasaki.
I think it's better to merge all topics for this project.(as Cancelled Kawasaki PX-L?)

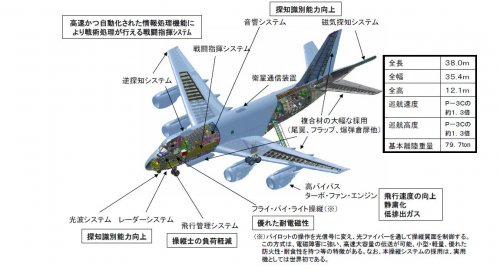

Kawasaki started PX-L research in 1967. Finished basic design in 1970. Full scale mock up was completed in summer of 1971. Cancelled in 1972. Japanese government selected Lockheed P-3C as the ASW aircraft in the end of 1978. The first P-3C reached Japan in 1981.
PX-L was a alomst same aircraft as recent Kawasaki P-1 ASW aircraft. PX-L was a very advanced project at the day.


Attachments

  • Kawasaki P-1.jpg
    Kawasaki P-1.jpg
    101.7 KB · Views: 382

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,468
Reaction score
2,735
Many thanks as usual my dear Jens. :)

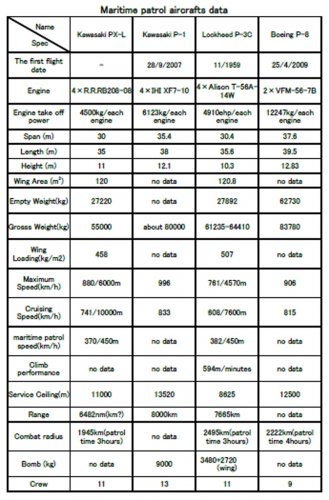

PX-L was a jet powered P-3C.


Attachments

  • data.jpg
    355.1 KB · Views: 301

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,070
Reaction score
163

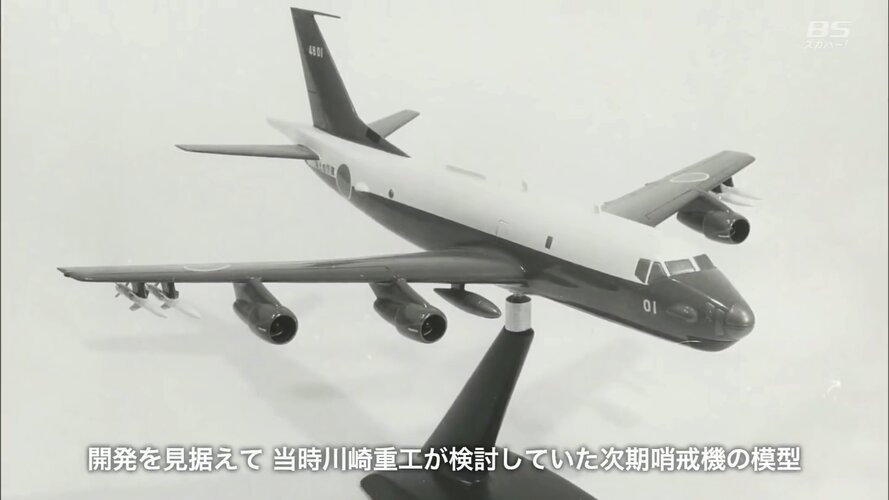

On Sunday, NHK G showed a documentary about the Japanese Government's decision to purchase the P-3C instead of the PXL, tying it into the scandal of PM Tanaka accepting bribes from the Lockheed Corporation over the Tristar. There seemed to be a good discussion about PXL, and links to the E-2C as well, but my Japanese was not good enough to get much of the discussion. Did any of our Japanese members see it? Was there any new information on the PXL?

A summary of the documentary is here: http://datazoo.jp/w/P3C%E5%93%A8%E6%88%92%E6%A9%9F/27915364
