In AVIATION, September 1946, I've found these photo of the Kaiser-Fleetwings
XBQ-2A and the YPQ-12A "pilotless bombers".
Does some of the sources mentioned in the thread about the similar Interstate drones
give more information, perhaps even drawings ?
(sorry for the bad quality, those old issues are forbidden to be copied or scanned,
so the only solution is to take photos)


Attachments

  • Kaiser-Fleetwings_XBQ-2A.JPG
    77.6 KB · Views: 599
  • Kaiser-Fleetwings_YPQ-12A.JPG
    105.8 KB · Views: 566

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
17
The YPQ-12A looks like it's based off an Erco Ercoupe, a common light aircraft of the time.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
The BQ- designator refered indeed to the "pilotless bomber" types (exemplified by the later BQ-7 and BQ-8 versions of the B-17 and B-24 bombers), while the PQ- designator was used for "aerial targets" (replacing in fact the former A- series starting with the A-8/PQ-8 Culver Cadet.

Please note that the Erco Ercoupe was also tested next to the Kaiser-Fleetwings YPQ-12A, but as the XPQ-13A, so I believe these were competing designs, hence the resemblance.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23
You migth want to go to http://www.designation-systems.net/dusrm/app1/bq-1.html and http://www.designation-systems.net/dusrm/app1/pq.html for more information.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,985
Hi,

the BQ means Bomb Guided,and the PQ means Aerial Target Manned.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,851
Reaction score
1,486
This may be stating the obvious but the Fleetwings Model 36 was of moulded plywood construction while the Erco YO-55/XPQ-13s were made of aluminum.

In 1941, Erco got Vidal to design a moulded plywood fuselage for their planned birch and plywood Ercoupe. Two wooden Ercoupes were completed in 1941, the same year that PQ-12s were produced. It seems unlikely that the Ercoupe providing anything other than layout inspiration. Unless Vidal is the connection. Does anyone know of any Kaiser-Fleetwing dealings with Vidal Research Corp.?


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
I currently have a '46 'Coupe in my shop for inspection. Other than being similar in layout, that's about it, altho the tail looks quite a lot like it came off an Ercoupe, no doubt. However, the rear edge of the cowl is different, as is the aft fuselage & I can see that wings trailing edges are tapered, where the 'coupe's is straight. It looks like a thinner airfoil, too. The landing gear struts look too tall, but it's really hard to tell anything about them with all those fairings other than that. So, IMHO, just another case of looking similar, but certainly not much to say it's based on the Ercoupe.

Apophenia said:
This may be stating the obvious but the Fleetwings Model 36 was of moulded plywood construction while the Erco YO-55/XPQ-13s were made of aluminum.

In 1941, Erco got Vidal to design a moulded plywood fuselage for their planned birch and plywood Ercoupe. Two wooden Ercoupes were completed in 1941, the same year that PQ-12s were produced. It seems unlikely that the Ercoupe providing anything other than layout inspiration. Unless Vidal is the connection. Does anyone know of any Kaiser-Fleetwing dealings with Vidal Research Corp.?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Most probably the Air Corps specification called for a light twin-tail single-engine aircraft, and there were not many ways to get about it, really...


burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
85
Reaction score
46
Jemiba, thank you for the interesting article.

There is a mistake in the text near the photo. You may see the number on the fin 42-79561. So it's not XBQ-2A, but XBQ-1 (also mentioned as XBQ-1P).

The differences are:
1. Gear legs are not jettisonable in XBQ-1P.
2. XBQ-1P has opposite engines.

The number of XBQ-2 (also known as XBQ-2A) was 42-79562 (see, for example, Aerofiles.com).
Both aircraft had Fleetwing designation "Model 37".


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

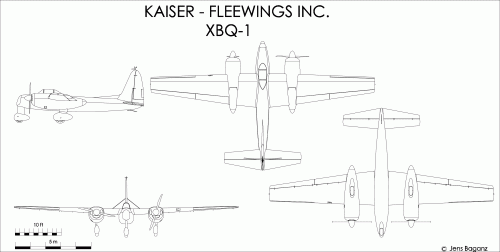

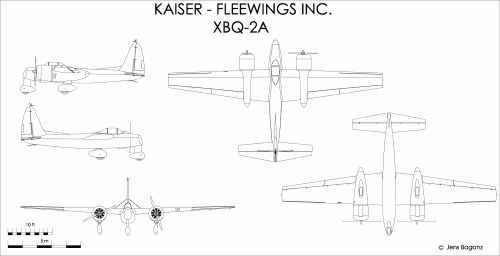

Well, as nobody came up with a 3-view, I've tried on my own, using the available
photos, thanks for your help. Externally, I couldn't find other differences between
the XBQ-1 and the -2A, than the engines. Both aircraft had a landing gear, that
doesn't look jettisonable, as to my opinion wheel spats would have made no sense
then, but of course the mechanism isn't visible. Clues and critics welcome ! ;)


Attachments

  • XBQ-1.GIF
    120.9 KB · Views: 573
  • XBQ-2A.GIF
    142.2 KB · Views: 553

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Awesome stuff! Jemiba, you must have spent a great deal of time on these, but it sure was worth it!

As for differences between BQ-1 and -2, here's what I have:

XBQ-1: two opposite inline engines, also mentioned as XBQ-1P; fixed tricycle landing gear (legs not jettisonable), 2 x 225 hp engines
XBQ-2: similar to BQ-1 but jettisonable gear legs and no opposite engines
XBQ-2A: radial engines, jettisonable landing gear, and a 2,000 pound bomb load; possibly the same aircraft re-engined

Can anyone add to this or correct it?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

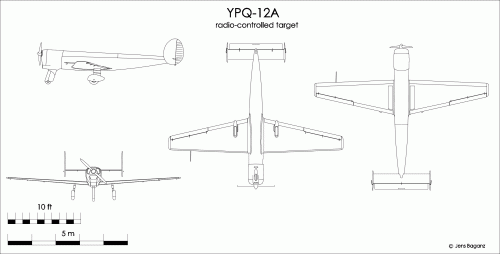

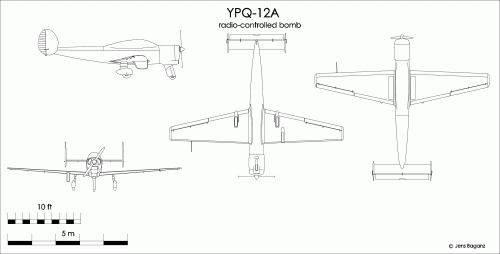

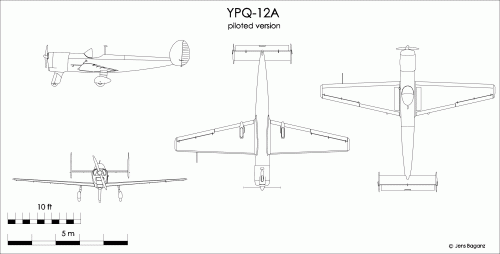

Here's the other one of the mentioned Kaiser-Fleetwings radio controlled aircraft. Thanks
to copies I've got from lark, we even have 3 versions of it : A piloted one (for ferrying or
test flying), a radio controlled target and a bomb version. As nearly all photos were made on
the ground, I'm still unsure about the correct planform of the wing, but at least it can be
seen, that it was a trapezoidal wing and a rectangular tail plane, obviously different from the
Alon Ercoupe.


Attachments

  • YPQ-12A_bomb.GIF
    73.3 KB · Views: 218
  • YPQ-12A_target.GIF
    71.9 KB · Views: 173
  • YPQ-12A_piloted.GIF
    74.6 KB · Views: 446

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

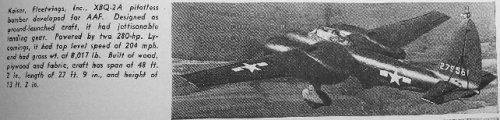

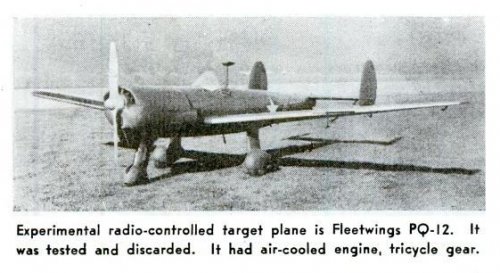

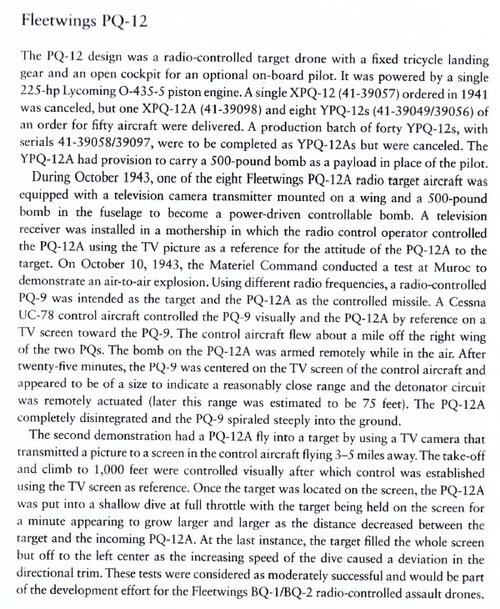

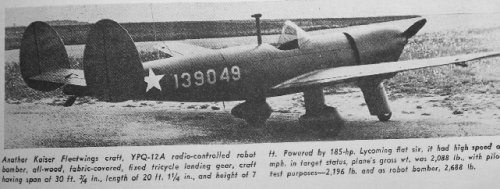

An item on the PQ-12 from a 1946 issue of Flying magazine.


Attachments

  • Fleetwings PQ-12.jpg
    Fleetwings PQ-12.jpg
    118.6 KB · Views: 118

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23
[font=]The PQ-12 was de Fleetwings 36.[/font]
[font=]One XPQ‑12 was ordered with serial 41‑39057 but was later cancelled. [/font]
[font=]A single XPQ‑12A was built with serial 41‑39098. This was followed by the YPQ‑12A of which 50 were ordered but only 8 were completed with serials 41‑39049/39056. 40 originally ordered as YPQ‑12A were to be completed as PQ‑12A with serials 41‑39058/39097 but these were cancelled. [/font]

[font=]The photo is from the collection of Bill larkins.[/font]


Attachments

  • PQ-12.jpg
    43.1 KB · Views: 404

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
23

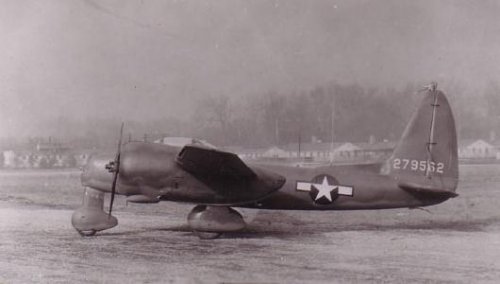

As for the BQ-1, this was a Fleetwings 37

Specifications:
span: 48'2", 14.68 m
length: 27'9", 8.46 m
engines: 2 Franklin O-405-7
max. speed: 225 mph, 360 km/h

The XBQ‑1 was a twin engined radio controlled assault drone missile with provision for a pilot. One aircraft was built with serial 42‑79561. It crashed on its first flight 17 July 1944 and the programme was cancelled in May 1944. Studies resulting in the design were undertaken as project MX-53.

]And BQ-2, no mention of the Fleetwings type number.

Specifications
span: 48'2", 14.68 m
length: 27'9", 8.46 m
engines: 2 Lycoming R‑680-13
max. speed: 204 mph, 328 km/h
[font=]The XBQ‑2 was based on the XBQ‑1 but was to be fitted with Lycoming XO‑435-3 engines and jetisonable landing gear. It was not built.
[font=]One example of the XBQ‑2A was built with serial 42‑79562. The programme was terminated in December 1943 by which time the aircraft had been redesignated as ZXBQ-2A. Studies resulting in the design were undertaken as project MX-53.[/font]
I don't remember the source of the BQ-2 photo.
[/font]


Attachments

  • BQ-2.jpg
    16.9 KB · Views: 397
Last edited by a moderator:

Mil-tech Bard

I really should change my personal text
Joined
Jul 22, 2011
Messages
5
Reaction score
1
Air Service Technical Command documents I have read said the following regards the YPQ-12A airplane in documents on the "Abusive" or "Weary Willie" drone program --

"The possible accuracy of this system was demonstrated in October
1943 when a YPQ-12A airplane, equipped with the inferior Block 1 television
equipment, was expended against a 30 foot square target. The point
of impact was only 30 feet from the target."


The Block 1 television system came from the US Navy's TDR-1 program. The TDR-1 guidance system was the basis of the PB4Y-1 Liberator drone that U.S.N. special air unit, codenamed Project Anvil, prepared for Joseph Kennedy Jr to fly in 1944.

See:

http://www.aviationmuseum.net/Joe_Kennedy.htm

http://www.mugualumni.org/secretarsenal/page9.html

http://www.vectorsite.net/twcruz_1.html


After Project Anvil literally blew up in the US Navy's face during the Operation Crossbow hunt for German V-1 Buzz Bomb sites (killing Joseph Kennedy Jr in the process) it abandoned the TDR-1 guidance technology to the USAAF. The USAAF then replaced the "Double Azon" system cobbled together by the 8th Air Force and proceeded with the "Weary Willie" program using the superior TDR-1 TV guidance system, AKA "Castor".

See --

http://www.joebaugher.com/usaf_bombers/b17_14.html

Just before the end of WW2, the "Weary Willie" program was renamed the "Abusive" program. This utterly confused post-war histories as most immediate unclassified post WW2 documents did not include the "Abusive" code words and no one publishing later WW2 histories has bothered to look up the declassified "Abusive" documents decades later.

The Weary Wille & Abusive code word equivalents work out as follows:

Control plane CBQ-17 was the "Willie Mother" under the "Weary Willie" code word and "Bluefish" under the "Abusive" code word.

The B-17 missile XBQ7 or B-24 missile XBQ8 without TV guidance was was known as "Willie Baby" under the "Weary Willie" code word and was "Cottongrass" under the "Abusive" code word. Either name refered to a area target/buzz bomb equivalent that came in three different versions with preset guidance, some or complete ground control.

The same B-17 & B-24 missiles with TV guidance were "Willie Orphan" and "Corticated" under the respective "Weary Willie" and "Abusive" code words. These also came in three versions with a mother ship and varying degrees of TV and radar beacon guidance.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,693
Reaction score
819
Good Day All -

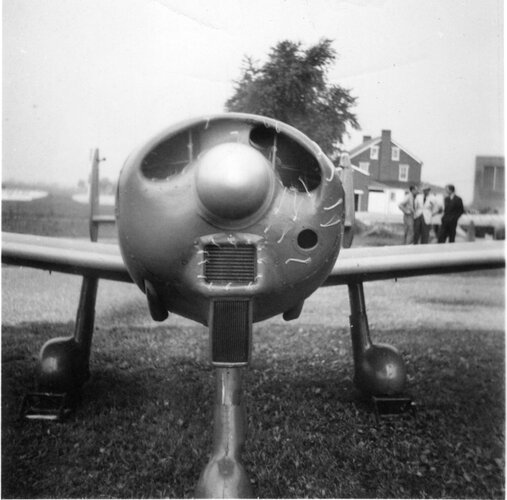

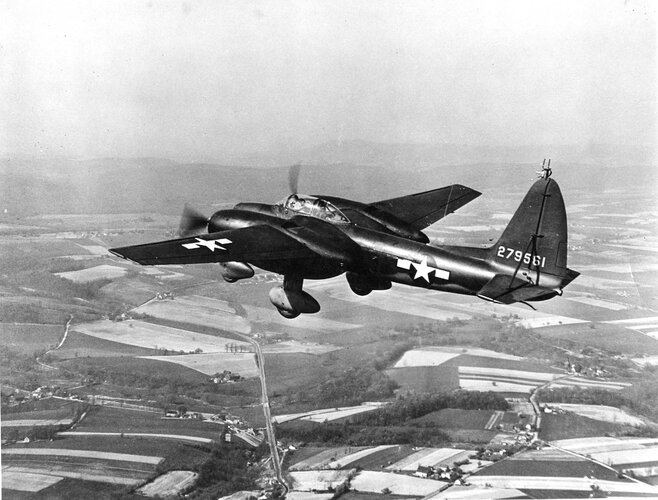

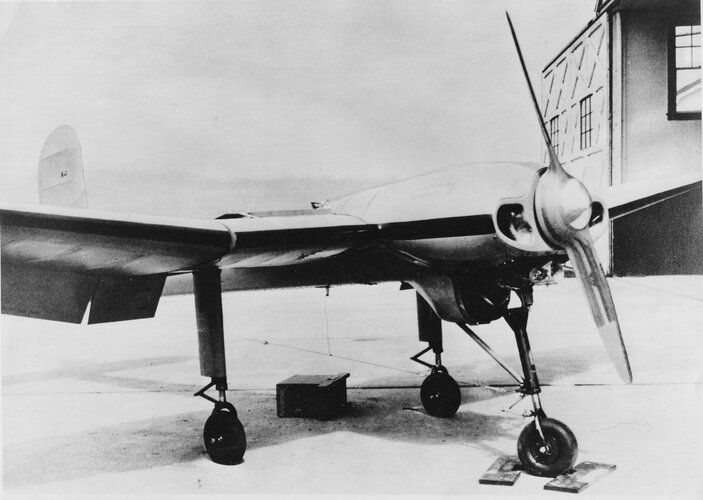

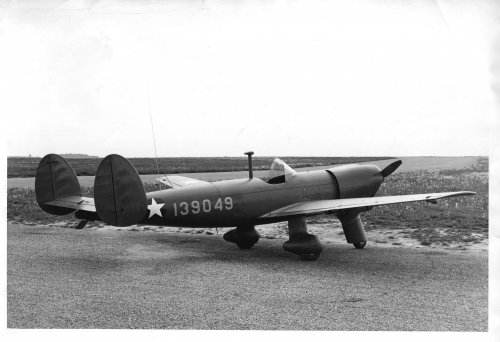

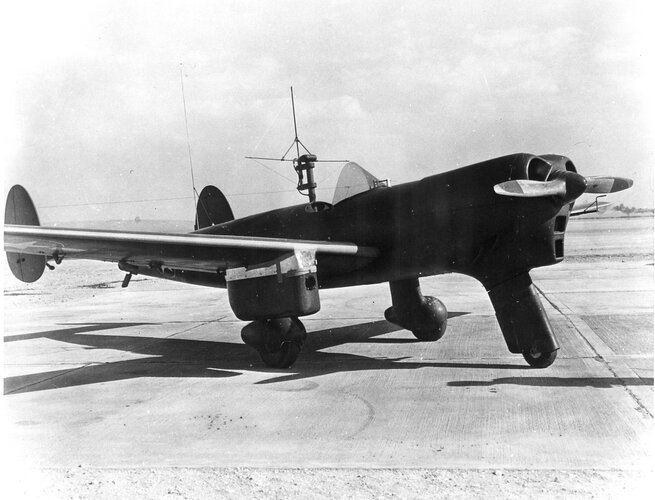

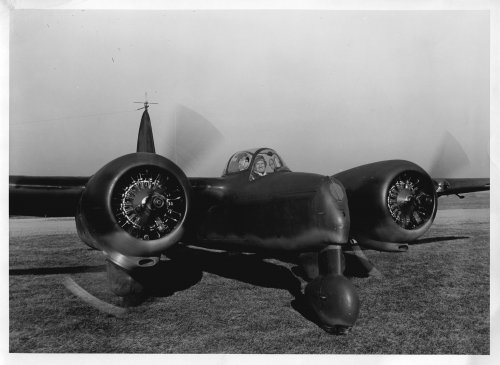

From the Gerald Balzer Collection, the YPQ-12A and the XBQ-2A.

Enjoy the Day! Mark


Attachments

  • zFleetwings XBQ-2A forward view.jpg
    zFleetwings XBQ-2A forward view.jpg
    494.9 KB · Views: 99
  • zFleetwings XBQ-2A 42-75962 forward view.jpg
    zFleetwings XBQ-2A 42-75962 forward view.jpg
    508.2 KB · Views: 195
  • zFleetwings XBQ-2A 42-75962 crew boarding.jpg
    zFleetwings XBQ-2A 42-75962 crew boarding.jpg
    527.9 KB · Views: 209
  • zFleetwings YPQ-12A-FL 41-39049a.jpg
    zFleetwings YPQ-12A-FL 41-39049a.jpg
    545.3 KB · Views: 239

PhanDad

ACCESS: Restricted
Joined
Jul 29, 2019
Messages
4
Reaction score
15
Late to the party, but I have some info and pics to add.

My Dad was the chief test pilot for Fleetwings from the late 30's through the mid '40's.

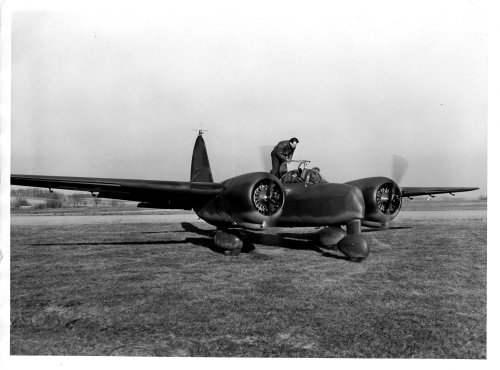

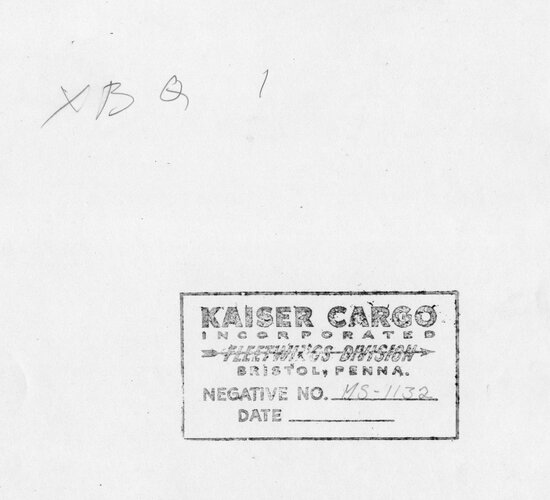

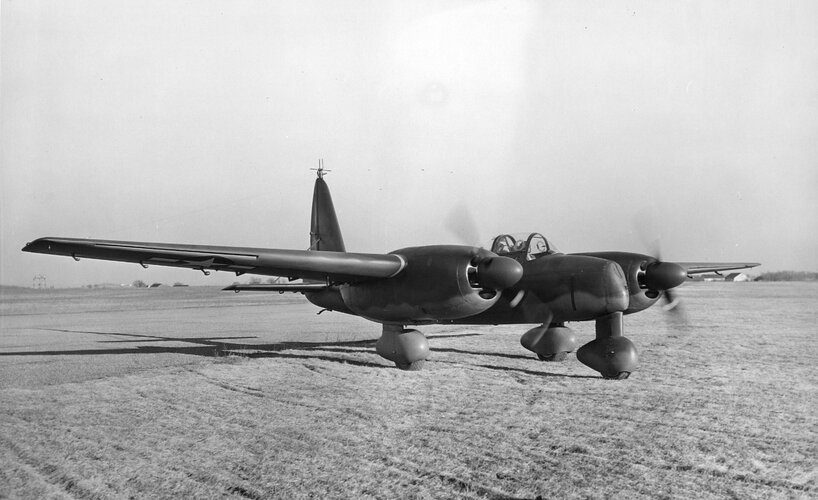

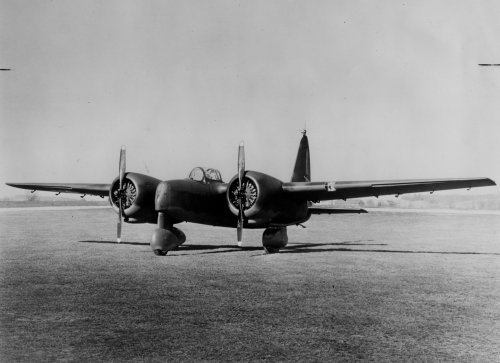

As mentioned above, the twin engine plane is the XBQ-1; I've attached the Fleetwings pic that was used in the article.

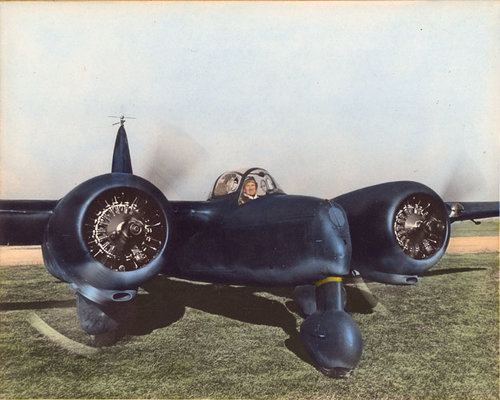

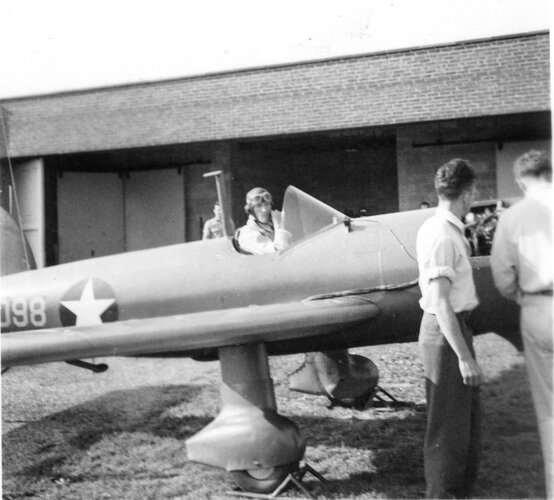

The third pic posted by Mark Nankivil of the XBQ-2A has my Dad in the cockpit. Here's the colorized version of the pic:
Fleetwings XBQ-2A Dada.jpg

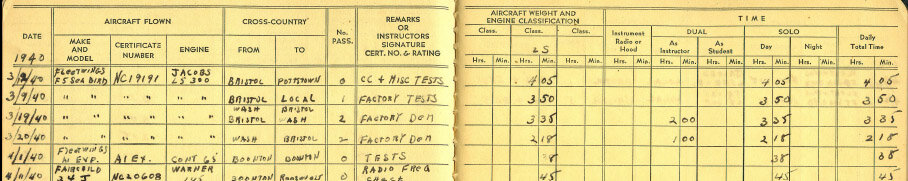

I have some of my Dad's logbooks from that era. From Logbook 6A: The XBQ-2 "Initial Test Flight" was August 21,1943. The XBQ-1 "First Test Flight" was January 16,1944 (but I'm thinking it was mis-dated as to year. During this time, his logbooks are jumbled and have many hand writings - info transcribed into his personal logbooks from the aircraft logbook(s) as time permitted).

Currently a webpage is being constructed about my Dad; his logbooks 2 to 5 are currently online if you're curious. Logbook 6A will also be online at some point after scanning issues are resolved).

His webpage can be found here:



PhanDad

ACCESS: Restricted
Joined
Jul 29, 2019
Messages
4
Reaction score
15

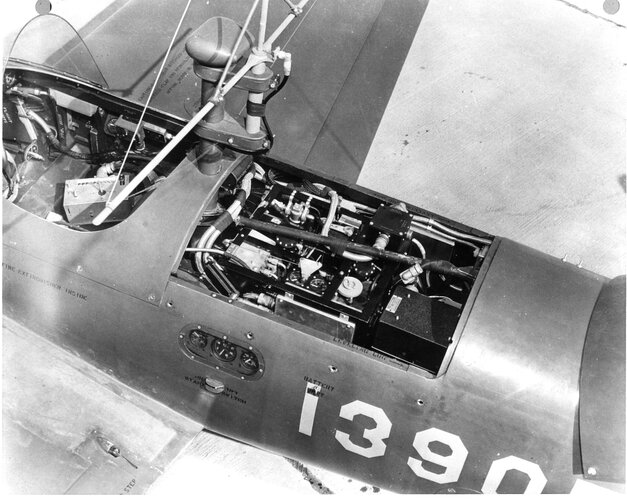

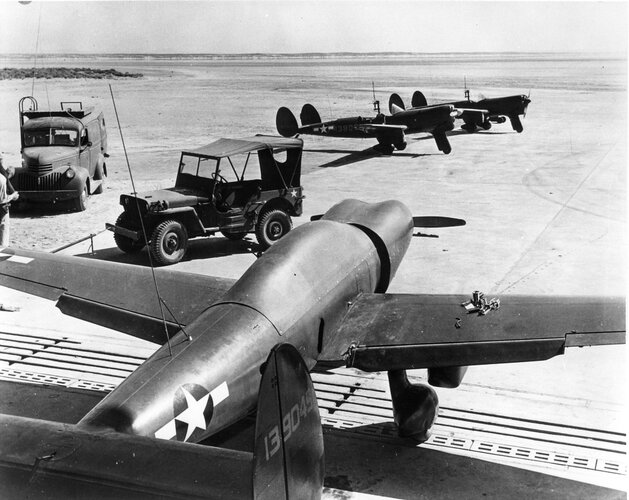

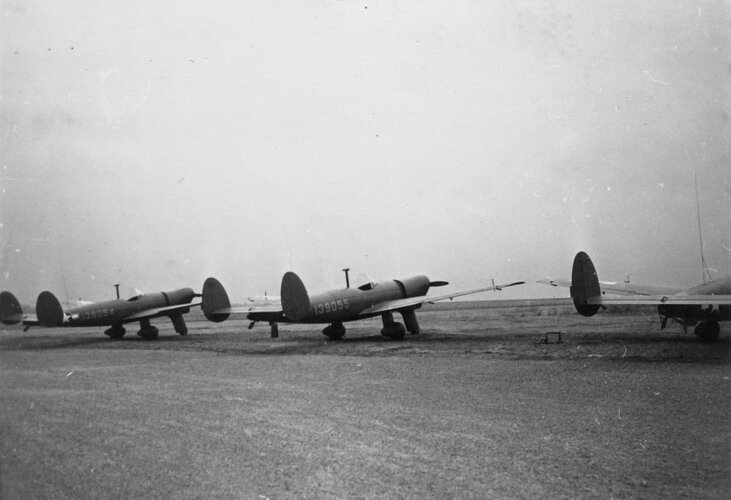

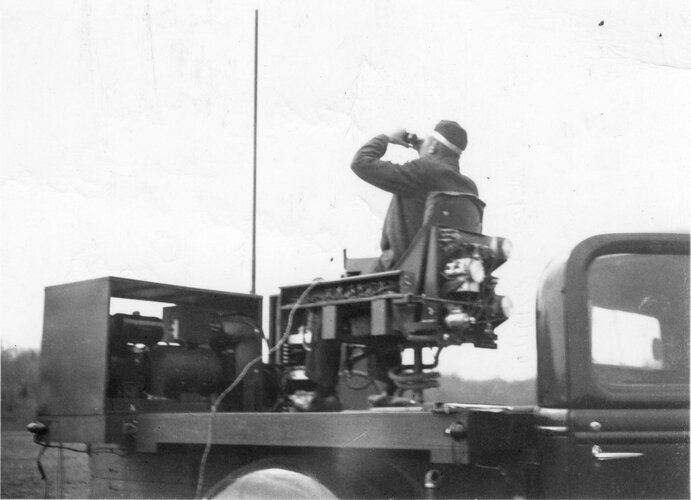

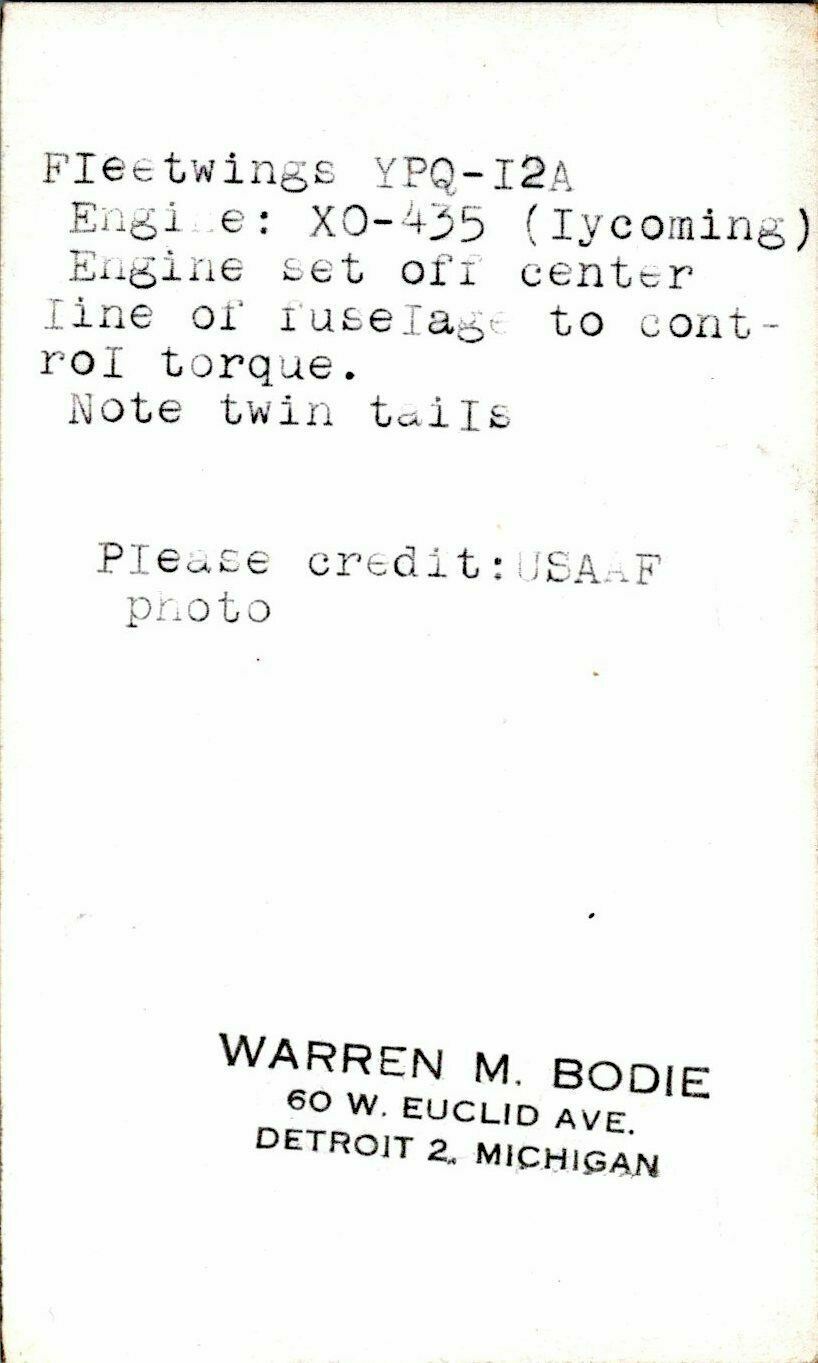

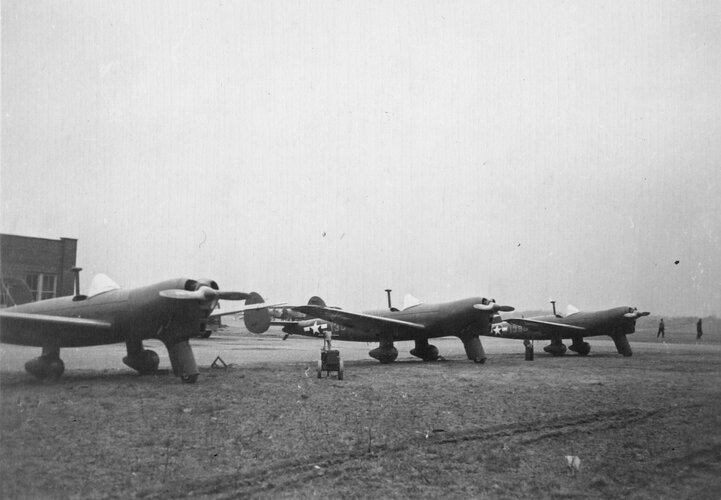

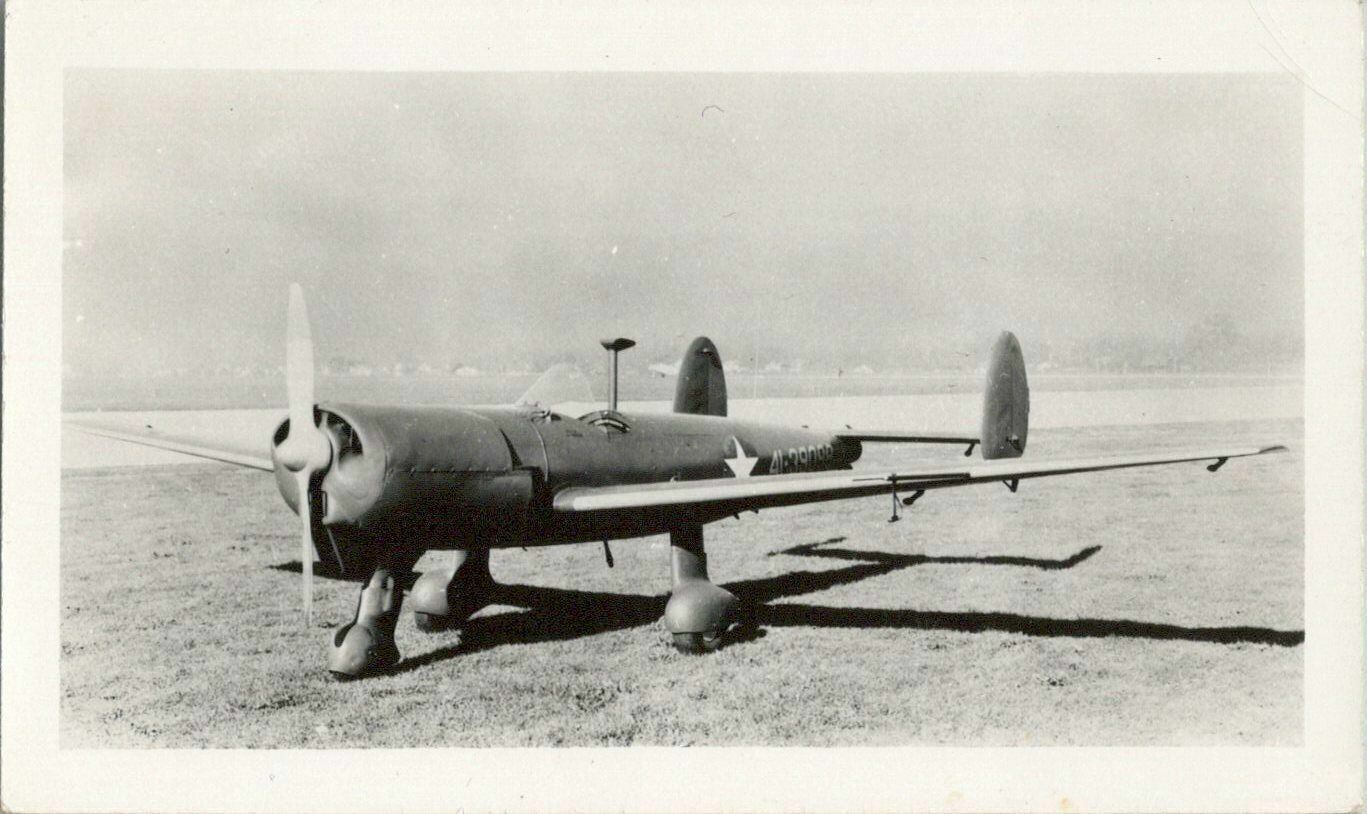

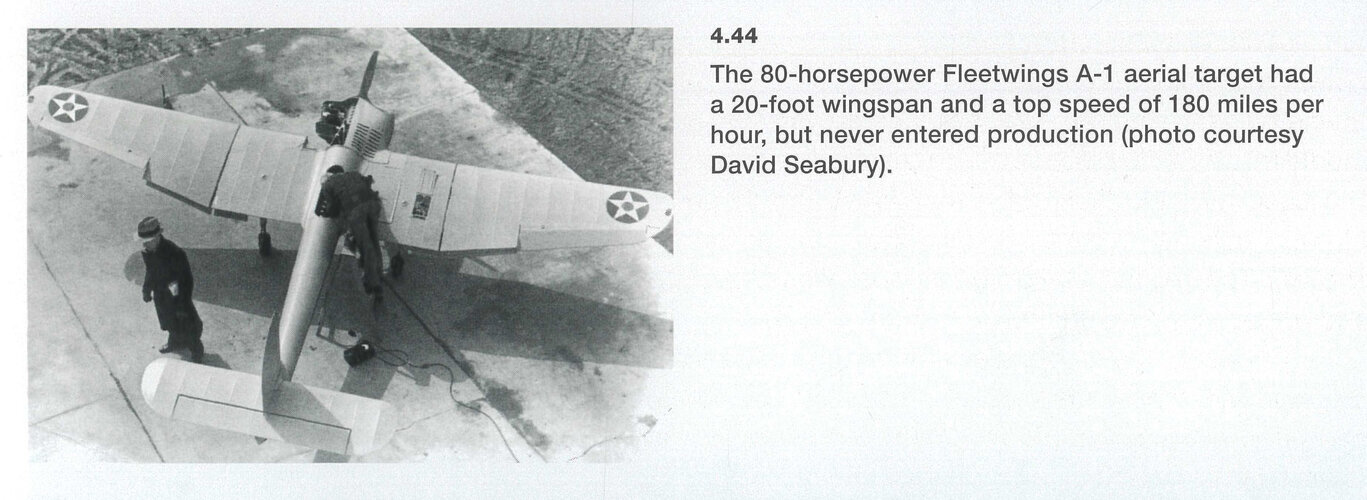

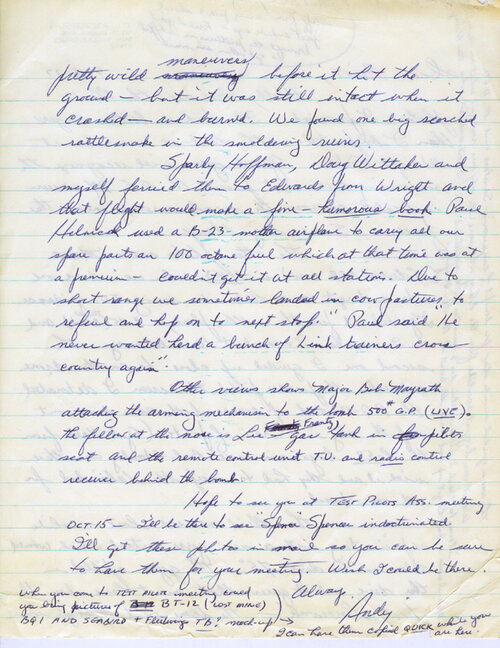

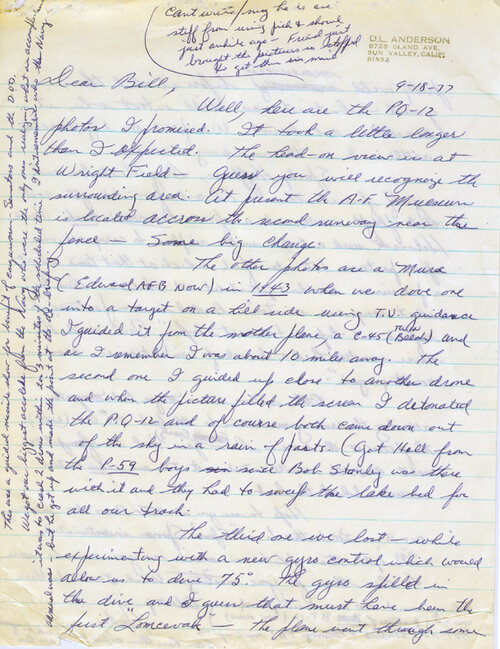

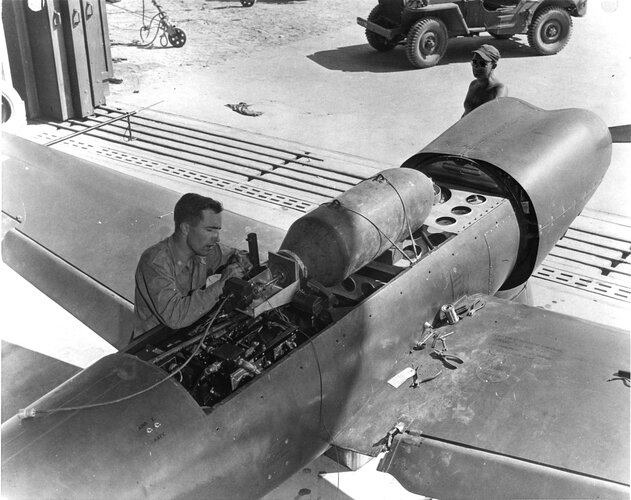

Now as to the other Fleetwings project mentioned above, the PQ-12, I've got some more pics to share and then a couple mysteries you can help me solve. The pics:
X Targeta.JPG X Target_Backa.JPG

In Logbook 5, on December 5,1941 he recorded "1st Test Flight" for the "Fleetwings R.A.T. 9" NX Army 37010 with a Franklin Super Charged 175 at Brewster Field in Hatboro PA. He flew it through March, 1942. Per is hand written note,, he unfortunately misplaced Logbook 6 at Wright Field, so the record of many hours are missing. He last flew YPQ-12's #s 139050 and 139051 in June, July, and August 1943. He listed the engine in those planes as "LYC 225HP".

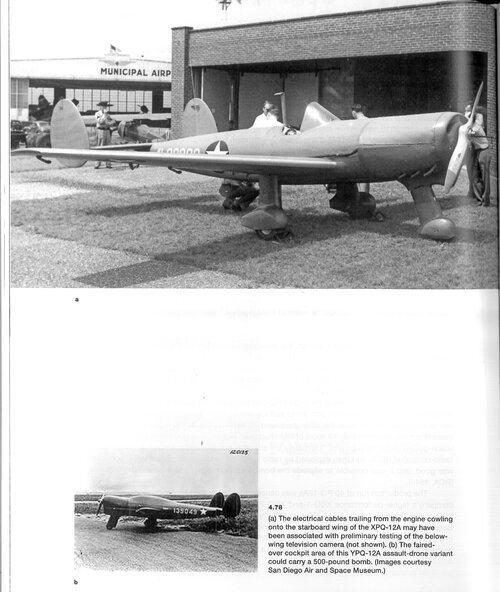

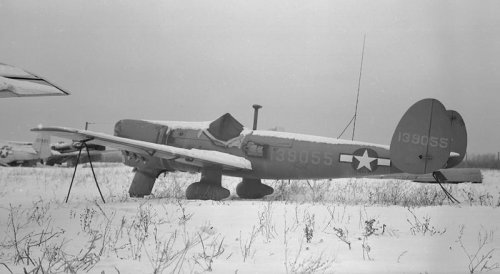

Note in the last pic, the tail number appears to be # 139045, not in the series of YPQ's produced (139049 to 139056). The only information I can find on # 139045 is "canceled contract" in the joebaugher.com website.

So, what are the two planes pictured above? And is one of them the R.A.T. 9?
