Junkers EF 131

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com

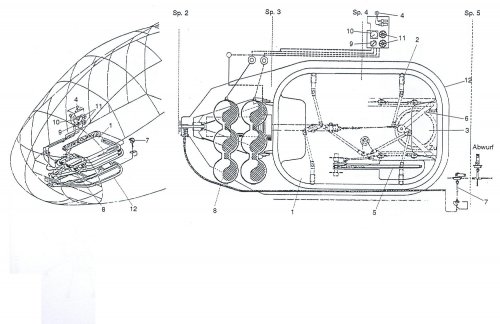

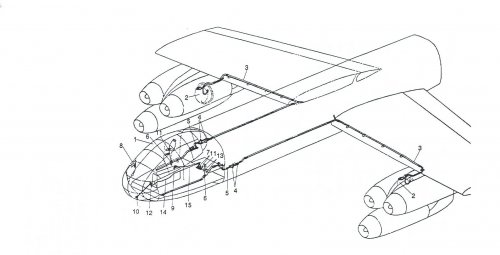

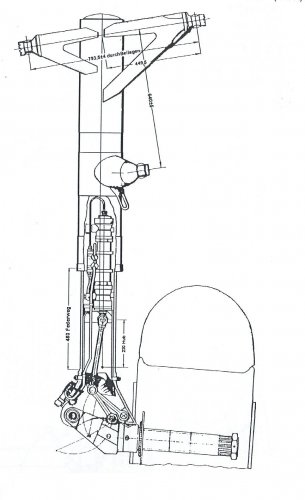

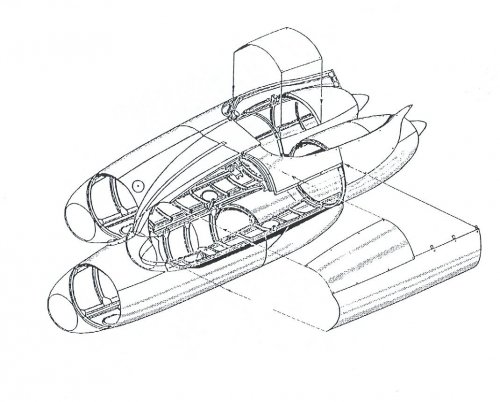

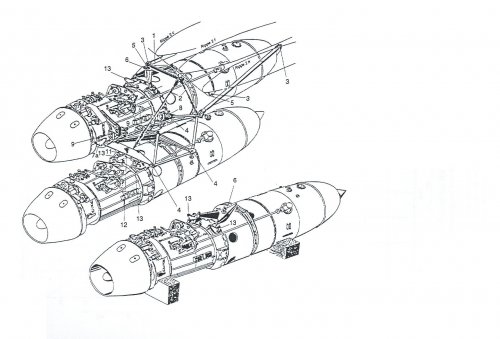

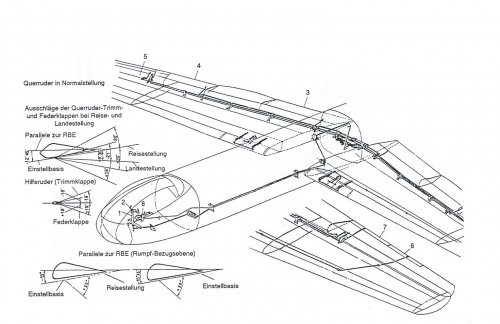

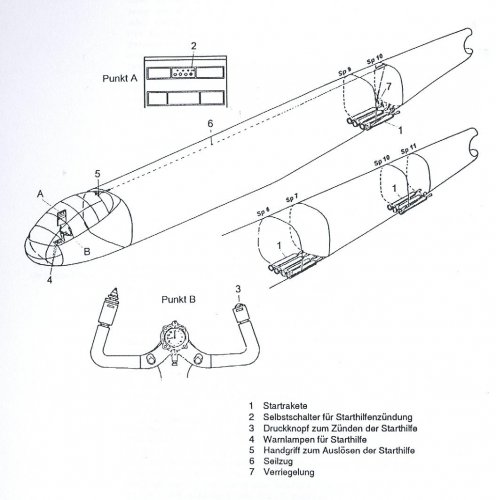

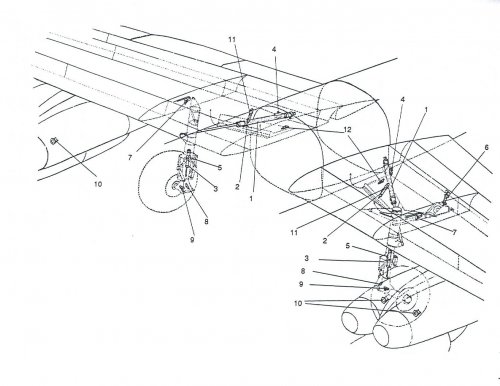

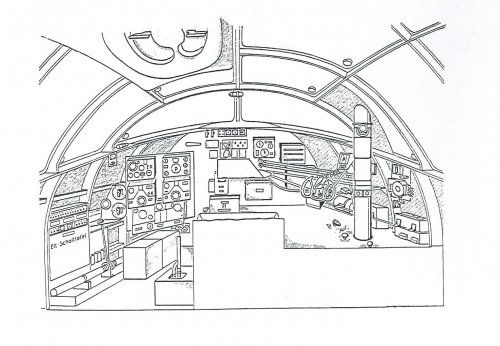

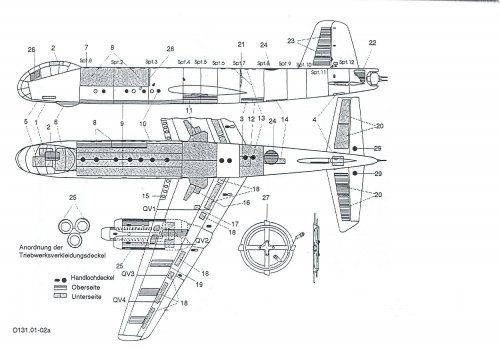

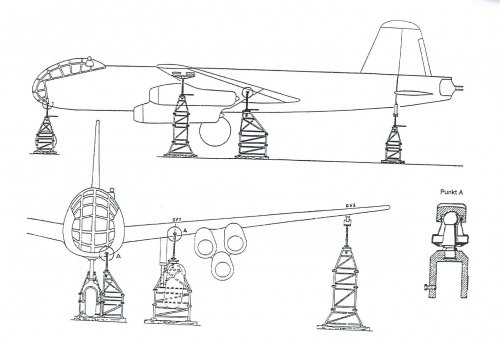

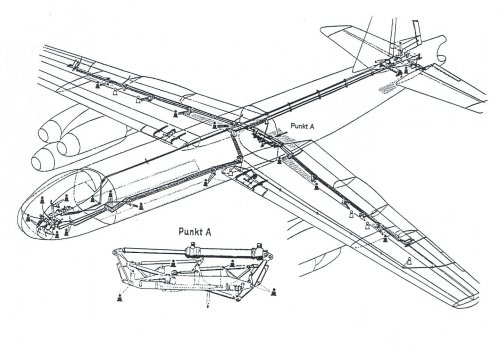

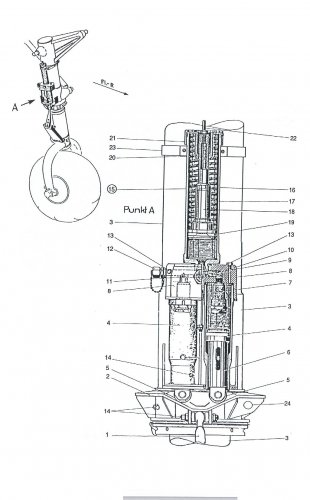

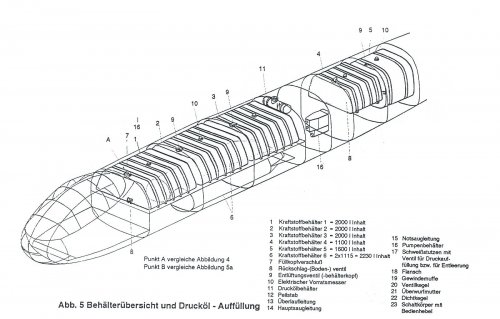

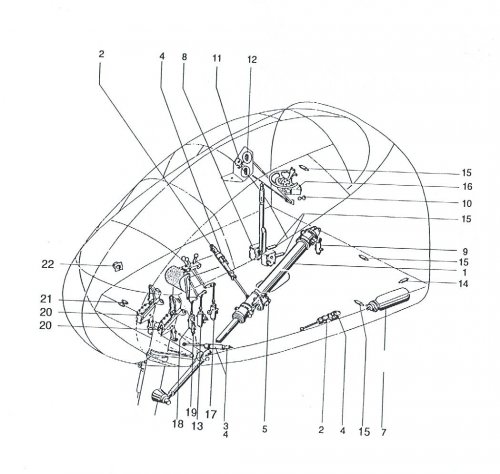

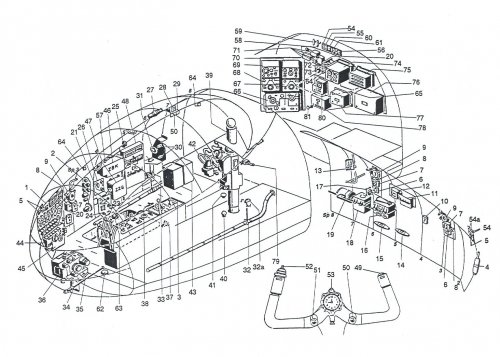

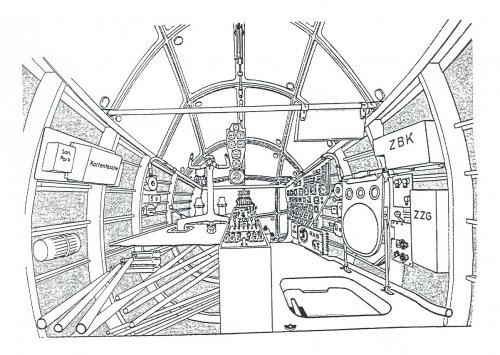

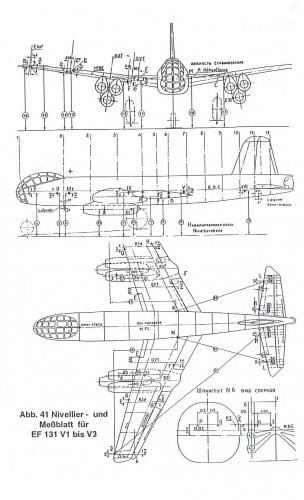

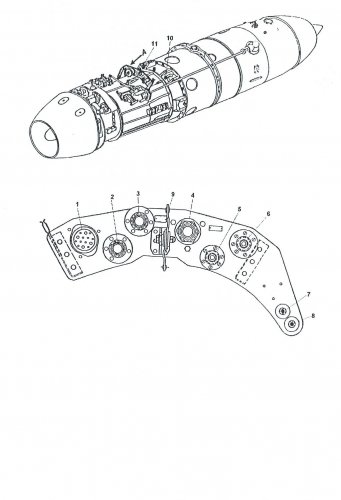

From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-1


Attachments

  • Escanear0001.jpg
    198.4 KB · Views: 390
  • Escanear0002.jpg
    219.8 KB · Views: 328
  • Escanear0003.jpg
    288.8 KB · Views: 249

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com
From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-2


Attachments

  • Escanear0006.jpg
    103.6 KB · Views: 165
  • Escanear0005.jpg
    135.7 KB · Views: 211
  • Escanear0004.jpg
    224.6 KB · Views: 231

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com
From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-4


Attachments

  • Escanear0007.jpg
    178.8 KB · Views: 163
  • Escanear0012.jpg
    130.3 KB · Views: 168
  • Escanear0020.jpg
    186 KB · Views: 170

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com
From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-5


Attachments

  • Escanear0019.jpg
    96.8 KB · Views: 144
  • Escanear0010.jpg
    109.7 KB · Views: 133
  • Escanear0009.jpg
    111.1 KB · Views: 138
  • Escanear0008.jpg
    166 KB · Views: 126

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com
From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-6


Attachments

  • Escanear0011.jpg
    158.7 KB · Views: 128
  • Escanear0014.jpg
    96.3 KB · Views: 133
  • Escanear0015.jpg
    89 KB · Views: 134

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com
From EF 131 Bedienvorschift,Bericht Nr.S-317,August 1946. Post-7


Attachments

  • Escanear0025.jpg
    183 KB · Views: 143
  • Escanear0023.jpg
    158.2 KB · Views: 165
  • Escanear0016.jpg
    167.2 KB · Views: 166

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
The EF 131, if anyone is aware, was built from components of the unfinished 2nd and 3rd Ju 287 prototypes after the Red Army overran Germany. The configuration of the EF 131 was the intended design arrangement of the production Ju 287, as the first Ju 287 prototype had been intended to test forward swept wing technology. Does anyone have extra info about how many test flights of the EF 131 were conducted in Germany in 1946?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
... Does anyone have extra info about how many test flights of the EF 131 were conducted in Germany in 1946?

None ! This information comes from a brochure published by the Interessengemeinschaft Luftfahrt e.V. Dresden (interest group
aviation Dresden) and is based on documents bequeathed by Brunolf Baade himself (I thankfully got an example via boxkite ;) ).
The first prototype of the EF 131 was ready for ground tests in August 1946, but was dismantled then, to be sent to Moscow and
rebuilt there. Due to the deportation of the Junkers staff and the need to await the end of the Russian winter, the maiden flight
was only on May 23rd 1947.


Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
211
Reaction score
283
Website
www.armedconflicts.com
Only small detail, it wasn't Moscow per se, it was small town (at the time) called Dubna north of Moscow, where the State Experimental Factory No. 1 was founded specifically for Baade, Focke and other "volunteered" German engineers from OKB-1.


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
123
Reaction score
81
Does anybody know if it was ever test flown with the 6 engines in clusters of 3? I can't find any photo of it, only with 2 engines (1 each wing)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
According to the mentioned brochure, yes.
But there seem to have been only a quite low number of flight tests, the 004B engines were regarded as too weak, especially
as more powerful Soviet engines already were in the development phase. So the MAP ordered al work on the EF 131 to stop
om 21st of June 1948.


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
123
Reaction score
81
According to the mentioned brochure, yes.
But there seem to have been only a quite low number of flight tests, the 004B engines were regarded as too weak, especially
as more powerful Soviet engines already were in the development phase. So the MAP ordered al work on the EF 131 to stop
om 21st of June 1948.
Thank you for the attention, my dear. Now, it os clear for me.


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
Does anybody know if it was ever test flown with the 6 engines in clusters of 3? I can't find any photo of it, only with 2 engines (1 each wing)
I happened to notice a poor quality image of the EF 131 during flight testing on page 20 of Bill Gunston and Peter Gilchrist's 1993 book "Jet Bombers", but it clearly test flew with 6 turbojets in clusters of three. Anyone else have additional photographs of the EF 131 during flight testing?


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
123
Reaction score
81
Does anybody know if it was ever test flown with the 6 engines in clusters of 3? I can't find any photo of it, only with 2 engines (1 each wing)
I happened to notice a poor quality image of the EF 131 during flight testing on page 20 of Bill Gunston and Peter Gilchrist's 1993 book "Jet Bombers", but it clearly test flew with 6 turbojets in clusters of three. Anyone else have additional photographs of the EF 131 during flight testing?
Very good, my dear. If possible, share with us this pictures.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
822
Reaction score
329
Does anybody know if it was ever test flown with the 6 engines in clusters of 3? I can't find any photo of it, only with 2 engines (1 each wing)

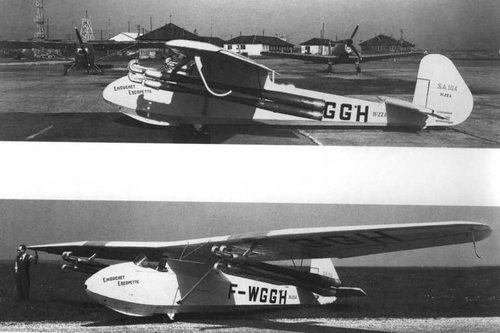

I have this photo on my disk, with a note saying 4 Escopettes. But to me it looks more like 6:

Arsenal SA-104 Emouchet glider with SNECMA Escopette pulsejets tested in 1950.jpg


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
Does anybody know if it was ever test flown with the 6 engines in clusters of 3? I can't find any photo of it, only with 2 engines (1 each wing)
I have this photo on my disk, with a note saying 4 Escopettes. But to me it looks more like 6:

View attachment 617727

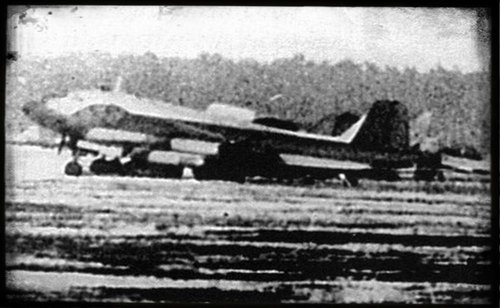

This is not the EF 131. I've attached this pic of the EF 131 while parked at the airfield in Ramenskoye in the winter of 1947, with two Lisunov Li-2s in the background.


Attachments

  • ef131-03.jpg
    77.3 KB · Views: 78
