Hi guys,

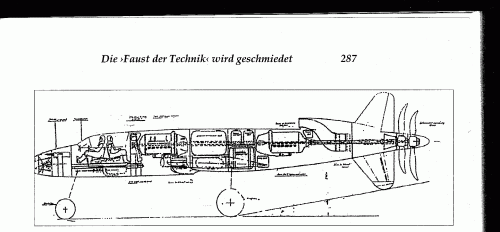

the image portrays several innovative features, worth posting here. It represents the Dornier P 252.01. Besides the interesting sickle-bladed propellers, the engines are coupled Jumo 213`s. Does anyone knows their designation? Or other Jumo designs around this configuration?

Image taken from Friedrich Georg`s "Unternehmen Patentenraub 1945", Grabert Verlag.


Attachments

  • MotoresJumo.gif
    37.9 KB · Views: 682

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Be carefull with Georg Friedrich's 'histories' Würger..


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi Lark :),

I am aware of that, but in this case this is genuine stuff, no speculation or other kind of junk.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
704
Reaction score
221
I'm confused as the picture shows two engines. They don't seem to be mechanically linked together.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hello :),

but they are. Text from http://www.patentstorm.us/patents/5890365/claims.html
"A clutch-type coupling which may be placed between two engines that is
capable of allowing the two coupled engines to operate at different
rotational speeds providing unitized operation of said engines". Daimler-Benz used the same configuration on several other projects, as seen in the later edition of "Flugmotoren und Strahltriebwerke". The japanese went through to hardware stage with the Kawasaki Ki-64. See here:

http://www.j-aircraft.org/xplanes/


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com

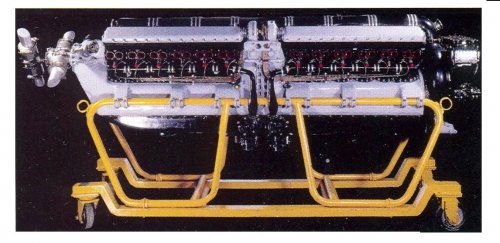

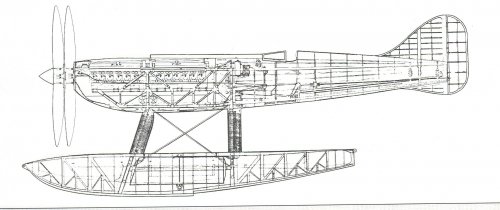

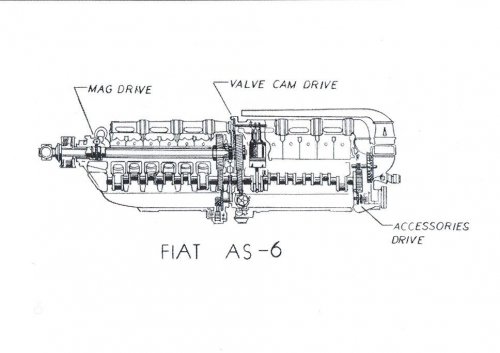

Here Macchi Castoldi MC 72 Schneider Racer an Fiat AS-6 coupled engine


Attachments

  • Escanear0004.jpg
    191.1 KB · Views: 180
  • Escanear.jpg
    141.8 KB · Views: 136
  • Escanear0001.jpg
    150.7 KB · Views: 127
  • Escanear0002.jpg
    64.2 KB · Views: 145

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi Justo :D,

also see

"S" - high-speed bomber by V.Bolkhovitinov (1937-41)" thread in this forum. The soviet "sparka" tandem engine.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi,

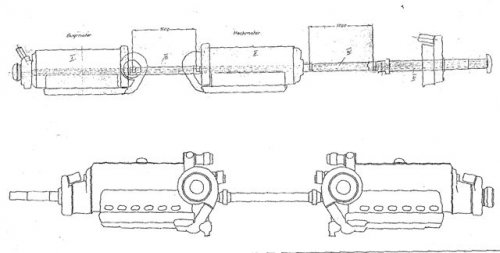

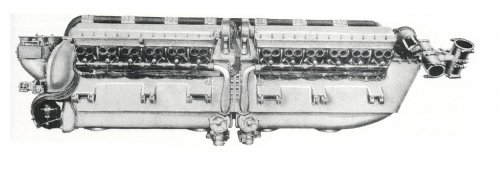

more on the way. The first image is a Daimler-Benz project, the DB 615/I. The second is a legitimate Jumo coupled turbojet/turboprop, the Jumo 022Z ( Z stands for zwilling, twin). taken from Kyrill von Gersdorff`s latest edition of "Flugmotoren und Strahltriebwerke", Bernard&Graefe Verlag. Enjoy.


Attachments

  • DB tandem.jpg
    DB tandem.jpg
    29.8 KB · Views: 98
  • Jumo 022 Z.gif
    Jumo 022 Z.gif
    112.3 KB · Views: 104

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
704
Reaction score
221
So the front engine outputs into a shaft which is connected to a hydraulic variable speed clutch. This then outputs into another shaft which is fed into the back of the rear engine and transmitted through the crankshaft.The drive then continues aft along a single shaft. ?

The Fiat AS.6 used in the Macchi C.72 isn't a coupled engine as the only shared parts is the induction and carburation system which runs off the rear engine. The front engine isn't mechanically linked and there are two drive shafts running concentrically.

The Schneider Tropy Story by Edward Eves has a load of information on the AS.6 and Rolls-Royce R as well as a few other engines. Its just difficult to find a copy.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
581
Reaction score
235
RA, I have a copy of the Eves book - if you would like me to look anything up just let me know.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
704
Reaction score
221
Nick Sumner said:
RA, I have a copy of the Eves book - if you would like me to look anything up just let me know.

Me too, its a great book and the slight rip in the cover meant £10 off the cost.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com

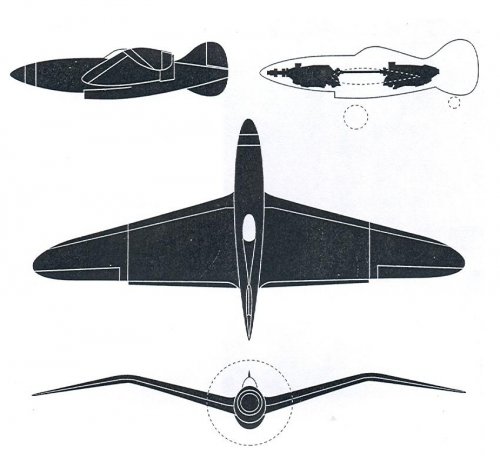

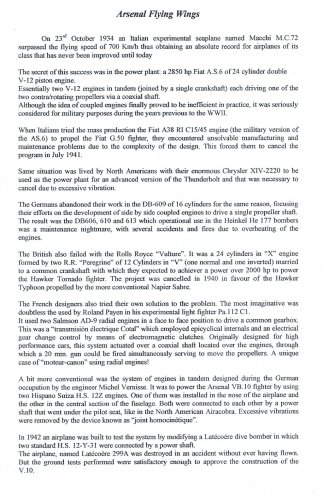

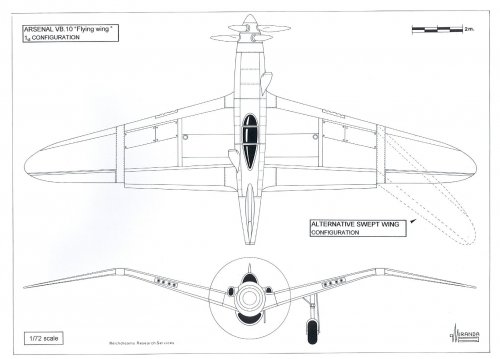

From "UNKNOWN! Nº 5"


Attachments

  • Escanear0004.jpg
    262.7 KB · Views: 108
  • Escanear0003.jpg
    321.2 KB · Views: 130
  • Escanear0002.jpg
    135 KB · Views: 192
  • Escanear0001.jpg
    169.6 KB · Views: 240

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com

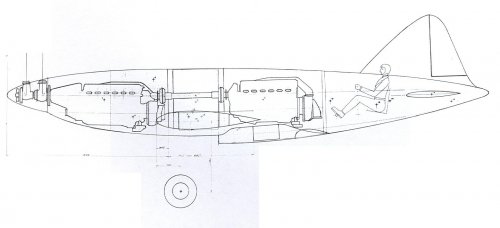

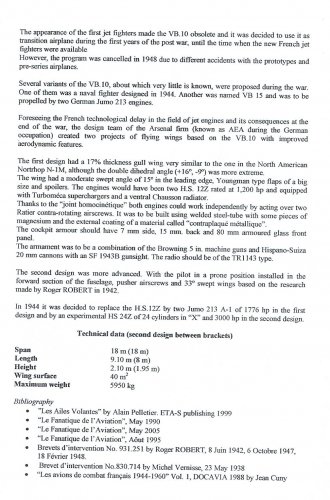

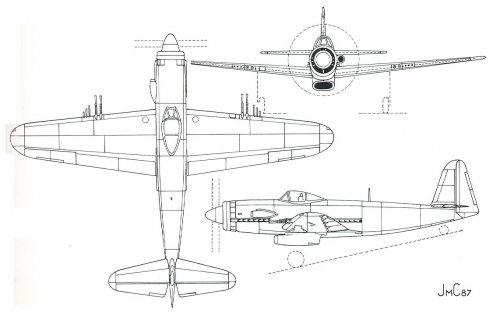

Arsenal VB 15 project ,with two coupled Jumo 213A engines
From "Les avions de combat français" by Jean CUNY , DOCAVIA Nº 28


Attachments

  • Escanear.jpg
    86.2 KB · Views: 163

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com
From http://www.airwar.ru/enc/spyww2/late299.html

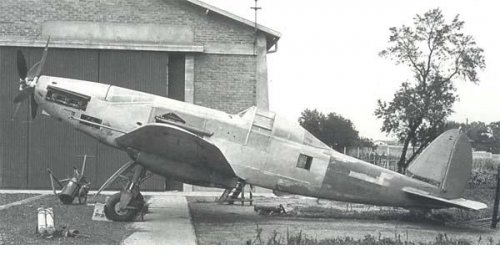

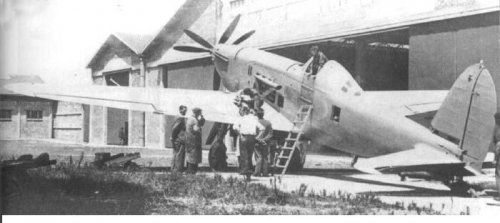

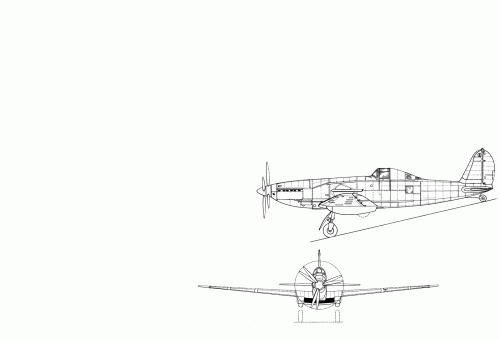

Latecoère 299 A with two coupled Hispano-Suiza 12 Z


Attachments

  • 12.gif
    68.6 KB · Views: 178
  • 11.jpg
    44.4 KB · Views: 137
  • 10.jpg
    48.2 KB · Views: 158

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi Justo ;D,

excellent, as usual. I already knew your great "Unknown Nr.5".


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
According to FlugRevue 9/1973, the engines for the P.252 were either DB63LA or Jumo 213J.
There's no mention of coupled engines, just of a development of the basic Do 335, with two
pusher props, instead of the pull/push arrangement.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
The engines depicted are clearly Jumo 213, and they are clearly coupled. What would you suggest insted, Jemiba?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
The shaft of the forward engine is running through the hollow shaft
of the rear engine, I think. Not unusual for twin engined layouts with
contra props, but no coupled engine, as there is no clutch or gear,

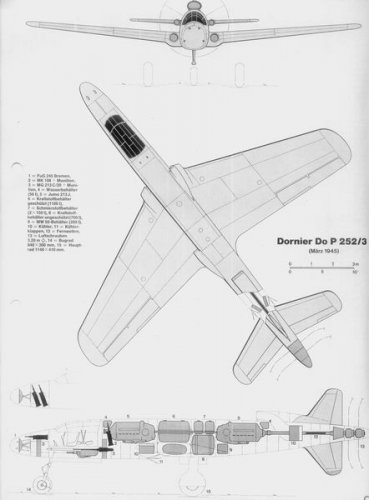

as for example was in the DB 613. I'Ve attached the 3-view from the
mentioned FlugRevue, as the engine arrangement is shown quite clearly
there, too.
Maybe it's just a matter of definition ? But for me, coupled engines work
on a single prop or on a common gear. ???


Attachments

  • Do_P-252.JPG
    29.4 KB · Views: 239

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi Jemiba,

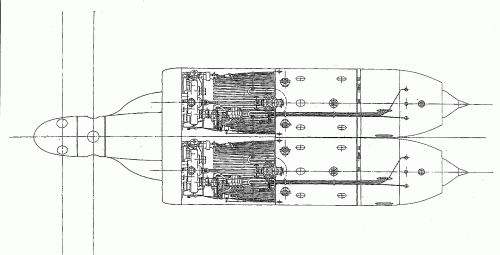

Probably you are right :-[. So much for the this coupled Jumos :'(. Nevertheless, I know a project from Junkers that might apply: the EF021/3. It would be a passenger plane with, if I remember my sketchy german, double engines. No data on the engines, tough. Can someone help?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503

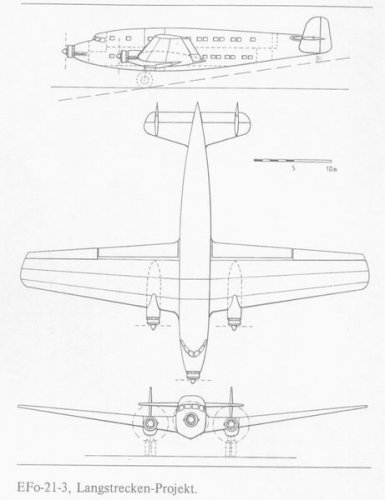

Yes, you're right, according to Wolfgang Wagner "Hugo Junkers, Pionier der Luftfahrt,
seine Flugzeuge", the EFo-21-3 was a design with 6 engines of 1500hp each, arranged
in three pairs and each pair driving a single prop. Apart from the gear, obviously a clutch
was planned, as the engines of a pair "could work coupled or independently".
(Drawing from the mentioned book)


Attachments

  • EF-21-3.jpg
    23.9 KB · Views: 202

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Hi,

that`s the one. The engine gondolas are slim, and they show an exhaust row near the propeller gear, so the engines are most possibly in tandem.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
Sorry, the type of engines used isn't mentioned, only the engine power.
1500 hp for each. Apart from a tandem arrangement, I could only think
of a system similar to the DB 613, which was of double inverted V configuration.
Judging the drawing, both rows of exhausts would have been on the same
height and position, so maybe left row -> left engine, right row -> right engine ?
But judging from so small a drawing is very speculative, I'm afraid


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,095
Reaction score
222
Out of a matter of interest, does anybody know of any other projects, apart from the He177 which utilised the Daimler-Benz DB 606 or 610 coupled engine? I was wondering of any consideration had ever been given to any fighter or fight-bombers using these engine. While I'm aware their failure in the He177 had more to do with the way they were mounted, rather than necessarily the engines themselves, I wonder why they appear never have been used anywhere else.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,916
Reaction score
970
Jemiba said:
Yes, you're right, according to Wolfgang Wagner "Hugo Junkers, Pionier der Luftfahrt,
seine Flugzeuge", the EFo-21-3 was a design with 6 engines of 1500hp each, arranged
in three pairs and each pair driving a single prop. Apart from the gear, obviously a clutch
was planned, as the engines of a pair "could work coupled or independently".
(Drawing from the mentioned book)

Interesting architecture, this aircraft seems to be an SM-82 re-engined with the SM-84 stylish tail....


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
581
Reaction score
235
rickshaw said:
Out of a matter of interest, does anybody know of any other projects, apart from the He177 which utilised the Daimler-Benz DB 606 or 610 coupled engine? I was wondering of any consideration had ever been given to any fighter or fight-bombers using these engine. While I'm aware their failure in the He177 had more to do with the way they were mounted, rather than necessarily the engines themselves, I wonder why they appear never have been used anywhere else.

IIRC the He 119 used a DB 606 and there were many projects derived from this design. The Ju 288 also flew with DB 610s and (IIRC) DB 613s.


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi
A few questions about the Jumo 022Z.
Was the Jumo 022Z turboprop a World War 2 or a postwar project ?
Was there an aircraft project that should use the Jumo 022Z ?
Data ? Lenght ? Power ? etc. ? Sideview ?
Maybe someone can help ?
I only know the Jumo 022.
http://hugojunkers.pytalhost.com/ju_jumo022_a1.htm
Many greetings


sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
The Me261 had DB606 or 610s and like the Ju288, which did fly with them, the other "BomberB" designs at least considered coupled engines. I keep on thinking that other projects that had hopes for the Jumo222 also considered coupled engines as alternatives.


edwest2

ACCESS: Top Secret
Joined
Nov 9, 2007
Messages
1,990
Reaction score
1,206
This aircraft appears on pages 96 and 97 of Band III, Geheimprojekte der Luftwaffe, Schlachtflugzeuge und Kampfzerstoerer 1935-1945, by Dieter Herwig and Heinz Rode. Engines listed are: 2 x Daimler-Benz DB 603 LA von je 2000 PS oder 2 x Junkers Jumo 213 GJ von je 2300 PS mit zwei dreiflugligen VDM Pfeil-Verstell-Luftschrauben von 3,20 m Durchmesser (im Notfall absprengbar).


sagallacci

ACCESS: Confidential
Joined
Jan 15, 2009
Messages
87
Reaction score
1
Referring back to the Do335 concepts, I'd suggest that the art shouldn't be taken too literally in the sense of the drive coming out of the rear of the engine. The Jumo didn't have a rear drive, and routing a shaft through the motor cannon access from the reduction end of the front engine would have been a needless technical hassle. More likely both engines would have been simply pointed aft with a conventional drive coming off of them. Then, running the shaft through the rear engine's motor cannon access to the contraprop group would seem to be a "relatively" simple arrangement. Possibly, the artist was trying to anticpate the issue of opposite rotation and thought pointing the engine the other way was the solution to rotation, not realizing that an alternate reduction end would give you the desired rotation.
In general, any number of these concept sketches include some after the fact interpretive additions, often based on only some text references. Illustrators rather than engineers are doing the art, and more than a little guess work can be involved.
