Ju-186 and 286

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,228
Reaction score
85
Website
zeef.com
http://it.wikipedia.org/wiki/Junkers_Ju_86

http://en.wikipedia.org/wiki/Junkers_Ju_86

Ju-186 and Ju-286 was proposed with awesome engines of version R-3 ( Jumo 208) : Ju-186 with four and Ju-286 with six engines , well
anyone know if there are some images of these projects ? ::)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
110

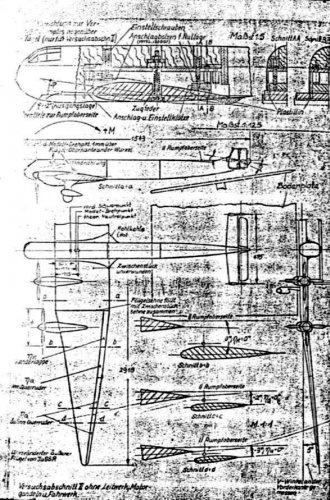

Only until the picture "windkanalmodells" from Waffen-Arsenal S-b.73.
(1942. Engine 4 x Ju 207 E / F)


Attachments

  • Ju-186.jpg
    148 KB · Views: 904

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,641
Reaction score
957
Thanks Borovik! I've read descriptions of this project but the drawings are quite different from what I had imagined :D


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,228
Reaction score
85
Website
zeef.com
borovik said:
Only until the picture "windkanalmodells" from Waffen-Arsenal S-b.73.
(1942. Engine 4 x Ju 207 E / F)
Then Jumo 208 was a variant of Jumo 207 ??? ???

So thanks for image !

My dream is see Ju-186 and Ju-286 designed like design concept like in books of Putnam ! ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
borovik said:
Only until the picture "windkanalmodells" from Waffen-Arsenal S-b.73.
(1942. Engine 4 x Ju 207 E / F)

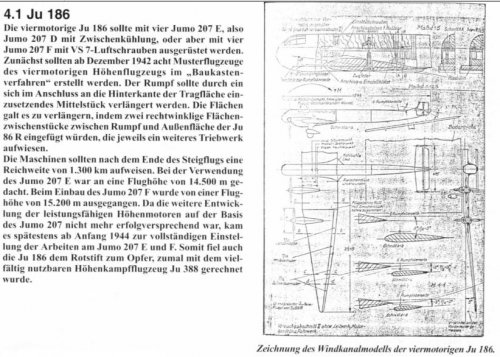

From the same source,


here is the all data.


Attachments

  • 186.JPG
    108.5 KB · Views: 677

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
In Novarra "Die deutsche Luftrüstung 1933 - 1945" the Ju 186 is mentioned as a planned test aircraft
for high altitude equipment only, not as a service aircraft. I know, that Novarra sin't still regarded as
a very reliable source, but as this project was started quite late and then still intended to use a fixed
landing gear, this interpretation doesn't seem to be totally unplausible to me.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
My dear Jemiba,


if you have a time,please can you make a 3-view to Ju-186,and if possible a sketch drawing
to Ju-286 with six engines.


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
337
Reaction score
546

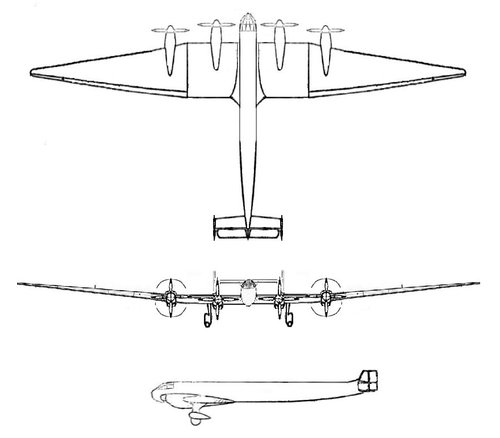

Hi Hesham and anybody else interested. I don't have the skills of Jemiba, but from the plans above, I have tried to clean it up and provide the missing bits. Hope this gives just a flavour of the Ju 186.
Ju 186 GA.jpg

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Very neat and amazing work dear Victor,of course I am interesting.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
221
Reaction score
361
In Novarra "Die deutsche Luftrüstung 1933 - 1945" the Ju 186 is mentioned as a planned test aircraft
for high altitude equipment only, not as a service aircraft.
This is also as written in Putnam's Junkers Aircraft and Engines 1913 - 1945 by Anthony Kay, which includes a paragraph on each, containing only what we know already, but no illustration. Although powerplant of the Ju 186 was four Jumo 208s, derived from the 207 as mentioned in the book's text, or two Jumo 218s, while the Ju 286 bomber was to have six Jumo 208s.


Piper106

ACCESS: Restricted
Joined
Jul 31, 2012
Messages
33
Reaction score
8
While the Jumo 207 and the Jumo 208 were similar in arrangement, all the texts I have seen indicate the Jumo 208 had significantly larger cylinder (130 mm bore x 160 mm x2 stroke) than the Jumo 207D engine (110mm bore x 160mm x2 stroke). Enough bigger that the 208 series was a new engine, not just a overbored Jumo 207.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
221
Reaction score
361
Enough bigger that the 208 series was a new engine, not just a overbored Jumo 207.

As I mentioned, that's what the book says. It doesn't say it was the same engine bored out.

"This was a larger version of the 207 and embodied the continued development of the 206. Only 12 examples were built for development between 1939 and 1942, and no production was undertaken."

Figures provided for Jumo 208B are as follows:

"Two-stroke, opposed piston, supercharged, six cylinder vertical in-line heavy oil engine. Bore 130mm, stroke 2 x 160mm, swept volume 25.5 litres, length 1.06m, height 1.436m, width 0.886m, weight n/.a, take off power 1,475hp, cruise power 985hp, speed 2,800rpm."

Last edited:
