James V. Martin Aircraft and Projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi,

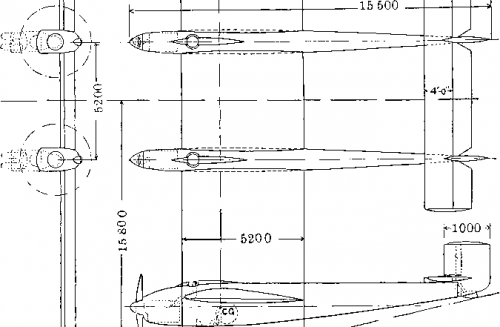

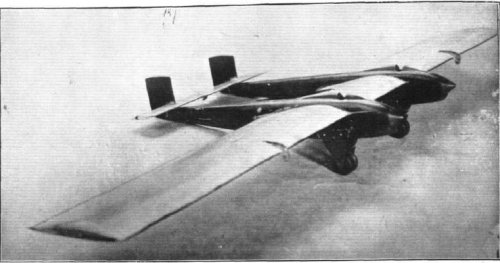

The Martin PM-3 was a project of twin fuselage two seat patrol
aircraft and powered by two engines and had estimated speed of
110 mph.


Attachments

  • Martin PM-3.JPG
    Martin PM-3.JPG
    44.2 KB · Views: 1,031

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
Hesham,

The 'Martin PM-3' is a mysterious design.
Despite much searching I was unable to find even a slightest bit of
info about a Martin PM-3.

What is the source of your illustration ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
My dear lark,

the source was;


http://www.flightglobal.com/FlightPDFArchive/1927/1927%20-%200290.pdf


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
Thanks Hesham,

I have some idea that this project is not from
the well known Martin Company.

Maybe a concept from the fertile mind of James V.Martin


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153

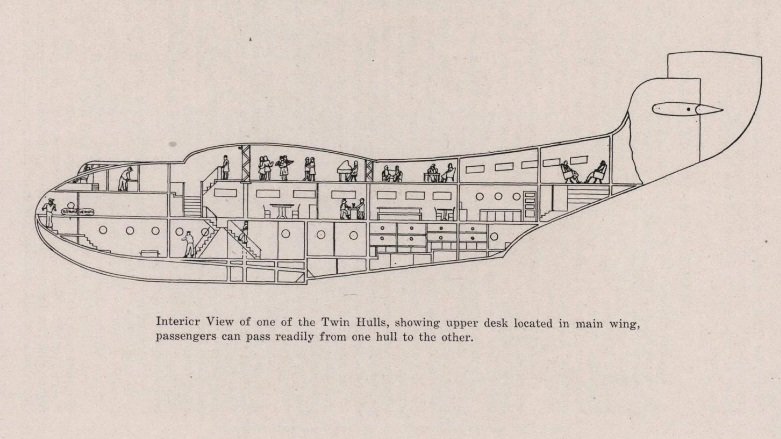

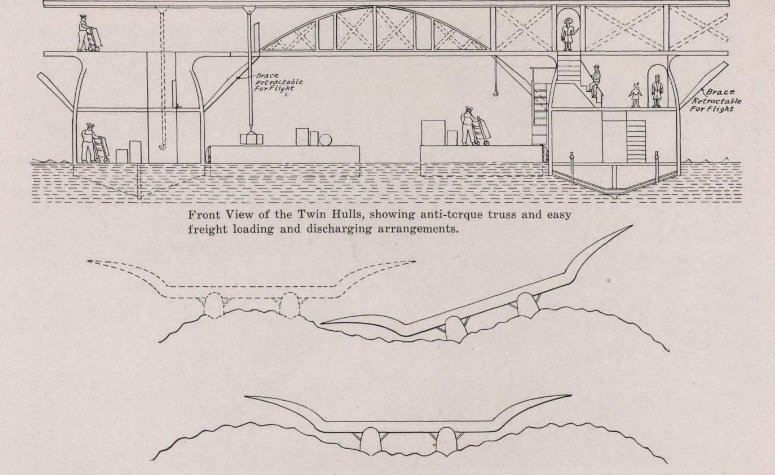

I would agree with Lark. J.V.Marting was fond of twin-hulls


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
11
Lark you are correct it was James Martin formerly Grahame-White Company at Hendon.

The prior pdf had the start of the article

http://www.flightglobal.com/FlightPDFArchive/1927/1927%20-%200289.pdf


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
Thanks Gentlemen !

Mystery solved.
Up to the next one ;)


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
41
This James Martin: http://www.earlyaviators.com/emartja1.htm
not the Irish one http://findarticles.com/p/articles/mi_gx5202/is_1990/ai_n19121906
and not Glenn L. Martin http://www.marylandaviationmuseum.org/history/glenn_martin/index.html
in case others were as confused as I was.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Topic name changed to avoid confusion (especially since the U.S. Navy had Glenn Martin PM-1 and PM-2 patrol boats!)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
And from Flugsport;


http://www.luftfahrt-bibliothek.de/zeitschrift-flugsport-oskar-ursinus-luftsport-luftfahrt-luftverkehr/luftsport-luftfahrt-luftverkehr-flugsport-1927/zeitschrift-flugsport-1927-luftsport-luftverkehr-luftfahrt.htm


Attachments

  • zeitschrift-flugsport-1927 PM-3.png
    zeitschrift-flugsport-1927 PM-3.png
    9.3 KB · Views: 406

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602

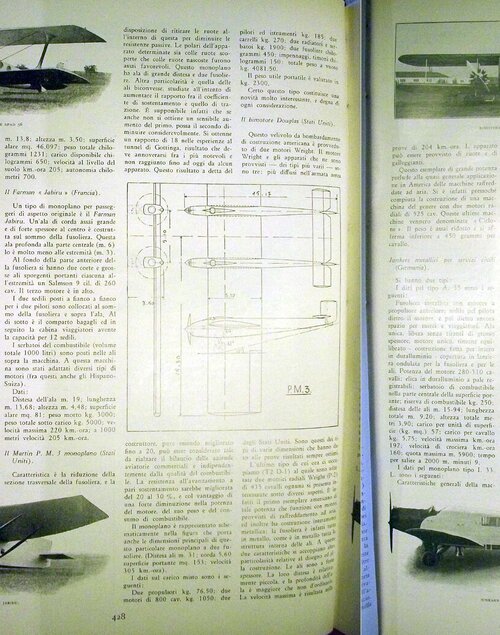

And a 3-view;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201927%2006.pdf


Attachments

  • 2.png
    300.3 KB · Views: 275

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602

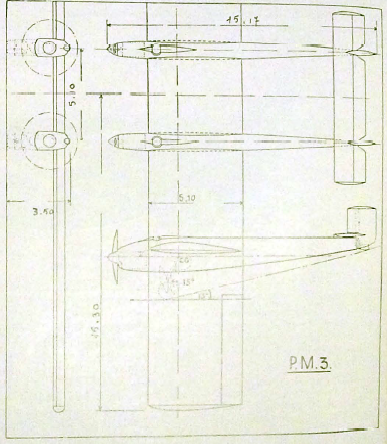

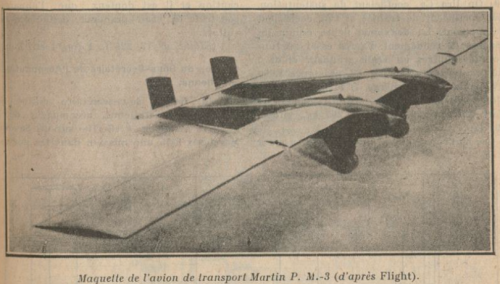

From Le Document Aeronautique 1927.


Attachments

  • 1.png
    670.2 KB · Views: 154
  • 2.png
    430.7 KB · Views: 50

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
That's quite a clean design for the time and an enormous amount of wing area, I guess for carrying a lot of fuel for long-duration patrols.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi,

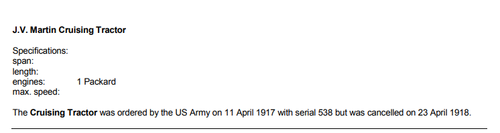

this man designed during 1908 to 1911,a glider and a tailless pusher airplanes,followed by a cruising
tractor
aircraft of 1917,and K.III & K.IV single seat biplane fighters 1918,and a cruising bomber of 1919,
which was a three seat bomber/recce biplane,powered by two 350 hp Sunbeam 12 later fitted by a two
400 hp Liberty 12 engine,but there is no pictures known for last two cruiser concepts,also I spoke about

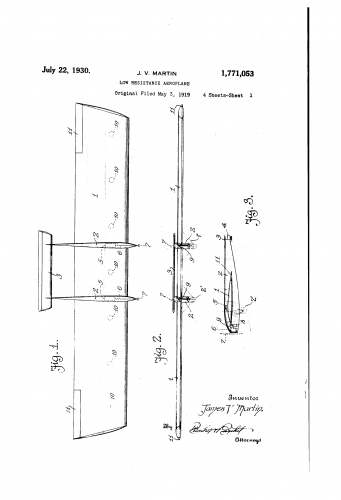

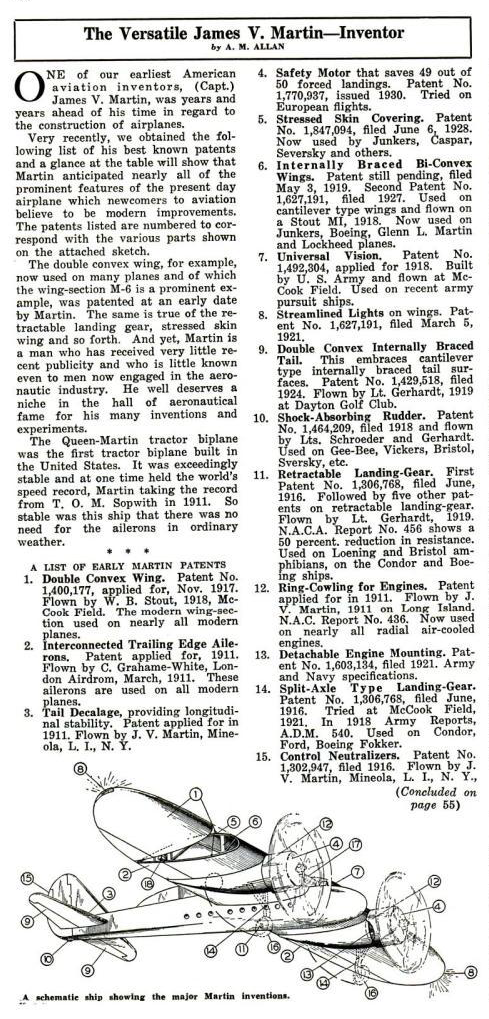

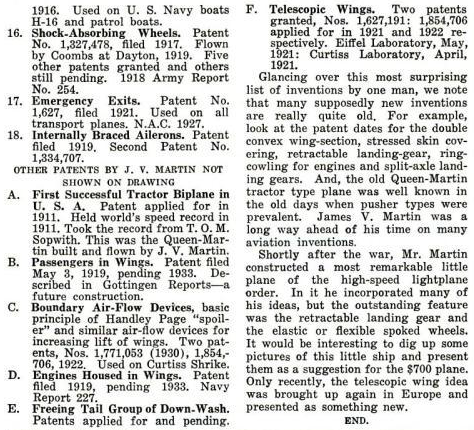

his patents here;



Last edited:

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,700
Reaction score
1,107

The 'Martin Tractor Aeroplane' illustrated at the top of that page is elsewhere described as a 'Martin-Gage'. In other words, it was Jay Gage's Tractor Bi-Plane, built by his Gage-McClay Company of of Griffith Aviation Park, Los Angeles. But what were Martin's mods?

-- http://collectair.org/images2/The_First_Aeroplane_In_Alaska.jpg
-- 2-view drawing: http://pioneeraeroplanes.com/gtb2.jpg

The only external differences that I can spot (as compared with the Fowler-Gage and the drawing link, above) is that Martin's aircraft had equal-span wings (which left the ailerons protruding to the sides). So, the 'Martin-Gage' had an equal, 30 foot span instead of the full 41 foot span. The thing is, the upper wings' "five foot extensions can be readily detached thus increasing the speed of the machine."

Aircraft, Vol. 3, No. 1 , March 1912 page 303
-- https://archive.org/stream/aircraft319121913newy/aircraft319121913newy_djvu.txt

There's some info about the Martin-Gage on The Aviation Art of Steve Remington web page: http://collectair.org/SteveRemingtonArt.html

"Jay Gage (Gage-McClay Company) built at least four of the tractor biplanes. J.V. Martin used a Gage (a Martin-Gage) for his flights in Fairbanks, Alaska in 1913".

Other Gage-McClay Tractor Bi-Planes being built for Robert G. Fowler (whose aircraft has been restored by NASM), Roy Newell Francis (who crashed at the 1913 Wyoming State Fair), and partners Philip Orin Parmelee and James Clifford Turpin. The latter pair having had only collected their Gage-McClays a month or so before Parmelee's fatal crash at Yakima, WA (thereafter, J. Clifford Turpin quit flying altogether).

More from Steve Remington:

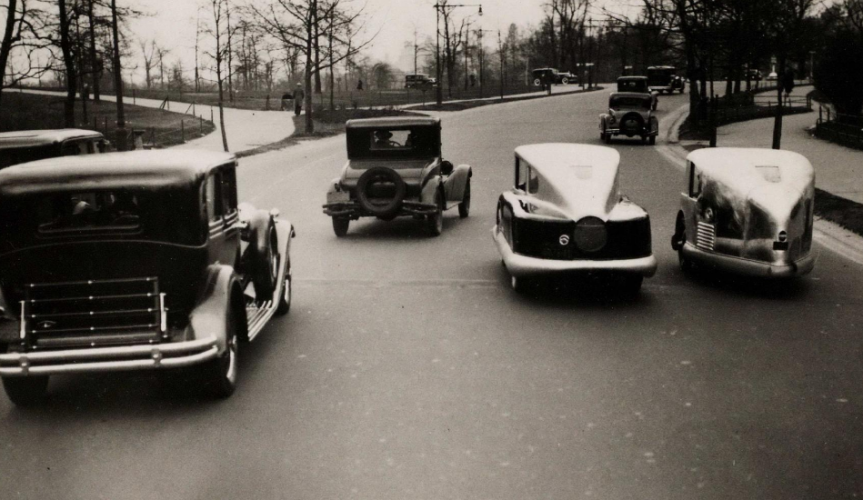

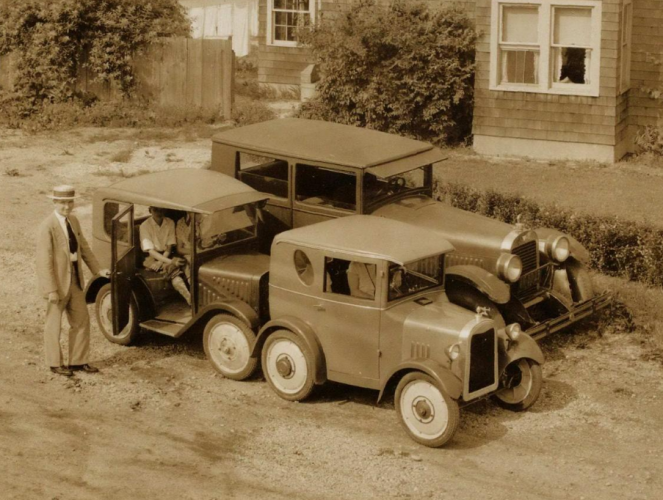

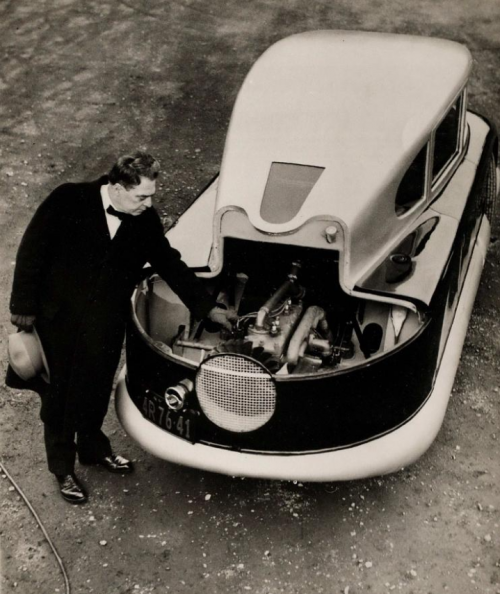

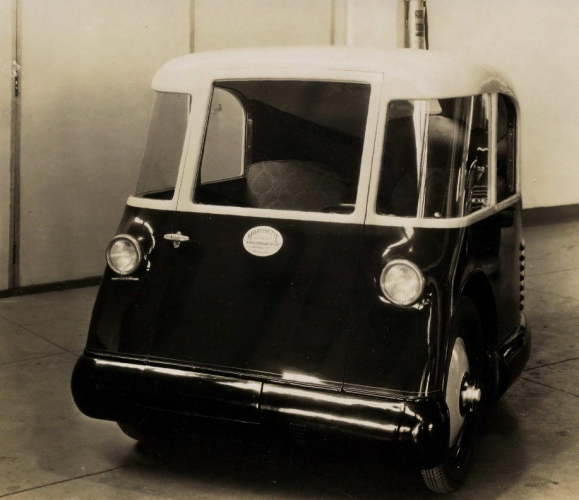

"James V. Martin organized the first competitive air meet in America at Squantum, Mass. for the Harvard Aeronautical Society in 1910; he traveled to England in Jan. 1911 for flight training and returned with Certificate #55 and a new wife, Lilly Irvine, the first English woman aviator. Martin owned a Martin-Gage Tractor used for exhibitions. Some businessmen promoters from Fairbanks, Alaska engaged Martin in 1913 to fly at Fairbanks which entailed a circuitous steamship/rail/steamboat shipment of the crated Gage. Martin flew low over Fairbanks for 3 days; with no sale, the airplane was shipped back to San Francisco but history was made as the flights were the first airplane to fly in Alaska. Martin later owned an aircraft company, was an inventor and produced a 3-wheel microcar."

"July 3, 1913 – The first airplane flight in Alaska occurred at Fairbanks. The pilot was Army Captain J. V. Martin."
-- https://alaskahistoricalsociety.org/discover-alaska/this-month-in-alaska-history/

Actually, Martin had been a Lieutenant in the US Navy Reserve but "had billed himself as 'Captain James V. Martin, US Master Mariner and Pioneer Designer'."


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,700
Reaction score
1,107
No, totally unrelated designs.

... cruiser bomber of 1919...

Not "cruiser bomber" but Cruising Bomber (or Transmission Bomber - after its shaft-drive transmission). Distinctive features claimed by Martin for his Cruising Bomber included its propeller speed-reducing transmission; shaft-drive; retractable undercarriage; rubber strand wheel shock absorbers; shock-absorbing rudder; "Martin form" wing tips (with "double convex aileron"s); etc.

Inquiry Into Operations of the United States Air Services, Volume 2, Parts 3-4, United States Congress House Select Committee of Inquiry into Operations of the United States Air Services, pp 3225-3226

"The Air Services acquired a prototype of the bomber for testing at McCook Field, but during engine tests the airplane's transmission fell apart, so it was never flown. For reasons never explained, the airplane later was destroyed by firing incendiary machine gun bullets into it. Martin was incensed. He claimed his airplane was destroyed because [the Martin Aeroplane Factory of Elyria, OH] was not one of the manufacturers favored by Air Service officers."

Martin probably wanted the bomber back to further his 1912 ambition to fly the Atlantic (having claimed that his bomber design "was capable of transoceanic flight." [here quoting from Winged Defense: The Development and Possibilities of Modern Air Power - Economic and Military, William Mitchell, G.P. Putnam's Sons Press, New York, 1925.]

The Army and Its Air Corps: Army Policy toward Aviation, 1919-1941, Dr. James P. Taylor, Lt Col, USAF, Retired, Air University Press, MAxwell Air Force Base, Alabama, June 1998, page 34.

Apparently, there is a photo of the Martin bomber on Page 471 of Scientific American, Volume 123 (1920, but I'm not sure which month), with a discussion of the 7-ton bomber's transmission.


Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
224
Reaction score
299
Website
www.armedconflicts.com
"After being enlisted into the US Naval Reserve from Elyria, Ohio in last month of 1918, Captain Martin of the Relief Delivery Vessel USS Lake Fray was back in his pre-war role as Master Mariner."
So he was captain of a ship, not captain in rank.


Attachments

  • Captain_James_V._Martin_and_Herbert_Hoov.pdf
    463.2 KB · Views: 13
