Italy's AX - The Predecessor Of the Collaborative AMX

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
108
The AX featured a dry Rolls-Royce-SNECMA M45 turbofan and a 15 degree swept wing.

The M45 engine family warrants an entire thread of its own right.

The source of the image seems to have been www.acfavi.hpg.ig.com.br, but the site now seems to be offline.


Attachments

  • amxax.jpg
    3.8 KB · Views: 1,496

Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,992
Reaction score
1,178
Thanks for posting ! ... and the page seems to be online again here:

http://www.acfavi.hpg.ig.com.br/ax.htm ... but as I understand the text it was the "Embraer A-X" not an italian project !?! ???

Especificações Técnicas (Resumo)
EMBRAER "AX"


Características: monoplano, asa alta, monoplace, monorreator
Motor: Turbofan Rolls-Royce/Snecma M45H com 3.500Kg de empuxo

Span:.......................................8,70 m
Length:...................................11,25 m
Height:....................................4,03 m
Wing area:...............................16,75 m²
may. speed:.............................1.000 Km/h


Otherwise it's quite interesting to see the next Brasilian predecessors of the AMX alias MFT-LF (Modern Fighter Trainer - Light Fighter):

http://www.acfavi.hpg.ig.com.br/embraer%20mft.htm

Cheers, Deino


Attachments

  • MFT-LF 00.jpg
    MFT-LF 00.jpg
    41.8 KB · Views: 1,218
  • MFT-LF 01.jpg
    MFT-LF 01.jpg
    45.7 KB · Views: 1,177

Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,992
Reaction score
1,178

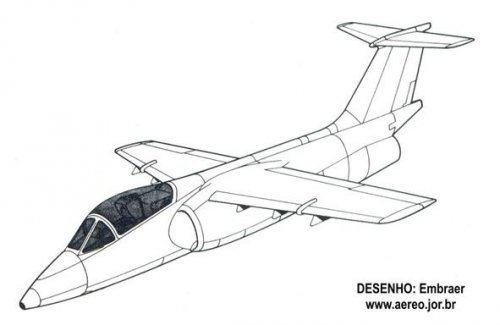

And there seems to have been another project; the Embraer AX-1:

http://www.acfavi.hpg.ig.com.br/ax-1.htm

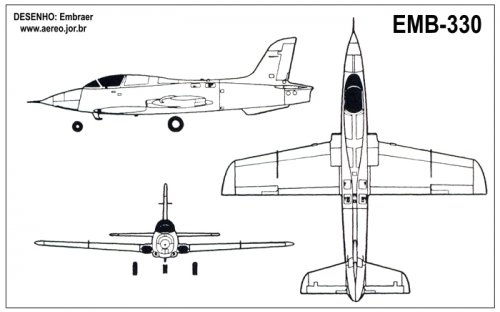

... similar to the EMB-330:

http://www.acfavi.hpg.ig.com.br/emb-330.htm


PS: I saved the pictures of the AX-1 under the wrong name EMB-330 ... below it's the AX-1 !


Attachments

  • Embraer EMB-330 AX-1 top.jpg
    Embraer EMB-330 AX-1 top.jpg
    22.1 KB · Views: 457
  • Embraer EMB-330 AX-1 side.jpg
    Embraer EMB-330 AX-1 side.jpg
    12.2 KB · Views: 1,120
  • Embraer EMB-330 AX-1 front.jpg
    Embraer EMB-330 AX-1 front.jpg
    9.2 KB · Views: 1,038

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
Back in the 70s, I remember reading a report in the aviation press of a Macchi M.340 for the AX program. Supposedly, at that time it used two M45 engines in a configuration similar to the A-10's.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
Fellows, you are tempting me at posting something I promised me not to post...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206

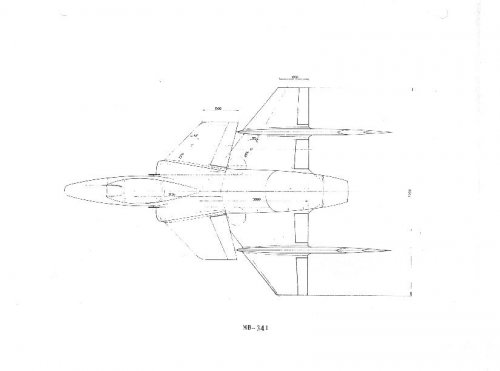

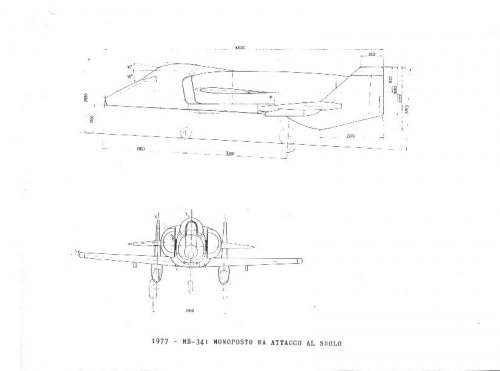

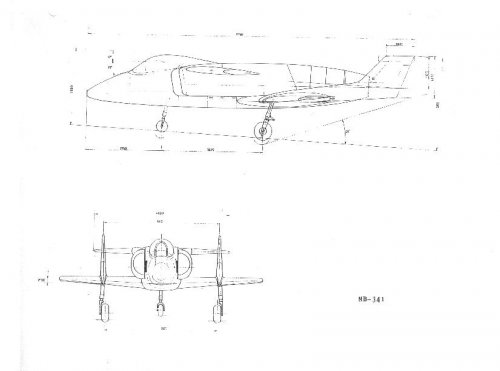

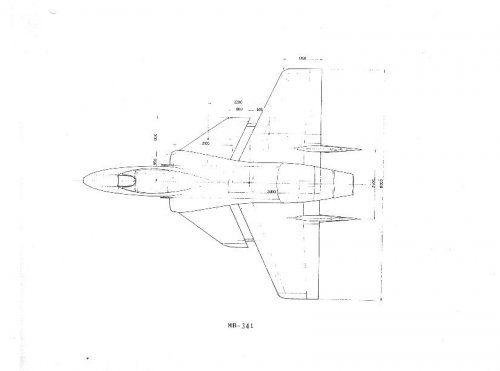

Forerunner of the AMX (Italian side) were two different albeit largely parallel project lines: the MB-340 I already extensively covered, and the MB-341. First was a rather simple CAS, second was a more advanced small strike aircraft, but in the end it evolved in a sort of two-engines AMX.
Original configuration on MB-341 I already posted here http://www.secretprojects.co.uk/forum/index.php/topic,629.msg8383.html#msg8383

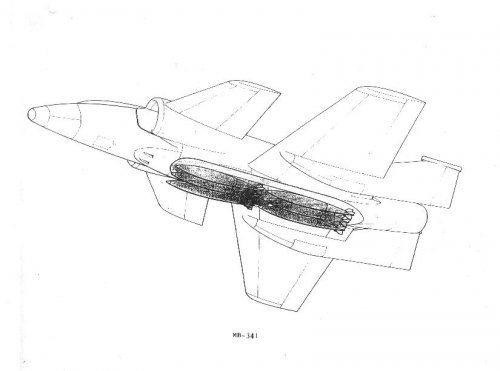

Then there was a configuration with a different positiones canard (actually it was almost a coupled wing). Bombs would have to be stored in semi-conformal position.


Attachments

  • MB341_canard_1.jpg
    36.6 KB · Views: 399
  • MB341_canard_2.jpg
    31.5 KB · Views: 380
  • MB341_canard_3.jpg
    44.9 KB · Views: 378

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206

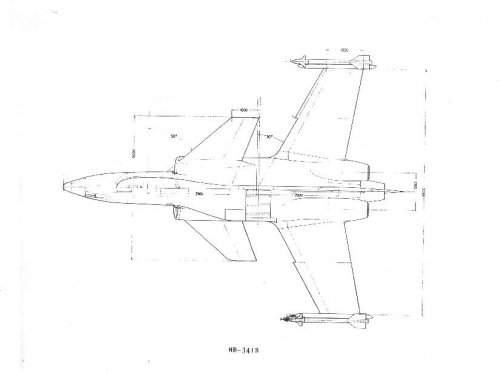

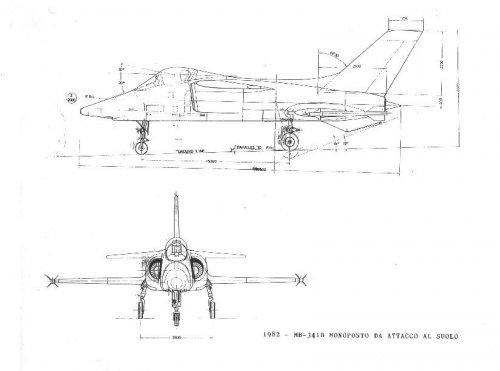

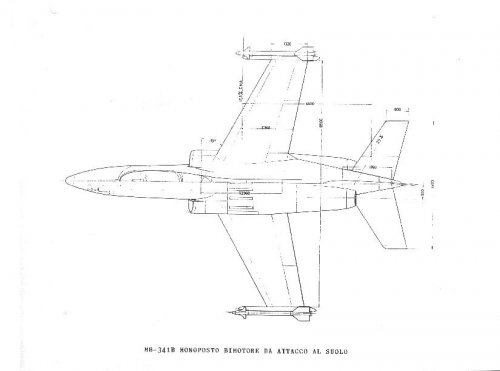

Circa 1980, the MB-341 evolved in a slender configuration, with vertical fins mounted on the wings. Later, is became more conventional, with the MB-341B that was more tailored to a CAS mission.


Attachments

  • MB341_1982_2.jpg
    37.1 KB · Views: 391
  • MB341_1982_1.jpg
    47.9 KB · Views: 398
  • MB34_late_2.jpg
    32.1 KB · Views: 309
  • MB34_late_1.jpg
    37.9 KB · Views: 328

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206

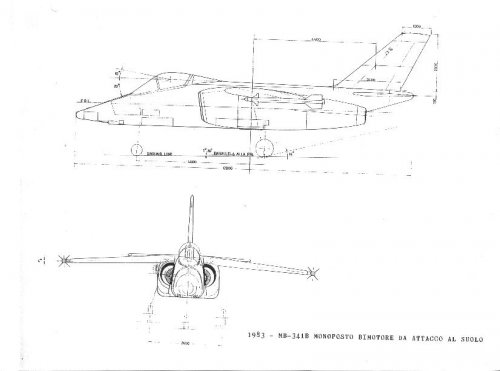

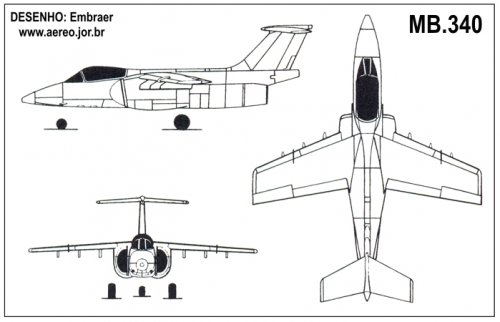

By 1983, the MB-341 for CAS has come full circle and was now very similar to a two-engines MB-340. The final AMX was a blend of the two lines and the Embraer one with a single engine. It wasn't the end for the MB-341 line, which took an unexpected twist, with the "S" configurations, but on this another topic.... 8)


Attachments

  • MB341_final_CAS_1.jpg
    44.4 KB · Views: 352
  • MB341_final_CAS_2.jpg
    38.4 KB · Views: 371

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,116
Reaction score
660
I have always been a strong believer in two-engine designs for the CAS role. I think the Italian's should have stuck to this in their AMX design

Regards
Pioneer


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
Yes, so thought Aermacchi. Problem was cost. Accepting one engine, Aermacchi proposed to use the RB-199 without afterburber, but again too costly... so the AMX was only barely useful a few years after introduction.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
502

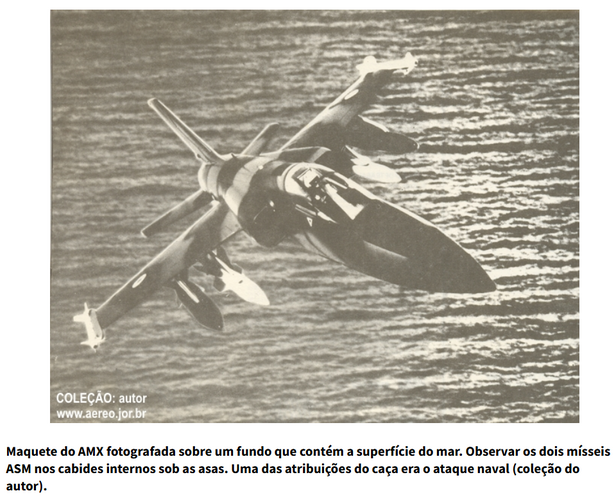

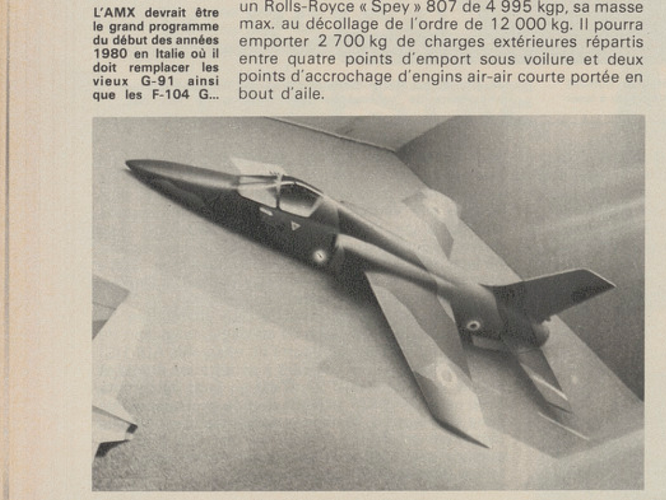

Aeritalia and Aermacchi AMX model at Le Bourget 1979

Source: Aviation et Marine International July 1979


Attachments

  • Aeritalia-Aermacchi  AMX Le Bourget 1979.jpg
    Aeritalia-Aermacchi AMX Le Bourget 1979.jpg
    285 KB · Views: 292

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
22
An interesting could-have-been from Flight in 1978

Delegations from Aeritalia and Aermacchi have visited Sweden to discuss possible collaboration on the AM.X
strike/trainer aircraft. The Swedish Defence Ministry has asked the Defence Material Command to prepare a
report by the end of this month (see Flight for July 29, page 336).

http://www.flightglobal.com/FlightPDFArchive/1978/1978%20-%201575.PDF

Edit: aha, already mentioned in the B3LA thread.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,019
From, Historia da Aviacao no Brasil,

what was this ?,and if it's belonged to that thread or not ?.


Attachments

  • 6.png
    715.4 KB · Views: 146

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,215
Reaction score
380
From, Historia da Aviacao no Brasil,

what was this ?,and if it's belonged to that thread or not ?.
It looks like a “what-if” illustration, just an artist’s imagination. Don’t know why they need twin fins on such a small plane, and those canards don’t look very functional.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,916
Reaction score
970

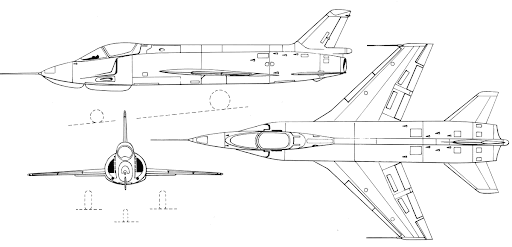

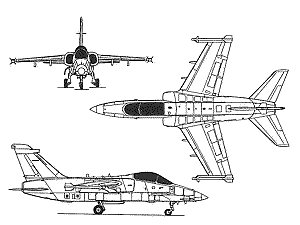

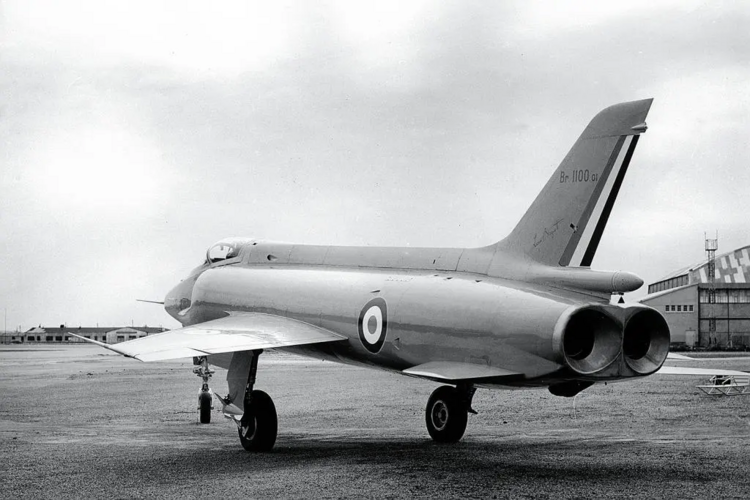

Frankly speaking the ORAO reminds more the Breguet 1100 rather than the AMX (who maybe would resemble more a Grumman F-11F Tiger):




kocovgoce

ACCESS: Confidential
Joined
Oct 23, 2020
Messages
153
Reaction score
119

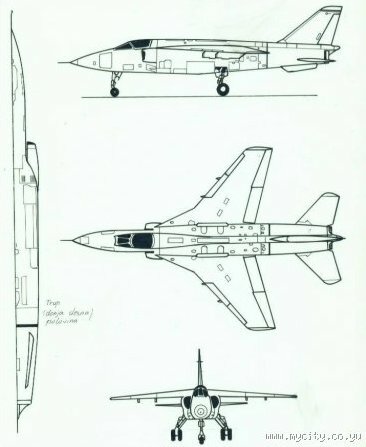

Serbian sources write that orao 2 the design was influenced by the Anglo French Јaguar. But basically it is Breguet 1100 because the same company designed the body and back of tail the orao-2
