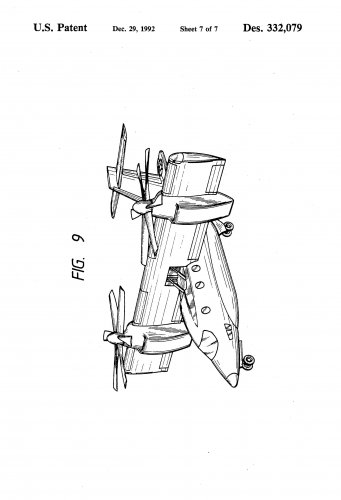

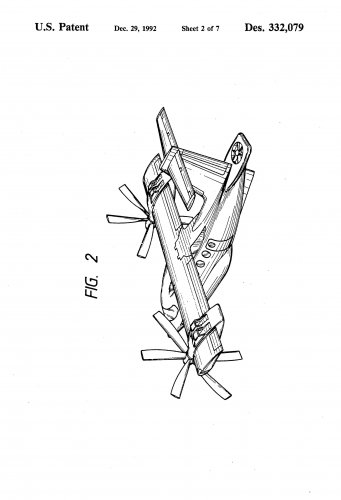

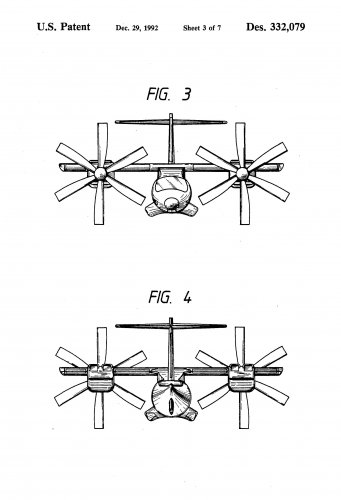

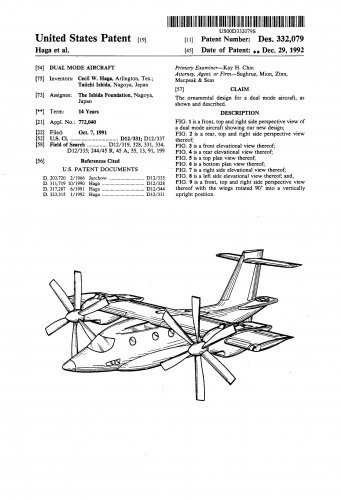

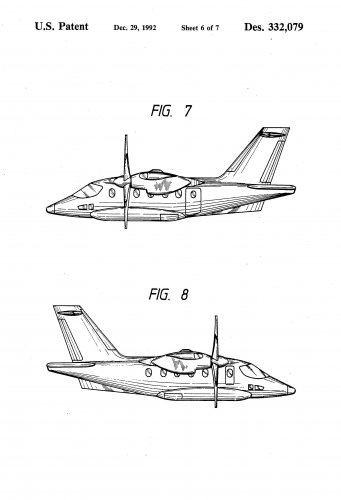

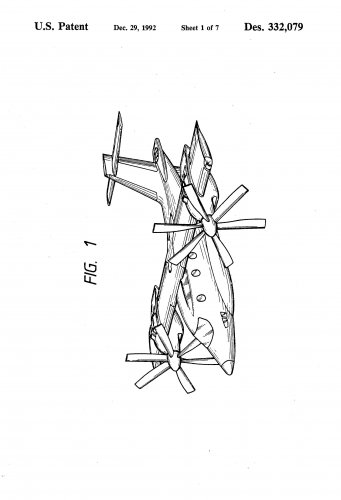

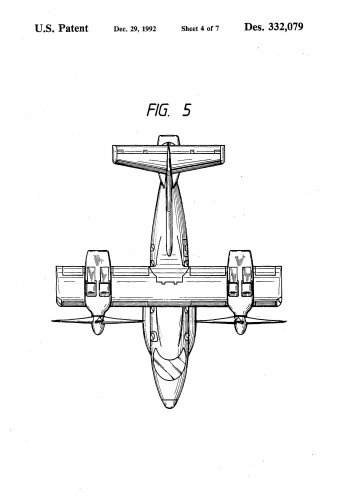

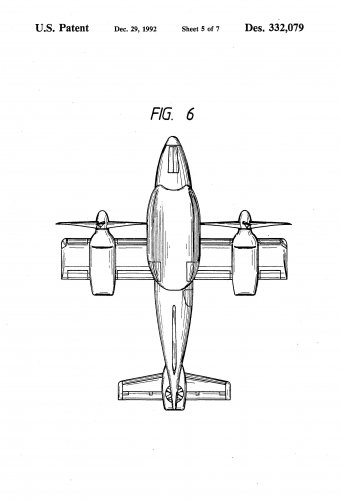

This seems to be the patent for the Ishida TW-68, includes nice drawings.

http://www.google.com/patents?vid=USPATD332079&id=NeQpAAAAEBAJ&printsec=abstract&zoom=4#PPP1,M1


Attachments

  • Dual_mode_aircraft_Page_1_Image_0001.jpg
    509.7 KB · Views: 318
  • Dual_mode_aircraft_Page_8_Image_0001.jpg
    309.8 KB · Views: 88
  • Dual_mode_aircraft_Page_7_Image_0001.jpg
    318.1 KB · Views: 76
  • Dual_mode_aircraft_Page_6_Image_0001.jpg
    280.8 KB · Views: 69
  • Dual_mode_aircraft_Page_5_Image_0001.jpg
    296.9 KB · Views: 205
  • Dual_mode_aircraft_Page_4_Image_0001.jpg
    322.2 KB · Views: 208
  • Dual_mode_aircraft_Page_3_Image_0001.jpg
    314.6 KB · Views: 220
  • Dual_mode_aircraft_Page_2_Image_0001.jpg
    295.1 KB · Views: 246

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
14

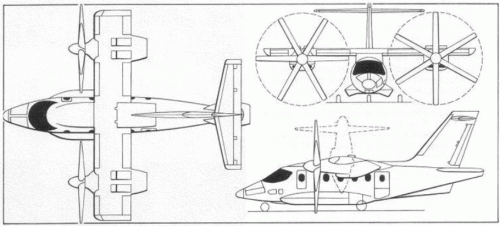

The TW-68 looks like a civilian version of VX-15 ?But more mature.


Attachments

  • tw68b.jpg
    82.4 KB · Views: 161
  • tw68c.gif
    211.3 KB · Views: 602

rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1

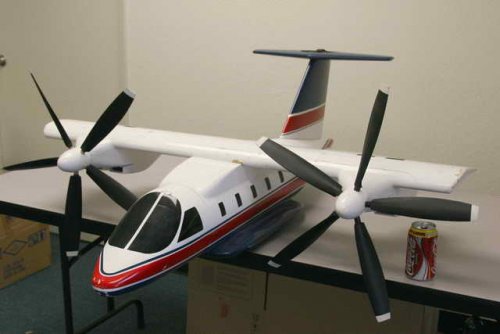

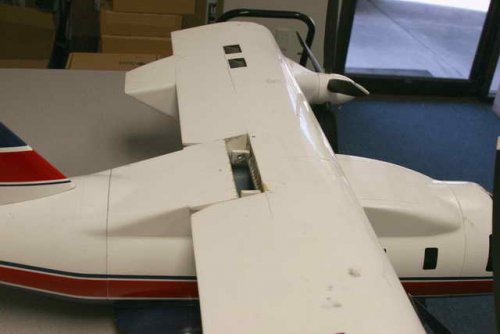

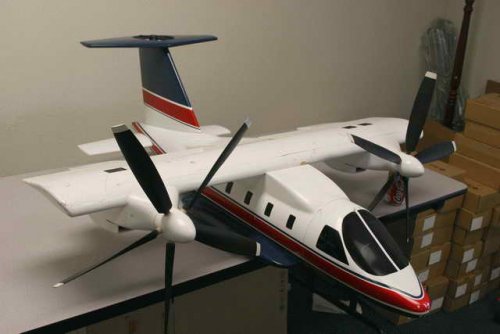

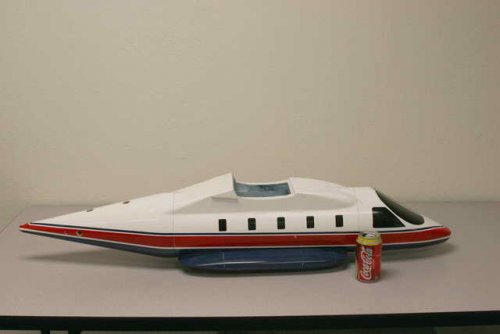

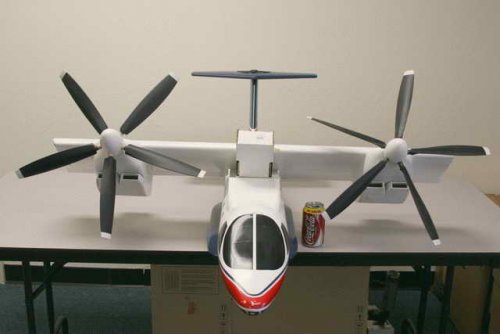

I saved these images when a TW-68 model went up for sale on EvilBay:


Attachments

  • vtolmodelf.jpg
    24.5 KB · Views: 102
  • vtolmodele.jpg
    30.2 KB · Views: 86
  • vtolmodelb.jpg
    31.8 KB · Views: 110
  • vtolmodela.jpg
    35.7 KB · Views: 126
  • vtolmodel.jpg
    34.7 KB · Views: 141

rotorheadtx

ACCESS: Restricted
Joined
Jul 4, 2006
Messages
14
Reaction score
1

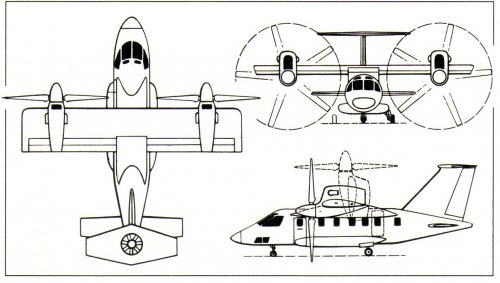

Another set of 3-views, with slightly different configuration:


Attachments

  • TW-68 3V.jpg
    TW-68 3V.jpg
    147.4 KB · Views: 211

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
297
Reaction score
20
Sorry to do the Flight archive thing, but if you want to read some background on the Ishida tilt-wing...

http://www.flightglobal.com/PDFArchive/View/1992/1992%20-%200260.html
http://www.flightglobal.com/PDFArchive/View/1992/1992%20-%200261.html
http://www.flightglobal.com/PDFArchive/View/1992/1992%20-%200262.html
http://www.flightglobal.com/PDFArchive/View/1992/1992%20-%200263.html

Interestingly, the man behind the TW-68, ex-Bell engineer David Kocurek, is now on the team designing the Karem Aircraft Optimum Speed Tilt Rotor...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,998
Reaction score
6,900
Hi,

the TW-68 model with strange canard wing !.

http://www.flightglobal.com/PDFArchive/View/1989/1989%20-%202375.html?search=tw-68%20aircraft


Attachments

  • Ishida TW-68.JPG
    Ishida TW-68.JPG
    50.6 KB · Views: 100

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,203
Website
deeptowild.blogspot.com
http://www.aerospacefacts.com/plane/aircraft.php?plane_id=135


Attachments

  • 135_10.jpg
    47.1 KB · Views: 113
  • 135_1.jpg
    28.3 KB · Views: 112
  • 135_3.jpg
    23.2 KB · Views: 137

luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
Does anybody happen to know when work on this design ended? It has finally been given up, right?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,203
Website
deeptowild.blogspot.com
luedo34 said:
Does anybody happen to know when work on this design ended? It has finally been given up, right?

According to Jane's, development of the TW-68 was put on hold in July 1993 and the subsidiary responsible for prototype and production phases of the aircraft was disbanded.
http://www.janes.com/articles/Janes-All-the-Worlds-Aircraft/ISHIDA-AEROSPACE-RESEARCH-INC-United-States.html


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
Triton said:
luedo34 said:
Does anybody happen to know when work on this design ended? It has finally been given up, right?

According to Jane's, development of the TW-68 was put on hold in July 1993 and the subsidiary responsible for prototype and production phases of the aircraft was disbanded.
http://www.janes.com/articles/Janes-All-the-Worlds-Aircraft/ISHIDA-AEROSPACE-RESEARCH-INC-United-States.html

Thanks, I didn´t know it was that early.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
973
What a shame... I used to love that design and still have the original leaflet from 1989. With solid financial backing, Ishida could have beaten the Bell/Agusta 609 by a good 15 years at least.


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
What it only the financial side that stopped this project?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,203
Website
deeptowild.blogspot.com
Artist's concept of Ishida TW-68 Tiltwing. Note fan in T-tail.

Source: "Tilt-Wing Turboprop" Popular Mechanics September 1990


Attachments

  • IshidaTW68.JPG
    35.8 KB · Views: 115

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,488
Reaction score
401
luedo34 said:
What it only the financial side that stopped this project?

As a first approximation, I'd say yes. A tilt-wing design is actually technically much less complex than a tilt-rotor design, at least if you're tilting the whole engine nacelle with the rotor. If I was going to develop a ptototype, proof of concept, vehicle for the TW-68, I'm probably look at using a MU-2 fuselage, either the long or short one, as a starting point (interestingly enough, Boeing made the same proposal in their XV-15 concept).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
973

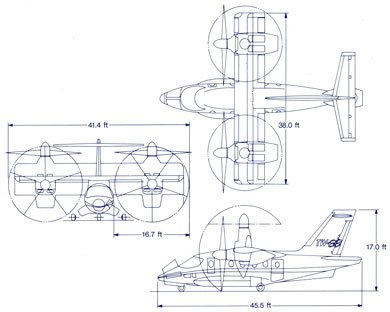

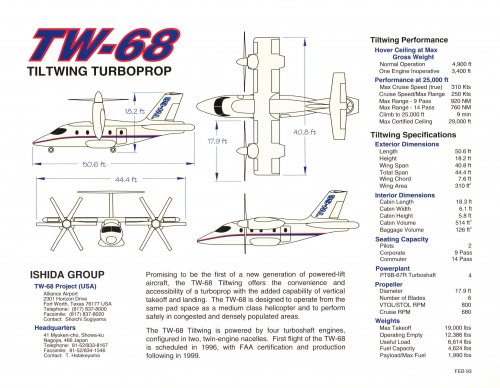

Scanned and enhanced from a superb promotional leaflet from 1993:


Attachments

  • 1993a1.jpg
    1.1 MB · Views: 128
  • 1993b.jpg
    783.6 KB · Views: 161

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
122
Website
sites.google.com

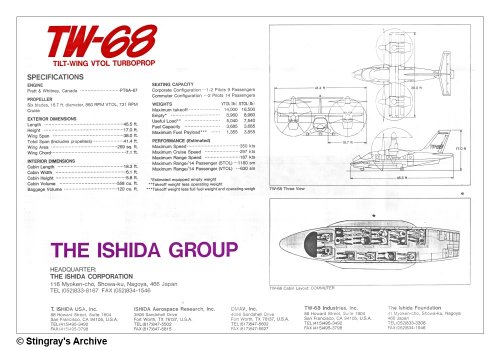

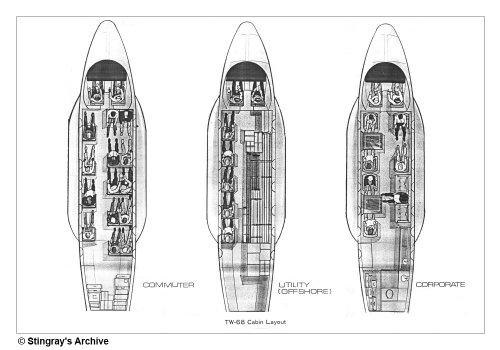

Also from a promotional leaflet, but I don't know the year:


Attachments

  • TW-68-001 - Copy.jpg
    TW-68-001 - Copy.jpg
    307.4 KB · Views: 262
  • TW-68-002 - Copy.jpg
    TW-68-002 - Copy.jpg
    207.3 KB · Views: 256
  • TW-68-003 - Copy.jpg
    TW-68-003 - Copy.jpg
    179 KB · Views: 245

northerndancer2000

ACCESS: Restricted
Joined
May 23, 2011
Messages
47
Reaction score
5
elmayerle said:
luedo34 said:
What it only the financial side that stopped this project?

As a first approximation, I'd say yes. A tilt-wing design is actually technically much less complex than a tilt-rotor design, at least if you're tilting the whole engine nacelle with the rotor. If I was going to develop a ptototype, proof of concept, vehicle for the TW-68, I'm probably look at using a MU-2 fuselage, either the long or short one, as a starting point (interestingly enough, Boeing made the same proposal in their XV-15 concept).


Grumman also did a proposal to turn a MU-2 into a demonstrator for their 698 tilt-nacelle (turbofan) concept. That was one that I wish they had made.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
973
northerndancer2000 said:
Grumman also did a proposal to turn a MU-2 into a demonstrator for their 698 tilt-nacelle (turbofan) concept. That was one that I wish they had made.

Funny, I think I can remember a Boeing Vertol proposal to convert an MU-2 (the Model 222, if memory serves).
A joint Boeing/Grumman proposal maybe?


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,788
Reaction score
1,185

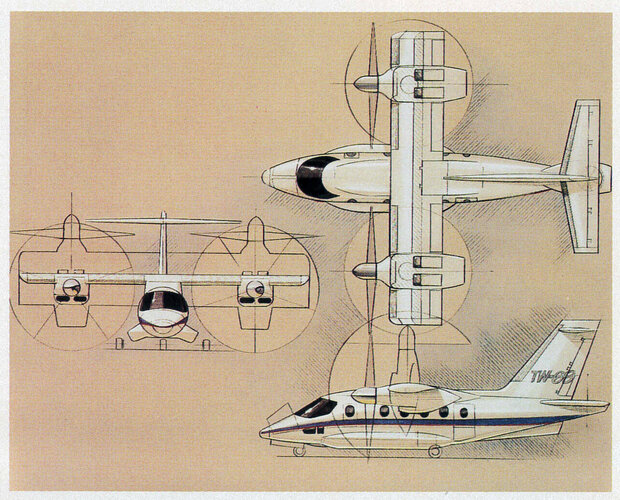

Sorting thru a collection made up mostly of magazine clippings - definitiely pre-internet - but there are some real gems hidden away through out the collection. From the December '96 issue of Aviation & Aerospace magazine, A shame this design did not make it to fruition.

Enjoy the Day! Mark


Attachments

  • zIshida TW-68 Tilt-Wing 3V Aviation & Aerospace Dec-1996.jpg
    zIshida TW-68 Tilt-Wing 3V Aviation & Aerospace Dec-1996.jpg
    914 KB · Views: 78
  • zIshida TW-68 Tilt-Wing Artwork Aviation & Aerospace Dec-1996.jpg
    zIshida TW-68 Tilt-Wing Artwork Aviation & Aerospace Dec-1996.jpg
    732.1 KB · Views: 80

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,488
Reaction score
401
northerndancer2000 said:
Grumman also did a proposal to turn a MU-2 into a demonstrator for their 698 tilt-nacelle (turbofan) concept. That was one that I wish they had made.

Funny, I think I can remember a Boeing Vertol proposal to convert an MU-2 (the Model 222, if memory serves).
A joint Boeing/Grumman proposal maybe?
Boeing-Vertol did just that for their competitor in the XV-15 competition. Given that the MU-2 does not use hydraulics, it makes/made a good basis for experimentall testbeds.

I should note that the TW-68 would have shared one requirement with the XV-15, and the V-22, engines that would be configured to have all systems function in both horizontal and vertical positions. In the case of the XV-15, engine choice was dictated by available engines from the X-18 tilt-wing program that were so configured. Boeing-Vertol's Model 222 only tilted the rotors, much as Bell's V280 does today and thus required a simpler pair of engines.

Last edited:

Aeroweanie

ACCESS: Restricted
Joined
May 2, 2020
Messages
10
Reaction score
21
Here is a Baltimore Sun article from April 10, 1992 on the TW-68. A little poking around shows that J. David Kocurek died in 2016. In 1980, I interviewed to work with him at Bell, but ended up going to Sikorsky instead.
