Is this a real MIL?

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,905
Reaction score
1,649
I was enjoying my AM coffee and looking around at Militaryphotos.net when I came across the picture below. Is it real? Or have I fallen victim to another splendid bit of Photoshop work?


Attachments

  • Mil_thingy_heloplane.jpg
    186.8 KB · Views: 733

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
Looks like kitbashing job, photoshopped. With Occam razor, this is one of the worst configurations for a push-rotor attack chopper you can even imagine. Plus, national insignia is quite out of standards. You just needn't two red stars placed at vertical tail AND the fuselage as in Bondiana movies and Rambo III.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu

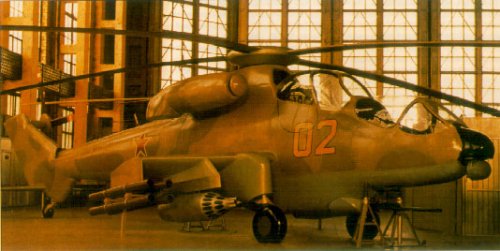

At least the shape of the design is real - it´s one of the first Mi-28 configurations.


Attachments

  • Mil Mi-28.jpg
    Mil Mi-28.jpg
    28.5 KB · Views: 644

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu

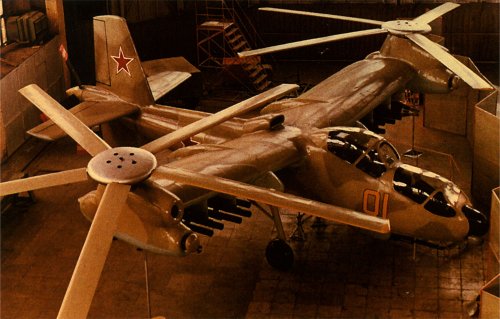

Seems that it was photoshoped from this mockup, only the photo is from different angle.


Attachments

  • mi28mockup.jpg
    54.1 KB · Views: 569

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
862
Reaction score
222
Yasotay's picture was originally published in Mikheyev's book "Moskovskiy vertolyotnyy zavod imeni M. L. Milya 50 let" (ISBN 5765600130 / Moscow, 1998 / page 224). In my opinion this publication is the best source for Mil helicopters, so I don't believe he used faked pictures.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,905
Reaction score
1,649
Thanks all,

I never would have guessed a prototype for Mi-28.


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
120
Website
sites.google.com
Flateric, your link is gone. Here is the new one: http://www.mi-helicopter.ru/eng/index.php?id=145

Matej said:

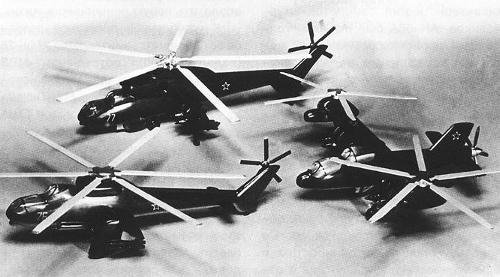

If you are right, than I am wondering if they also build the mockup of the third configuration.

I'm sure that it was probably tested on this Mi-24D:



F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,869
Reaction score
448
The Soviets actually were working on a Tilt-Rotor, and what is purported to be the mockup was recently sold to a museum in the West. Here are some pics of the mockup on a truck and reassembled in a museum sans proprotors (I forgot which museum).


Attachments

  • Sovtr-1.jpg
    67.1 KB · Views: 445
  • sovtr-2.jpg
    91.8 KB · Views: 312

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886

Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
20
flateric said:
With Occam razor, this is one of the worst configurations for a push-rotor attack chopper you can even imagine.

Accepting the risk of a nomination for Stupidest Question of the Year 2008: What makes this "the worst configurations for a push-rotor attack chopper" ? More complex than a single-rotor design, granted, and more drag as well. But I should think that the two side-by-side rotors would balance out lift nicely as speed increases ?

Regards & all

Thomas L. Nielsen
Denmark


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
20

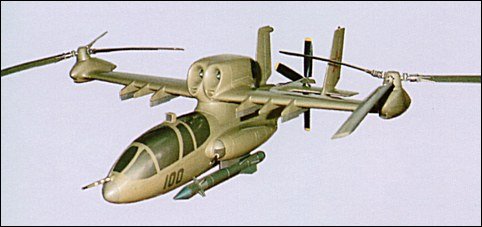

On a side note, the Kamov V-100 project used a very similar configuration:

Regards,

Thomas L. Nielsen
Denmark


Attachments

  • kamov_v-100.jpg
    23.8 KB · Views: 405

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
212
Website
www.hitechweb.genezis.eu

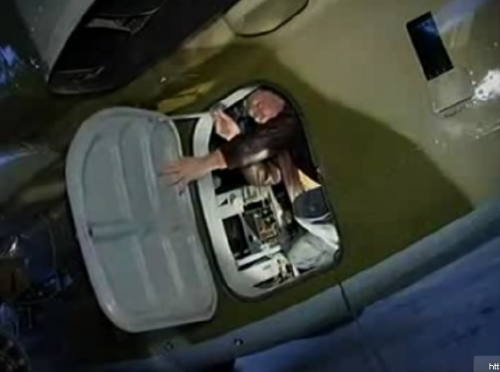

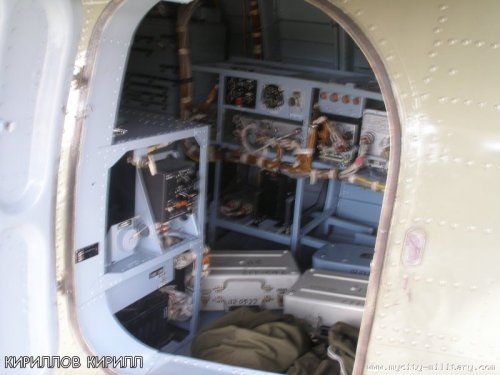

Shot of the special space inside the Mi-28 for rescue of the other pilots/soldiers. Finally found by my friend.


Attachments

  • mi28transport.jpg
    70.6 KB · Views: 346

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
120
Website
sites.google.com
Good find. ;D

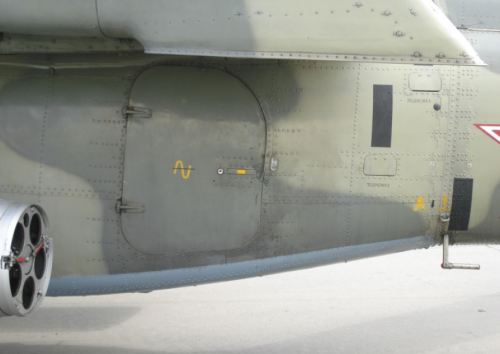

port-side door, aft of wing, provides access to avionics compartment large enough to permit combat rescue of two or three persons on ground, although it lacks windows, heating and ventilation.


dragon72

ACCESS: Confidential
Joined
Aug 8, 2006
Messages
63
Reaction score
4
Really good find. Looks like all the Mi-28 computers are back there too. Probably makes maintenance easier.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,082
Reaction score
249
Soviet doctrine in the 1980-90s called for front and rear turrets on combat helicopters. I don't know about other uses, but some kind of light, small design could have been quite useful for escort duty in Afghanistan. It wouldn't even need to have proper control in a hover, just very good stoll capabilities.

Note: I'm not arguing that it is a real design - I'm just arguing that it isn't necessarily a stupid or implausible layout, even for a tilt-rotor.


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
120
Website
sites.google.com

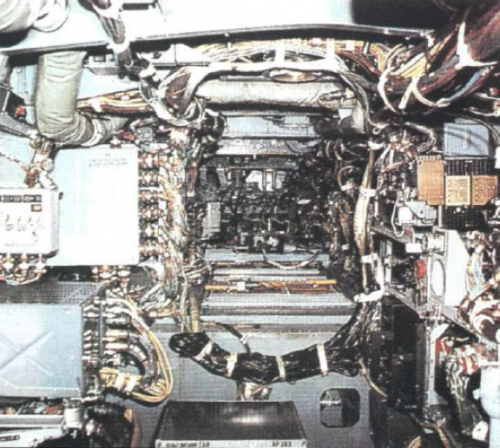

Matej said:
Shot of the special space inside the Mi-28 for rescue of the other pilots/soldiers. Finally found by my friend.

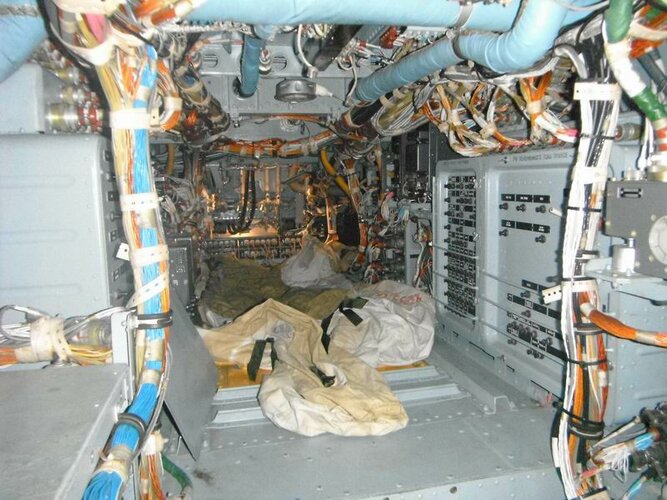

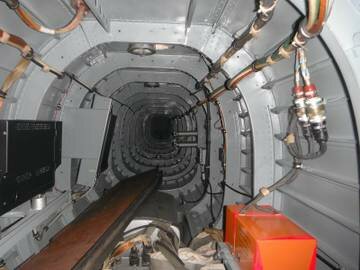

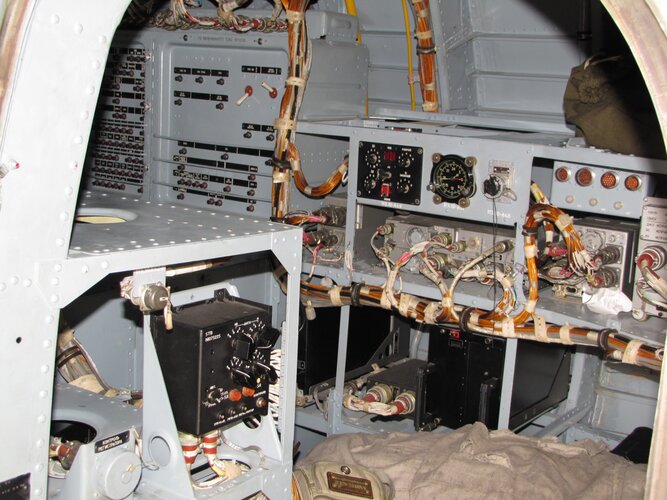

More from "Helicóptero de Ataque Mil Mi-28" by Edgar Guerrero:


Attachments

  • 5.png
    706.9 KB · Views: 115
  • 4.png
    941 KB · Views: 96
  • 3.png
    403.1 KB · Views: 210
  • 2.png
    412.7 KB · Views: 211
  • 1.png
    823.7 KB · Views: 243

gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
144
Reaction score
116
I was enjoying my AM coffee and looking around at Militaryphotos.net when I came across the picture below. Is it real? Or have I fallen victim to another splendid bit of Photoshop work?
It is not fake or photoshop. It was the mockup for an early design variant of mi-28 helicopter. Later, this design was abandoned in favor of the conventional one.


Dave54

ACCESS: Restricted
Joined
Feb 6, 2021
Messages
8
Reaction score
31
I was enjoying my AM coffee and looking around at Militaryphotos.net when I came across the picture below. Is it real? Or have I fallen victim to another splendid bit of Photoshop work?
It is not fake or photoshop. It was the mockup for an early design variant of mi-28 helicopter. Later, this design was abandoned in favor of the conventional one.
I will add to the answer. Sorry for my english, google translate helps. Mil's designers carried out aerodynamic, strength and weight calculations of promising projects, worked out various options for power plants, schemes and layouts of the Mi-28. Since the customer demanded that the helicopter be equipped with an emergency escape system with ejection seats, and the practice of flight tests carried out at the Mil company showed the difficulty of ensuring the safe shooting of the blades, the developers considered a twin-rotor rotorcraft of the transverse scheme as a priority. It not only guaranteed safe ejection outside the propeller discs, but also made it possible to include a rotorcraft wing in the design. In 1973, a project for such a machine with a takeoff weight of up to 11.5 tons was completed, equipped with two TVZ-117F engines with a capacity of 2800 hp. each with two main rotor diameter 10.3 m and a pushing propeller. Pilot production built an appropriate layout, units and systems were worked out in the OKB departments.

In the mid 70s. the customer revised the concept of using combat rotorcraft. The tactics of combat operations (by analogy with attack aircraft) at a relatively high altitude and speed gave way to tactics of operations at low altitudes with rounding the terrain, which provided the helicopter with high survivability on the battlefield. In this regard, the designers of the cost center in the early 70s, as an initiative, developed technical projects for a number of combat helicopters without additional propulsion means. Among them are helicopter options: a twin-rotor transverse configuration with 8.25 m main rotors and two GTD-10FP engines with a capacity of 1950 hp. each; a single-rotor circuit with a rotor diameter of 14.25 m and two GTD-10FP engines; a single-rotor circuit with a main rotor with a diameter of 16 m and two TVZ-117F engines. The last option was recognized as the most promising for the Mi-28.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,905
Reaction score
1,649
@Dave54 - Superb! Thank you for the excellent insight to the history of the Mi-28.
