Indian RLV Tech Demonstrator Test

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
http://www.telegraph.co.uk/scienceandtechnology/science/space/5095909/India-plans-to-test-space-shuttle-in-next-12-months.html

Moonbat


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
Last night officials said if successful the shuttle may, in time, be used for other transport uses, but its main purpose now is to "reduce the cost of access to space."

How the hell can a reusable space shuttle launched by rocket reduce the cost compared to conventional expendable rocket??


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu

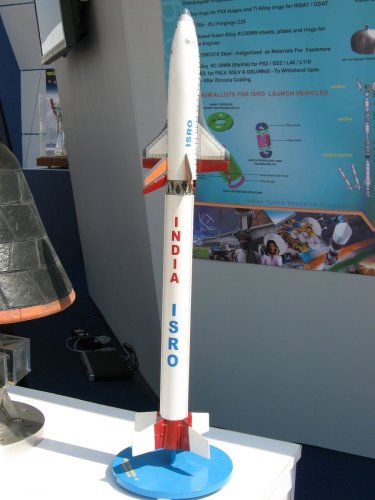

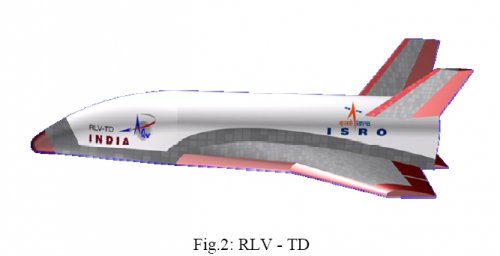

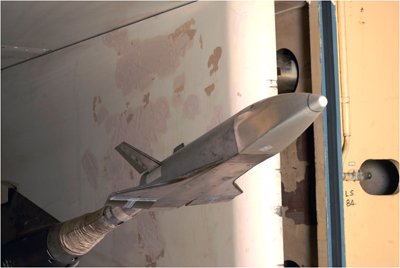

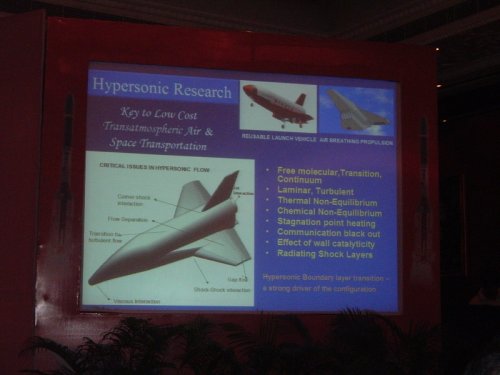

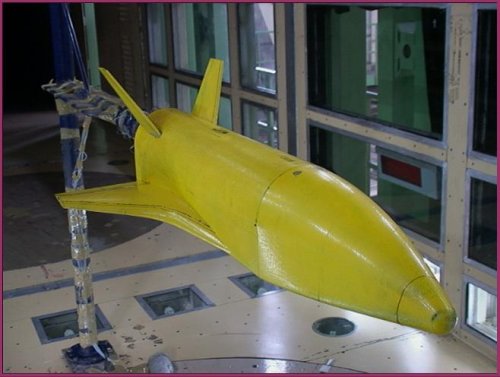

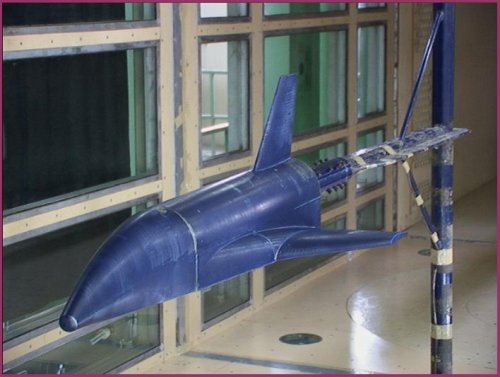

From various sources such as:

http://www.nal.res.in/pages/ipdec08.htm
http://news.sawf.org/Health/56820.aspx
http://www.hindu.com/2009/04/01/stories/2009040161821100.htm


Attachments

  • 008200904010999.jpg
    15.5 KB · Views: 281
  • ntaf221208.jpg
    71.3 KB · Views: 276
  • rlvtdlauncherimg0032pr4.jpg
    332.9 KB · Views: 280
  • rlvtdcw2.jpg
    58.4 KB · Views: 252
  • ISROReusableLaunchVehicle2015-2.jpg
    96 KB · Views: 243

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Matej said:
Last night officials said if successful the shuttle may, in time, be used for other transport uses, but its main purpose now is to "reduce the cost of access to space."

How the hell can a reusable space shuttle launched by rocket reduce the cost compared to conventional expendable rocket??

Because you get to reuse the upper stage, control and navigation systems more than once?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
...and also you need to bring it back to the launch pad, you need to extensively test it several times, because you must be 100% sure that it will not fail during the next launch, you need to replace thermal protection, because you manufacture less number (and reuse), the unit cost of every piece is higher, reuse means that you need to land somewhere or at least to survive the descent, which means a lot of additional dead weight, etc.

If it is really cheaper, then why any of the current rocket don't have some sort of reentry capsule that saves its expensive equipment? Lets hope that the first "kvazi-space" cost effective reusable system EVER will be Space Ship 2. I am a big fan of the reusable vehicles from the engineering point of view, but my believe in its cost efficiency is lost forever.

A

avatar

Guest
well regardless of your loss in faith in the cost effectiveness of such systems,

the Indian space people are determined to push on with this technology.

people there have told me that they wish to recreate the "Tata nano" experience in space.

How exactly are they gonna do it?

that one can speculate about.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
681
Reaction score
8
Matej said:
...and also you need to bring it back to the launch pad, you need to extensively test it several times, because you must be 100% sure that it will not fail during the next launch, you need to replace thermal protection, because you manufacture less number (and reuse), the unit cost of every piece is higher, reuse means that you need to land somewhere or at least to survive the descent, which means a lot of additional dead weight, etc.

If it is really cheaper, then why any of the current rocket don't have some sort of reentry capsule that saves its expensive equipment? Lets hope that the first "kvazi-space" cost effective reusable system EVER will be Space Ship 2. I am a big fan of the reusable vehicles from the engineering point of view, but my believe in its cost efficiency is lost forever.

Usually the cost analyzes have tended towards the result that reusability gets cheaper once you fly more than 50 times per year.

A

avatar

Guest
Remember Mathematica's space shuttle flight calculations people ?

Unfortunately the shuttle did not live up to 'expectations' there , did it? ;D


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
681
Reaction score
8
Because STS couldn't and can't fly 50 times per year for various reasons - and there wasn't or isn't a market for that flight rate anyway - at least at that price point.

Of course, there are lots of different assumptions that change the game significantly.

Paraphrasing Orionblamblam said in his blog about Hermes, it doesn't make much sense if what you have is just a reusable payload shroud. It might make sense to start reusability from the bottom up too, from the first stages, though they have traditionally been cheap, but that is based on some assumptions too.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
avatar said:
well regardless of your loss in faith in the cost effectiveness of such systems,
the Indian space people are determined to push on with this technology.
people there have told me that they wish to recreate the "Tata nano" experience in space.
How exactly are they gonna do it?
that one can speculate about.
Well, any candidate for a space trip in the equivalent of this ?


Attachments

  • 250px-Tatata_Nano.jpg
    13.6 KB · Views: 551

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
After seeing some crash tests of the Chinese cars, I definitely not! Fresh lacquer isn't everything. But I am crossing fingers and hope, that the ISRO will surprise us. It looks like a healthy organisation with a lot of enthusiasm, so we will see.

A

avatar

Guest
the tata nano is never going to crash at test speeds. the typical indian road speed is in the 15 kmph range :) :D

ISRO well might surprise us though.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
681
Reaction score
8
Considering how they have developed the indigenous cryogenic engine, of staged combustion variety, I wouldn't disregard their plans completely.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Then let's hope that thing will never reach markets where crash might happen at test speed.

A

avatar

Guest
the nano in those markets will be a buffed up version, compliant with the safety standards of those countries.

so the price point would also be different.

either way this innovation clearly has a lot of people in the "west" bugged and worried. no points for guessing why. but it does not matter . the march of history is inevitable.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,916
Reaction score
1,164
Website
www.aerospaceprojectsreview.com
avatar said:
the tata nano is never going to crash at test speeds.

Not until it gets to the US, and somebody makes the Nano more interesting and less useless.



Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
avatar said:
the nano in those markets will be a buffed up version, compliant with the safety standards of those countries.

so the price point would also be different.

either way this innovation clearly has a lot of people in the "west" bugged and worried. no points for guessing why. but it does not matter . the march of history is inevitable.
In the case of the Nano, the march of innovation is very much backwards.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
I wonder if there's any chance India would want to turn this into something like our X-37 here in the US? A future variant perhaps.

A

avatar

Guest
this is an ISRO program. so military is taboo. DRDO has a similar program though .


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
725
Reaction score
69
avatar said:
this is an ISRO program. so military is taboo. DRDO has a similar program though .

Might not this ISRO project fairly be considered "dual use".

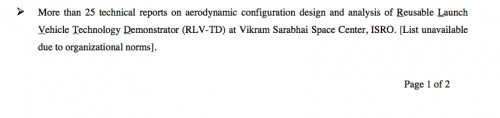

Not everything's publishable, as indicated in this scientist resume:

http://www.math.univ-toulouse.fr/~parte/Resume_YogeshParte.pdf


Attachments

  • Y-PResume.png
    26.8 KB · Views: 37

JCage

ACCESS: Restricted
Joined
May 18, 2006
Messages
39
Reaction score
0
antigravite said:
avatar said:
this is an ISRO program. so military is taboo. DRDO has a similar program though .

Might not this ISRO project fairly be considered "dual use".

Not everything's publishable, as indicated in this scientist resume:

http://www.math.univ-toulouse.fr/~parte/Resume_YogeshParte.pdf

Which organization permits all internal studies to be made public? I have rarely seen any commercial organization do so.

Once Mr Parte left ISRO, several of the projects he worked upon became ISRO's IP, and ISRO will protect its IP, being a commercial (to a degree) organization.

So just because "not everythings publishable" does not mean, that Mr Parte worked on anything dual use.

Now coming to the ties between the ISRO and DRDO - they are well referenced and documented. There are people from ISRO who joined DRDO and vice versa, but that is not necessarily a big deal. The point is people in ISRO could not work on DRDO programs and remain in ISRO. There are strict firelines between the two orgs.

Personally, I consider it stupid in several ways, and typical of how India took Gandhian pacifism to ludicrous ends, creating two parallel setups and spending more money in the process.

A

avatar

Guest
http://www.isro.org/rep2009/citizens.htm
As a first step towards realising a Two Stage To Orbit (TSTO) fully re-usable launch vehicle, a series of technology demonstration missions have been conceived. For this purpose a Winged Reusable Launch Vehicle technology Demonstrator (RLV-TD) has been configured. The RLV-TD will act as a flying test bed to evaluate various technologies viz., hypersonic flight, autonomous landing, powered cruise flight and hypersonic flight using air breathing propulsion. First in the series of demonstration trials is the hypersonic flight experiment (HEX).


Towards this, Airframe Engineering model, axisymmetric proto nose cap after graphitisation (C-C) and slow burn rate propellant were realised. Aerodyanamic charcterisation of technology demonstration vehicle was completed at NAL, VSSC and IIST.


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
More likely to happen than anyfurther developmentof the US manned space program. Sounds like NASA manned moon mars is over except for the final curtain draw which may take decades. I'd put my money on India.

A

avatar

Guest
The moon and mars mission are becoming high priority.

One good thing that has happened to the scientific establishment here in India is the realization that if you want to keep top talent back home you have to keep reaching for the stars, as it were.

After years of seeing our best guys run away to the west , I am beginning to notice a desire to stay back and work on meaningful stuff here at home.


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
395
Reaction score
22
IMHO, they're doing what NASA infamously didn't, way-back-when...

There's enough 'shape' commonality with a dozen other programs to look 'right', and they're smart enough to NOT stick the design with crippling bay-size and cross-range issues. Big enough to be 'useful', small enough to air-lift, air-drop or boost with modest launchers or pegasus-style sub-stages, suit a two-seater with pay-load or pressure can...

As a 'research' craft, it seems okay. Progress to man-rated, do many modest flights like those neat lifting-bodies NASA had, work up...

Um, I hope they're talking to the Australians-- Launch SE over ocean, rent a landing strip in the Outback.

Few years down the line, they'll have the materials, the avionics, and they could license-in Sabre engines...


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu

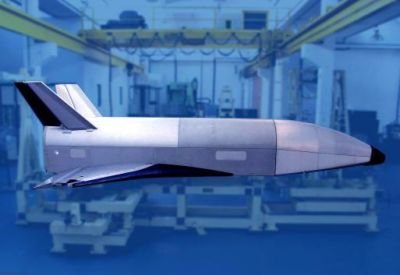

Some fresh information and photo of the engineering model:

Edit : I've removed the link, because it was reported to link to a porn site. Trying by myself,
I got at first the message "page not found" and then a Malware warning.


I didn´t get the malware warning, but the link is dead anyway.


Attachments

  • ISROlaunchvehicle295.jpg
    9.8 KB · Views: 425

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
725
Reaction score
69
Isro's Annual report (March 2013) reads:

A winged Re-usable Launch Vehicle Technology Demonstrator (RLV-TD) has been configured to act as a flying test bed to evaluate various technologies, namely, hypersonic flight, autonomous landing, powered cruise flight and hypersonic flight using air breathing propulsion towards realising a Two Stage to Orbit (TSTO) fully re-usable launch vehicle.

Major highlights of RLV-TD during the year include:

mission analysis based on static test propulsion performance, updating of autopilot design in RLV-TD ascent phase and Technology Demonstrator Vehicle (TDV) descent phase, 6D simulations through COMETS & SITARA to validate Navigation and Guidance Control (NGC) design, liftoff studies and wind turbulence studies. Guidance and Autopilot designs were modified based on simulation results.

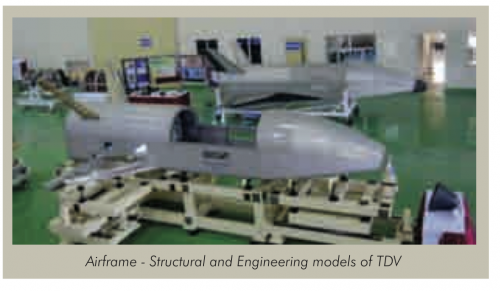

Technology Demonstrator Vehicle (TDV) structural model was realised. Fuselage and inter stage assemblies are realised for structural testing. Flush Air Data System (FADS) (FADS is also one of the critical technologies for AMCA) test article realised and integration procedure, FADS algorithm, avionics and leak tightness for pressure pick up assembly were validated through 1:1 FADS wind tunnel test at IIT, Kanpur.

Qualification model of Radar Altimeter was realised and balloon test conducted at TIFR, Hyderabad. Carbon-carbon (C/C) laminates for nose cap were realised through a new route. Functional qualification test of Launch Hold and Release System (LHRS) with dual pyro initiation carried out with simulated interfaces.

The testing of HS9 booster stage separation system along with hydraulic line separation system was completed successfully. High altitude test of the 2 kN retro rocket developed for jettisoning spent HS9 motor was successfully conducted at SDSC SHAR.

The Integrated Technical Review (ITR) of RLV-TD by the National Review Committee in October 2012 has concluded that launch of RLV-TD HEX-01 mission in September 2013 is feasible


source: http://www.isro.org/pdf/Annual%20Report%202012-13.pdf page 64



Attachments

  • ISRO-RLV-TD-structural_model-2012.png
    502.8 KB · Views: 279

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
RGClark said:
Looks very similar to the X-37b.

That was also my first impression, only the wing is moved backward. Regarding the size, there is some sort of standardized table next to the second vehicle or you can use door width to make a calculation.
