Flateric, I am not sure there are many people for whom such list will be interesting.
Anyway, I give first part with abbreviation “TsKB”.

List of Ilyushin aircraft

1. SS (stratosferniy samolet) – the very first Ilyushin project.
2. TsKB-6 – small passenger aircraft. Details in www.avicopress.ru
3. TsKB-26 – experimental aircraft
4. TsKB-26P - passenger aircraft. Details in www.avicopress.ru
5. TsKB-30 (DB-3) – long-range bomber
6. TsKB-32 (I-21) – fighter. Details in www.avicopress.ru
7. TsKB-51 – DB-3 on floats
8. TsKB-54 – bomber
9. TsKB-55 – battle aircraft
10. TsKB-56 – bomber
11. TsKB-57 – battle aircraft
12. TsKB-60 – Il-2 with two engines

Will follow the list of aircraft with abbreviation “IL”.

Regards


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Dear Artie Bob!
Here the list of Ilyushin aircraft from Il-1 till Il-30. Will be happy if it is seful for you.
Il-1 – second and last fighter
Il-2 – battle aircraft (a lot of variants)
Il-4 – long-range bomber (a lot of variants)
Il-6 – bomber
Il-8 – battle aircraft
Il-10 – battle aircraft
Il-12 – passenger aircraft
Il-14 (1) – long-range bomber
Il-14 (2) -¬¬ passenger aircraft
Il-16 (1) - battle aircraft
Il-16 (2) – jet liner
Il-18 (1) – VIP liner
Il-18 (2) - passenger aircraft (a lot of variants)
Il-20 (1) - battle aircraft
Il-20 (2) – civil variant of Il-28 bomber
Il-22 (1) – jet bomber
Il-22 (2) – Flying head quarters (Bizon, Puma, Zebra, Sokol)
Il-24 – jet bomber project
Il-24N – variant of Il-18 (2)
Il-26 – long-range bomber
Il-28 – front bomber (a lot of variants)
Il-30 – jet bomber


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326
Another person very interested on that list.

Thank you very much ucon! :)

Antonio


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Hi, guys.
Next part of list of IL

Il-32 – glider
Il-34 – moto-glider
Il-36 (1) – long-range bomber
Il-38 - long-range bomber
Il-38 (2) – anti-submarine patrol aircraft (Il-18 variant)
Il-40 – battle jet aircraft
Il-42 - battle jet aircraft
Il-44 – bomber
Il-46 – bomber
Il-48 – competitor for Tu-91
Il-50 – bomber
Il-52 – flying wing bomber
Il-54 – bomber
Il-56 – bomber (5 different configurations)
Il-58 - passenger aircraft (mix of Il-14 and Il-18 (2)
Il-60 - passenger aircraft


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
604
Reaction score
135
Next part of list of IL
Il-52 – flying wing bomber

Priviet, Hello, Ucon,

Will it be possible to have more detail on this flying wing project?

Thanks, Spassiba,


Philippe


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Hi to all.
Today is the next part of Ilyushin aircraft list:
Il-62 - passenger aircraft
Il-64 - passenger aircraft
Il-66 - passenger aircraft
Il-68 - passenger aircraft
Il-70 - passenger aircraft
Il-72 - passenger aircraft
Il-74 - passenger aircraft
Il-76 (1) - passenger aircraft
Il-76 (2) – transport aircraft
Il-78 - tanker
Il-80 - Flying head quarters
Il-82 - Flying head quarters
Il-84 - passenger aircraft
Il-86 - passenger aircraft
Il-88 - passenger aircraft
Il-90 - transport aircraft
Il-92 – free number
Il-94 – free number
Il-96 - passenger aircraft
Il-98 - passenger aircraft
Il-100 – small multi-role aircraft

Hello, Philippe!

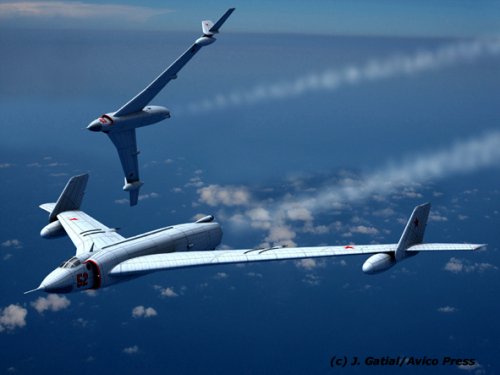

For you I attch. pic of Il-52 made by famous artist Gatial. Detailed info will be soon in my website www.avicopress.ru
Regards


Attachments

  • Il-52.jpg
    173.7 KB · Views: 450

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
And last part of 99,9% of Ilyushin aircraft full list.
Hope will be intersting for somebody. :)
Regards

Il-102 – competitor for Su-25
Il-103 – trainer, multi-role
Il-104 – free number
Il-106 – transport airctaft
Il-108 (1) - biz-jet
Il-108 (2) - biz-jet
Il-110 – free number
Il-112 – passenger aircraft (a lot of variants)
Il-114 - passenger aircraft (a lot of variants)
Il-116 - passenger aircraft
Il-118 - reserved number
Il-120 - reserved number
Il-122 - reserved number
Il-124 - reserved number
Il-126 – biz-jet
Il-196 - passenger aircraft
Il-214 – transport aircraft
Il-PS – patrol, multi-role
Il-X - passenger aircraft
Il-Z - bomber

MSh-1
MSh-2
P-20 - missile


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,942
Thank you very much Ucon,

do you hear about the Il-97 ?,I saw it in Internet,but I don't know
if it is fake aircraft or not !.


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Mesa el heir, dear Hesham
Aircraft is not fake, but its name real fake!
In Ilyushin DB never use such designation for plane. As the rule name Il-97 usualy was given to Il-80 or to Il-82 by "great experts" in the West ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,942
Dear Ucon,

also;
Il-11 new lightweight military transport
Il-87 Il-86 based airborne control system
Il-104 ground attack prototype ?
Il-140 AWACS development of Il-114
Il-140M maritime patrol
Il-138 airliner ?


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Dear Hesham!!!
I will be VERY grateful to you if you tell me the sources of such designations of Il.
Hope it is not another website.
Regards


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
Il-138 (multi-purpose patrol aircraft with AI-20 engines), Il-140 (AI-20 engines equipped AEWACS) and Il-140M (maritime SAR aircraft) are mentioned here http://www.avia-inform.ru/articles/aircraft/98/ as Il-114 derivatives

Hesham's list is obviously taken from here http://www.aviation.ru/Il/


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
Dear Flateric!
I asked Hesham give me a link to a real sources, not to the amateuric site. I have just returned from IlDB. What can I say...


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
35
ucon said:
And last part of 99,9% of Ilyushin aircraft full list.
Hope will be intersting for somebody. :)

Yes, thank you. May I ask if the 'Il-Z' is a recent project?


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326

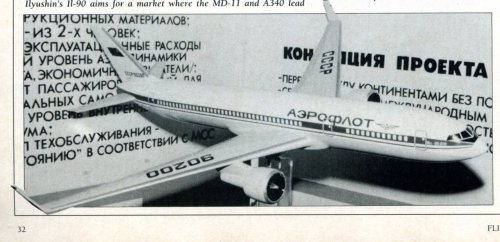

Il-90 from Flight


Attachments

  • Ilyushin Il-90.jpg
    Ilyushin Il-90.jpg
    298.3 KB · Views: 408

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326

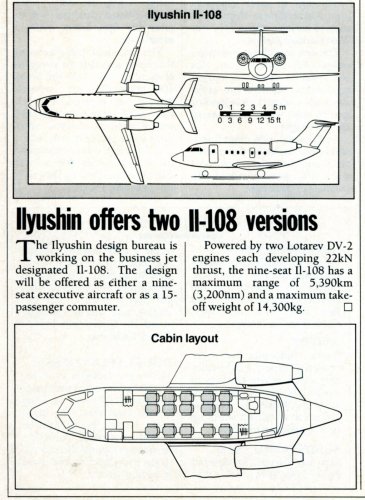

Il-108 from Flight


Attachments

  • Ilyushin Il-108.jpg
    Ilyushin Il-108.jpg
    359.6 KB · Views: 393

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
Great scans! But it would be better still if you could give the dates, or at least the years if you have them...


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326
Great scans! But it would be better still if you could give the dates, or at least the years if you have them...

No problem

Il-90 from Flight International 3-9 October, 1990 page 32

Il-108 from Flight International 9-15 May, 1990 page 28

Cheers,
Antonio


gatoraptor

ACCESS: Secret
Senior Member
Joined
Aug 29, 2010
Messages
481
Reaction score
80
Does anyone know what the real Il-38 looked like? Many years ago, Revell issued a model kit under that designation that was really the Myasischev M-4 instead.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
http://en.wikipedia.org/wiki/Ilyushin_Il-38


AM

ACCESS: Secret
Joined
Mar 24, 2008
Messages
208
Reaction score
6
Hi all

Il-118: proposal re-engined version of Il-18 with only twin turboprops (2 * 10 000 s.h.p.)

from: Nikolay Yakubovich "aircraft Il-18"


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661

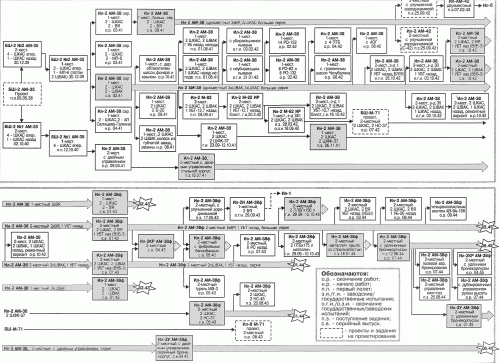

Although in Russian, I believe this chart recapitulating all the variants of the Il-2 in the form of a family tree could be useful to some. It's taken from a 103-page compilation of articles by Vladimir Pierov and Oleg Rastrenin entitled Shturmovik Il-2.


Attachments

  • Il-2 family tree.gif
    Il-2 family tree.gif
    530.4 KB · Views: 118
