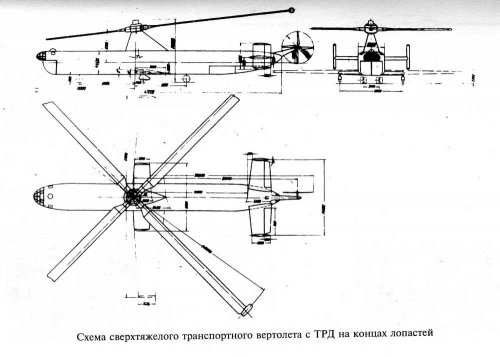

1954-1957 timeframe projects


Attachments

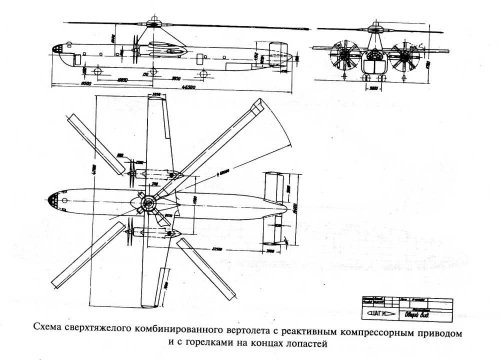

  • brat1.jpg
    51 KB · Views: 1,158

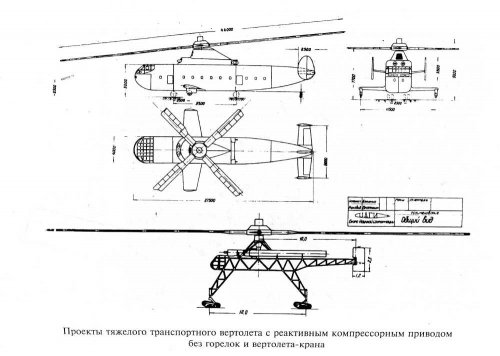

  • brat2.jpg
    60 KB · Views: 1,048

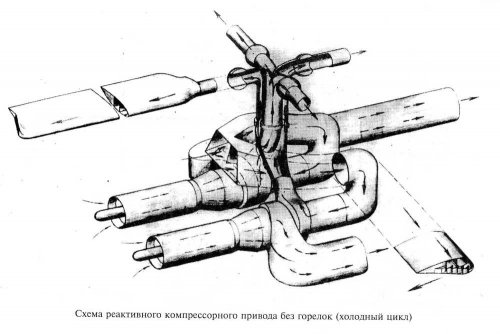

  • brat3.jpg
    56.7 KB · Views: 1,083

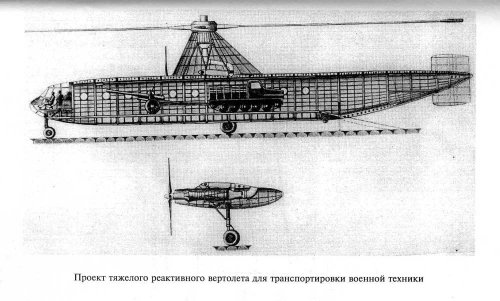

  • brat4.jpg
    48.1 KB · Views: 1,033

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,046
Reaction score
876
more...


Attachments

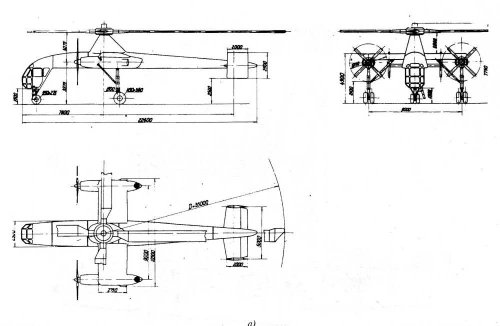

  • brat8.jpg
    77.1 KB · Views: 947
  • brat9.jpg
    82.3 KB · Views: 221
  • brat10.jpg
    50.2 KB · Views: 230
  • brat11.jpg
    43.1 KB · Views: 254

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,046
Reaction score
876
more...


Attachments

  • brat14.jpg
    78.9 KB · Views: 219
  • brat13.jpg
    40.6 KB · Views: 223
  • brat12.jpg
    42.6 KB · Views: 185

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
Fantastic information. Is there anywhere specific where I could read about these concepts?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

the Bratukhin B-12 was a project for single-rotor training
helicopter with anti-torque tail rotor in various versions
with M-14 or twin M-11 engines.

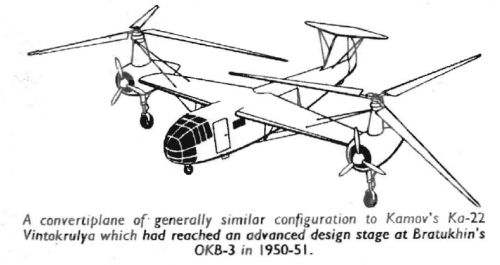

Also the designer worked on a project for piston-engined
[ later gas turbine ] convertiplane which formed the
conceptual basis of the Kamov Ka-22.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498

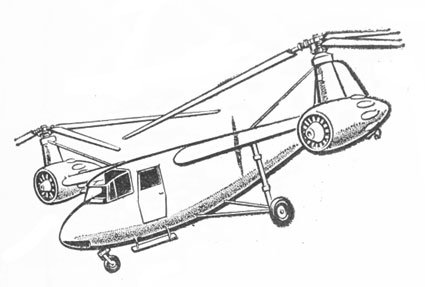

I spoke before about B-6,

and here is an info about B-6,B-7 and B-8;

To a high degree of perfection of the designers brought the bureau
projects a heavy landing vehicle B-7 and Agricultural B-8. The B-6 is a
longitudinal twin-screw helicopter project scheme.

Not out of the stage designs machine B-6 longitudinal scheme
and farm B-8. December 12, 1947 The Council of Ministers in
the decree "On the helicopter," demanded a stop to construction
of the giant B-7, and developmental testing F-4, B-5.

source; http://www.mi-helicopter.ru/rus/index.php?id=152


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

a more info about the Bratukhin projects,B-6 two-seat helicopter,
B-7 was a heavy lift transport helicopter,work stopped in 1947
and B-8 was agricultural light helicopter.

Also the Sbizh M-1 ultralight single seat helicopter project of 1948,
powered by jet engine.

B-14 was two-seat ultralight helicopter project.

http://www.militaryparitet.com/nomen/russia/avia/data/ic_nomenrussiaavia/18/


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,793
Reaction score
1,930
Was Bratukhin's group folded into the Kamov Design Bureau?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Grey Havoc said:
Was Bratukhin's group folded into the Kamov Design Bureau?

If I have correctly understood a question.
OKB-2 by Kamov from the end of 1948 to work in one area of the plant (GOSZ-3/ ГОСЗ-3), so to speak under one roof, together with OKB-3 Bratukhin's, independently of him.
Part of the design-office staff Bratukhin were transferred to the OKB -2 to gain a new design team.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,793
Reaction score
1,930
borovik said:
If I have correctly understood a question.
OKB-2 by Kamov from the end of 1948 to work in one area of the plant (GOSZ-3/ ГОСЗ-3), so to speak under one roof, together with OKB-3 Bratukhin's, independently of him.
Part of the design-office staff Bratukhin were transferred to the OKB -2 to gain a new design team. [/size]

Thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

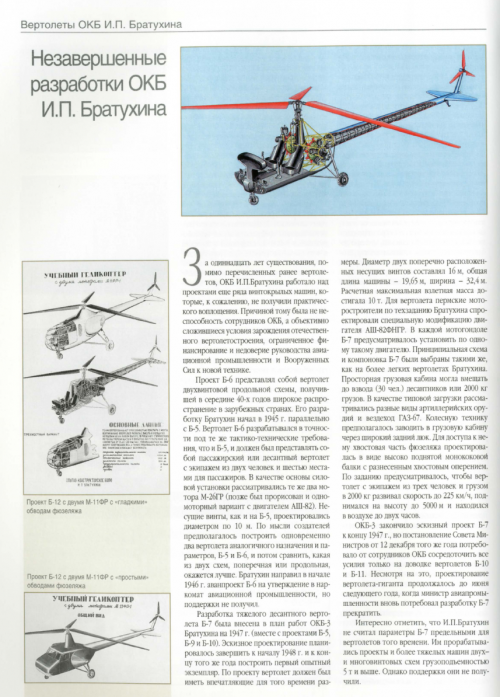

I spoke here before about Bratukhin projects,such as B-6,B-7,B-8,B-12,B-14 and M-1,
but here some additions projects;


http://fly-history.ru/books/item/f00/s00/z0000014/st049.shtml


Attachments

  • Bratukhin 1.jpg
    Bratukhin 1.jpg
    36 KB · Views: 31
  • Bratukhin 2.jpg
    Bratukhin 2.jpg
    19.6 KB · Views: 32
  • Bratukhin 3.jpg
    Bratukhin 3.jpg
    20.7 KB · Views: 25
  • Bratukhin 4.jpg
    Bratukhin 4.jpg
    18 KB · Views: 25

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

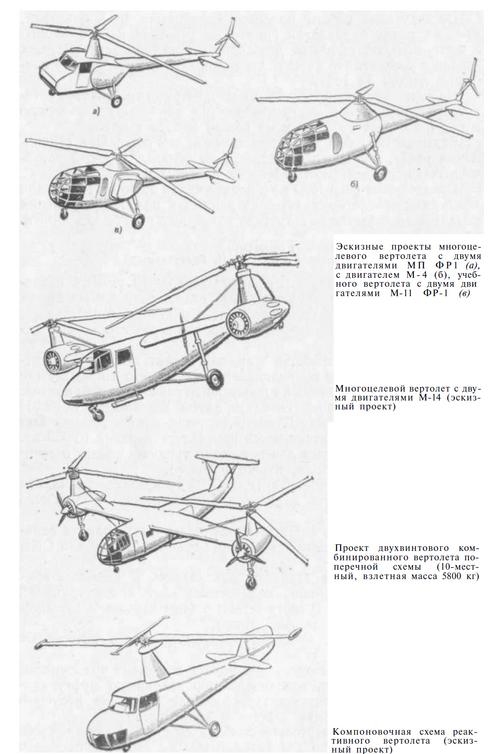

All the figures given Hesham with the above site, taken in turn from the book A.Izakson "Soviet helicopter" / А.М.Изаксон “Советское вертолетостроение» Москва. Изд. Машиностроение 1981.

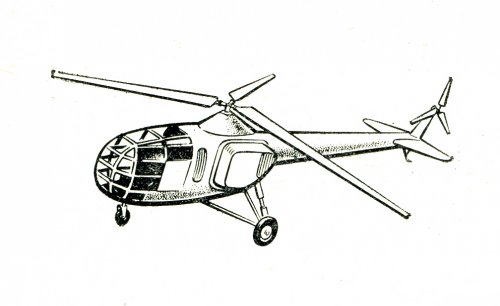

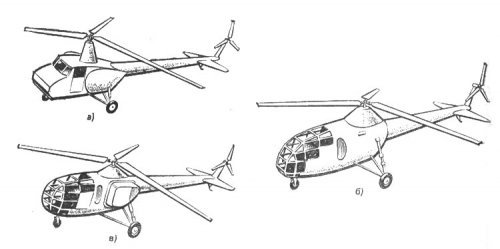

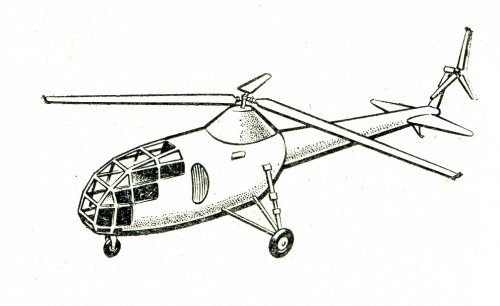

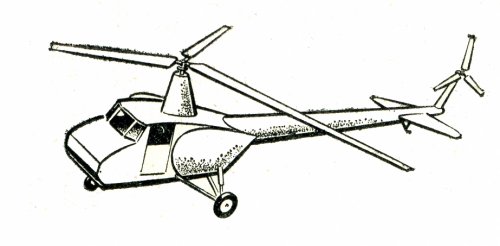

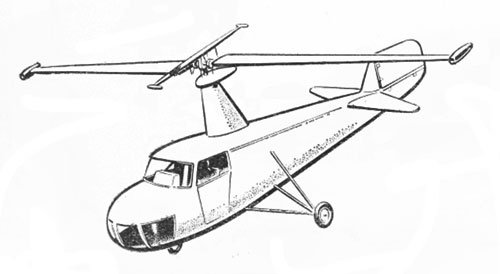

Figure 1), three variants of B-12 (enclose your scans from the book, a little better quality)

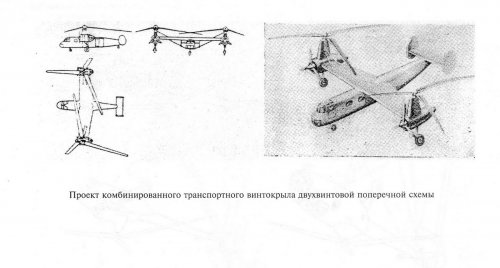

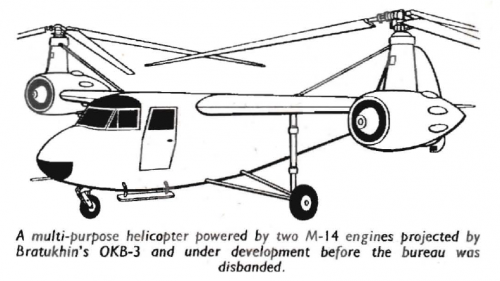

Fig.2) Bratukhin (1951) 2xM-14, take off weight 2500kg. /he also B-14

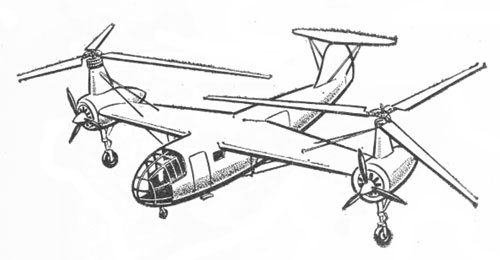

Figure 3) Bratukhin (1947) 2xM-82H / combined helicopter transversely, 10 seats, takeoff weight 5800kg.

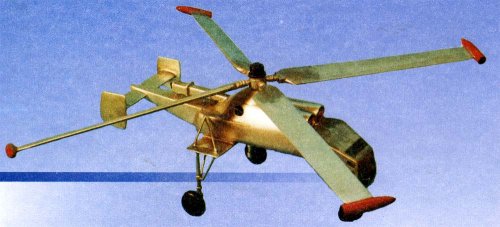

Figure 4) Bratukhin (1948) ram-jet / with PVRD-156/ he also B-13

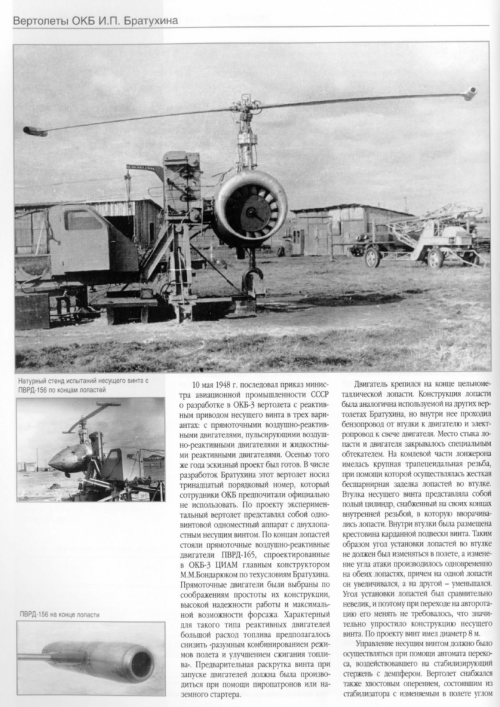

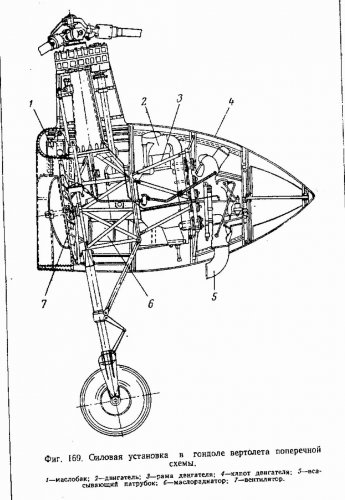

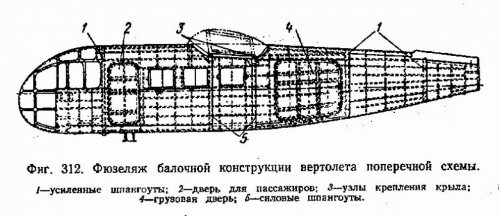

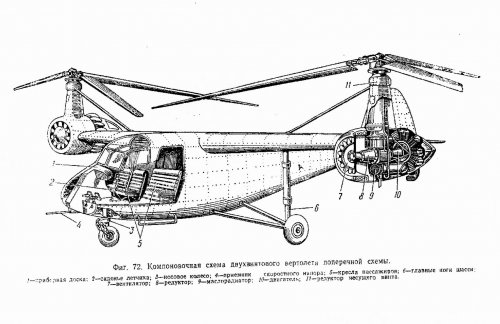

The four most recent images from the book "Design and construction of helicopters" Bratukhin I.P. 1955 State Publishing House of Defense Industry.


Attachments

  • B-11.jpg
    96.9 KB · Views: 30
  • Bratukhin B-5 (AI-26 GRF).jpg
    Bratukhin B-5 (AI-26 GRF).jpg
    195.8 KB · Views: 33
  • B-5 (early layout cockpit).jpg
    B-5 (early layout cockpit).jpg
    178.5 KB · Views: 39
  • Bratukhin pr.2 x M-14.jpg
    Bratukhin pr.2 x M-14.jpg
    242.3 KB · Views: 41
  • B-12 (1949) M-14.jpg
    B-12 (1949) M-14.jpg
    257.5 KB · Views: 29
  • B-12 (1949) 2xM-11 FR.jpg
    B-12 (1949) 2xM-11 FR.jpg
    172 KB · Views: 27
  • B-12 (1948)  2xM-11FR-1.jpg
    B-12 (1948) 2xM-11FR-1.jpg
    195.1 KB · Views: 25

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Thank you my dear Borovik for your explanations.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

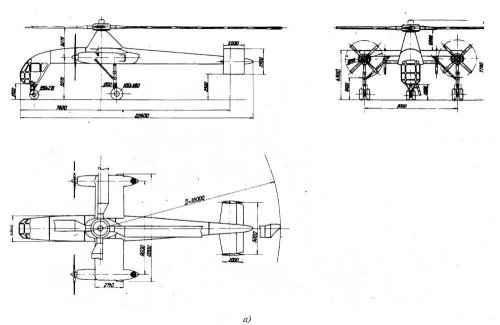

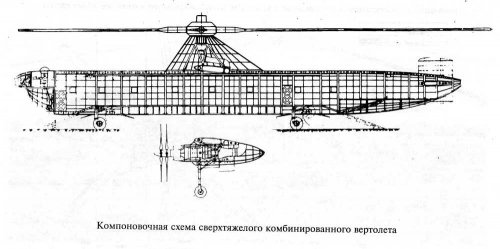

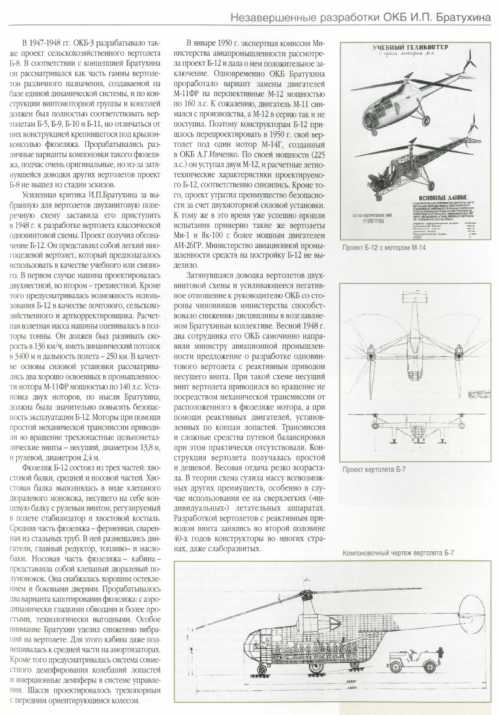

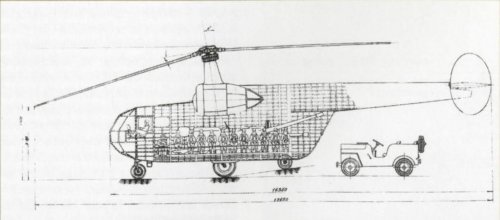

B-7 (1947) heavy transport helicopter
Overall length - 19.65 m
overall width - 32.4 m
-16 m rotor diameter,
maximum take-off weight - 10t
Engine 2 x ASh-82FNGR
Crew - 3 + 30 or 2000kg
estimated speed - 225 km / h
ceiling - 5000m
_______________________


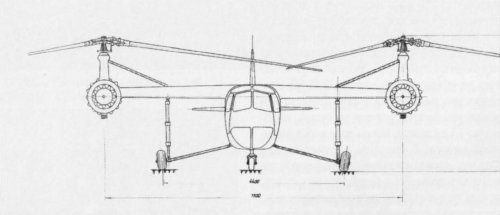

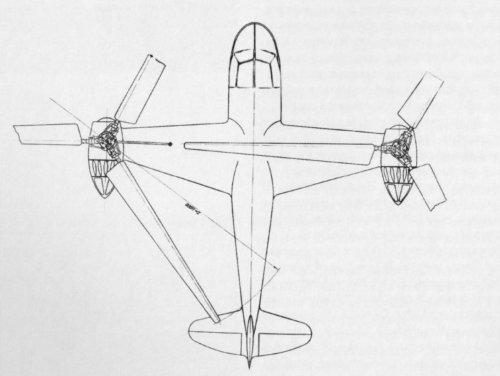

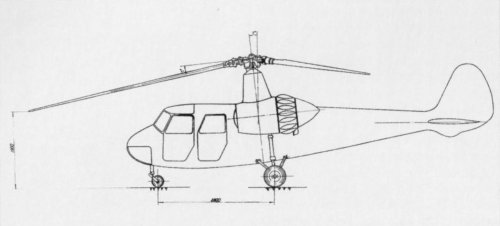

B-14 (1951)
Engine 2 x M-14G (AI-14V)
-11m rotor diameter
MTOW - 2500kg
empty weight - 1900kg
estimated speed - 170 km / h
ceiling - 3500m
range - 400km
source V.Miheev "Moscow Helicopter Plant named V.L.Mil"


Attachments

  • B-14  up.jpg
    B-14 up.jpg
    85 KB · Views: 30
  • B-14  f.jpg
    B-14 f.jpg
    55 KB · Views: 34
  • B-14 s.jpg
    B-14 s.jpg
    54.4 KB · Views: 41
  • B-7 2v.jpg
    B-7 2v.jpg
    36.5 KB · Views: 47
  • B-7.jpg
    75.5 KB · Views: 48

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
133
Reaction score
32

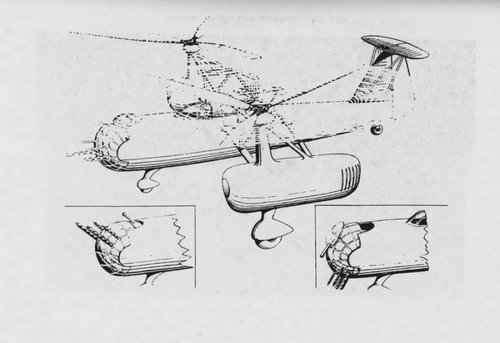

Combat helicopter "Omega" armed with machine guns and cannonsp


Attachments

  • img022 -1 ?????.jpg
    img022 -1 ?????.jpg
    98.9 KB · Views: 377

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
133
Reaction score
32

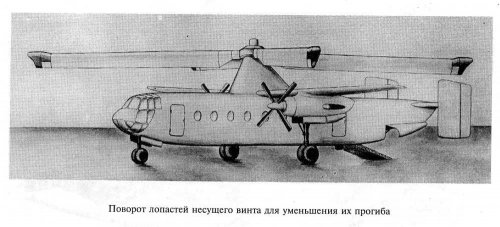

I think that this project is Bratukhin B-14


Attachments

  • img0401.jpg
    141.2 KB · Views: 355

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
mil said:
I think that this project is Bratukhin B-14

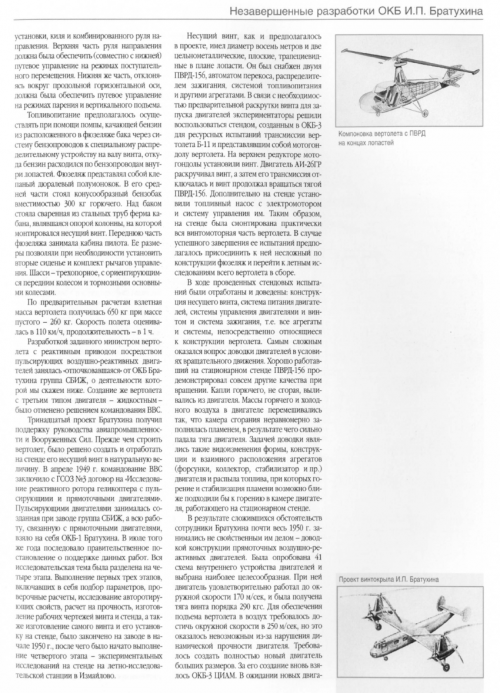

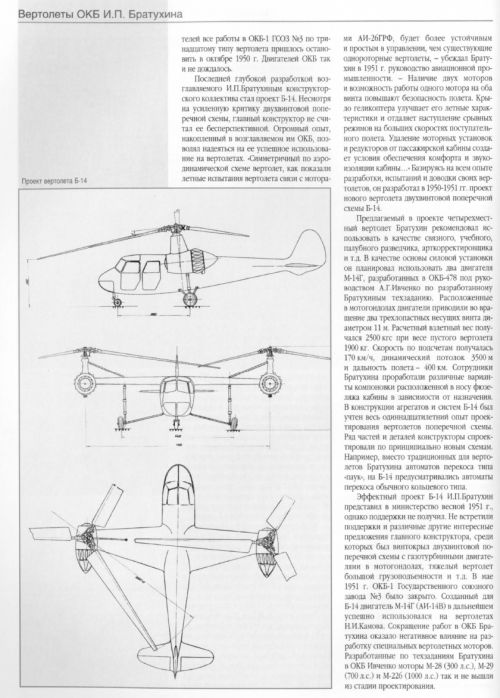

Four-sitter B-14 to be used as: a connected, training, air reconnaissance, artillery spotter, etc.
It was the last deep development Bratukhin in OKB № 3.
You specify a transport helicopter project is also featured in the book Mikheev, but without any numbering / unknown project rotorcraft I.P.Bratuhin /


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
562
Reaction score
164

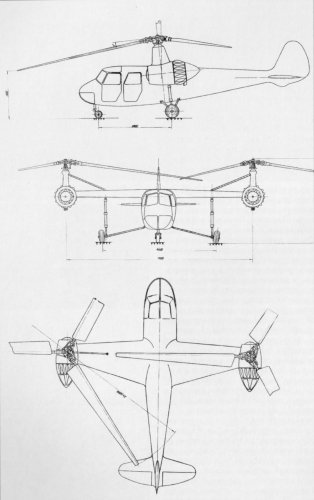

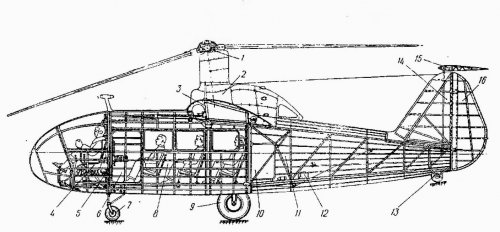

Brathukin_B-14 ...unknown source


Attachments

  • Brathukin_B-14_Schematic.jpg
    417.1 KB · Views: 255

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

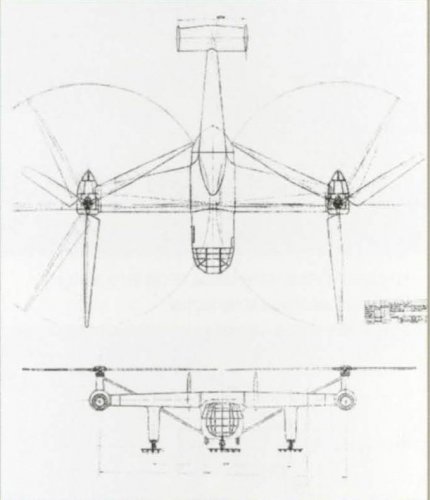

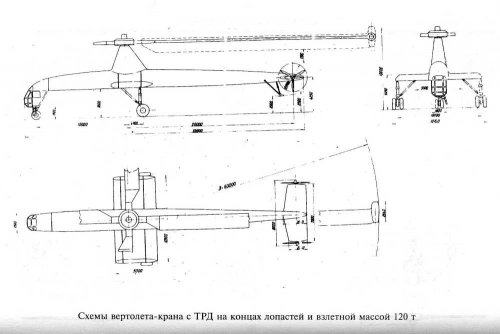

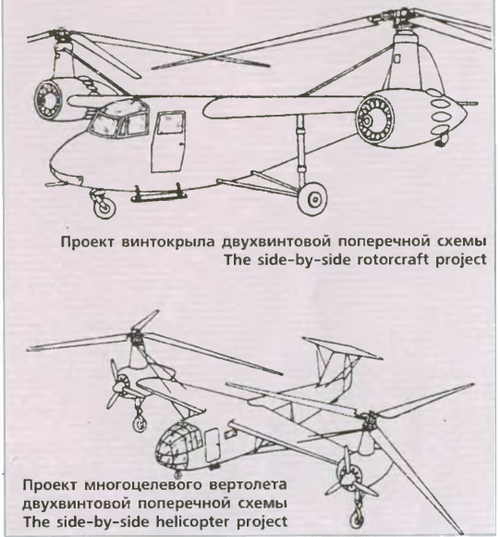

here is anther drawings for two Bratukhin Projects.


Attachments

  • a.png
    135.4 KB · Views: 165
  • b.png
    168.3 KB · Views: 160

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Jemiba said:
Title slightly changed, as most of the types aren't that "superheavy", I think. ;)


That's right my dear Jemiba.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

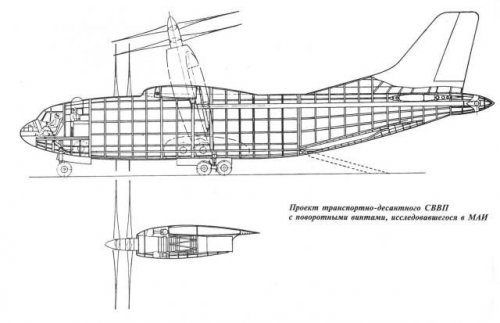

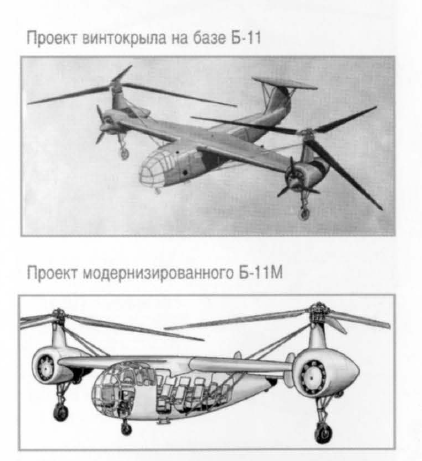

here is a Bratukhin tilt-rotor project for MAI.

http://topwar.ru/81484-konstruktor-ostavshiysya-v-teni.html


Attachments

  • Bratukhin tilt.jpg
    Bratukhin tilt.jpg
    34.4 KB · Views: 43
