Horten Jet Aircraft Projects

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,957
Reaction score
340
Excellent brilliant Justo! :D


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,596
Reaction score
1,054

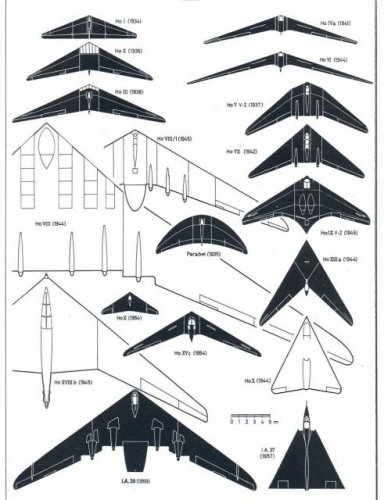

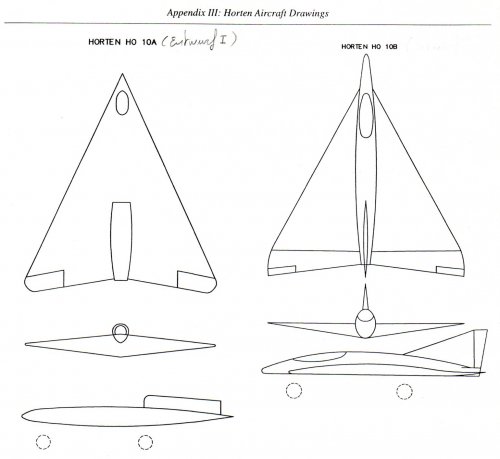

Reimar Horten is the source for all Ho X information I believe.


Horten weren't invited to bid. Apparently they got wind of the requirements and drew something which could fulfil them. Their design wasn't asked for or submitted.


Now, whether the drawings provided are originals or Horten's own redrawings, etc. Don't know.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Thank you, Justo! Thank you guys, really great staff! But did any one have scanned page 17 and page p19 from the Ingolf Meyer's Luftwaffe Advanced Aircraft Projects to 1945 Volume 2: Fighters & Ground-Attack Aircraft Lippisch to Zeppelin? . I'm looking illustaration, drowings and other info about this two concepts to create paper models


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Thans to all for posts! But, Guys, did any one have scanned pages with Horten's projects from Ingolf Meyer's Luftwaffe Advanced Aircraft Projects to 1945 Volume 2: Fighters & Ground-Attack Aircraft Lippisch to Zeppelin? According to newsdeskdan its pages 17-19...
Thanks


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
newsdeskdan said:
Vladimir said:
Thans to all for posts! But, Guys, did any one have scanned pages with Horten's projects from Ingolf Meyer's Luftwaffe Advanced Aircraft Projects to 1945 Volume 2: Fighters & Ground-Attack Aircraft Lippisch to Zeppelin? According to newsdeskdan its pages 17-19...
Thanks
Vladimir, aren't you even a little bit curious about what's on page 18?
newsdeskdan, i dont know whats is the book, if there is nothing on page 18-Ok, then i need only page 17 and 19 ;D


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,065
Reaction score
34

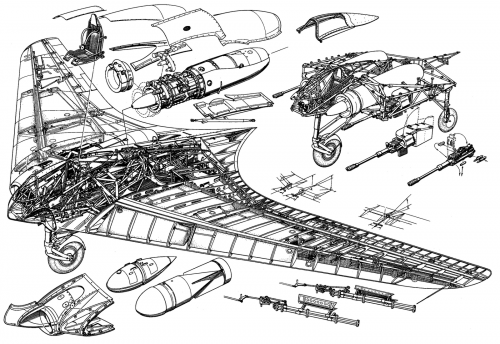

Hi all, just stumbled upon this video about the Horten 229 on Youtube, I don't know how many of you have seen it, but I thought I would post it anyway as it deals with the Stealth qualities of the aircraft.

https://www.youtube.com/watch?v=MqgfjXaJxV8


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
579
Reaction score
93
Worth a read about the actual properties of the preserved horton

http://airandspace.si.edu/collections/horten-ho-229-v3/about/is-it-stealth.cfm


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
579
Reaction score
93

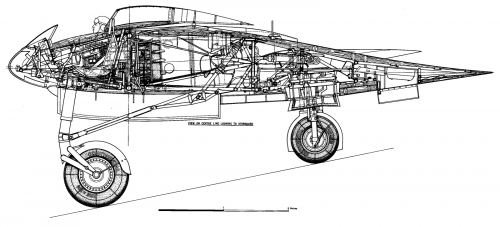

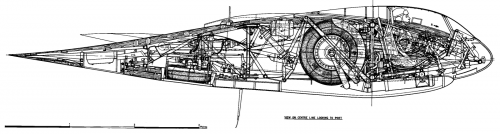

I once found a nice little collection of interrogations of various german engineers and scientists, and one of the interrogations was of the horten brothers.

In this interview they mentioned that they used Kaurit-whk resin in the construction of the 229, as well as another Kaurit family resing in certain areas (I think this other one was mixed with sawdust for use as a sort of filler, but not 100% sure)

The Smithsonian link I posted above did some chemical analysis of the 229 and found the layers of glue to be very consistent with the composition of Kaurit-whk. The black specs that some believe to be evidence of charcoal is apparently little more then discoloration due to age.

I wish I could find this set of interrogations again, but I think its a very telling nugget of information.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Justo Miranda said:
My opinion

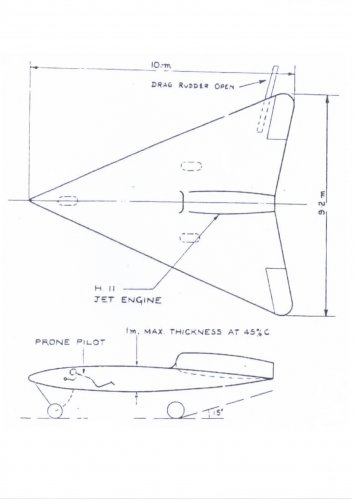

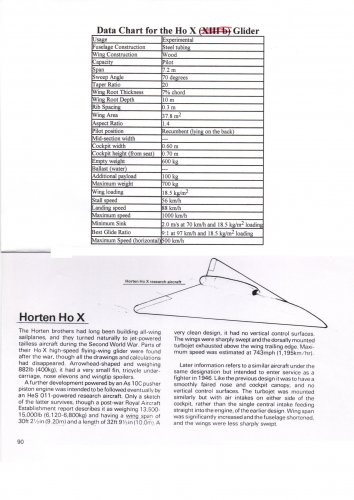

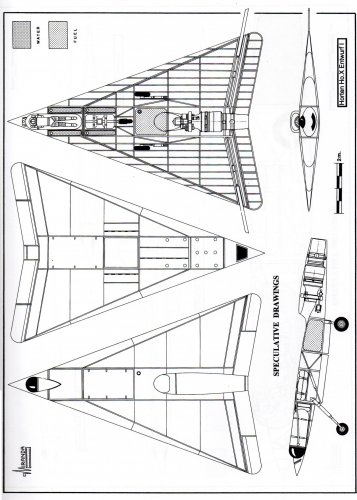

It seems jet Justo completely right about the Horten X entwurth I! Here is what i faund from the old "Flight"


Attachments

red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
561
Reaction score
16
newsdeskdan said:
They were not working on materials that had anything to do with radar either. I would ask you to show me a single WW2 document that mentions the effect of aircraft shapes or materials with regard to radar but I know that such a thing does not exist.
I did see a UK technical report from 1941 or 42 that outlined this in theory, how a RAM would work, what materials might be suitable etc. It was in the back of an old textbook but could probably be found in TNA.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8

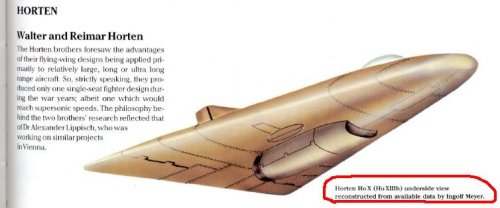

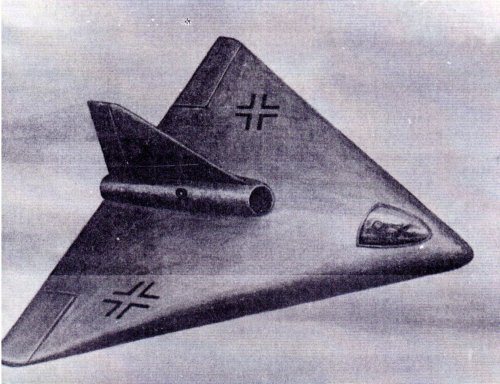

colorful horten x, looks like made from wood, note the engine on bottom,not on top and vertical stabilizator


Attachments

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
newsdeskdan said:
Vladimir said:
colorful horten x, looks like made from wood, note the engine on bottom,not on top and vertical stabilizator
Colourful and entirely fictional.
Hi, not fictional, but rather reconstruction from texstual report


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,017
Reaction score
191
Vladimir said:
Hi, not fictional, but rather reconstruction from texstual report
Well, we could speak of a drawing with source garde 1 (I would highly recommend this
thread about "source grading": http://www.secretprojects.co.uk/forum/index.php/topic,2849.0.html )
So, it's not actually fictional, that means, it's not just the invention of a wanton imagination, but the
drawing probably has not much to do with the real thing.
You can have a look at the results of similar reports here http://www.secretprojects.co.uk/forum/index.php/topic,275.0.html
There are some cases, were the artists impressions were really near to the types, they were
portraying. And there were others actually without a real equivalent.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8

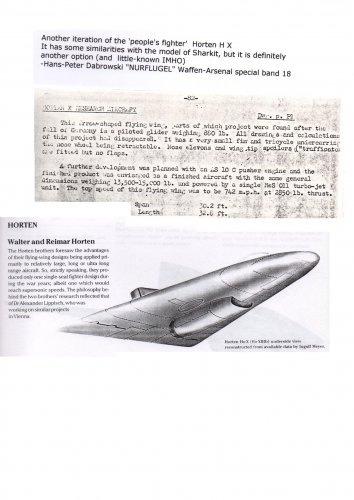

For example, a report in the British RAE № FA 259/1 of October 1945 stated:

"In view Horten X is similar to projects of high-speed and supersonic aircraft Lippisch, especially P13. Horten explains that he first learned about the work Lippisch only in London. The main difference of the project is that the Horten brothers special vertical surfaces was considered useless, while Lippisch preferred scheme with a very large keel. "

Perhaps that last sentence did not refer directly to the Horten X, especially in view of the overall philosophy of the project. In published in 1982 the book "Flying Wings, history of aircraft Horten 1933 - 1960" Reimar substituted methyl "With a length of 10 m, and the aircraft semispan only 3.6 m resistance rudder was quite insignificant. Therefore Horten But X (XIIIb) from the beginning was equipped with vertical fins, although the resistance of the rudder at transonic speeds was the cause of the shock wave on the upper surface of the wing. "

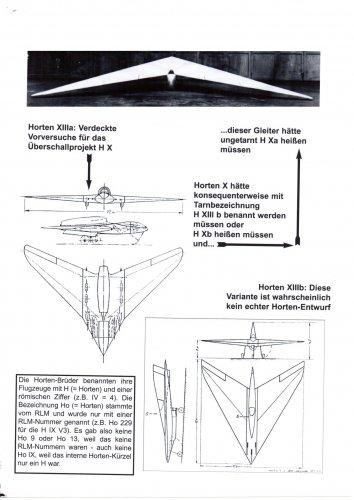

In the literature appeared distorted images of H X or N Xlllb, which have nothing to do with the statements Reimar Horten in the already mentioned book "Flying Wings ..." Based on this source, and with the help of the already mentioned British posts in which there is a pattern, you should try reconstruct the plane.

From the book Секретные проекты истребителей Люфтваффе (Вальтер Шик, Ингольф Мейер)

Thanks!


Attachments

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Hi to all,

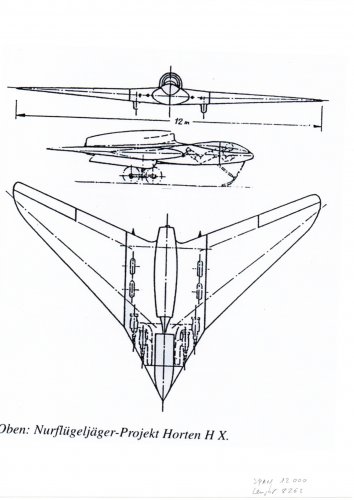

newsdeskdan, i respect Your opinion...But i not agree with You. My version-this not fictional, but reconstruction, reconstruction attempt by Ingolf Meyer. Thank You for report info!


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,017
Reaction score
191
Vladimir said:
... reconstruction, reconstruction attempt by Ingolf Meyer. ...
No difference to what was said before, I think: A reconstruction which isn't based on
drawings or at least isometric pictures (photos or artist impressions), isn't it ?


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Jemiba said:
Vladimir said:
... reconstruction, reconstruction attempt by Ingolf Meyer. ...
No difference to what was said before, I think: A reconstruction which isn't based on
drawings or at least isometric pictures (photos or artist impressions), isn't it ?
Hi, Jemiba
i think that reconstruction it is recovering by the surviving remains, descriptions.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,017
Reaction score
191
As it was just a project, there weren't remains, but as you said by yourself,
it is based on descriptions (without any mention how detailed they were !).
Just have a try, let somebody describe an aircraft and then try to make a
drawing of it. I'm pretty sure, that the result will show differences to the
original. And that's just, what we tried to say.


newsdeskdan

CLEARANCE: Top Secret
Senior Member
Joined
Jun 11, 2014
Messages
805
Reaction score
135
Vladimir said:

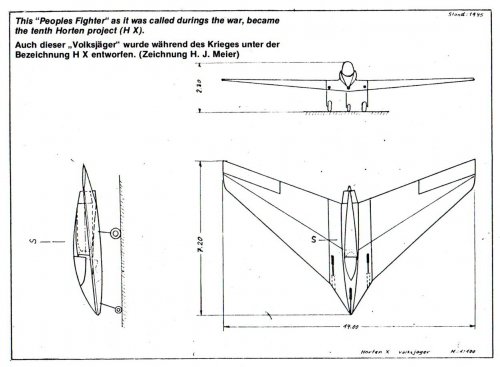

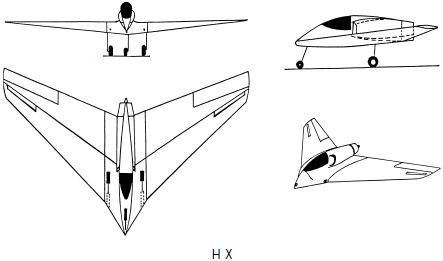

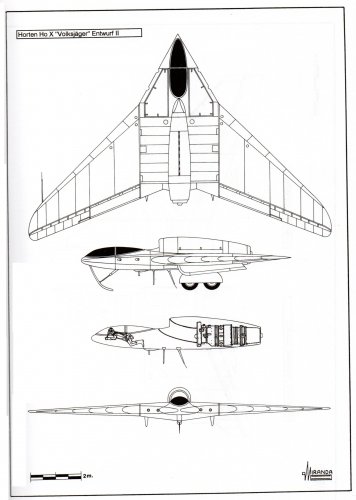

Hi, another Horten X 3-view
The same as the image posted by Justo in Reply 127 but with the tyres and canopy coloured in. Another popular Horton X design from the 1990s for which there is (seemingly) no historical evidence whatsoever.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8

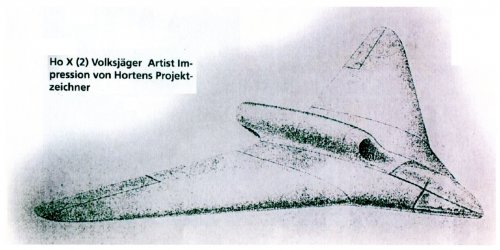

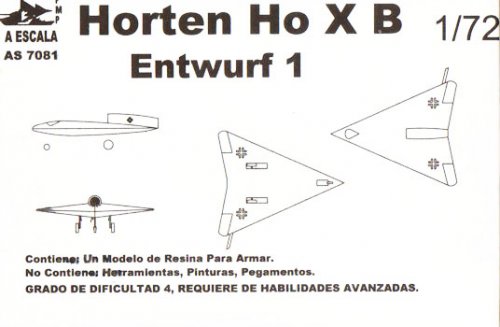

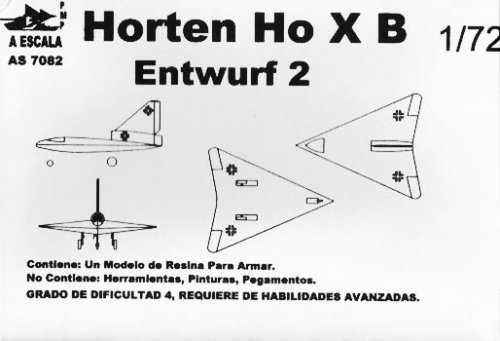

Hi, Horten X B, picture cuted from video on youtube about Horten brosers. Sorry have only this low quality picture...

(taken from David Myhra "The Hortens and Their All-Wing Aircraft")


Attachments

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
Hi, newsdeskdan i take it from here: http://airsoc.com/articles/view/id/5566c30e924173a7640f1505/german-interest-in-flying-wings-and-tailless-aircraft

P.S. Will be apprishiate if You help with that: http://www.secretprojects.co.uk/forum/index.php/topic,26299.0.html


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,596
Reaction score
1,054
Original source article is by Mitch Williamson http://www.germanaircraftwwii.org/2015/04/german-interest-in-flying-wings-and.html


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,065
Reaction score
34
PaulMM (Overscan) said:
Original source article is by Mitch Williamson http://www.germanaircraftwwii.org/2015/04/german-interest-in-flying-wings-and.html
Went to the home page and bookmarked it, a highly interesting website.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,957
Reaction score
340
Hi!
https://www.youtube.com/watch?v=JBnBSJ9bz3A

https://www.youtube.com/watch?v=sxx9iZMpook&list=PL6t-gcfz4-qZgY3JIjT10gvuaVPMie7su


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,957
Reaction score
340
Hi!
https://www.youtube.com/watch?v=VDZh2MbzKFc
