Hornet 2000

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,038
Reaction score
1,077
Back in the day when they were coming up with the configuration for the next generation Hornet which ultimately lead to the Super Hornet there was a study done which had several different basic configurations in mind. Some of these drawings made it into AvWeek. One of the designs had the Hornet with a cranked-arrow wing much like the F-16XL. Does anybody have any drawings of this version of the Hornet?


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,261
Reaction score
452

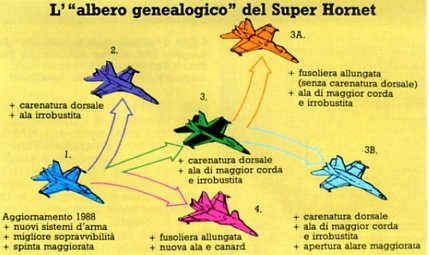

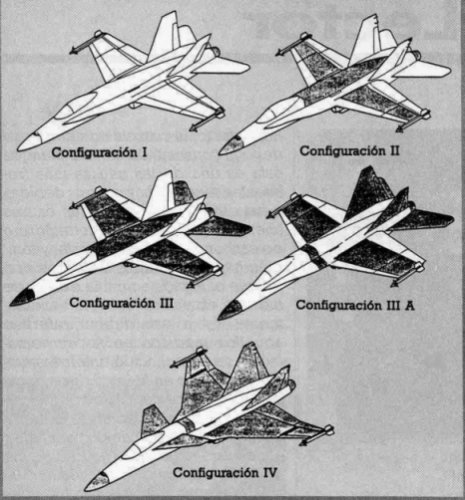

From Matej's website:

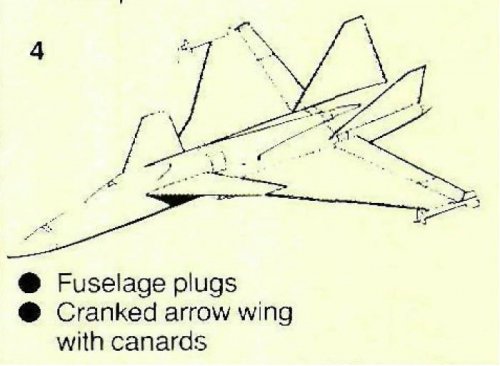

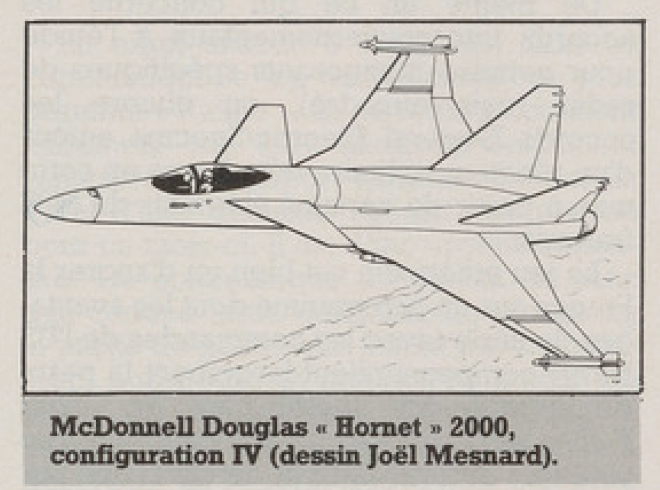

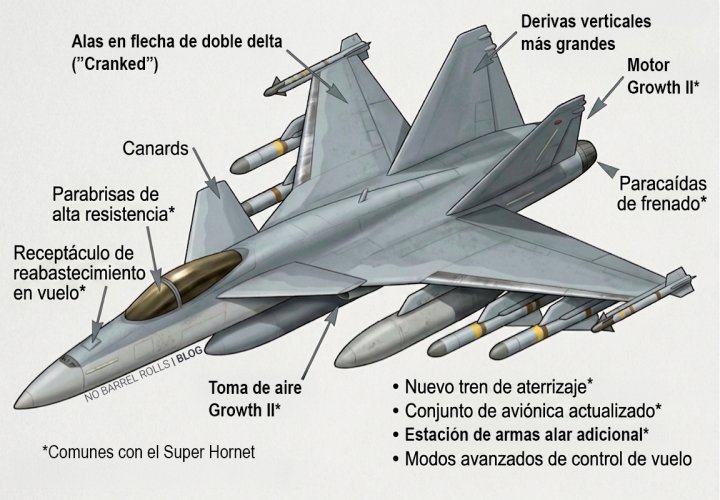

Hornet 2000 configuration IV


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,057
Reaction score
2,449

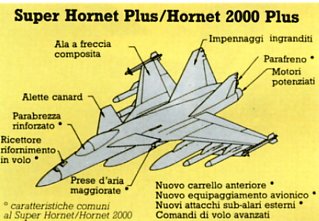

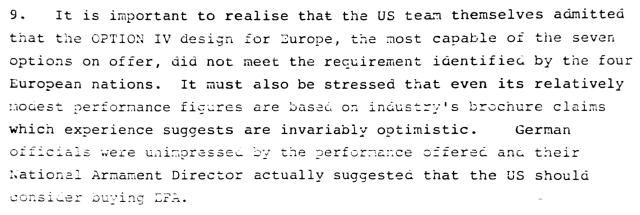

Configuration IV was offered as an alternative to the Eurofighter.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,038
Reaction score
1,077
Hmmm. I'd have swore it didn't have a canard. ???


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,038
Reaction score
1,077
Found this writeup of the study.

http://endo.sandia.gov/AIAA_MDOTC/sponsored/f18boeing.pdf


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
43

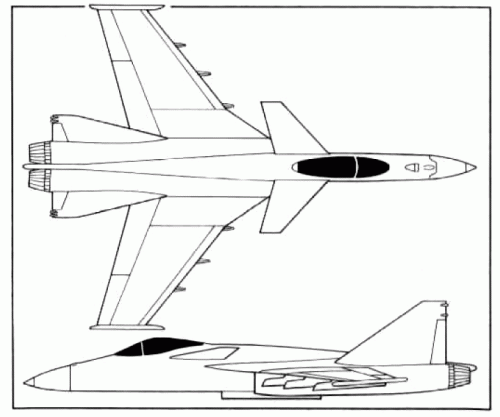

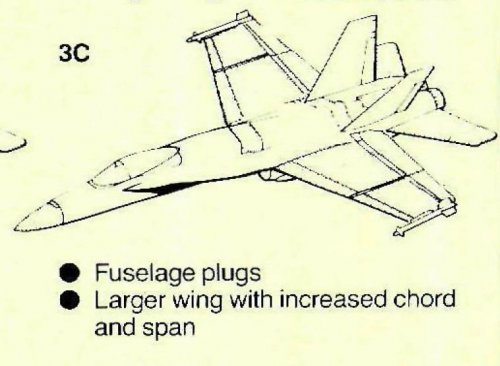

Is this the drawing everyone has been looking for?

Source:
"Aeroguide 20: McDonnell Douglas F-18A Hornet," by Roger Chesneau. 1988


Attachments

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
92
Website
www.hitechweb.genezis.eu

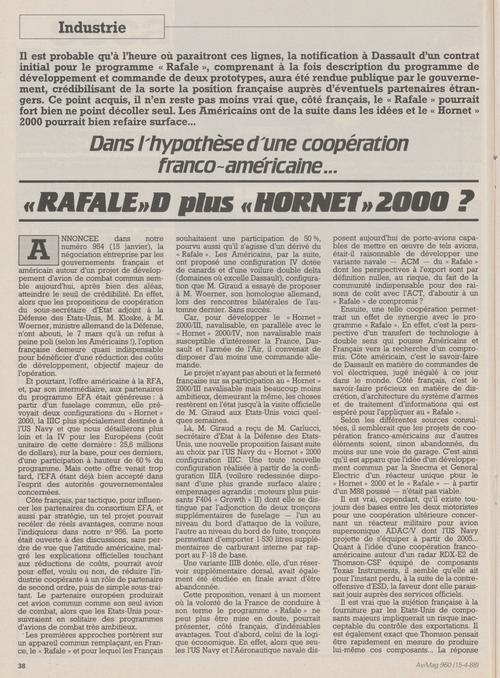

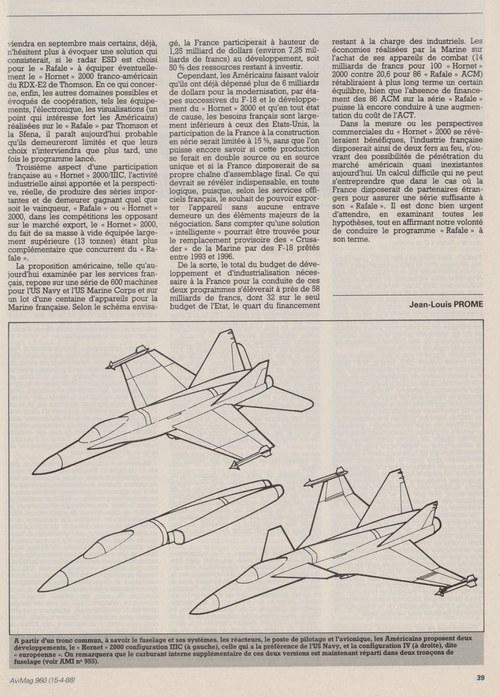

Simply another american attempt how to kill european aerospace industry. Original Hornet 2000 was offered to GB, Germany and France as alternative to EFA and Rafale, but without success. From mid 1987 the goal was to create the more capable version of Hornet to fill the gap between up-to-date fighters and GD/MDD A-12 Avenger II. Many configurations were studied, the main are shown on picture posted by fightingirish.

PS: I wanted to find some drawings of advanced Hornet configurations, but without success. Instead of this I found Eurocopter Tiger studies that I searched two weeks ago (http://www.secretprojects.co.uk/forum/index.php?topic=207.0) Life is funny :)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,929
Reaction score
2,900
Hi,

I awared that we spoke about the McDonnell Douglas Super Hornet here;
http://www.secretprojects.co.uk/forum/index.php/topic,367.0/highlight,super+hornet.html

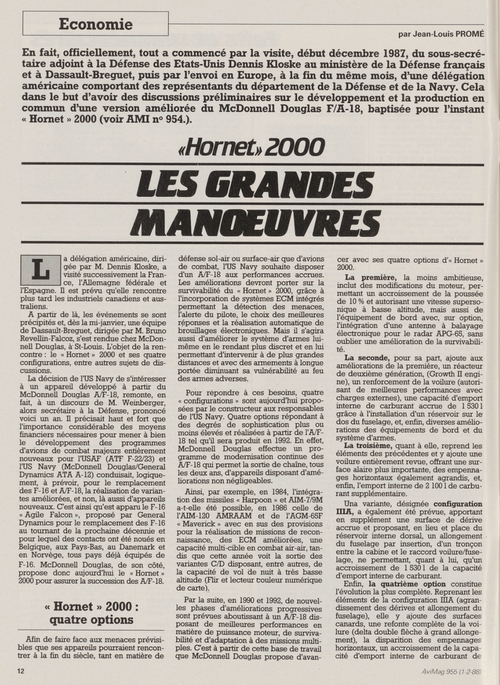

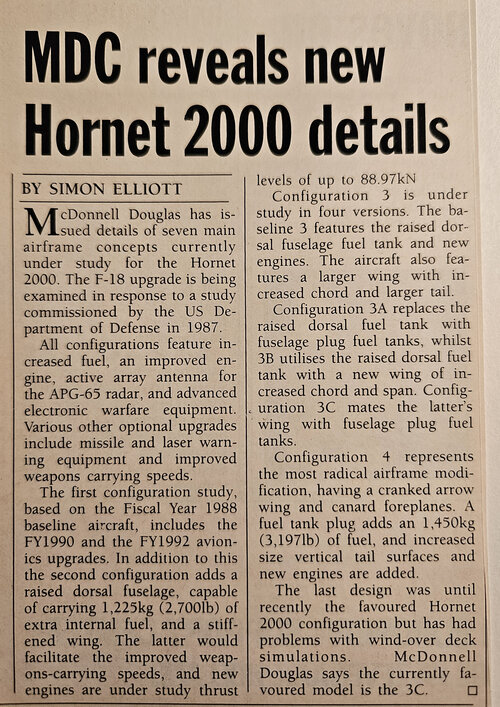

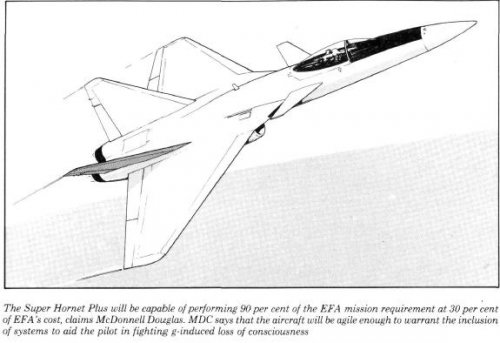

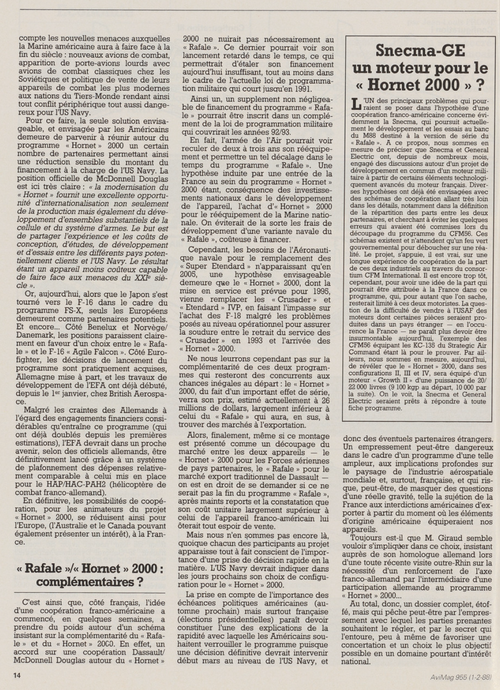

but here is from Flightglobal;
http://www.flightglobal.com/PDFArchive/View/1988/1988%20-%200208.html


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,929
Reaction score
2,900

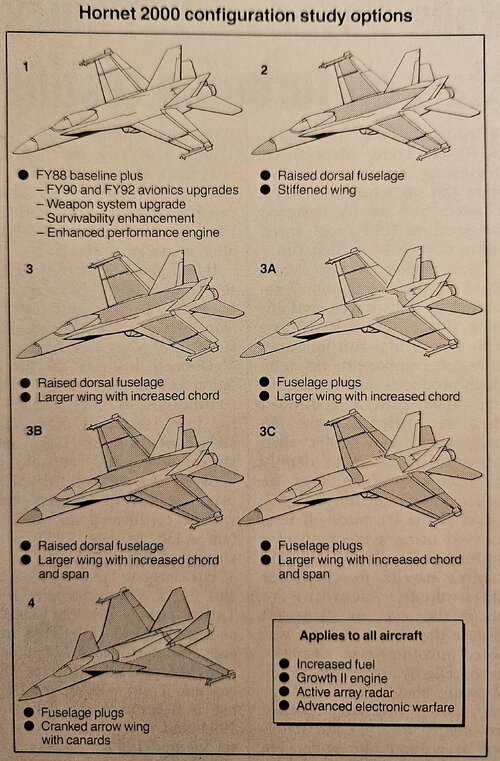

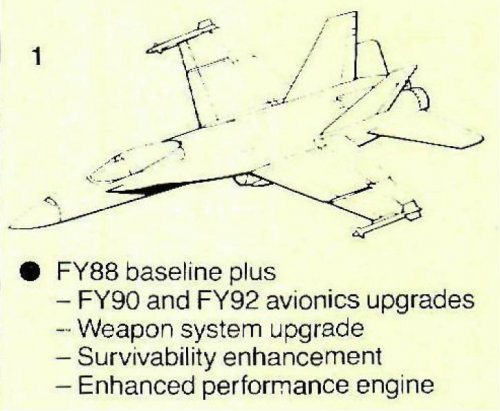

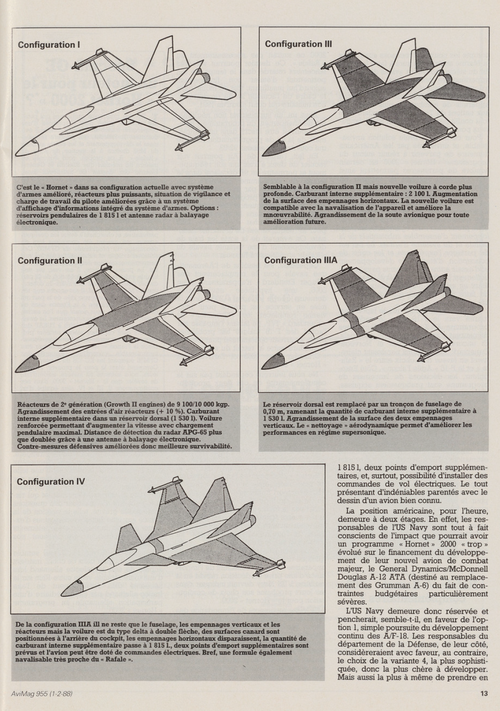

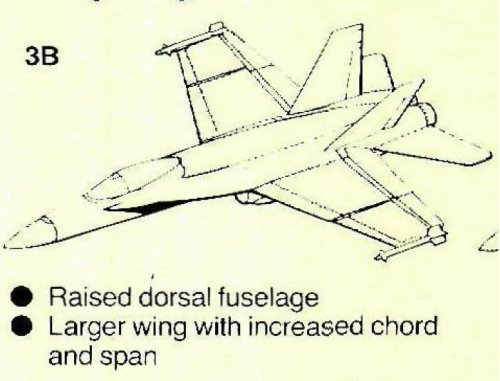

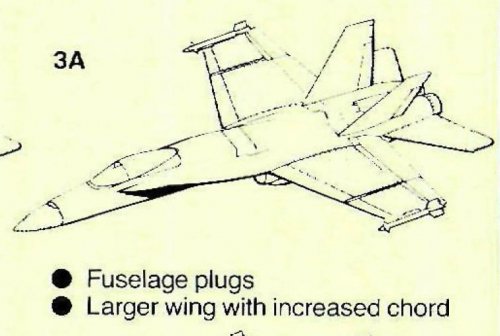

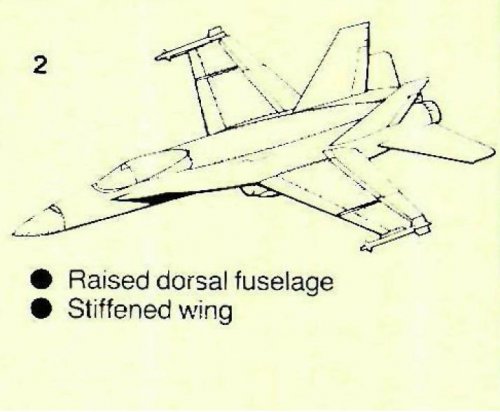

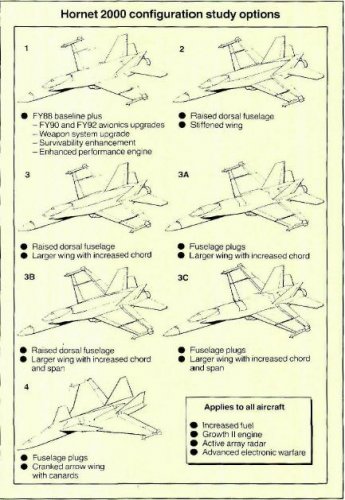

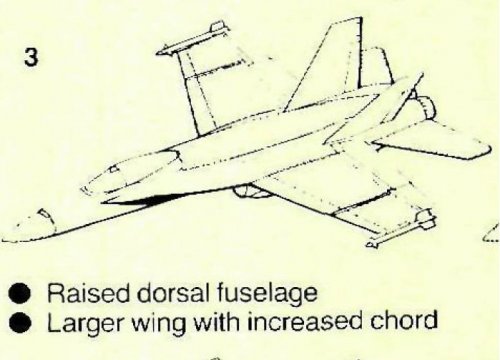

The Hornet 2000 configuration study options;


http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%202766.html


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,261
Reaction score
452

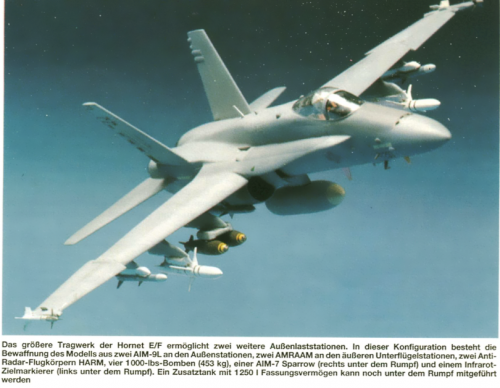

Re: Hornet 2000 / early Hornet E/F

Hi folks,

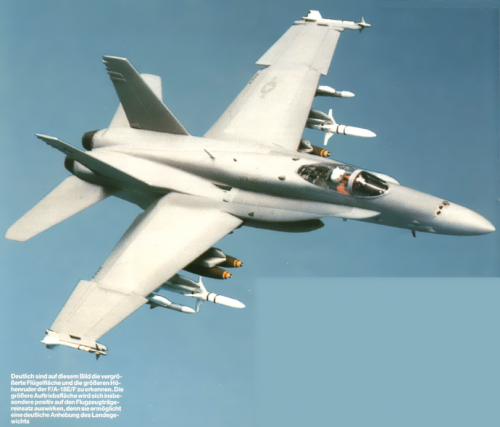

I can't find a suitable topic to post these three pictures about an early model of the MDD Hornet E/F, which led from Hornet 2000 studies the to the final design for the F/A-18E/F Super Hornet program.

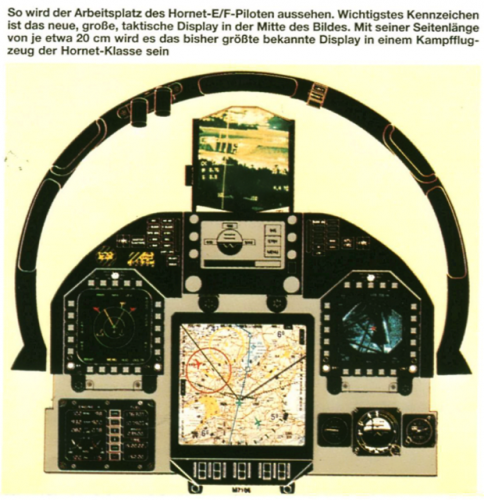

This model includes already the fuselage plugs, larger wing area, leading edge root extensions and control surfaces. It also has two extra wing hard points for payload. Avionics and the cockpit are also modified. Please notice, that this model don't have yet the rectangular engine air intakes of the Super Hornet. At that time, P&W and Allison were planning for an second engine option based on the Allison GMA 800. Also a new gun was planned.
Probably there is more pictures and information of the model Hornet E/F published in other magazines of this time period like Aviation Week, Flight International etc.


Source: Luftwaffen-Forum, 02-1991, pages 64+65


Attachments

Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
662
Reaction score
24
Re: Hornet 2000 / early Hornet E/F

fightingirish said:
Hi folks,
I can't find a suitable topic to post these three pictures about an early model of the MDD Hornet E/F, which led from Hornet 2000 studies the to the final design for the F/A-18E/F Super Hornet program.
This model includes already the fuselage plugs, larger wing area, leading edge root extensions and control surfaces. It also has two extra wing hard points for payload. Avionics and the cockpit are also modified. Please notice, that this model don't have yet the rectangular engine air intakes of the Super Hornet. At that time, P&W and Allison were planning for an second engine option based on the Allison GMA 800. Also a new gun was planned.
Probably there is more pictures and information of the model Hornet E/F published in other magazines of this time period like Aviation Week, Flight International etc.
Source: Luftwaffen-Forum, 02-1991, pages 64+65
I thought the second engine option P&W was offering was the PW7000 turbofan which had been their proposal for the Navy's A-X program? Allison teamed with P&W to build the PW7000 but I've never read that it was based off this GMA 800.

What was the new gun? The M61A2 (versus A1) or a different system?


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,261
Reaction score
452
Hi Colonial-Marine, the was no more information regarding a new gun system mentioned in the article.
IMHO, at that time MDD was maybe thinking of installing an 25-mm gun system based of European and Russian/USSR designs. :-\

Here an article about second engine option based on the Allison GMA 800 at Flight International.
Link: http://www.flightglobal.com/pdfarchive/view/1991/1991%20-%201292.html (PDF-Viewer might open automatically.)


But to your point about the PW7000; in the magazine Aviation Week & Space Technology from 2/8/1993, Vol. 138 Issue 6, p17 is following mentioned:
[...]Pratt & Whitney and Allison have teamed to develop an engine for the Navy/USAF AFX attack aircraft. Designated PW7000, the powerplant is expected to combine features and technologies from Pratt's earlier PW7000 configurations and Allison's GMA800 engine. [...]


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,157
Reaction score
43
Configuration Baseline report from 1991.

http://aviationarchives.blogspot.com/2016/01/fa-18ef-configuration-baseline-report.html?m=1


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,351
Reaction score
99
Thanks for posting. That IRST installation is interesting.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,929
Reaction score
2,900

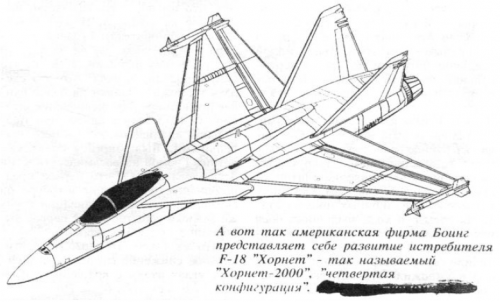

A clearer view, from Авиация и Космонавтика - Выпуск 45 от 1999


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,038
Reaction score
1,077
fightingirish said:
Hi Colonial-Marine, the was no more information regarding a new gun system mentioned in the article.
IMHO, at that time MDD was maybe thinking of installing an 25-mm gun system based of European and Russian/USSR designs. :-\

Here an article about second engine option based on the Allison GMA 800 at Flight International.
Link: http://www.flightglobal.com/pdfarchive/view/1991/1991%20-%201292.html (PDF-Viewer might open automatically.)
Re. that GMA 800. . .

From AvWeek:

5/27/91

Allison
GMA800 30,000lb thrust engine for Super Hornet.


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
773
Reaction score
307
That canard is so short-coupled that it cannot contribute to stability.
I suspect that the canard works more like a leading edge flap at high angles of attack.


NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
148
Reaction score
22
XP67_Moonbat said:
Configuration Baseline report from 1991.

http://aviationarchives.blogspot.com/2016/01/fa-18ef-configuration-baseline-report.html?m=1
The blueprints in the PDF......breathtaking!

At what point was it decided to switch to Cobra style LERX and the new intake shaping?


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,188
Reaction score
87

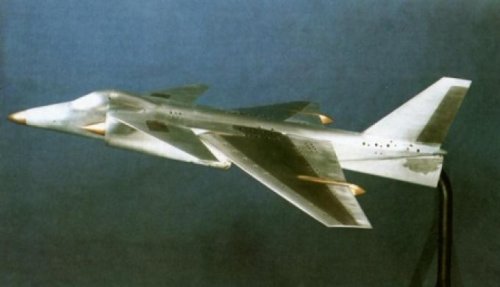

The canard arrangement is reminiscent of the Model 279.


Attachments

kitnut617

CLEARANCE: Secret
Joined
Dec 15, 2006
Messages
362
Reaction score
74
riggerrob said:
That canard is so short-coupled that it cannot contribute to stability.
I suspect that the canard works more like a leading edge flap at high angles of attack.
It's about the same as the F-4 and F-15 with canards


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,753
Reaction score
197
riggerrob said:
That canard is so short-coupled that it cannot contribute to stability.
I suspect that the canard works more like a leading edge flap at high angles of attack.
All flight control surfaces contribute to stability. For it not to contribute to stability it would have to have no affect, i.e., be free floating and allowed to weather vane.
