Hillson Helvellyn

VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
245
Reaction score
342
As I mentioned in my reply within the Hillson Pennine post (https://www.secretprojects.co.uk/threads/norman-sykes-unorthodox-aircraft.5116/), following the Pennine was another project from the draughtboard of Norman Sykes. He saw that with the imminent prospect for war, that the RAF would need as many aircraft as possible to train pilots. To this end he designed the Helvellyn as a type that could be built quickly and cheaply. The Helvellyn was a monoplane with two tandem open cockpits. Power was to come from a 90 hp (67 kW) Blackburn Cirrus Minor I engine. Although the Helvellyn was fitted with a conventional, for that time, tailwheel undercarriage, Sykes had allowed provision for this to be exchanged for a tricycle layout. Like the Pennine, construction of the Helvellyn was carried out at Hillson's Trafford Park factory, this finishing in 1939 with the aircraft being roaded to the airfield at Barton for its maiden flight. It can be confirmed that the registraion G-AFKT had been allocated to the aircraft on 7 November 1938, (see attached record). Unfortunately the RAF were not interested in the type, with plenty of DH.82 Tiger Moths and Miles Magisters fulfilling the needs at that time, leading to further work being withdrawn on the type by mid 1940, by which time the company had begun manufacture of Proctors for the armed services. The sole example of the Helvellyn was utilised by the company as a hack aircraft until November 1942 when it was dismantled. The registration was finally cancelled in 1945.
Specifications
Crew: 2
Length: 22 ft 0 in (6.71 m)
Wingspan: 33 ft 0 in (10.06 m)
Empty weight: 900 lb (408 kg)
Gross weight: 1500 lb (680 kg)
Powerplant: 1 x Blackburn Cirrus Minor producing 90 hp (67 kW)

Performance
Cruise speed: 110 mph (176 km/h)
All data from Putnam's British Civil Aircraft Volume 3.

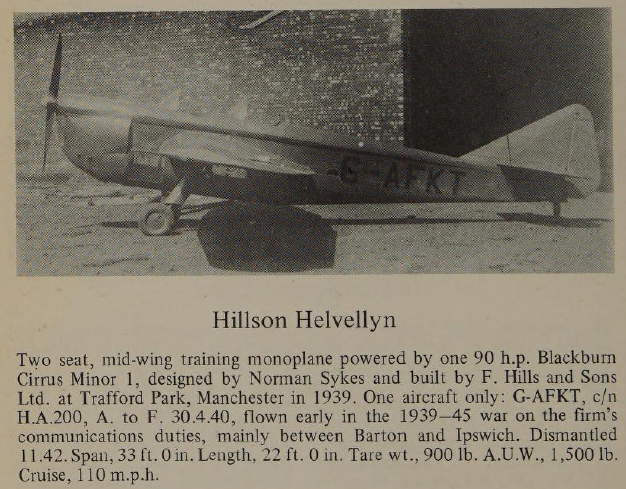

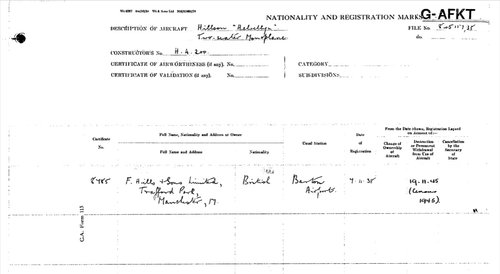

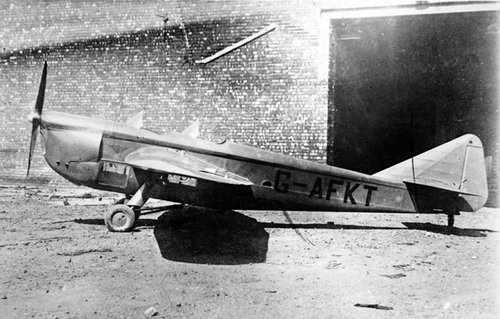

The two attachments for this are the only picture I can find of the sole Helvellyn, together with a copy of the original registration certificate.105-1.jpg Helvellyn registration doc.jpg


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
717
Reaction score
281
How many man-hours were needed to build a DH Tiger Moth versus Hellvellyn?
How many miles of steel cable were required to build a Tiger Moth versus a Hellellyn?


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,905
Reaction score
1,255
To be fair, in early 1940 the Allies were still under the illusion that it would be a short war.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,905
Reaction score
1,255
Though the Axis arguably had more grounds for their optimism.
