Hiller VTOL/VSTOL/STOL Projects

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,552

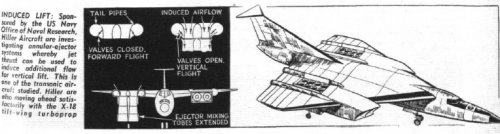

A Hiller concept, which, as I understand, should use a variant of the thrust augmented
injector system

(from aviationweek_1960-10-17"


Attachments

  • Hiller-Transsonic-VTOL.JPG
    42.6 KB · Views: 1,296

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,552

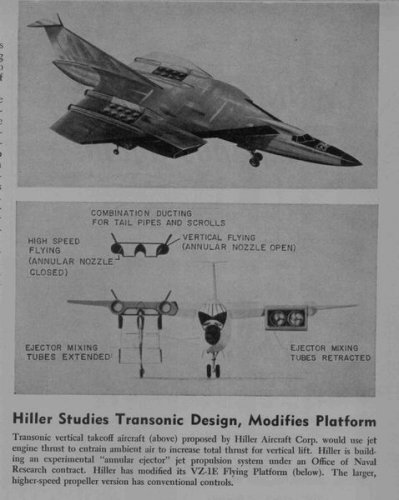

Well, Hiller was quite busy in the VTOL business until the '60s, I think.
Here's a project for a transonic VTOL design, as I understand the caption,
using the ejector augmentor principle, as the Lockheed XV-4.
(from Aviationweek, 10/1960 )


Attachments

  • Hiller-Transsonic-VTOL_01.jpg
    24.2 KB · Views: 676
  • Hiller-Transsonic-VTOL_02.jpg
    27.5 KB · Views: 651

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,552

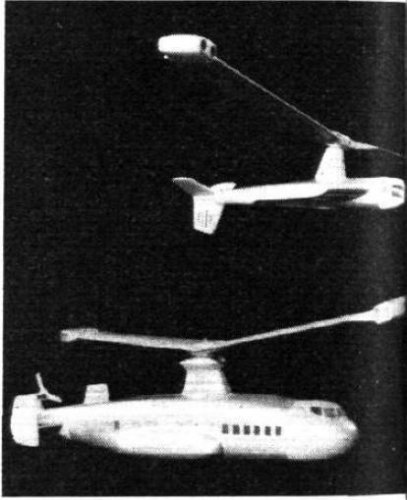

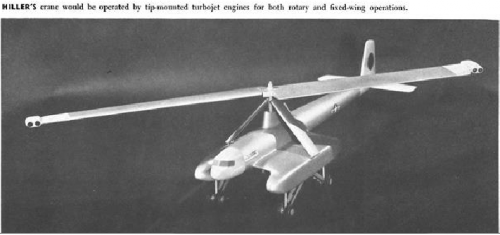

Looks similar to the STORC concept, which would have used the fixed rotor
as a wing (NOT in flight, so it wouldn't have been a truecompound !)
(from Aviation-Week 1961)


Attachments

  • STORC.jpg
    28.2 KB · Views: 179

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158

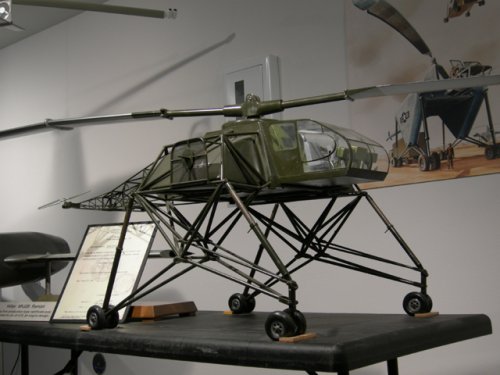

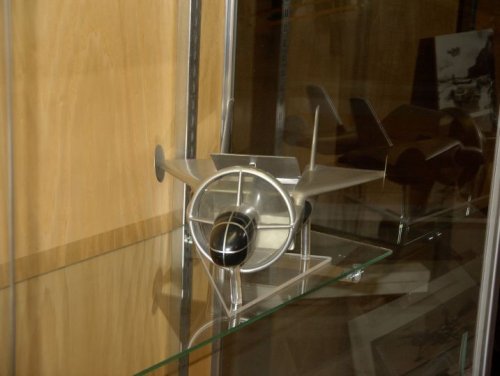

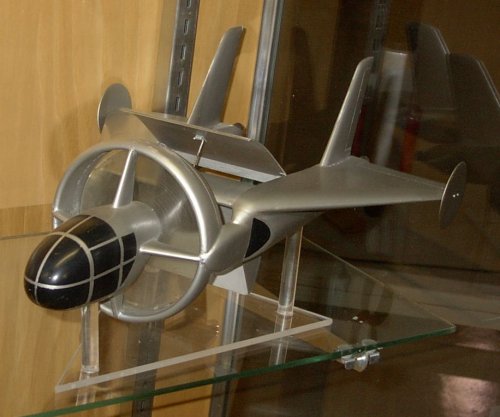

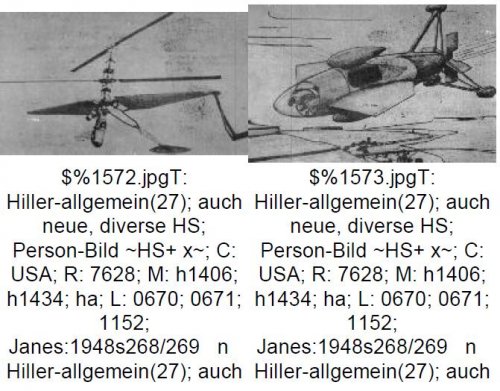

Attachments

  • H-40.jpg
    2.2 KB · Views: 1,304
  • th_DSCN3077.jpg
    3.9 KB · Views: 1,287
  • th_DSCN3075.jpg
    5 KB · Views: 1,292
  • th_DSCN3073.jpg
    4.8 KB · Views: 1,303
  • th_DSCN3072.jpg
    4.5 KB · Views: 1,313
  • 1091.jpg
    271.2 KB · Views: 149
  • DSCN3027.jpg
    253 KB · Views: 179

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

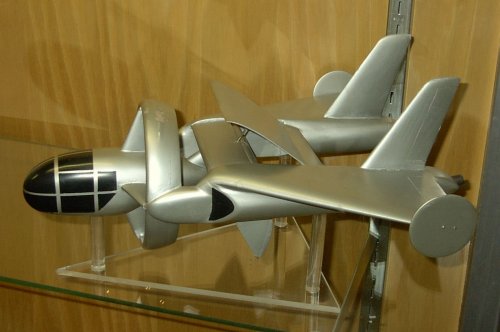

a twin boom VTOL aircraft from Hiller.


Attachments

  • a009.jpg
    15.4 KB · Views: 256

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,552

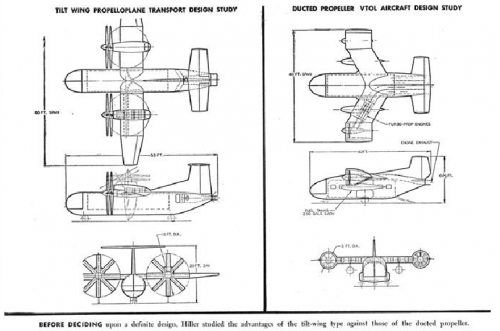

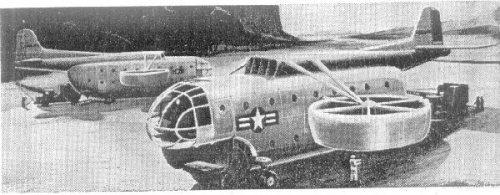

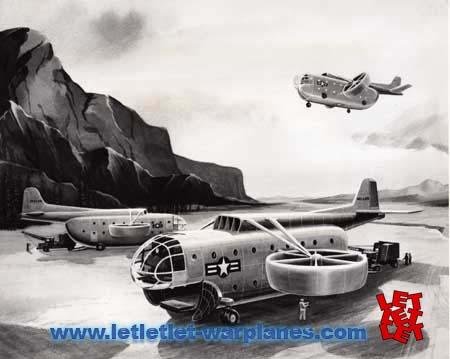

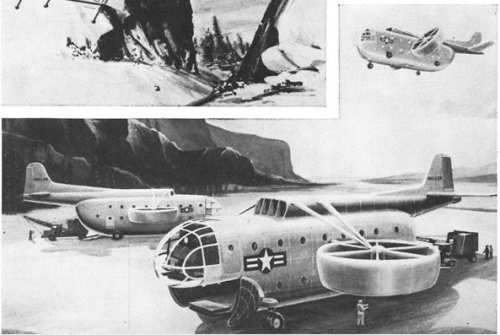

From Aero 1/1960, a project developed by Hiller for the USN for
a transport with tiltable shrouded props.


Attachments

  • Hiller-2.JPG
    47.2 KB · Views: 194

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,192
Reaction score
4,372
Website
www.amazon.com

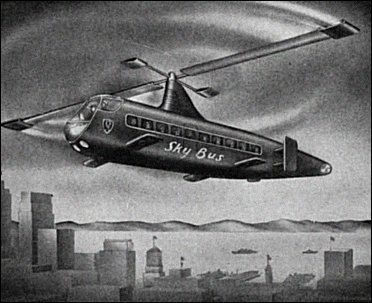

From

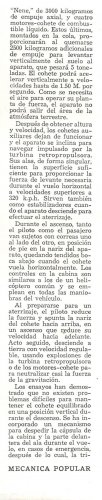

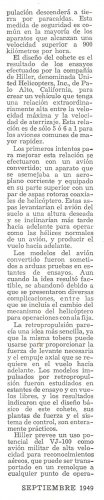

-Flying manual 1950
-Popular Mechanics July 1949
-Mecanique Populaire Septembre 1949
-Mecanica Popular Septiembre 1949


Attachments

  • Escanear0010.jpg
    162.6 KB · Views: 512
  • Escanear0009.jpg
    396.7 KB · Views: 565
  • Escanear0008.jpg
    168.2 KB · Views: 591
  • Escanear0007.jpg
    317.8 KB · Views: 658

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158

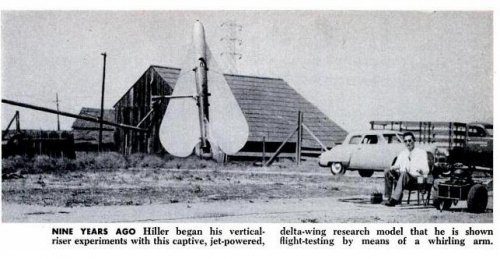

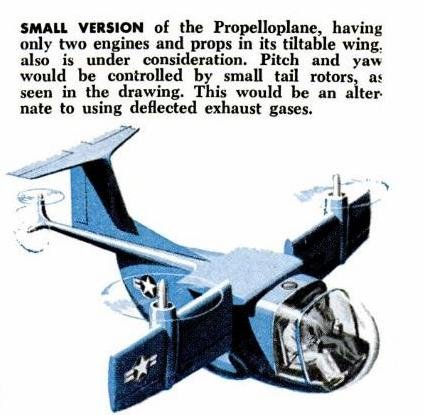

Hi,

http://books.google.com.eg/books?id=8CkDAAAAMBAJ&pg=PA100&dq=VTO+AIRCARFT+popular&lr=&cd=10#v=onepage&q&f=true


Attachments

  • VTOL 4.JPG
    VTOL 4.JPG
    33.6 KB · Views: 247
  • VTOL 5.JPG
    VTOL 5.JPG
    45.4 KB · Views: 261

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,022
Website
deeptowild.blogspot.com

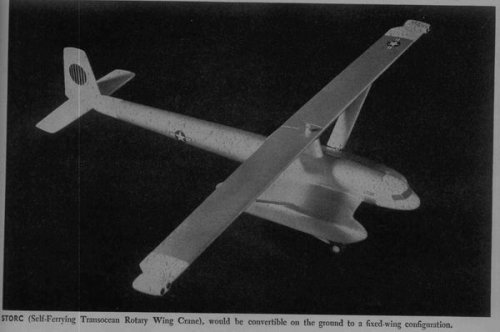

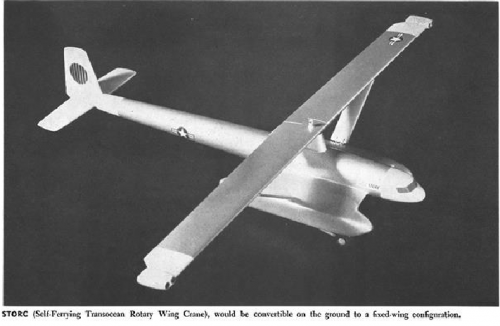

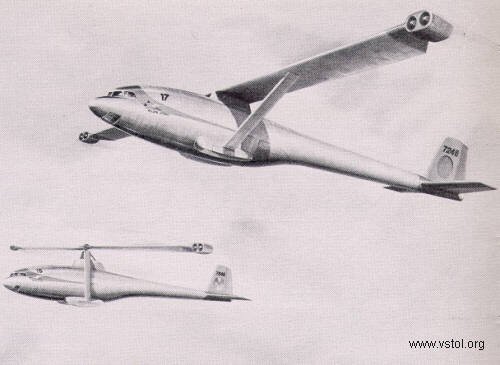

Artist's impression of Hiller STORC.

Another advanced look at logistical solutions was proposed in the STORC, a tip turbojet helicopter the rotor of which would be inverted and locked in position, transforming the aircraft - on the ground - into an airplane. Ferrying itself at high speed overseas to its operational theater, STORC would be free of ships and transport planes, and complexity of re-assembly. Circa late 1950's/early 1960's (?).

Sources:
http://www.aiaa.org/tc/vstol/unbuilt/
"Straight Up and Away" Flying Review. May 1969: 52
Straubel, John F. One Way Up. Hiller Aircraft Company, Inc., 1964.


Attachments

  • STORC.jpg
    23.4 KB · Views: 233

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826

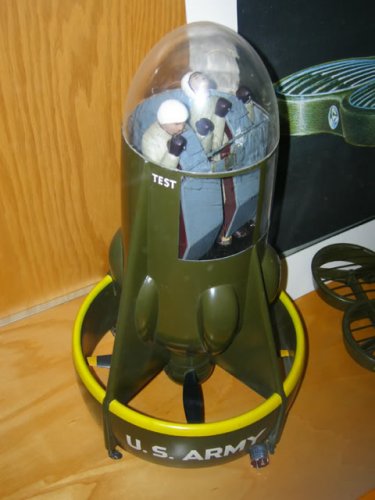

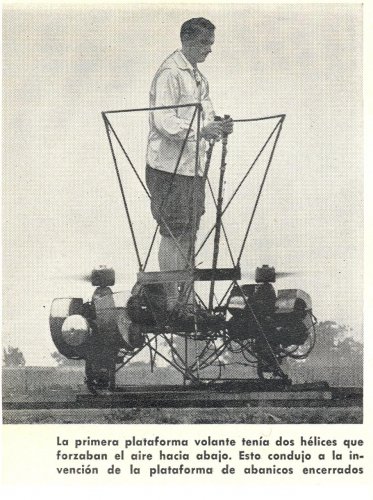

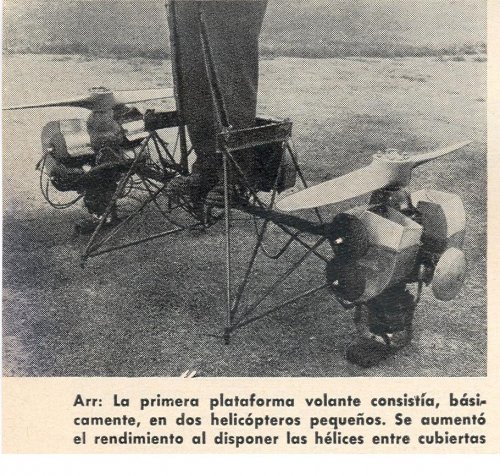

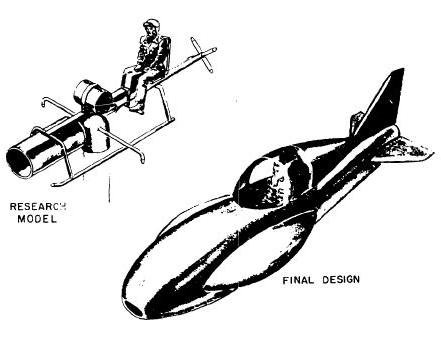

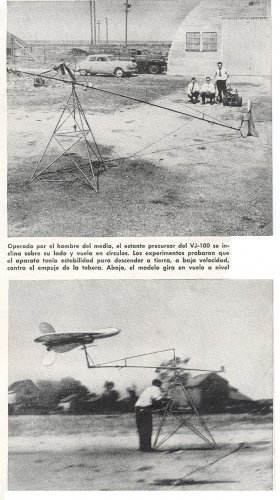

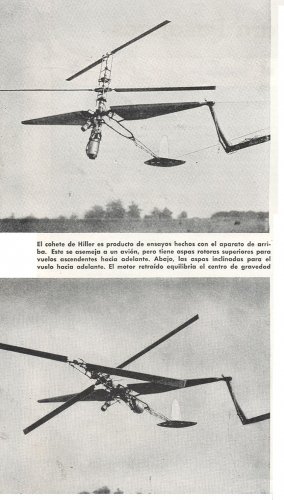

Hiller 'Flying Shoes':
(scans courtesy of Justo Miranda from Science et Vie unknown issue)


Attachments

  • Escanear0017.jpg
    355.1 KB · Views: 80
  • Escanear0018.jpg
    269.5 KB · Views: 71
  • Zimmerman.jpg
    165.6 KB · Views: 69

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826

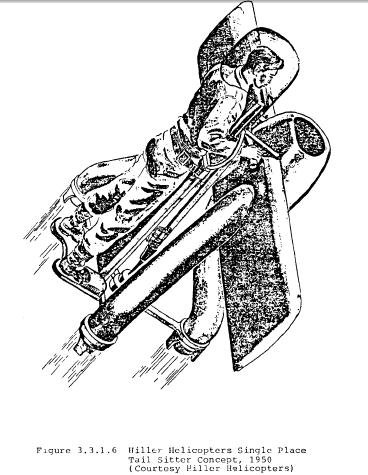

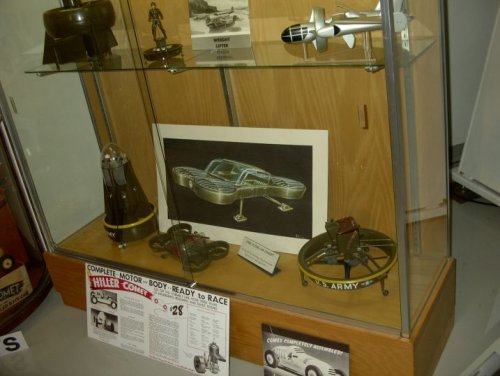

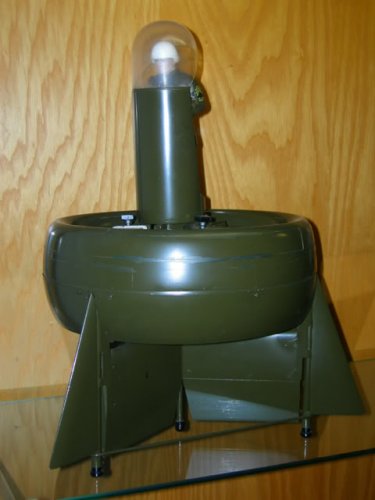

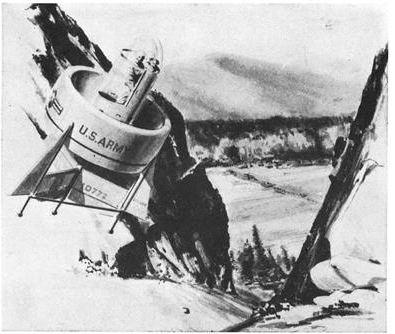

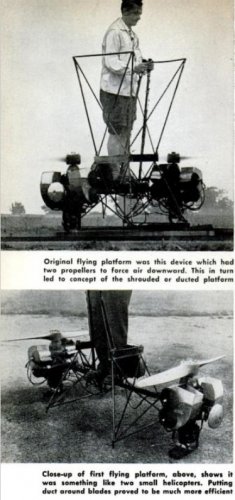

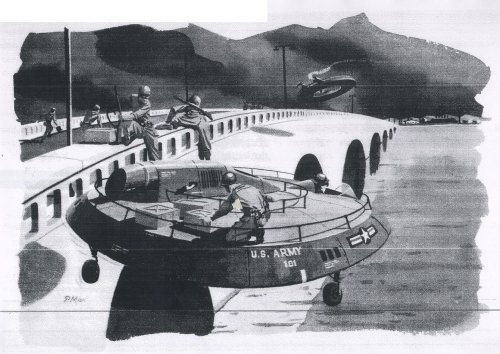

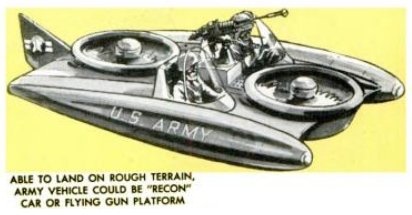

Various Hiller platform projects:


Attachments

  • pdr_0094.jpg
    58.2 KB · Views: 92
  • pdr_0098.jpg
    71.9 KB · Views: 79
  • pdr_0095.jpg
    41.4 KB · Views: 80
  • DSCN3077.jpg
    38.3 KB · Views: 89
  • DSCN3073.jpg
    49.3 KB · Views: 108
  • popmech2b.jpg
    49.4 KB · Views: 102
  • Escanear0024.jpg
    528.7 KB · Views: 98

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826
Various Hiller VTOL projects:
  • mixed propulsion aircraft (2 pics)
  • transonic VTOL (2 pics)
  • VTOL proposal (2 pics)


Attachments

  • pdr_0100.jpg
    42.4 KB · Views: 102
  • pdr_0097.jpg
    113.6 KB · Views: 104
  • pdr_0096.jpg
    87 KB · Views: 98
  • DSCN3072.jpg
    44.8 KB · Views: 266
  • VTOL - Flight 25 March 1960.jpg
    VTOL - Flight 25 March 1960.jpg
    96.6 KB · Views: 276
  • Hiller-Transsonic-VTOL.JPG
    42.6 KB · Views: 279
  • Image58.jpg
    95.8 KB · Views: 284
  • a009.jpg
    15.4 KB · Views: 282

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826
Various Hiller VTOL projects (continued):


Attachments

  • VTOL 5.JPG
    VTOL 5.JPG
    45.4 KB · Views: 520
  • Hiller.JPG
    22.1 KB · Views: 528
  • Hiller tailsitter.JPG
    Hiller tailsitter.JPG
    39.5 KB · Views: 534

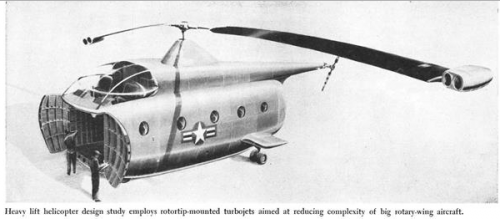

  • Weight Lifter-USN-Jan1960.JPG
    Weight Lifter-USN-Jan1960.JPG
    47.2 KB · Views: 534
  • hiller-heavy-weight-lifter-project.jpg
    23.9 KB · Views: 548

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826
Various VTOL Hiller projects (continued):


Attachments

  • pulse reactor flying crane.jpg
    pulse reactor flying crane.jpg
    56.2 KB · Views: 93

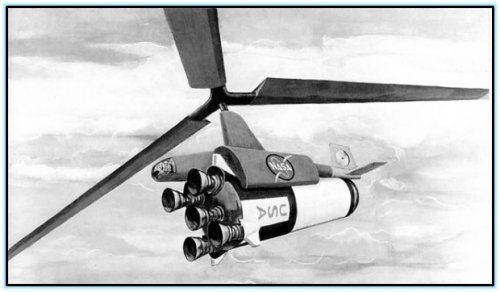

  • pulse reactor booster.jpg
    pulse reactor booster.jpg
    44.7 KB · Views: 85
  • pulse reactor assault aircraft.jpg
    pulse reactor assault aircraft.jpg
    67.3 KB · Views: 99
  • hi-speed body lift-jet VTOL.jpg
    hi-speed body lift-jet VTOL.jpg
    56.7 KB · Views: 99

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
15

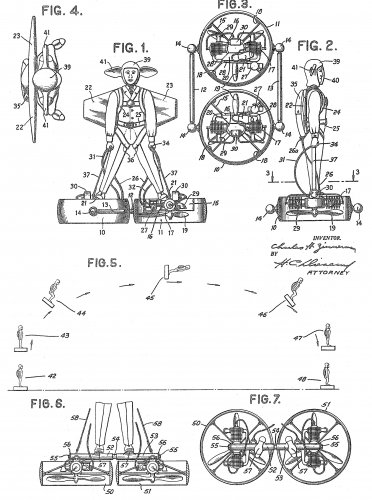

Zimmerman's patent "Helicopter flying apparatus", US 2417896, march 1947 dated.


http://worldwide.espacenet.com/publicationDetails/biblio?CC=US&NR=2417896A&KC=A&FT=D&date=19470325&DB=EPODOC&locale=en_EP


Batman return! ;D


Attachments

  • zimmemanpatent.jpg
    1.3 MB · Views: 123

Stingray

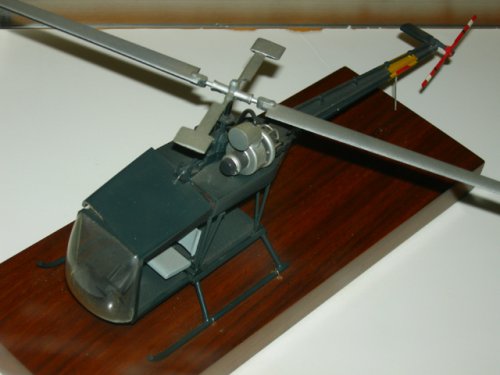

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
414
Reaction score
120
Website
sites.google.com

Attachments

  • hiller.png
    698.1 KB · Views: 196

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826

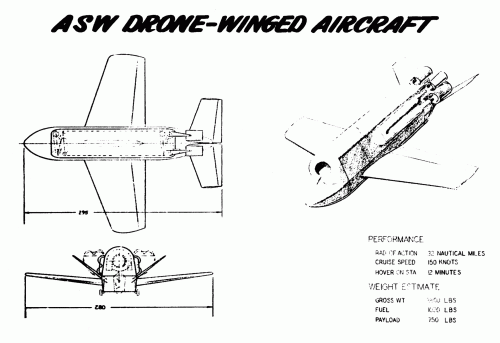

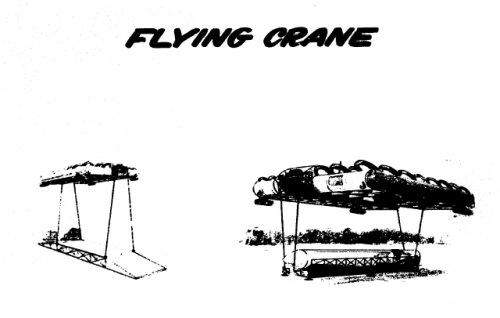

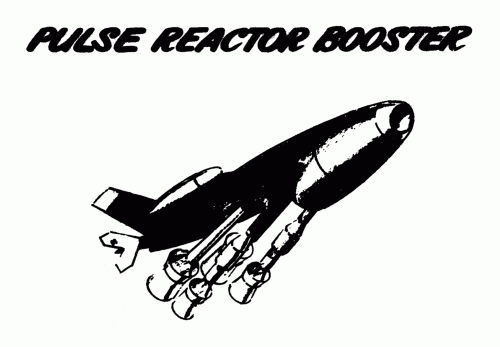

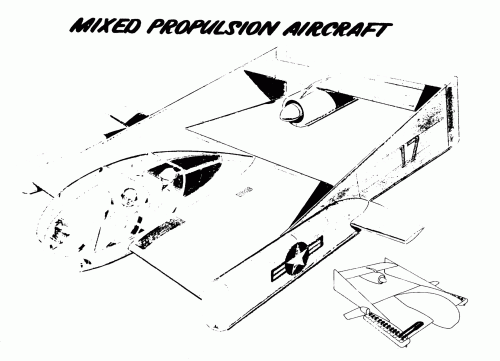

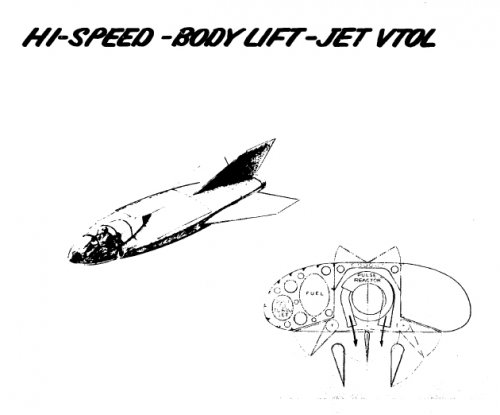

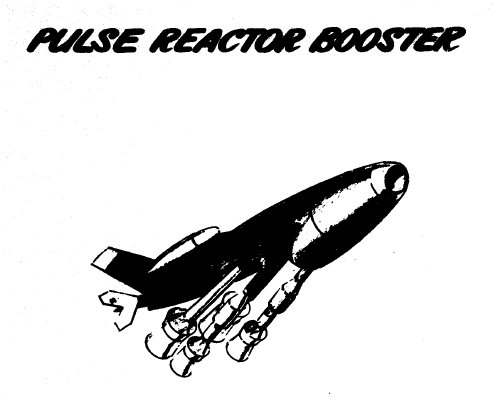

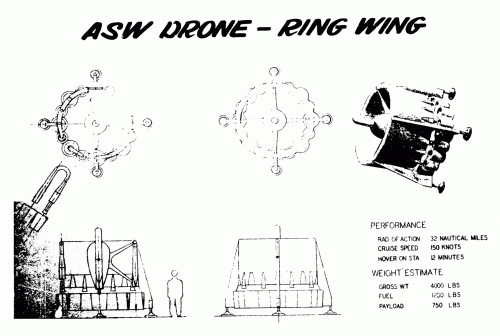

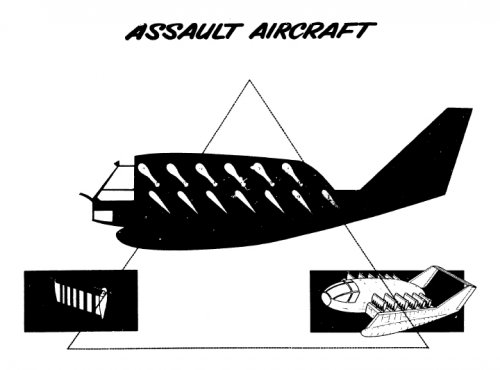

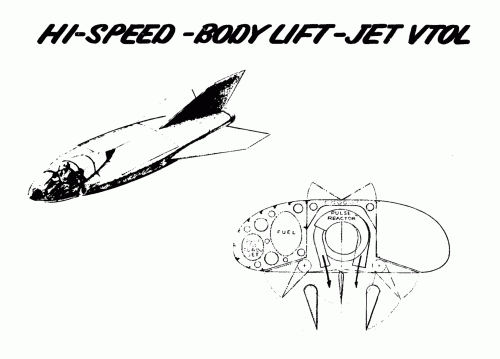

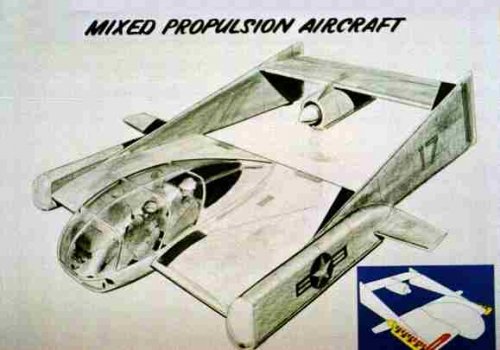

From a Hiller report on pulse reactors and their possible applications:
http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD0825218


Attachments

  • Hiller Pulse Reactor Booster.gif
    Hiller Pulse Reactor Booster.gif
    51.6 KB · Views: 97
  • Hiller Mixed Propulsion Aircraft.gif
    Hiller Mixed Propulsion Aircraft.gif
    134.9 KB · Views: 110
  • Hiller Hi-Speed-Body Lift-Jet VTOL.gif
    Hiller Hi-Speed-Body Lift-Jet VTOL.gif
    79.5 KB · Views: 120
  • Hiller ASW Drone-Winged Aircraft.gif
    Hiller ASW Drone-Winged Aircraft.gif
    132.6 KB · Views: 116

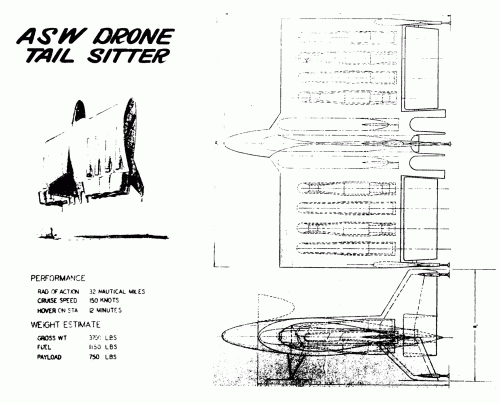

  • Hiller ASW Drone Tail Sitter.gif
    Hiller ASW Drone Tail Sitter.gif
    233.5 KB · Views: 121
  • Hiller ASW Drone Ring Wing.gif
    Hiller ASW Drone Ring Wing.gif
    184.1 KB · Views: 114
  • Hiller Assault Aircraft.gif
    Hiller Assault Aircraft.gif
    85.6 KB · Views: 173

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,702
Reaction score
849
Greetings All -

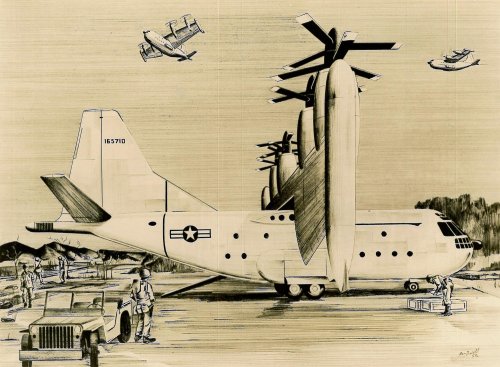

A nice find in a collection donated to our Museum was this artwork for a Hiller tiltwing design and a little humor with a cartoon from their in house newsletter.

Enjoy the Day! Mark


Attachments

  • Hiller Tiltrotor artwork.jpg
    Hiller Tiltrotor artwork.jpg
    293.9 KB · Views: 131
  • Hiller cartoon.jpg
    Hiller cartoon.jpg
    116.1 KB · Views: 134

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826
The type in the second picture is, I believe, an early variation on the VJ 100:

http://www.secretprojects.co.uk/forum/index.php/topic,17252.0


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,702
Reaction score
849
Greetings All -

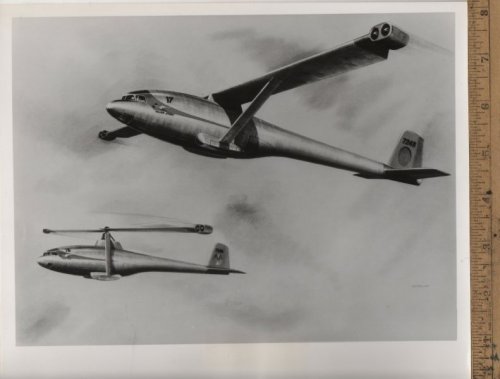

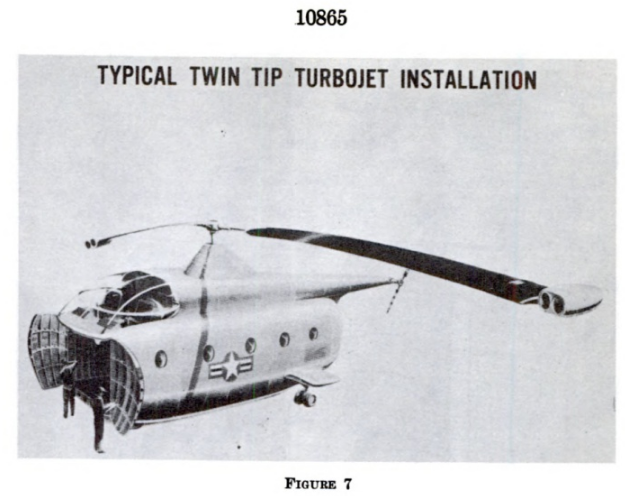

On EPay:

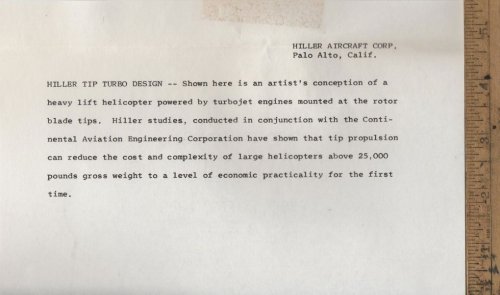

http://www.ebay.com/itm/Original-1962-Promotional-Photograph-Hiller-Aircraft-Corp-Tip-Turbo-Helicopter-/130935612401?pt=LH_DefaultDomain_0&hash=item1e7c5ee3f1
Enjoy the Day! Mark


Attachments

  • Hiller1.JPG
    37.4 KB · Views: 96
  • Hiller2.JPG
    67.2 KB · Views: 95

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
826
That's the Hiller Model 1098 STORC. See here:
http://www.secretprojects.co.uk/forum/index.php/topic,3395.msg101316.html#msg101316


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
The Hiller Model-1098;

http://archive.aviationweek.com/search?QueryTerm=Hiller+Model-


Attachments

  • 2.png
    159.6 KB · Views: 92
  • 1.png
    208.8 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

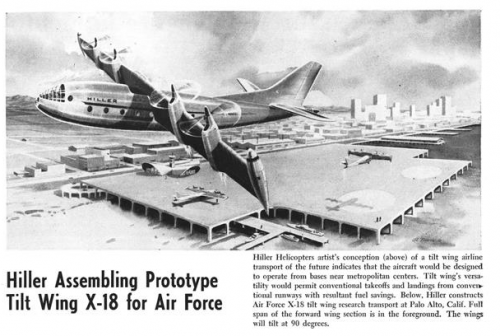

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=tilt-wing&start=40&rows=20&DocType=Article&Sort=&SortOrder=&startdate=1916-08-01&enddate=2016-01-04&LastViewIssueKey=&LastViewPage=


Attachments

  • 1.png
    164.8 KB · Views: 131

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Jemiba said:
From Aero 1/1960, a project developed by Hiller for the USN for
a transport with tiltable shrouded props.

Hi,

http://archive.aviationweek.com/image/spread/19580421/74/2


Attachments

  • 1.png
    137.1 KB · Views: 100
  • 2.png
    232.9 KB · Views: 101
  • 3.png
    140 KB · Views: 97

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

http://archive.aviationweek.com/image/spread/19530525/11/2


Attachments

  • 1.png
    183.7 KB · Views: 108

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

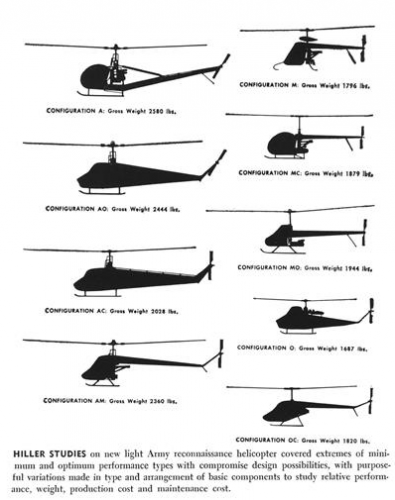

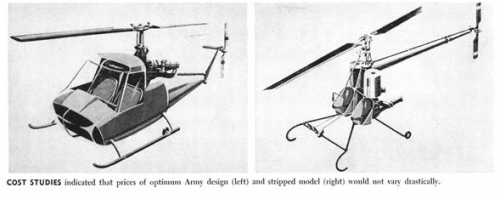

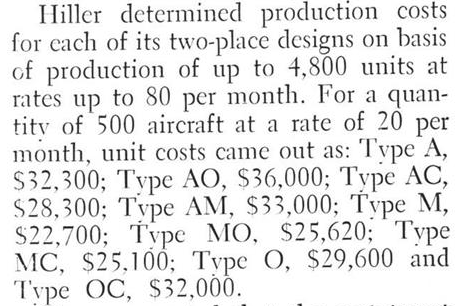

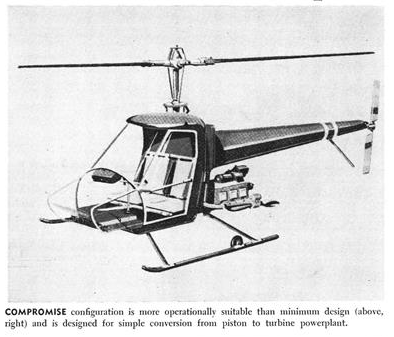

here is a Hiller minimum-cost helicopter projects;

http://archive.aviationweek.com/image/spread/19590216/42/2
http://archive.aviationweek.com/image/spread/19590216/43/2
http://archive.aviationweek.com/image/spread/19590216/44/2
http://archive.aviationweek.com/image/spread/19590216/45/2


Attachments

  • 1.png
    114.6 KB · Views: 608
  • 2.png
    116.6 KB · Views: 579
  • 3.png
    87.7 KB · Views: 547
  • 4.png
    111.7 KB · Views: 503

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

http://archive.aviationweek.com/image/spread/19580609/23/2


Attachments

  • 1.png
    228.4 KB · Views: 423

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,702
Reaction score
849
Good Day All -

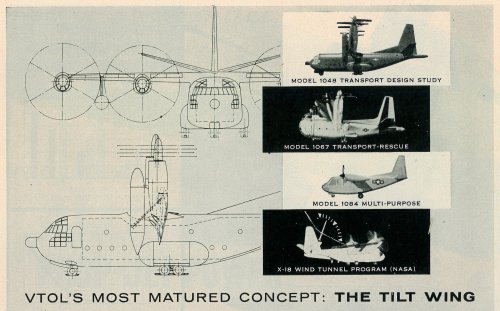

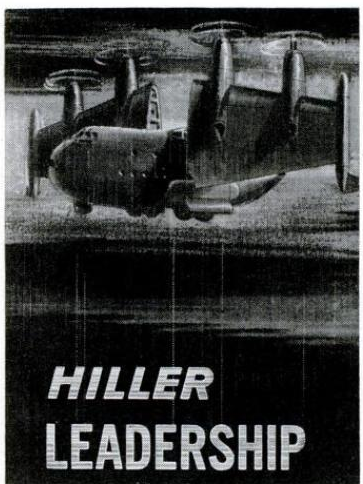

A crop from a Hiller ad in Av Week August 3, 1959 which features the Model 1048, Model 1067 and Model 1084 tilt wing designs.

Enjoy the Day! Mark


Attachments

  • zHiller Model 1048 1067 1084 Tilt Wing Designs.jpg
    zHiller Model 1048 1067 1084 Tilt Wing Designs.jpg
    879.9 KB · Views: 179

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Hi,

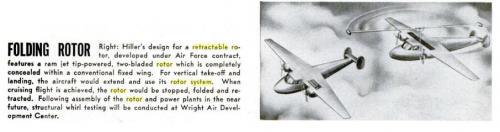

here is a folded and retractable rotor concept;

https://books.google.com.eg/books?id=8Hd4DlOqhhwC&pg=PA43&dq=retractable+rotor+system&hl=en&sa=X&redir_esc=y#v=onepage&q=retractable%20rotor%20system&f=true


Attachments

  • 1.png
    286.6 KB · Views: 125

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
hesham said:
here is a folded and retractable rotor concept;

https://books.google.com.eg/books?id=8Hd4DlOqhhwC&pg=PA43&dq=retractable+rotor+system&hl=en&sa=X&redir_esc=y#v=onepage&q=retractable%20rotor%20system&f=true

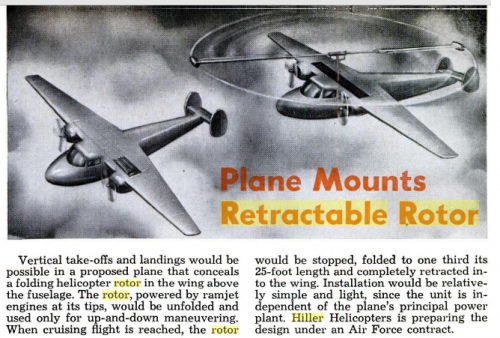

Also;

https://books.google.com.eg/books?id=TOEDAAAAMBAJ&pg=PA71&dq=retractable+rotor+hiller&hl=en&sa=X&ved=0ahUKEwii3Oqw26beAhXHmLQKHVcaDfcQ6AEIRzAH#v=onepage&q=retractable%20rotor%20hiller&f=true


Attachments

  • 1.png
    557.7 KB · Views: 110

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158

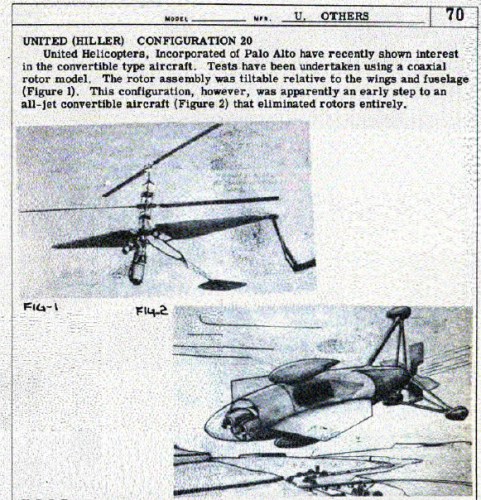

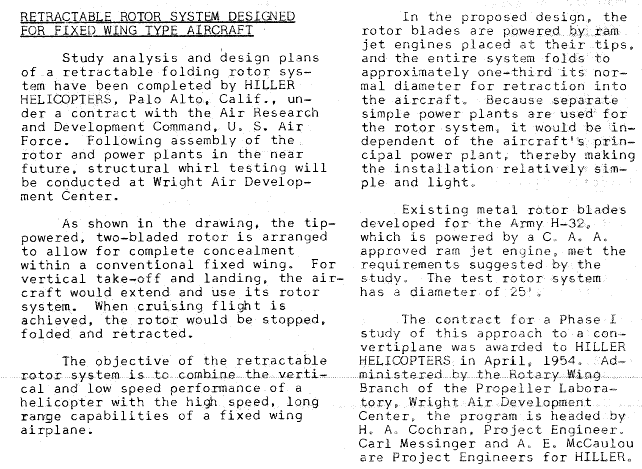

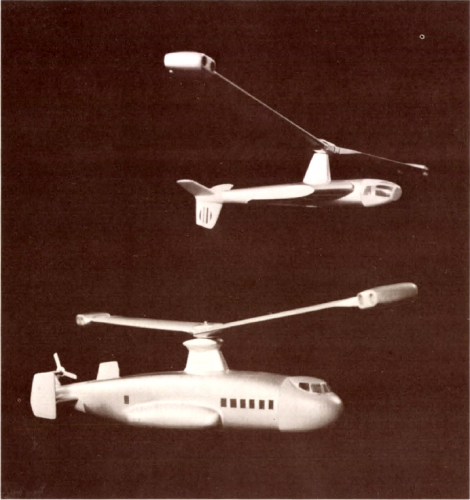

From, ROTARY WING AIRCRAFT HANDBOOKS AND HISTORY VOLUME 13.


Attachments

  • 1.png
    863.4 KB · Views: 143

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158

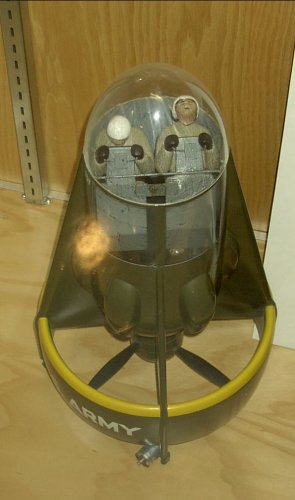

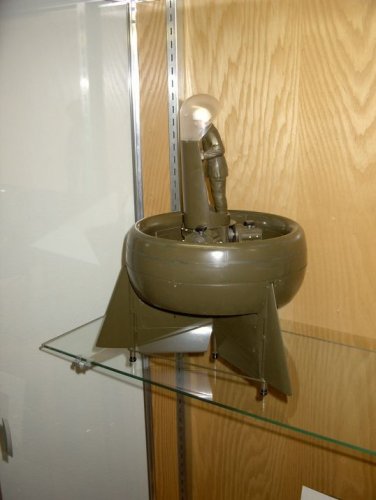

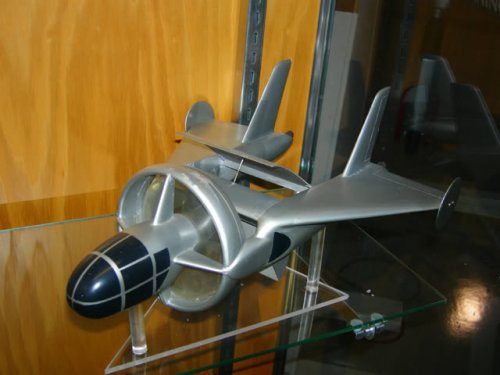

Attachments

  • images (5).jpg
    images (5).jpg
    9.1 KB · Views: 95
  • images (6).jpg
    images (6).jpg
    11.5 KB · Views: 95
  • images (7).jpg
    images (7).jpg
    5.6 KB · Views: 101

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158

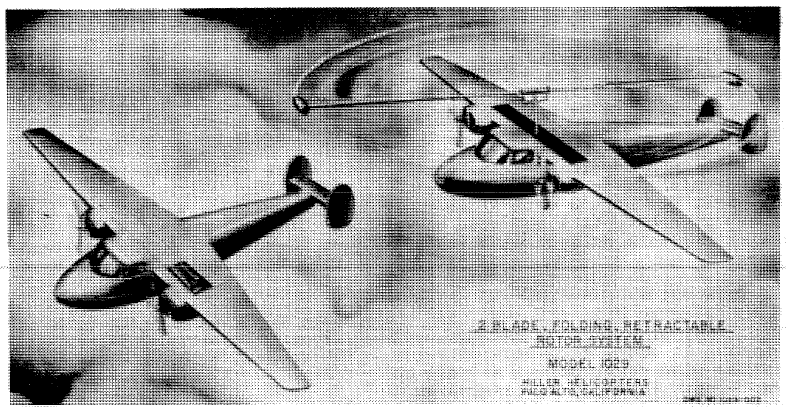

hesham said:
here is a folded and retractable rotor concept;


Also;


It was called Hiller Model-1029.

Vertiflite 1956.


Attachments

  • 1-1956-5-4.png
    141.3 KB · Views: 40
  • 2-1956-5-4.png
    65.7 KB · Views: 57

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,473
Reaction score
6,158
Sorry for my annoy today,

From NASA, Vertical and Short Takeoff and Landing V/STOL Aircraft 1964.


Attachments

  • 19.png
    370.5 KB · Views: 58
Top
