High-mach nuclear bomber design I made

dannydale

ACCESS: Secret
Joined
May 13, 2007
Messages
242
Reaction score
37
Orionblamblam said:
Mark Nankivil said:

Holy Dogwater! If you have more information on this design - especially three-views, dimensions and such - you'll have found one of the "holy grails" of this site.
Hmm, that looks a bit like a fictitious high-mach nuclear bomber design I made, especially with the chines and the half-cone inlet.


Attachments

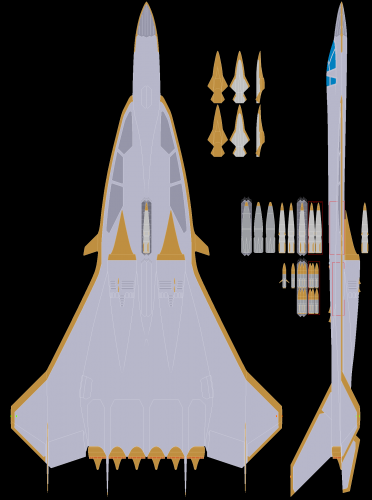

  • high-mach semi-stealthy hybrid underside wip9.png
    high-mach semi-stealthy hybrid underside wip9.png
    58.6 KB · Views: 355

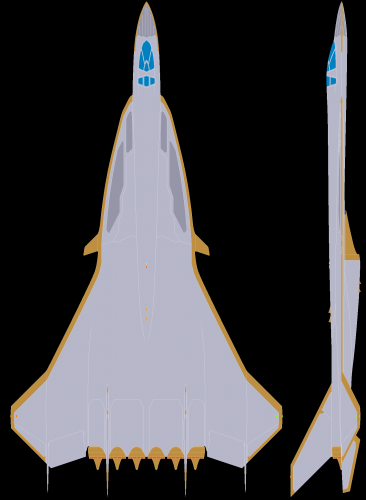

  • high-mach semi-stealthy hybrid wip3.png
    high-mach semi-stealthy hybrid wip3.png
    39.2 KB · Views: 260

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
It looks like a fairly good design. Hell to land though. It is unusual to see such a low frontal cross section. I wonder why?
