Hermann Koehl Tailless Rare Aircraft

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,749
Reaction score
2,727
Hi,

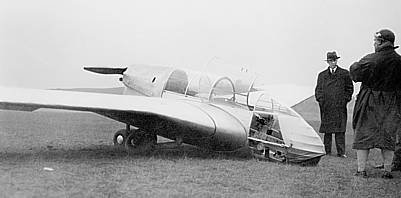

in Germany 1933/34,Dr. Hermann Koehl and Ernst Von built a strange tailless or

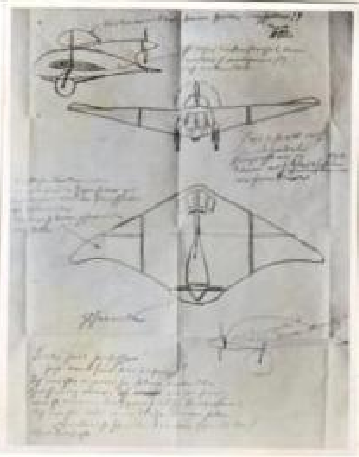

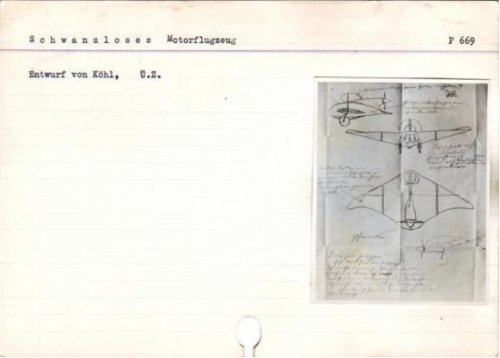

flying-wing aircraft,powered by one pusher engine,and also here is an Entwurf drawing
for early sketch,very rare aircraft.


http://home.planet.nl/~otten100/Myfw.html


Attachments

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
894
Reaction score
32
Very interesting! Thanks for sharing.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,896
Reaction score
266
Herrmann Köhl and Ernst von Lößl are the constructors...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,749
Reaction score
2,727
Maveric said:
Herrmann Köhl and Ernst von Lößl are the constructors...

And who was the designer ?.


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
717
Reaction score
281

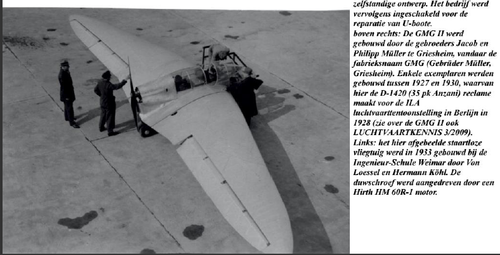

Please excuse my poor translation from Dutch.
The GMG II was built by brothers Jakob and Phillip Muller from Griesheim. The firsts example D-1420 was built between 1935 and 1938. It is powered by an Anzani engine producing 35 horsepower.

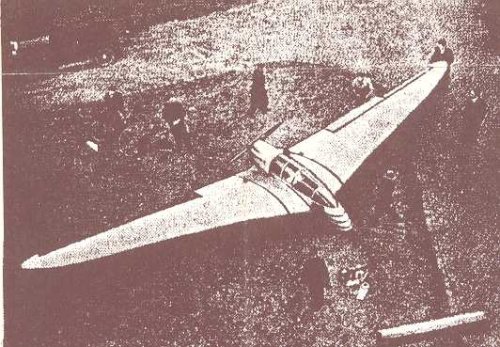

The photo at left was taken in 1933. It was built by Engineer School (university) Weimar. ... von Loessel and Hermann Kohl.
The driveshaft connects to a Hirth HM60R-1 engine.


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
886
Reaction score
173
I wonder if they did any work with the Horten brothers.


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
564
Reaction score
65

Attachments

Last edited:
