Heinkel P1078 B

[Flitzer]

Hi
I have a friend who is hoping to start producing 1/48th resin kits of secret project aircraft.
The first one he hopes to make is the Heinkel P1078 B. Has anyone got data, plans etc or know where to find it please?

Also he would like to know any views on what other secret project aircraft that are not available in kit form would be popular in 1/48th scale.

Many thanks
Peter ;D



[richard]

Could be of some help ?

http://www.luft46.com/images/1078b-2.jpg



[Justo Miranda]

Done!



[Flitzer]

Justo
you are a marvel.

Many thanks
P



[Justo Miranda]



[ABU625]

Flitzer: Best of luck to your friend. I look forward to seeing his product(s).



[baja]

Hi Flitzer,

look also here:

http://ww2drawings.jexiste.fr/Files/2-Airplanes/Axis/1-Germany/01-Fighters/He-P1078/He-P1078.04B.htm



[Flitzer]

Thanks Baja.



[Flitzer]

Here we go again.

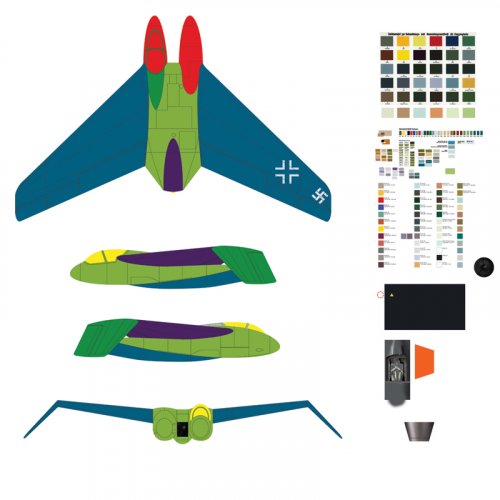

Progress report attached. Template layers in position.

:-\I have a question please.

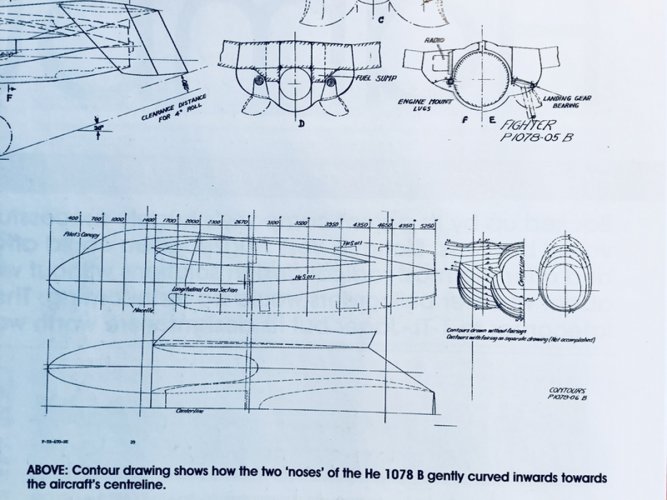

Should the noses be, for want of a better word, asymmetrical?
i.e. each being flared from the inside to the outside, offering a greater area of space in front of the central intake?

I've seen both the asymmetrical layout and more 'normal' examples?

Many thanks
P ;D



[Justo Miranda]

But for the canopy, noses are symmetrical. From an aerodynamic point of view, it really does not matter.
