He 162 variant?

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,503
The nose is different, as is the canopy, the planform of the ,now low set
wing seems to be different and the tail seems not to have twin fins any
more. The nose wheel could have been the same, but the main gear would
have needed complete re-design, I think. The only detail in common with the
He 162 seems to be the position of the engine. In fact, it reminds me more to
the Arado E.580.
Maybe the designation just means the "Bewaffnungsanlage" (weapons installation),
not the aircraft itself ?


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
It looks more than an exercise on weapons installation. The bulky nose could mean it is armoured ( not just the SG aperture ), but it would render the pilots visibility a weak one. The wing chord would make it vulnerable, but this "jet shturmovik" is very interesting. Could this be a Henschel project, a successor to the radial engined Hs129?


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
175
Reaction score
52
My question is what is the source of the document? I have done a fair amount of research on WWII German projects and generally (but not always) there would be both a date and an indication of originator's identity on primary documents. If these are known, then a rational attempt could be made to answer question, otherwise SWAG rules.

Best Regards,

Artie Bob


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20

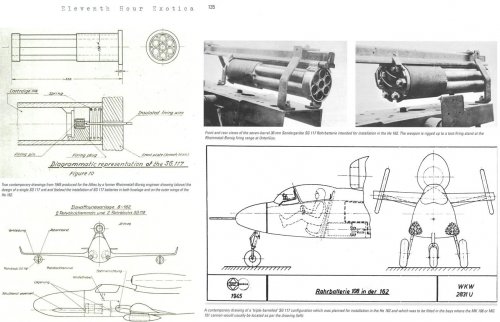

My version- it just shematical drowing of He 162S... by Reimettal-Borsig engeneers...They are not "aviators", byt armory designers.
Here the approve


Attachments

  • Heinkel.JPG
    143.5 KB · Views: 362

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,315
Reaction score
2,316
I thing that graphic Justo has found

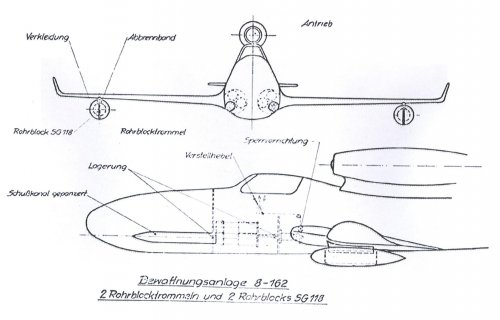

Is from Rheinmetall-Borsig Patent to show how the "Bewaffungsanlage" (weapon system) is install into fictional aircraft.
this is SG 118 = Sondergerät 118 based on SG 117 codename „Rohrblock", but installed horizontal for "Heimaschutz" aircraft what became the He 162

http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/s/SG%20Sondergeraete/SG%20118/Text/Leiter%20d.%20Konstruktionsabt.%20f.%20aut.%20Kanonen%2013-55%20mm/Beschreibung.pdf


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,017
Vladimir said:
My version- it just shematical drowing of He 162S... by Reimettal-Borsig engeneers...They are not "aviators", byt armory designers.
Here the approve


Nice find Vladimir.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20
hesham said:
Vladimir said:
My version- it just shematical drowing of He 162S... by Reimettal-Borsig engeneers...They are not "aviators", byt armory designers.
Here the approve


Nice find Vladimir.

B)
