Hawker P.1092

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2

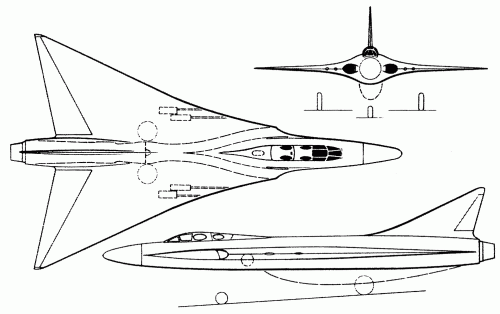

This drawing is from RAF Flying Review. I had the entire page at one time, but not anymore. It's not all I'm missing!. Who knows what model this is or even if it is Hawker?


Attachments

  • 10121A~1 (2).JPG
    10121A~1 (2).JPG
    165.9 KB · Views: 591

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,821
Reaction score
269
That looks like an all weather development of the plane shown in the appendix of Tony Butler's book on British fighters. I'm at the office, so I don't have access to my books right now, but there is a plane in that book which is a single seat day fighter with a shock cone inlet in the nose and six cannons (three in each wing) IIRC with an almost identical wing and tail. I can check when I get home.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,018
Reaction score
347
Hi ! :)


It's an Hawker P.1092 (05.11.51)
Rôle : all-weather interceptor
Engine : one Rolls-Royce
Span : 35 ft.
Length : 55 ft.
Wing area : 580 ft²
Crew : 2
Service ceiling : 55,000 ft.
Range : 550 miles
Max speed : 1.5 M at 36,000 ft.
Weapons : two red top AAMs

Sources :
-Combat aircraft prototypes since 1945, Robert Jackson, Airlife publishing ltd., 1985 (p.102)
-British secret projects : jet fighters since 1950, Tony Buttler, Midland publishing, 2000 (p.168)

Bye ;)


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu
I know where is that page ;) (if you need a scan, just write me). Additional info:

Project status: Initial project design investigations completed by December 1951
Powerplant: Rolls Royce Avon with reheat
Internal fuel: 650 gal., 2925 l
Wing area: 580 sq. ft/53,88 sq. m
Leading edge sweepback: 65 degrees


elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2
Thanks to all for the info. I thought it might be the P.1091 but now I know better. Matej I'll contact you. Thanks.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
For the ones who likes to kwow the rest of the article:

Flying Review International Vol 20 No.1 September 1964
"The Frustrating 'Fifties " pages 67 - 69.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Hello my friends

I suggest to all visit the webpage of Flitzer, he have a gorgeous illustration of this aircraft and many others projects.

Raravia


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,630
Reaction score
512
Greetings All -

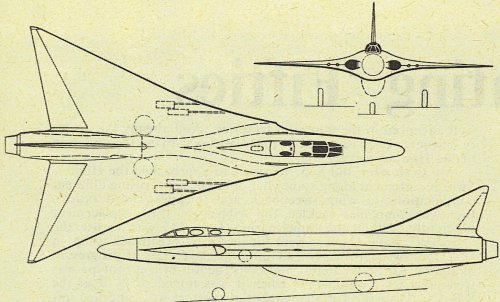

I was recently given a couple of dozen tatter issues of Flying Review International that are from the early-mid '60s. In Vol. 20 No.1, there's an article called "The Frustrating 'Fifties" which covers a number of Hawker designs. Attached is P.1092 which I do not recall seeing before. Anyone have additional info ont he design and the Specification it was intended for?

Enjoy the Day! Mark


Attachments

  • Hawker P1092.gif
    Hawker P1092.gif
    111.2 KB · Views: 218

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

http://www.secretprojects.co.uk/forum/index.php/topic,1765.0/highlight,hawker+1092.html


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,630
Reaction score
512
Thanks Hesham, so much for my search techniques :-[

Enjoy the Day! Mark
