Hi Hesham!
Yes, I know this aircraft. In 1935, a competition for a low-power, low-cost ultralight aircraft ("avietka", as such machines were called that times in the USSR) was announced by the
Osoaviakhim and
AviaVNITO organizations. The main requirements were: maximum safety, wide piloting availability (the aircraft must be suitable for a person without special training to fly with it), suitability for training, and minimum cost of aircraft itself and its maintenance. In a word, a little "flying bike" for everybody.
Among other competitors (as much as 35 projects and prototypes were presented until 1936 autumn!), the MAI design team led by Petr Grushin decided to participate. The team included also P. Blandov, P. Semenov, A. Lebedinsky, Alexey Grinchik (then MAI student, later renowned test pilot, killed in MiG-9 crash in 1946), and others. They approached to the task seriously: made all necessary calculations, wind tunnel tests, and study different aerodynamic configurations. As a result, the tandem-wing layout was chosen. It was partly influenced by popular "Pou-du-Ciel" by H. Mignet; but, unlike the French aircraft with its hinged front wing, Grushin's design had both wings fixed. The front wing was fitted with slotted elevons/flaps over the entire span; the rear one lacked any control surfaces. The new control system allowed to eliminate defects generic for the Flying Flea, such as loss of the pitch stability and tightening into vertical dive. Wind-tunnel tests displayed that
Oktyabryonok remained stabile and its elevons kept their effectiveness at all regimes of flight. It was confirmed during flight tests.
The

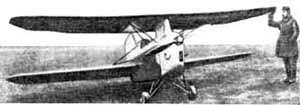

Oktyabryonok was first flown at October 23, 1936 by the test pilot A. Zhukov. During this maiden flight, the aircraft reached 1000 m altitude, demonstrated its stability and reliability. The takeoff run was about 50-60 m, landing run only 15 m. At October 30, Zhukov flew up with
Oktyabryonok from MAI aeroclub field in Khimki, passed over the institute and made some aerobatics over Tushino airfield.
The original engine for the

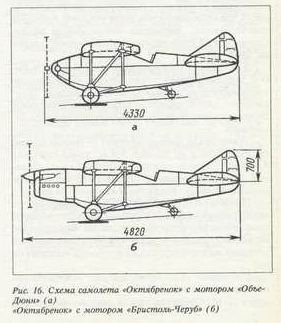

Oktyabryonok was projected at MAI engine faculty, but it wasn't ready until the competition deadline. Therefore, the flight tests started with 27-hp Aubier-Dunne engine. But the power wasn't enough for the aircraft whose takeoff weight reached 400 kg level (instead of projected 230 kg). So, the engine was replaced by 30-hp Bristol Cherub, and then by 45-hp Salmson. Also the wing spar and vertical stabilizer were strengthened, landing gear absorbers added, rudder enlarged.
After the tests,

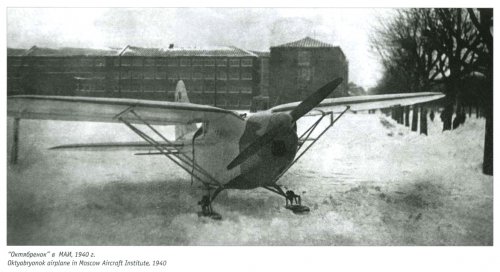

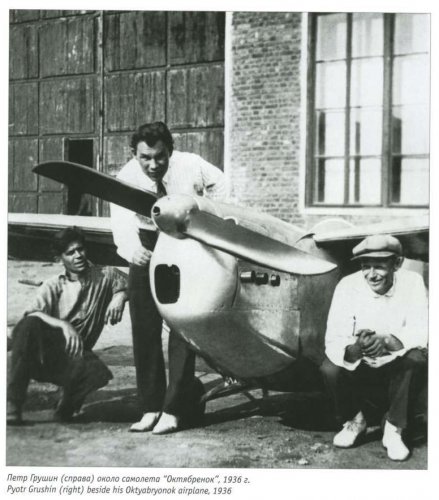

Oktyabryonok was successfully operated during some years in MAI aeroclub. One of those who learned to fly with it was its designer, Petr Grushin. The ultralight was even tested at NII VVS by Petr Stefanovsky, and recommended for usage as liaison aircraft for army units! In 1938, it took part in Tushino Air Parade. But it didn't come into production and didn't become a peoples' aircraft which it was intended to be...

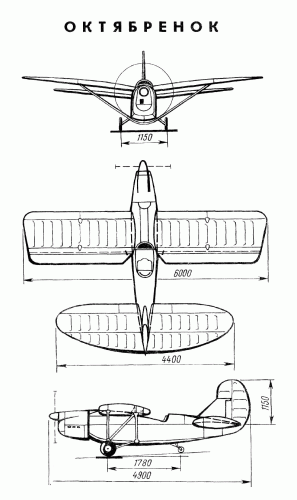

Technical data for "Oktyabryonok" MAI:
Wing span - 6.0 m (front wing), 4.4 m (rear wing)
Length - 5.0 m (another data: 4.12 m)
Wing area - 12.8 m2 (another data: 7 m2 front wing, 4 m2 rear wing)
Crew - 1
Empty weight - 295 kg
Takeoff weight - 400 kg
Fuel weight - 25 kg
Maximum speed - 115 km/h
Cruise speed - 95 km/h

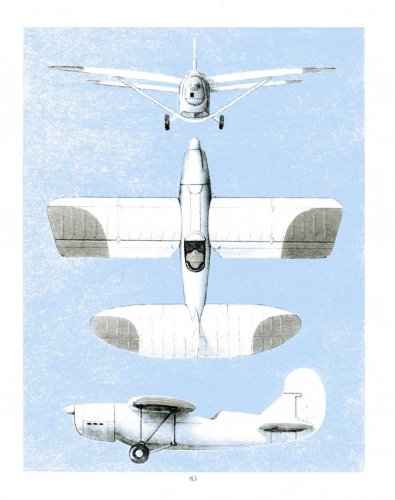

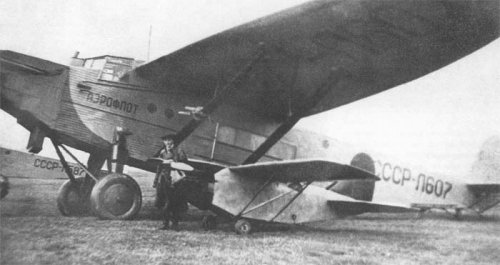

I attach here a photo of Oktyabryonok side-by-side with popular Kalinin K-5 airliner. You can see some more photos and a 3-view here:
http://www.airwar.ru/enc/law1/oktyabrenok.html.
