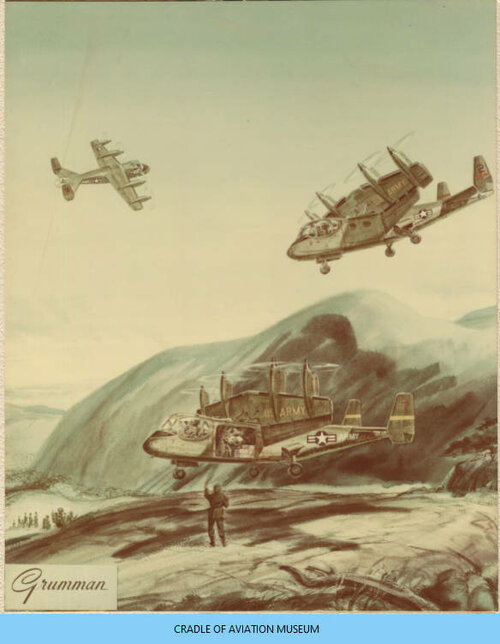

Grumman VTOL/VSTOL/STOL Projects

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,924
Reaction score
949
... several quite different from Grumman !


Attachments

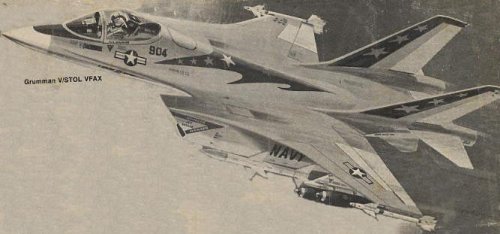

  • Grumman VSTOL VFAX.jpg
    Grumman VSTOL VFAX.jpg
    37.5 KB · Views: 1,227
  • Joint GB-USA - PCB fighter - US-Version.jpg
    Joint GB-USA - PCB fighter - US-Version.jpg
    357.5 KB · Views: 1,059
  • McDD + BAE VSTOL.jpg
    McDD + BAE VSTOL.jpg
    90.2 KB · Views: 1,129

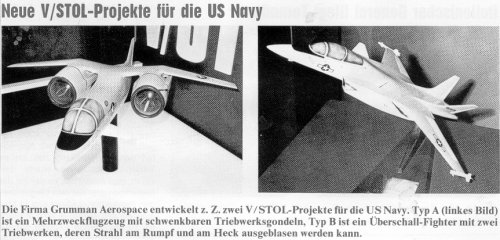

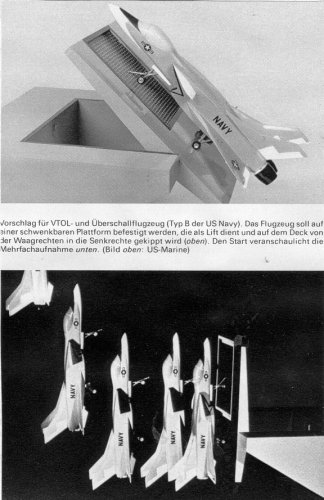

  • Typ A + B - Grumman text.jpg
    Typ A + B - Grumman text.jpg
    279.4 KB · Views: 1,036

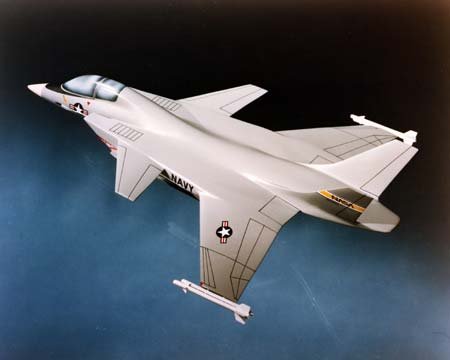

  • Typ B - Grumman early - 01.jpg
    Typ B - Grumman early - 01.jpg
    217.9 KB · Views: 836
  • Typ B - Grumman early - text.jpg
    Typ B - Grumman early - text.jpg
    353.8 KB · Views: 498

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,555
Reaction score
361
Grumman Typ B.

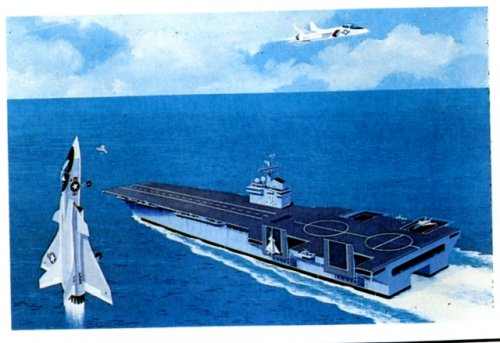

The Aircraft Carrier it is also a very interesting design but designation is unknown for me. I don't know if it is a real design of just art.


Attachments

  • Grumman VTOL.jpg
    Grumman VTOL.jpg
    238.2 KB · Views: 526

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,405

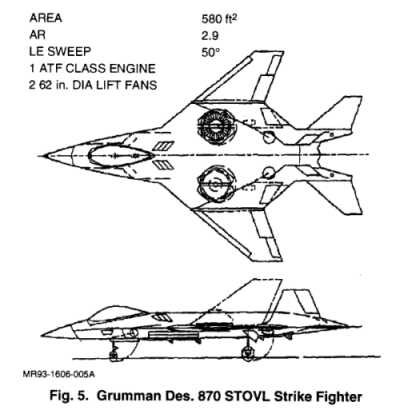

Grummann 1993 supersonic fan-in-wing VTOL fighter (Design 870)


Attachments

  • grum1993-des870s.jpg
    17.7 KB · Views: 643

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,180
Reaction score
1,405
1. Grumman Remote Augmented Lift System aircraft proposal


Attachments

  • 1981_06250L  REMOTE AUGMENTED LIFT SYSTEM.jpg
    1981_06250L REMOTE AUGMENTED LIFT SYSTEM.jpg
    12.8 KB · Views: 399

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Hi,

what was this aircraft project which was look like a big strike
fighter ?.
http://www.flightglobal.com/PDFArchive/View/1982/1982%20-%202028.html


Attachments

  • Strike Fighter.JPG
    Strike Fighter.JPG
    105.4 KB · Views: 768

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,555
Reaction score
361
Hesham,

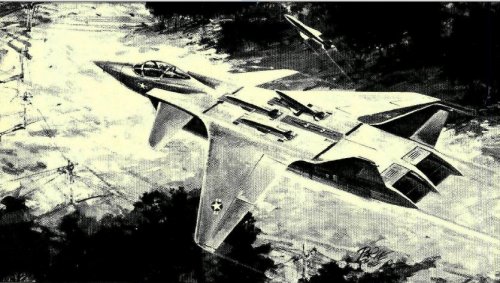

I have this drawing on Page 80 "Aircraft 2000. The Future of Aerospace Technology" Bill Sweetman. Ed Hamlyn 1984. ISBN 0 600 34726 5.
It is identified as an Advanced Tactical Fighter proposal from Grumman.

cheers

Antonio


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
15
People may know what I'm talking about, or maybe not, but either way I remember these pocket-sized books about worldwide military equipment and OOBs. Can't remember the title, for some reason I want to say they're associated with Jane's but published separately. Anyway, I remember that illustration in one of the books, where it was mentioned that "future aircraft may have weapons bays on top of the fuselage to minimize their radar profile," implying that it is indeed a stealthy strike fighter (although with a potentially weird bomb delivery profile, for sure!)


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,214
Reaction score
199
It may have been from a late-1970s, early 1980s Grumman calendar.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,924
Reaction score
949
Surely not the same project as in the first post, but the tread fit's quite nice !

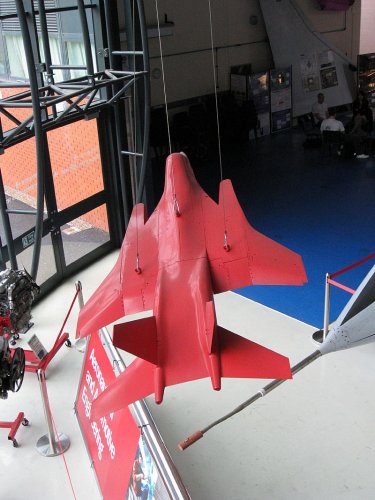

Found that on a CHinese site with photos of the EAP ... and in front of it above this red-thing is hangig !

http://www.fyjs.cn/bbs/htm_data/27/1110/614377.html

Any idea ??

Thanks in advance,
Deino


Attachments

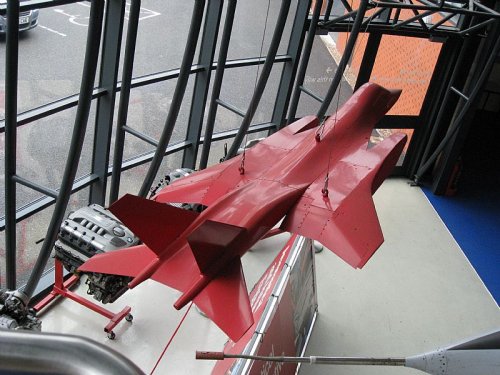

  • red model ... what is it.jpg
    red model ... what is it.jpg
    153.4 KB · Views: 465
  • red model ... what is it 2.jpg
    red model ... what is it 2.jpg
    111.9 KB · Views: 456

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,068
Reaction score
192

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
I think I've seen it in a Bill Gunston book, maybe "Future Fighters".


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
24
Website
www.io.com
...Confirmed on the concept being from Grumman. I've also seen the illo in question in both Air Farce and AvLeak, circa 1980-1981 IIRC. General commentary about the design contained the usual complaint about top-launched weaponry:

"If it's bottom-launched, all you have to worry about is that you've at least hit *an* enemy target when the propellents fail. With a top-launched weapon, if the propellant fails, it'll still hit a target, but it damn sure won't be an enemy one!"


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Also from my dear Scott;


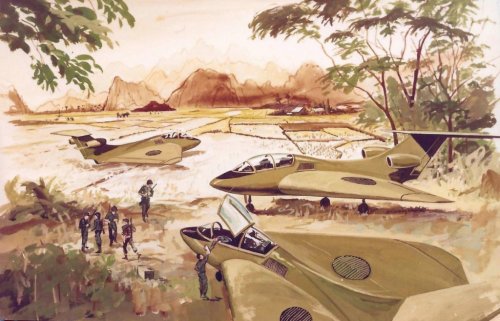

here is the Grumman two seat lift-fan VTOL jet aircraft artwork,my dear Scott suggested
it was a ground support aircraft.


http://up-ship.com/blog/?p=22914


Attachments

  • G-2.jpg
    182.3 KB · Views: 333
