Grumman Design 77

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
337
Reaction score
16
Hi All!
"In January 1946, after the Bureau of Aeronautics showed interest in the use of sweptback wings as a result of the data brought back from Germany by the Naval Technical Mission in Europe and of research undertaken by NACA at the Langley Laboratory, Grumman proposed a research aircraft to obtain data on low-speed handling characteristics oh highly swept wings. To reduce costs, consideration was given to fitting swept wings to either a modified Bell P-63 or to a modified Wildcat. In the end, however, Grumman proposed the all-new Design 77. Neither the modified aircraft nor the new design reached the hardware stage. Intended to be powered by a 450-hp Pratt & Whitney R-985 radial, Design 77 was a low-wing aircraft with a wing box structure arranged to accomodate wings with various degrees of sweepback. Fitted with a non-retractable undercarriage, the aircraft was planned as a single-seater but, if desired, could accommodate an observer aft of the pilot."
Source: http://www.angelfire.com/space/grumman/aircraft/designs.html


Attachments

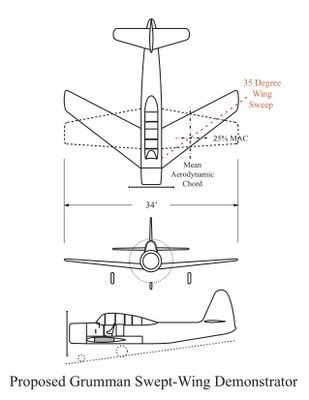

  • Grumman Swept Wing Demonstrator Proposal.jpg
    Grumman Swept Wing Demonstrator Proposal.jpg
    18.1 KB · Views: 1,097

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,884
Reaction score
3,720
Yes Grumman's sense is very sharp.
So they can developed variable wing XF-10 and Great F-14.
I used to read that F-14 was stronger than F-15 even in dog fight in Japanese news paper , I surprised very much.


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
12
I used to read that F-14 was stronger than F-15 even in dog fight in Japanese news paper , I surprised very much.
I would take that with a healthly grain of salt. One IAF F-15 flew home without one wing, not too sure that even a F-14 could do that.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,980
Reaction score
5,267

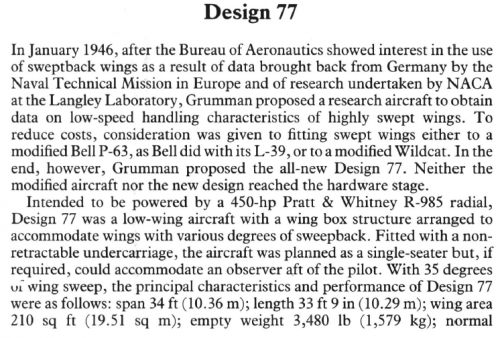

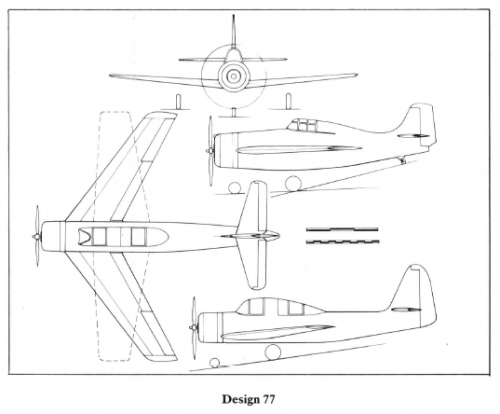

From Grumman Aircraft since 1929,

the G-77.


Attachments

  • G-77.png
    68.8 KB · Views: 554
  • 1.png
    246.1 KB · Views: 515
  • 2.png
    56.2 KB · Views: 479

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,423
Reaction score
269
Neither Grumman proposal flew, but the Bell L-39.2 most certainly did. Cobra, the history of the first twelve years of Bell Aircraft has an excellent write-up on it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,980
Reaction score
5,267
Thank you for the Info my dear Elmayerle.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,980
Reaction score
5,267

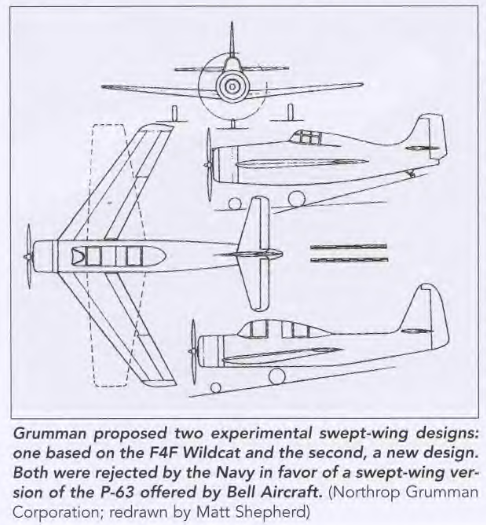

From ; Grumman F9f Panther by Brad Elward


Attachments

  • 1.png
    234.9 KB · Views: 72
