Hi,

the Grigorovich MM was a marine mine carrier aircraft project,it was
a monoplane with wooden wing(slightly scaled-down ROM-1) ,twin
float twin tail booms and tandem Lorraine Dietrich 450 hp engines
above cetral nacelle,it was never completed.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
Re: Grigorovich MM project

according to Bill Gunston's "Russian aircraft", MM is for Morskoi Minonosyets (I could check in my Russian dictionary, but one of our Russian friends could translate more easily).
Construction begun in 1928 but not completed.
A drawing would be much welcome...


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
14
Re: Grigorovich MM project

It's seems the full designation of aircraft was Grigorovich MM-1 and the project was of 1927.
That's all what I know about it.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Re: Grigorovich MM project

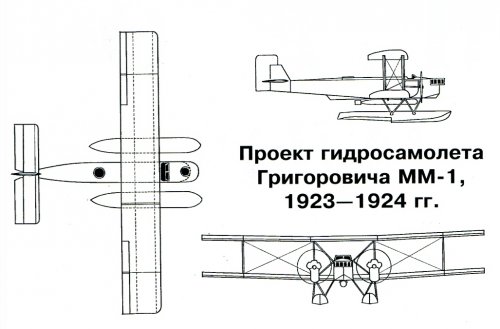

By Grigorovich, with the designation MM-1 (MM), there were at least two of the project.
The first draft of 1923-24 - a biplane, and the second - 1925-27, monoplane which indicates Hesham.
Scheme of G.Petrov "Seaplanes and WIG of Russia "


Attachments

  • MM.jpg
    221.6 KB · Views: 298

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
502
Reaction score
409
Re: Grigorovich MM project

Looks rather French--like something from the LeO stable.


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
14
Re: Grigorovich MM project

@ borovik, what means WIG in the G. Petrov's book title ? Could You scan for us the entire page
with informations about the MM-1, please ?


:D
Thanks for interuption and explaination, dear Silencer1.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
678
Reaction score
218
Re: Grigorovich MM project

Hi!

Sorry for interruption :cool:
I presume WIG means Wing-In-Ground (http://en.wikipedia.org/wiki/Ground_effect_vehicle)
In Russian, as far as I knew there were single word, that determines such kind of vehicles - "Экраноплан"
(Ekranoplan).

Cheers!


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Re: Grigorovich MM project

Alas, other information, except for 3 species in the book "Russian seaplanes and WIG types 1919-1999" - "Гидросамолёты и экранопланы России 1919-1999" by GF Petrov not.
Through find Stephane / Stargazer2006
http://www.secretprojects.co.uk/forum/index.php/topic,8861.0
This remarkable book has become a universally accessible ...
(see page 231 / 234 /)
Regarding the data on these two projects need some time.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986
Re: Grigorovich MM project



Thank you my dears very much.


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
14
Re: Grigorovich MM project

I refresh this topic hoping for the further informations about the Grigorovich MM-1,
especially of the second later design of 1927 *, promised by borovik.
I looked at the page 231 of the Petrov's book, but there were only Akkord, Ładoga
and Ptieniec descriptions.

* Tophe's 1928.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,295
Reaction score
144
Website
zeef.com
Re: Grigorovich MM project

borovik said:
By Grigorovich, with the designation MM-1 (MM), there were at least two of the project.
The first draft of 1923-24 - a biplane, and the second - 1925-27, monoplane which indicates Hesham.
Scheme of G.Petrov "Seaplanes and WIG of Russia "
seems was influenced by bimotors of Leo and Farman, aesthetically remember me french bi-engined aircraft of awesome period !


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Re: Grigorovich MM project

Boogey said:
I refresh this topic hoping for the further informations about the Grigorovich MM-1,
especially of the second later design of 1927 *, promised by borovik.
I looked at the page 231 of the Petrov's book, but there were only Akkord, Ładoga
and Ptieniec descriptions.

* Tophe's 1928.

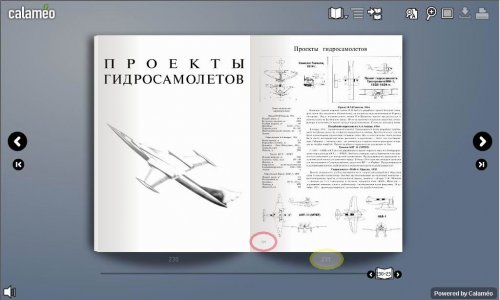

Page 234 / red oval / number of original, ie books
Page 231 / yellow oval / number of p. of electronic versions


Attachments

  • Seaplanes.jpg
    65.6 KB · Views: 289

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
14
Re: Grigorovich MM project

OK. I give up. I see only the Projekt gidrosamoleta Grigorovicha MM-1 1923 - 1924.
Now let anybody only assure me there wasn't MM-1 project of 1927 / 1928 and I go to my pub.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Re: Grigorovich MM project

Boogey said:
I refresh this topic hoping for the further informations about the Grigorovich MM-1,
especially of the second later design of 1927 *, promised by borovik.
* Tophe's 1928.

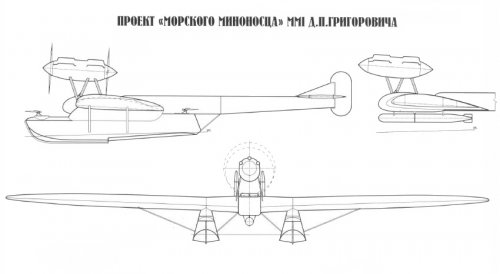

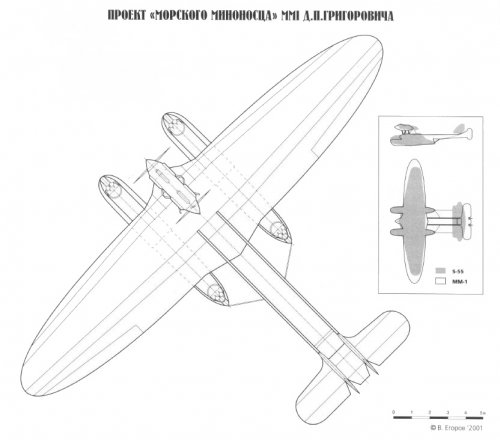

MM-1 second with this name
Year: 1925-26
engine: 2 Lorraine Dietrich of 450hp
span: 27,4 m
ar.wing: 116,4 m2
lenght: 18,4 m
performence:
max speed: 160km / h

armament: four turret TUR-5
Splice with 2 x guns DA caliber 7,62 mm
A torpedo x 450mm (790-900kg)

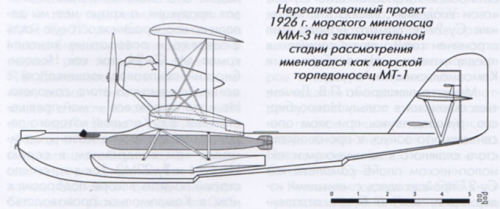

It is interesting, but it was not the last project with the designation MM (MM-3), later renamed the MT-1 (MT1-2LD450).
It was a flying boat, a biplane with the engines between the wings. The only torpedo was suspended under the wing next to the board. Designing was halted at the stage of detail.
In a similar aerodynamic scheme - two boat / catamaran, in the USSR in 1920-30 years were designed as:
(Blessed memory Savoia Marchetti S.55, devoted.)))
Bartini MTB-2 (1929)
Tupolev MTBT (ANT-11) / second version / (1929)
Tupolev MK-1 (ANT-22) (January 1933)
TsAGI-gydrosamolyot (1938)

source: M. Maslov, V. Egorov "Poligon"

PS Boogey sorry to have kept you waiting long.


Attachments

  • MM-1.jpg
    74.5 KB · Views: 241
  • MM-1 top.jpg
    MM-1 top.jpg
    128.5 KB · Views: 238

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
Re: Grigorovich MM project

borovik said:
In a similar aerodynamic scheme - two boat / catamaran, in the USSR in 1920-30 years were designed as:
(Blessed memory Savoia Marchetti S.55, devoted.)))
Bartini MTB-2 (1929)
Tupolev MTBT (ANT-11) / second version / (1929)
Tupolev MK-1 (ANT-22) (January 1933)
TsAGI-gydrosamolyot (1938)
Thanks Borovik.
I thought this scheme was called "twin-hull" ("bicoque" in French, maybe related to the Russian Bi-Kok).
I am not sure I have ever seen the MTB-2 and TsAGI one and ANT11, but the ANT-22 was rather different: the two hulls carried their tails. Here on your MM-1 the unique layout is that there are both twin hulls (boats with pilot/passenger) and, separately, twin booms. (The S-55 had twin-hulls and several booms).
VERY interesting, thanks again! ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986
Hi,

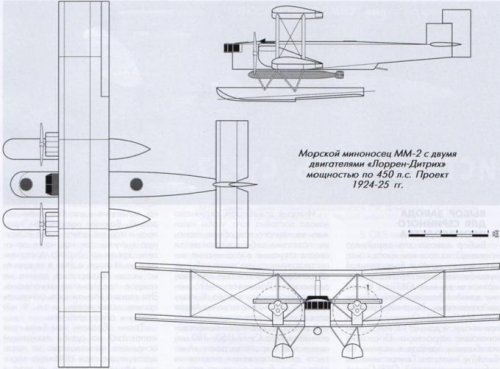

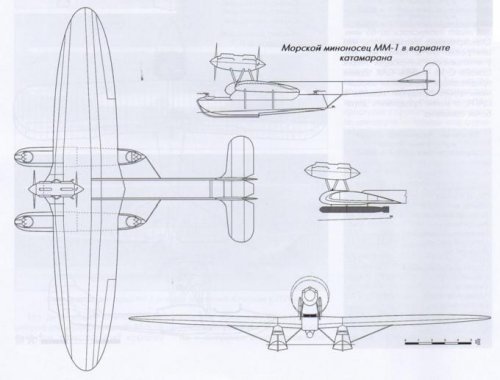

here is the Grigorovich MM-1,MM-2 and MM-3 Projects.


http://alternathistory.org.ua/samolety-dmitriya-grigorovicha-chast-21


Attachments

  • MM-1.JPG
    34.3 KB · Views: 168
  • MM-2.JPG
    41 KB · Views: 146
  • MM-3.png
    307 KB · Views: 144
