Goodyear "Convoplane"

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
It is 1959. I posted that pic some time ago here:

http://www.secretprojects.co.uk/forum/index.php/topic,2140.75.html

Reply #84
;)


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Your pic comes from Air Progress 1969, mine's from Mecánica Popular October 1959.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
In an obscure Soviet (yes) publication of late '60s, translated by the US Government translation service and published in an similarly obscure US publication http://www.springerlink.com/content/t8827m6222586453/ there is this note: "Goodyear pushing MMRBM transporter, Aviation Weekly, Space Technology, 7_6, 7, 92-97 (1962) ". Problem is that I have consulted the AW&ST collection, but there ain't anything in that issue. The Convoplane could be what Goodyear thought of using riding around the MMRBM.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

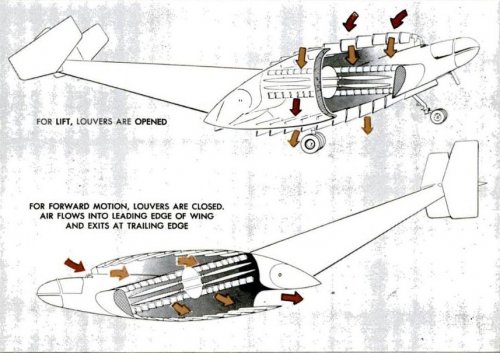

Artist's concept and diagram of Goodyear Aircraft Company Convoplane circa 1959.

The Convoplane can be designed as a small, light plane for reconnaissance or it can be built larger to transport material.

Source: "'Helicopter Plane' Has Wing Louvers" Popular Mechanics February 1959 page 139.


Attachments

  • GoodyearConvoplane.JPG
    46.6 KB · Views: 306
  • ConvoplaneDiagram.JPG
    83.6 KB · Views: 306
