Gluhareff dart missile?

FarSight

ACCESS: Restricted
Joined
Jan 11, 2008
Messages
38
Reaction score
1
http://history.nasa.gov/SP-4305/ch10.htm

http://history.nasa.gov/SP-4406/chap3.html

These sites mention a dart-shaped missile designed by Mr. Michael Gluhareff for Ludington-Griswold company which was then tested by NACA:

"In 1942 Griswold's company had built a wind tunnel model of a dart-shaped missile conceived by Michael Gluhareff, a Russian émigré who was chief of design for the Vought-Sikorsky Aircraft Division of the United Aircraft Corporation; now, in 1944, Griswold was using the results of Vought-Sikorsky tunnel tests with the model to convince the AAF and the NACA that the new missile should be developed."

"Eventually, a wind tunnel model was built; initial tests were encouraging. But the Army declined to follow up due to several other unconventional projects already under way. Fortunately, a business associate of Gluhareff kept the concept alive by using the Dart design, as it was called, as the basis for an air-to-ground glide bomb in 1944."

Is there anything else available about this project?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
There was a 10p. article in Aerospace Historian , Spring ,March 1979.

"Lippisch,Gluhareff and Jones: The Emergence of the Delta Planform and the
Origins of the Sweptwing in the United States".


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
249
What kind of missile was it?, an air to ground one for heavy bombers?

and what about its powerplant?, jet, rocket or piston engine?


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
588
Reaction score
94
Perhaps the Gluhareff patent n° 2,511,502 filed on June 5, 1946, gives some clues about that missile:

https://docs.google.com/viewer?url=patentimages.storage.googleapis.com/pdfs/US2511502.pdf

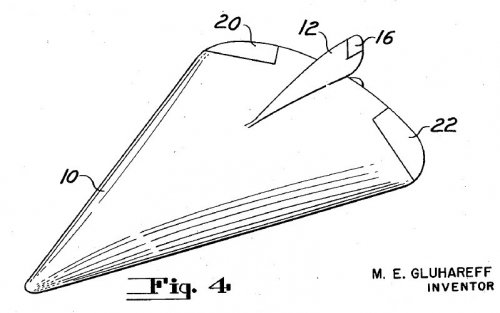

"Figs. 1 to 4 show a dart-shaped airplane embodying the invention in the form of a pilotless missile, the flight path of which may be controlled by radio or in any well-known manner usual in the art of guided missiles."

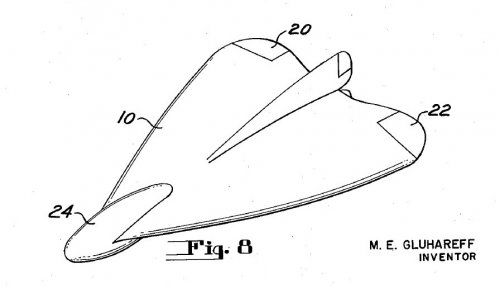

"In Figs. 5 to 8 there is shown a somewhat similar form of guided, missile except that the leading edge of the airfoil-body in the vicinity of the longitudinal axis is provided with a forwardly projecting bulged airfoil body portion (24) of airfoil cross-section which is well pointed at its forward end and which merges-aft into the main
wing airfoil (10). This body (24) may house the control apparatus or in some instances, may
carry the explosive charge of the missile."


Attachments

  • 2014-01-01_193738.jpg
    71.2 KB · Views: 221
  • 2014-01-01_190313.jpg
    59.9 KB · Views: 211
