Hi,

General Motors F2M was single seat monoplane fighter project powered
by one 1350 hp R-1820-70W engine and Loening XFL-1 was single seat
biplane fighter project.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
701
Reaction score
215
F2M same as General Motors FM-2? F4F-8 produced by GM instead of Grumman.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
At http://www.uswarplanes.net/wildcat.html a paragraph "Wildcat variants" mentions "XF2M-1 - 1944, 3 prototypes with engine upgrade, cancelled on VJ Day."
As far as I am concerned, I prefer the twin-boom Japanese fantasy XF2M at http://www.warbirds.jp/kakuki/kyosaku/16ki/xf2m_2.html


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,295
Reaction score
144
Website
zeef.com
XF2M-1
The F2M was a design by Eastern Motors for a version of the Wildcat powered by the XR-1820-70 engine. It was never built.
in http://www.vectorsite.net/avwcat.html

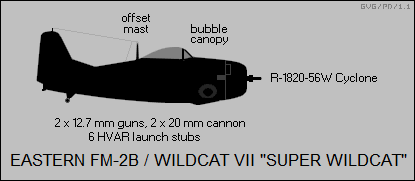

@ [7] COMMENTS, SOURCES, & REVISION HISTORY : it speak about "FM-2B / Wildcat VII / Super Wildcat" with armament two cannon of 20 mm and 2 gun of 12,7 mm

any other pics about this ?


Attachments

  • avwcat_9.png
    7.4 KB · Views: 947

Hoo-2b-2day

ACCESS: Confidential
Joined
Feb 27, 2008
Messages
66
Reaction score
2
In the article you quote the words "Revision history" and "speculated improvements" should have signalled this is a fictional redesign. The F4F/FM-2 was never further upgraded to any large degree as the F8F was designed and manufactured to fill the "small carrier" niche that kept the FM-2 in production so long.

Greg Dobell is a good history writer, but at times does include an element of imagination.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
151
Website
www.tommythomason.com
As stated, it wasn't built, or at least flown. There's a SAC for it, courtesy of Ryan:

http://www.alternatewars.com/SAC/XF2M-1_Wildcat_ACP_-_1_May_1944.pdf


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
48
Website
cmeunier.chez-alice.fr
A bubble-canopy Hellcat is at http://www.whatifmodelers.com/index.php/topic,6024.0.html
This view above and another one of the bubble-canopy Wildcat are at
http://www.whatifmodelers.com/index.php/topic,15619.0.html
But this is what-if plainly (there)…


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,693
Reaction score
819
Wow Tommy, that is more than just a redesign. I rather like the looks of it though!

Thanks! Mark


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
151
Website
www.tommythomason.com
On that whatif web site referred to us by Tophe, Jon (joncarrfarrelly) posted:

The Eastern XF2M-1 project for an improved FM-2 was actually begun in October 1942. The original concept of installing a larger twin-row radial, the R-2000 and R-2600 were both considered, was quickly rejected in favour of higher performance versions of the Cyclone, either the R-1820-62 or the R-1820-70W. Three prototypes were ordered, none were completed when the project was canceled in the Spring of 1945.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
151
Website
www.tommythomason.com
Elsewhere, it is written that the XF2M contract was cancelled on VJ day. According to Baugher, BuNos were 82855-7. These were subsequently reassigned to three ex-USAF B-17Gs to be operated by the Coast Guard as PB-1Gs.


Pepe Rezende

ACCESS: Confidential
Joined
May 3, 2006
Messages
96
Reaction score
4
Tailspin Turtle said:
As stated, it wasn't built, or at least flown. There's a SAC for it, courtesy of Ryan:

http://www.alternatewars.com/SAC/XF2M-1_Wildcat_ACP_-_1_May_1944.pdf

This is not a Grumman design but is a contrafaction built from a Curtiss SC Seahawk... See the similiarities between them!

http://www.daveswarbirds.com/usplanes/american.htm

In an alternate war scenario the Seahawk could be transformed in a nice fighter...

Cheers

Pepe


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
There is a marked difference between the XF2M and the Curtiss aircraft.
The Curtiss aircraft was bigger -compare the dimensions- and it got a different wingplanform...
The XF2M is mentioned in 'Aerofiles'


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Topic split.

Does anyone have a picture of what the XF2M-1 would have looked like?

C

CostasTT

Guest
I ran into contradicting information about the XF2M-1. One source mentions that no prototypes were built, while others, such as the link posted in Tophe's post, mention three.
Anyway, this is what I managed to unveil so far...
http://www.ww2aircraft.net/forum/aviation/little-known-grumman-design-efforts-g-33-g-35-xf2m-1-a-34710.html#post954428

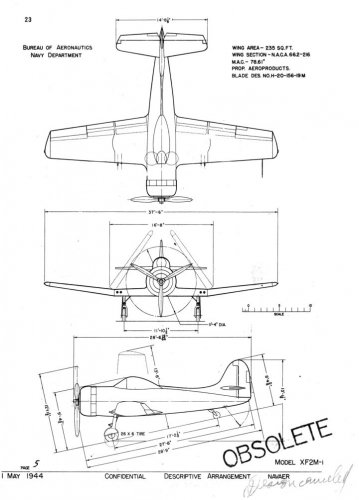

http://ebookbrowse.com/xf2m-1-wildcat-acp-1-may-1944-tommy-pdf-d56011836 (note drawings at the end) also http://www.alternatewars.com/SAC/XF2M-1_Wildcat_ACP_-_1_May_1944.pdf

http://www.americancombatplanes.com/f4f_2.html

http://www.google.com/search?safe=off&biw=1920&bih=942&q=%22XF2M-1%22&ie=UTF-8&hl=el&sa=N&tab=iw


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Thanks for the links! ;)

Just realized we already had a topic on that subject before, so I've merged the two... There is now a profile view (albeit basic) in the first page.

My understanding (though I'll have to do some more digging on the subject) is that three prototypes were ordered, but only one was built, and even then, that was never completed once the program got cancelled.

C

CostasTT

Guest
You are most welcome. ;)
The profile mentions retention of the R-1820, while various other sources mention the R-2000 or even the R-2600. While the latter would not be outside the realms of possibility (the F8F had the R-2800 in a smaller airframe), it would definitely make the takeoff and landing handling characteristics much worse, considering the narrow track landing gear of the F4F/FM series. The problem would have been solved with a new landing gear, such as the wide track one shown in the drawings included in the PDF.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,108
Reaction score
642
Hoo-2b-2day said:
In the article you quote the words "Revision history" and "speculated improvements" should have signalled this is a fictional redesign. The F4F/FM-2 was never further upgraded to any large degree as the F8F was designed and manufactured to fill the "small carrier" niche that kept the FM-2 in production so long.

Greg Dobell is a good history writer, but at times does include an element of imagination.
Thanks for this clarification.When I first saw this forum, it got me questioning whether it would have distracted from what would become the F8F Bearcat! Granted there still appeared to have been a need for a smaller/lighter carrier-based fighter! RegardsPioneer


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
It would seem as if the title of this topic may actually not be correct...

Indeed, according to Jos Heyman, the first XF2M-1 was actually completed but never flown. If true (and I don't know where Heyman got that bit of information from) I would be quite curious to know whatever happened to it:

General Motors developed the XF2M-1 single seat fighter based on the FM and three aircraft were ordered in October 1942 with serials 82855/82857. They were, however, cancelled before the first aircraft, which was completed, was flown.

Specifications:
span: 37’6”, 11.43 m
length: 28'6", 8.69 m
engines: 1 Wright XR-1820-70W
max. speed: 320 mph, 515 km/h
Source: https://usmilitaryaircraft.files.wordpress.com/2015/04/navy-m.pdf

Data obtained from a 1/5 scale model of the XF2M-1 is also included in NACA Research Memorandum No. L6116 (May 16. 1947):
www.dtic.mil/dtic/tr/fulltext/u2/a801419.pdf

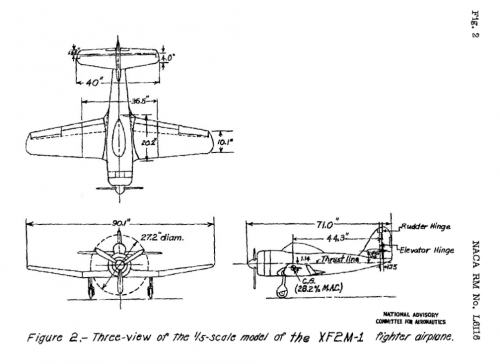

I'm attaching a profile view from Heyman's archives, as well as a coarse three-view based on a 1/5 scale model tested by NACA.


Attachments

  • XF2M-1 (original).png
    XF2M-1 (original).png
    115.5 KB · Views: 457
  • XF2M-1 scale model.png
    XF2M-1 scale model.png
    179 KB · Views: 471

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
What was the purpose? Dedicated escort carrier fighter?

3 view from https://zhuanlan.zhihu.com/p/27712106


Attachments

  • fm2.jpg
    73.5 KB · Views: 453

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,800
Reaction score
619
The original link to the Greg Goebel page on the Grumman Wildcat was broken, so here is an updated link.

http://www.airvectors.net/avwcat.html


RyanC

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
884
Reaction score
249
Website
www.alternatewars.com
sienar said:
What was the purpose? Dedicated escort carrier fighter?

Yes. It all comes down to deck weights, an issue for the early CVEs which could not really carry that much of a main battery.
