General Dynamics VEO (Vectored Engine Over Wing) designs

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
HI,

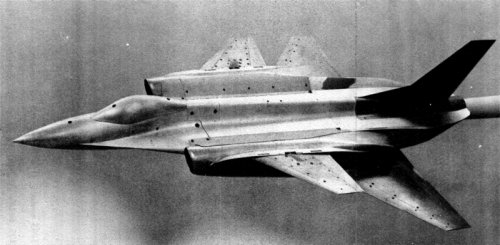

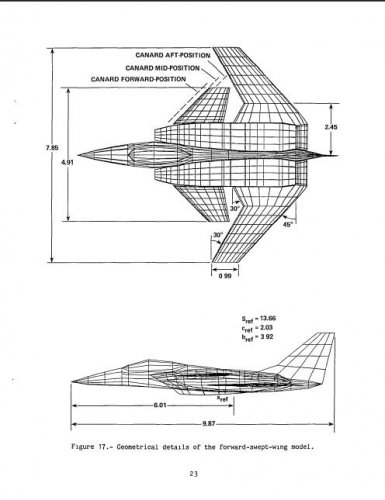

the General Dynamics V/STOL aircraft from 1980.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810014497_1981014497.pdf


Attachments

  • GD 1.JPG
    GD 1.JPG
    42.4 KB · Views: 808
  • GD 2.JPG
    GD 2.JPG
    43.1 KB · Views: 812
  • GD 3.JPG
    GD 3.JPG
    73.6 KB · Views: 739
  • GD 4.JPG
    GD 4.JPG
    64 KB · Views: 712
  • untitled.JPG
    24.6 KB · Views: 738

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
Experimental Aerodynamic Characteristics of Two V/STOL Fighter/Attack Aircraft Configurations at Mach Numbers From 1.6 to 2.0
Walter P. Nelms, Donald A. Durston, and J. R. Lummus
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810021545_1981021545.pdf

Experimental Aerodynamic Characteristics of Two V/STOL Fighter/Attack Aircraft Configurations at Mach Numbers From 0.4 to 1.4
Walter P. Nelrns, Donald A. Durston, Ames Research Center, Moffett Field, California
J. R. Lurnmus, General Dynamics, Fort Worth Division, Fort Worth, Texas
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810006466_1981006466.pdf

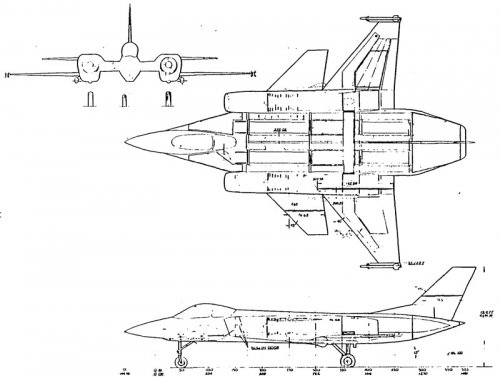

E205 and R104 were derivatives of General Dynamics' Vectored-Engine-Over-Wing (VEO-Wing) concept studied under a Navy V/STOL fighter research contract in 1978.

E205 used a jet diffuser ejector concept and R104 the GE RALS (remote augmentation lift system) for VSTOL capability. They were chosen to represent the spread of cold/hot augmentation methods.


Attachments

  • e205-vtol.jpg
    183.6 KB · Views: 175

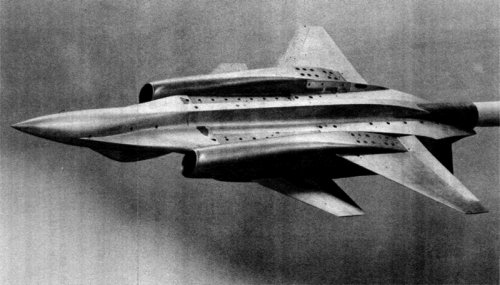

  • E205-model2.jpg
    124 KB · Views: 149
  • E205-model1.jpg
    107.2 KB · Views: 157
  • E205-model.jpg
    181.7 KB · Views: 153
  • E205-cruise.jpg
    81.1 KB · Views: 195

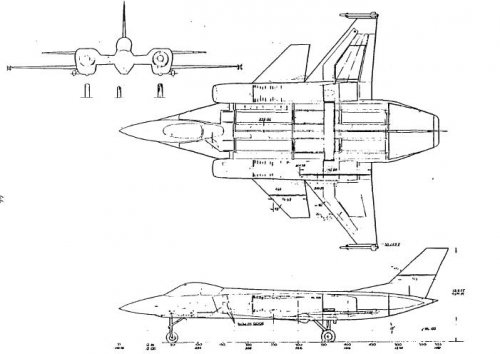

  • E205-3view.jpg
    83 KB · Views: 168

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829

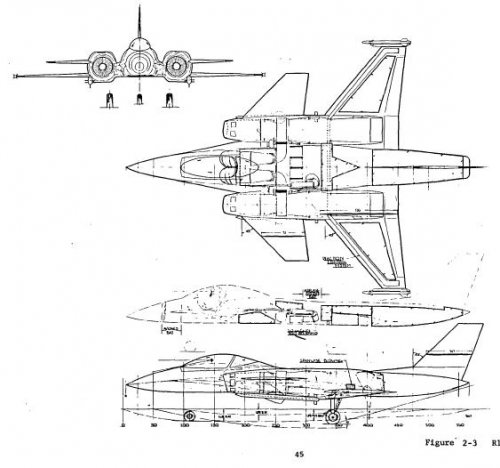

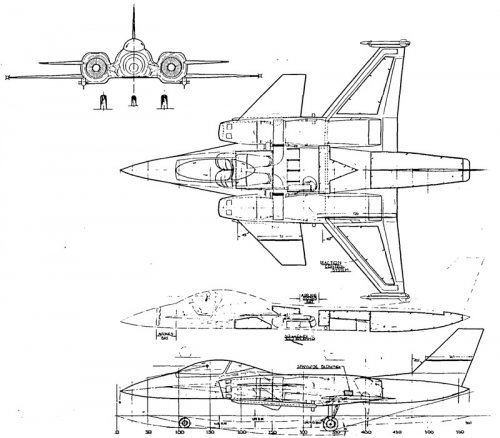

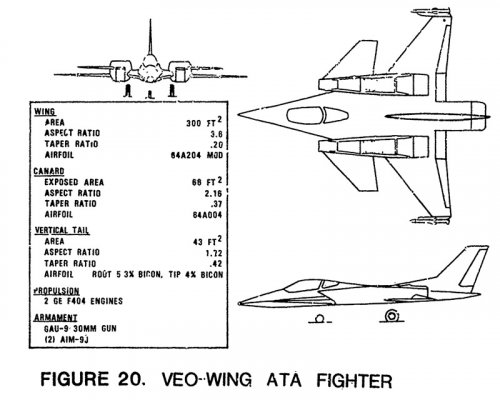

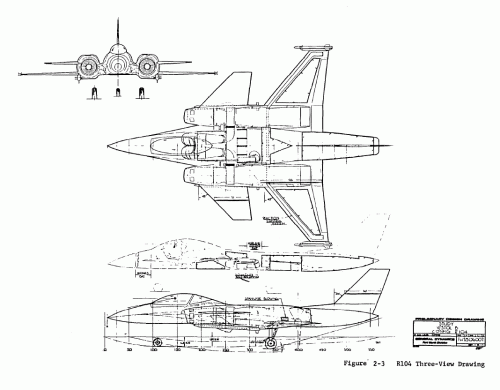

R104, plus a STOL VEO-Wing design.


Attachments

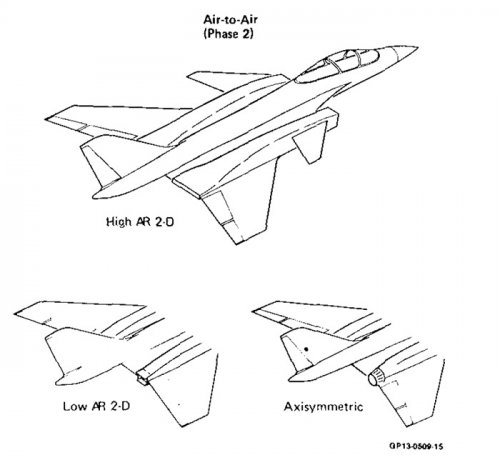

  • VEO-STOL-Fighter1.jpg
    61.8 KB · Views: 186
  • VEO-STOL-Fighter.jpg
    92.4 KB · Views: 186

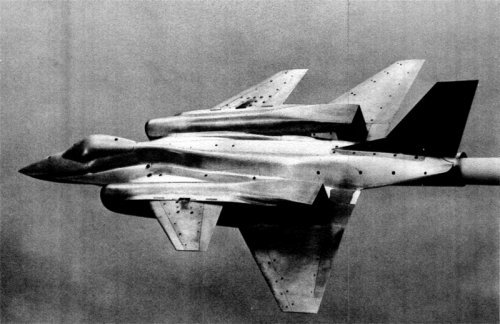

  • R104-model2.jpg
    132.8 KB · Views: 115
  • R104-model1.jpg
    138.3 KB · Views: 134
  • R104-Cruise.jpg
    104.5 KB · Views: 198

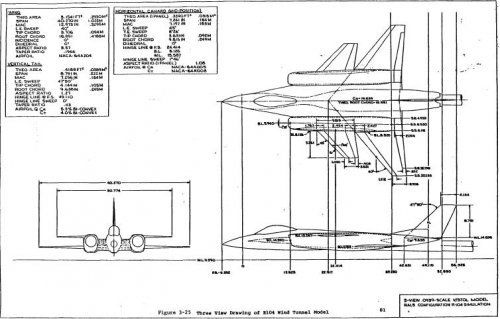

  • R104-3view.jpg
    113.1 KB · Views: 203

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829

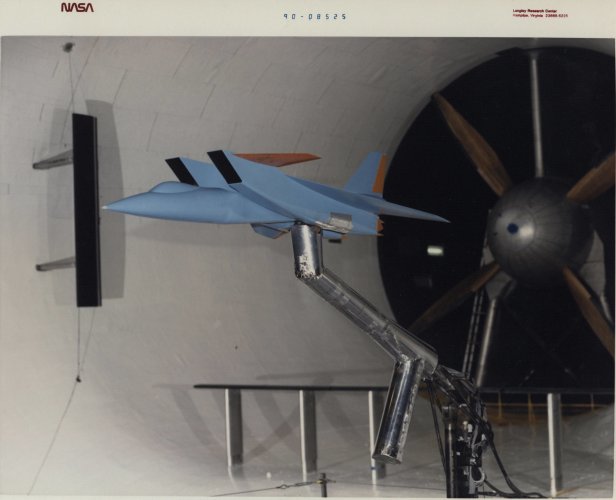

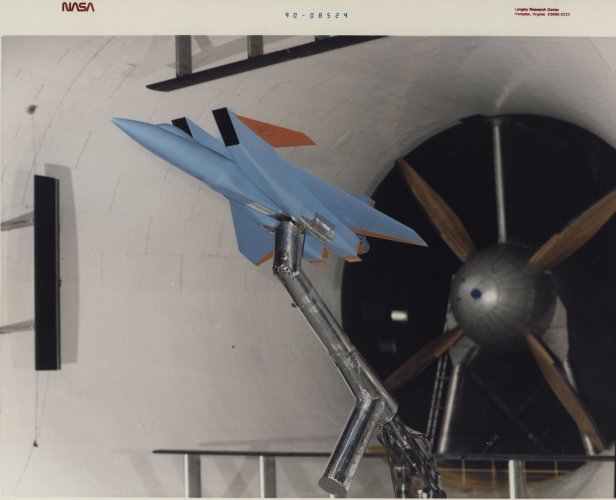

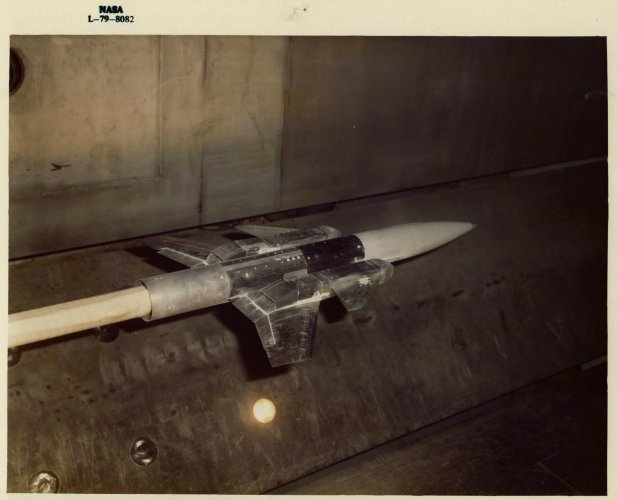

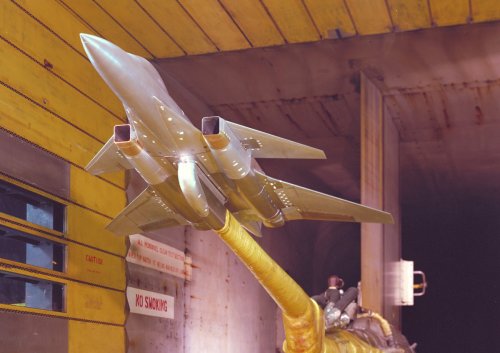

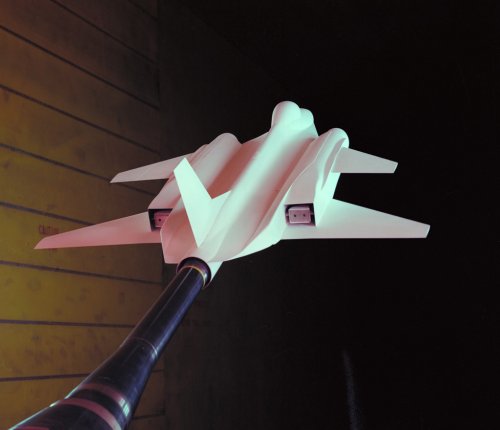

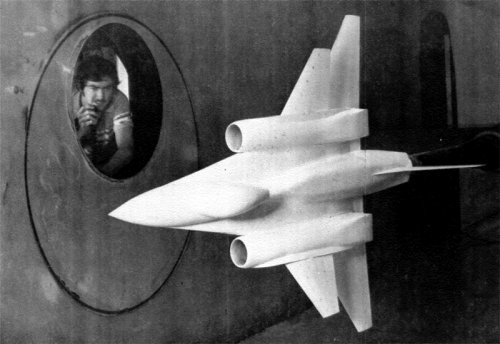

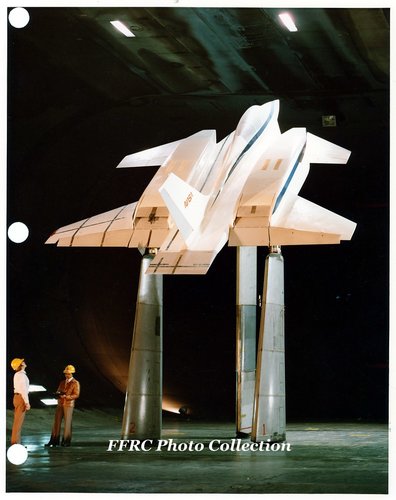

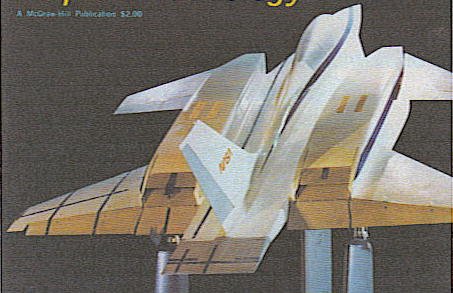

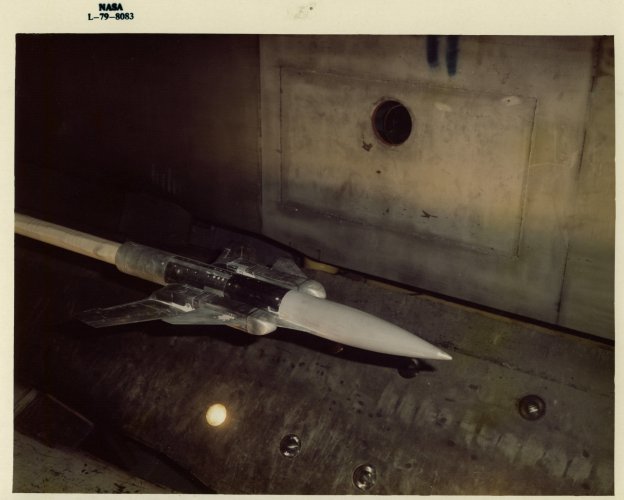

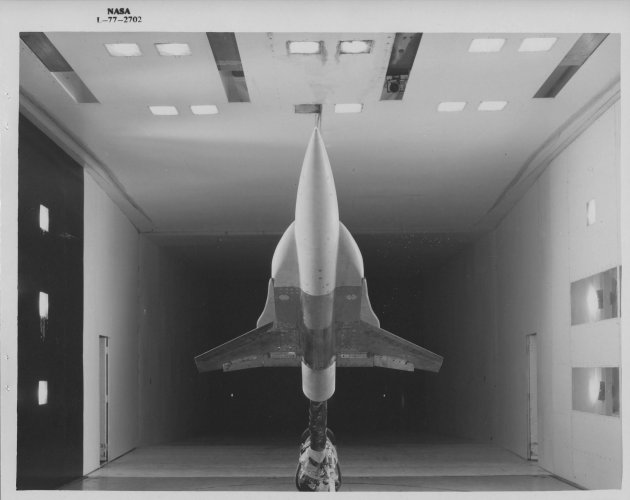

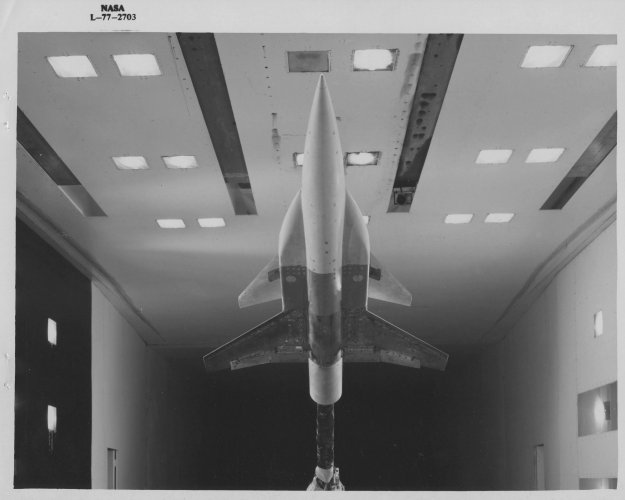

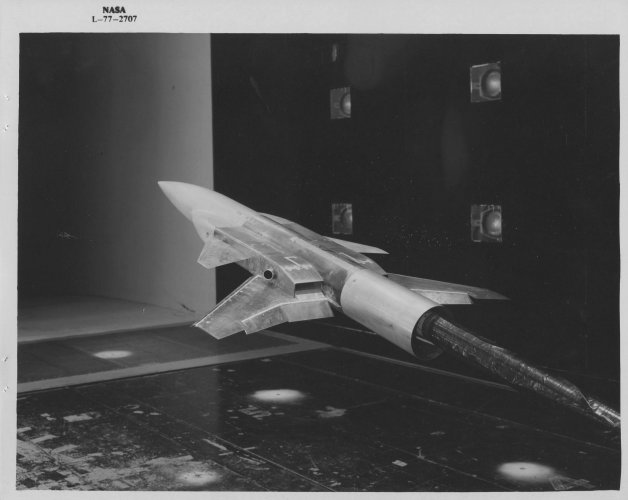

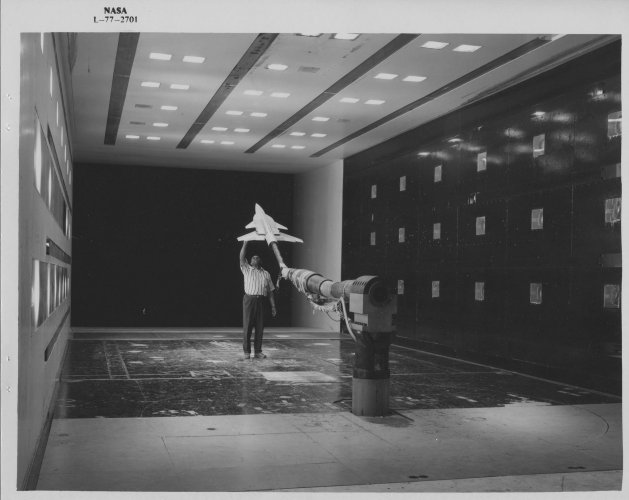

Nice images courtesy of NASA Ames Imaging Library System (http://ails.arc.nasa.gov)


Attachments

  • AC83-0380-4sm.jpg
    142 KB · Views: 136
  • AC83-0380-3sm.jpg
    242.4 KB · Views: 142
  • AC79-0836-1sm.jpg
    119.6 KB · Views: 134

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979

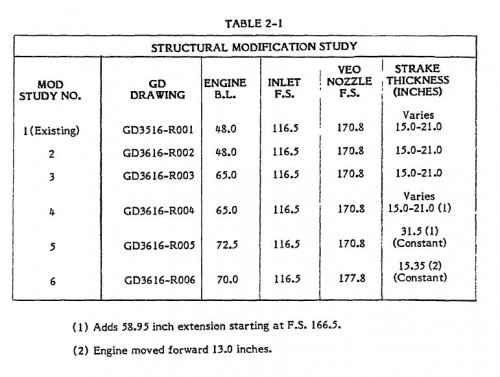

My dear Overscan,

and from NASA;

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800024889_1980024889.pdf


Attachments

  • R104.JPG
    27.2 KB · Views: 103

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19890000646_1989000646.pdf


Attachments

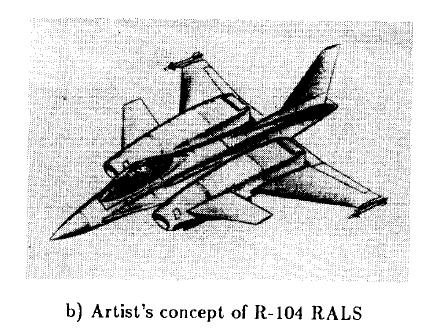

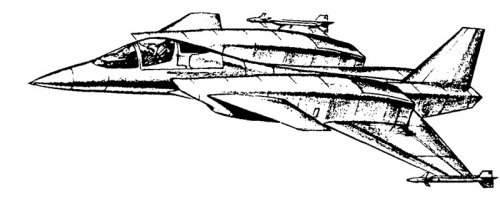

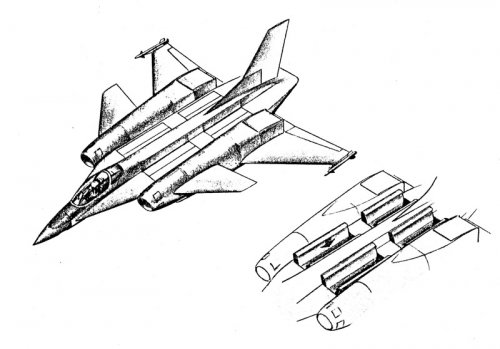

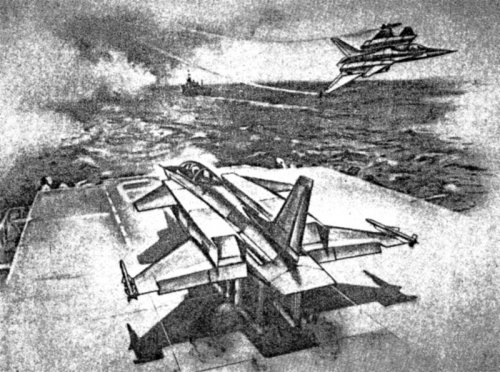

  • R-104 artist drawing.JPG
    R-104 artist drawing.JPG
    46.1 KB · Views: 797

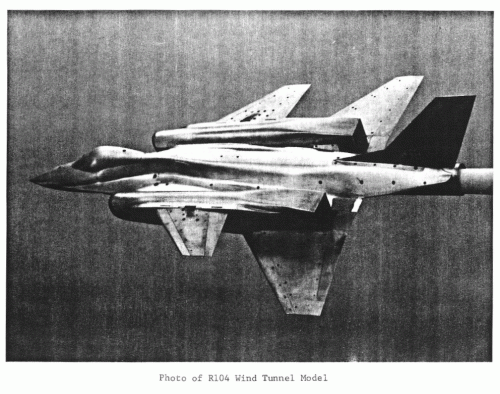

  • R-104 Model.JPG
    R-104 Model.JPG
    18.1 KB · Views: 695

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829

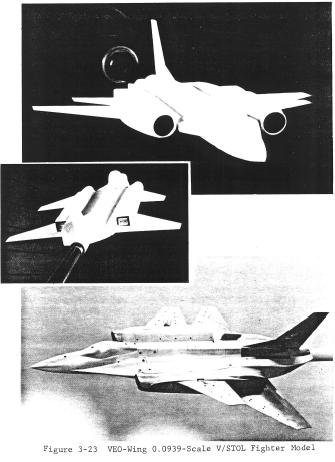

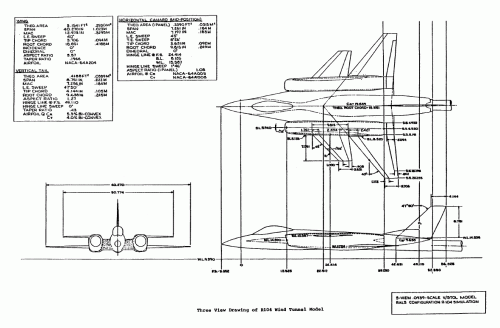

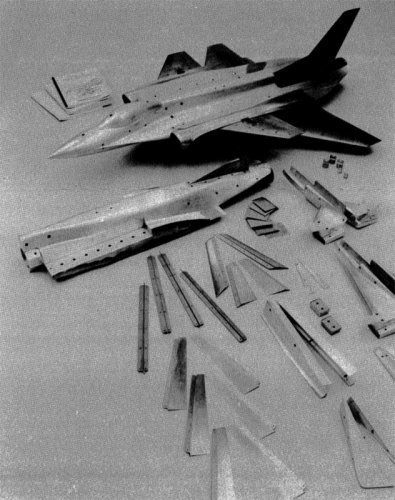

Analysis of wind tunnel test results for a 9.39-per cent scale model of a VSTOL fighter/attack aircraft. Volume 1: Study overview
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810014497_1981014497.pdf

Analysis of wind tunnel test results for a 9.39-per cent scale model of a VSTOL fighter/attack aircraft. Volume 3: Effects of configuration variations from baseline
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810014499_1981014499.pdf

Analysis of wind tunnel test results for a 9.39-per cent scale model of a VSTOL fighter/attack aircraft. Volume 4: RALS R104 aerodynamic characteristics and comparisons with E205 configuration aerodynamic characteristics
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810014500_1981014500.pdf


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
index.php


Cross-posted from http://www.secretprojects.co.uk/forum/index.php/topic,1763.msg99157.html#msg99157


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665

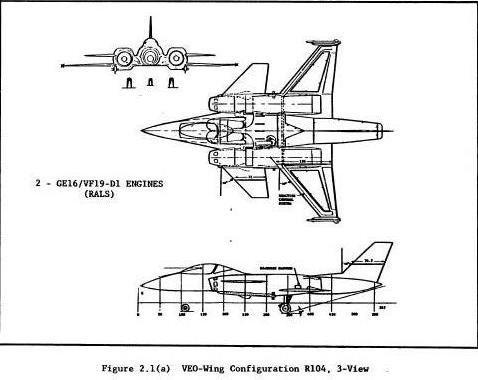

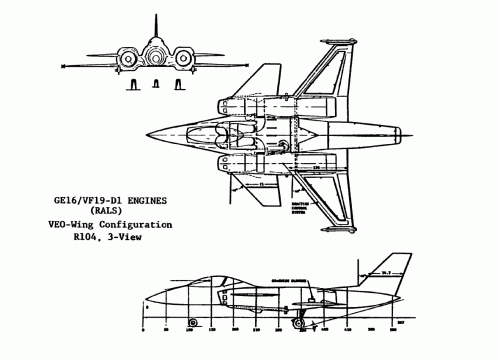

The R-104 was one of two General Dynamics variants of the same basic design, submitted for the U.S. Navy's "Type B" VSTOL design competition. The R-104 used the "RALS" propulsion system while the E-205 used the "ejector" system.

Sources:

- STUDY FOR CONCEPTUAL DESIGN OF VEO-VTOL EXHAUST NOZZLE
- THE CONCEPTUAL DESIGN OF A VEO-VTOL EXHAUST NOZZLE — FINAL REPORT
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800024889_1980024889.pdf

- ANALYSIS OF WIND TUNNEL TEST RESULTS FOR A 9.39-PER CENT SCALE MODEL OF A VSTOL FIGHTER/ATTACK AIRCRAFT — VOLUME I
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810014497_1981014497.pdf


Attachments

  • R-104 model.gif
    R-104 model.gif
    690.3 KB · Views: 101

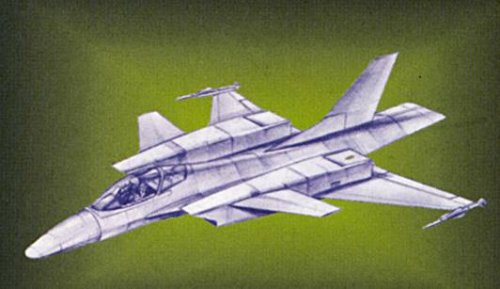

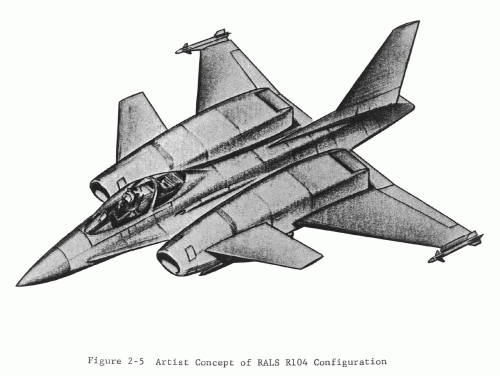

  • R-104 artist.gif
    R-104 artist.gif
    435.2 KB · Views: 130
  • R-104 3-view 2.gif
    R-104 3-view 2.gif
    43.7 KB · Views: 718
  • R-104 lousy.gif
    R-104 lousy.gif
    60.8 KB · Views: 697

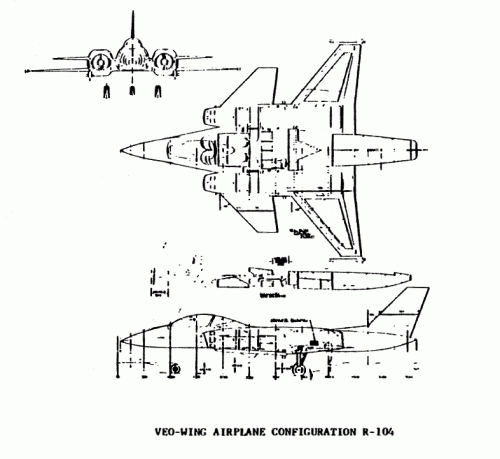

  • R-104 3-view.gif
    R-104 3-view.gif
    34.5 KB · Views: 738
  • R-104 model 3-view.gif
    R-104 model 3-view.gif
    57 KB · Views: 132

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
665
More on RALS:

The RALS concept has been proposed by General Electric as a means to supply a controllable forward lift vector in a V/STOL aircraft. The concept has been evaluated under contracts from the Naval Air Propulsion Center. These studies showed that, compared to propulsion systems using dedicated lift engines, the RALS ystem can provide about the same size (TOGW) supersonic fighter aircraft to complete the specified deck launched intercept mission. However, since all of the installed turbo-machinery is available to provide forward thrust, the RALS-powered aircraft far exceeds other concepts in terms of supersonic acceleration and combat specific energy, Ps. It also results in a much lower lifecycle cost because only one type of engine must be developed, procured, and maintained.

While these are important advantages, the RALS system does have disadvantages in that the remote augmentor is located near the pilot's compartment and electronics bay, requiring a means of local cooling, and it results in a relatively high exhaust gas temperature with potential deck heating problems. In theory, the use of an ejector nozzle in the remote system could pump sufficient ambient air to cool the surrounding aircraft bay and to mix the exhaust stream to a lower average footprint temperature. In addition, some degree of lift enhancement might be possible. In practice, the geometric constraint placed on the ejector for stowage and for low drag in the supersonic flight mode would make the use of a highly complex and highly efficient ejector quite difficult. However, if sufficient ejector action could be provided to increase the lift vector enough to offset the weight increase, the cooling advantages could still make the concept worthwhile.

Source: CONCEPTUAL DESIGN, EVALUATION AND RESEARCH IDENTIFICATION FOR REMOTE AUGMENTED PROPULSIVE LlFT SYSTEMS (RALS) WITH EJECTORS FOR VTOL AIRCRAFT
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19830004833_1983004833.pdf


Nik

ACCESS: Secret
Joined
Jul 15, 2009
Messages
474
Reaction score
119
Makes you wonder if the P1127 / Harrier might have gone this route if the French ducted thrust patent had not worked out so well...


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996

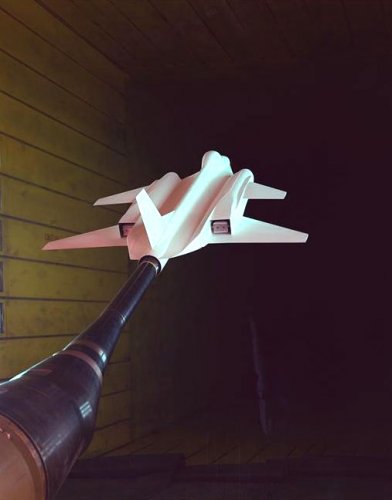

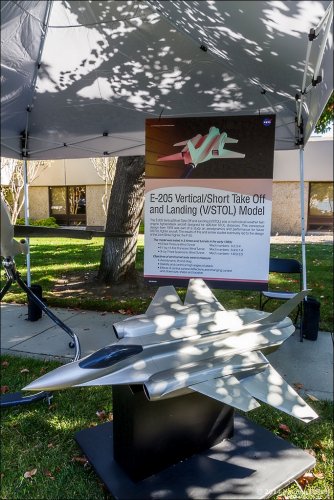

E-205 V/STOL wind-tunnel model, shown at the NASA's Ames Research Center 75th Anniversary Open House on October 18th, 2014.


Source (found via Overscan ;) ) : https://www.flickr.com/photos/gin_tonic/15478747750/in/set-72157649030746602


Attachments

  • E-205_VSTOL_windtunnel_model_NASA_Ames_Research_Center_18102014_683x1024.jpg
    285 KB · Views: 354

ScrutorAudax

ACCESS: Restricted
Joined
Jun 5, 2015
Messages
48
Reaction score
11

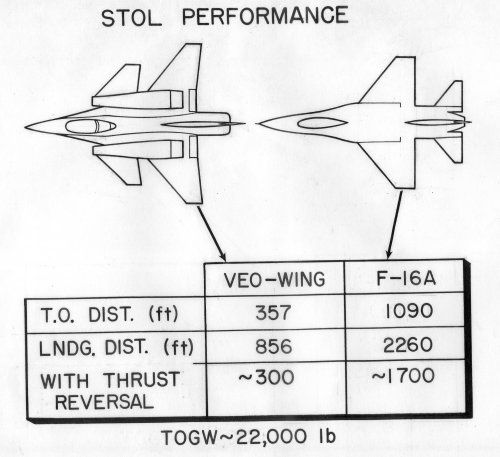

I found this at https://crgis.ndc.nasa.gov/historic/1146_Posters_and_Displays.


Attachments

  • VEO_Wing_Comparison_with_F-16_Test_309_1975.jpg
    977.1 KB · Views: 220

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,900
Reaction score
2,169
fightingirish said:
E-205 V/STOL wind-tunnel model, shown at the NASA's Ames Research Center 75th Anniversary Open House on October 18th, 2014.


Source (found via Overscan ;) ) : https://www.flickr.com/photos/gin_tonic/15478747750/in/set-72157649030746602

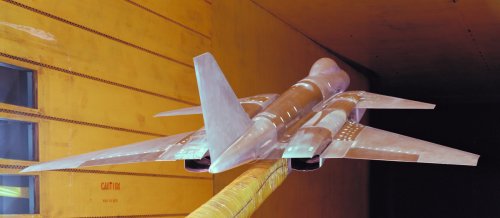

I would swear that shot of the model in the wind tunnel has been posted in another thread somewhere. I'm fairly certain I have it at home.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
ScrutorAudax said:
I found this at https://crgis.ndc.nasa.gov/historic/1146_Posters_and_Displays.

Nice find Scrutor.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,900
Reaction score
2,169
Some others that may or may not be related:

edit: Maybe these threads should be combined?

https://www.secretprojects.co.uk/forum/index.php/topic,6872.msg761.html#msg761


Attachments

  • General Dynamics model 324 - 01.jpg
    General Dynamics model 324 - 01.jpg
    34.5 KB · Views: 184
  • Short Snort.jpg
    Short Snort.jpg
    33.6 KB · Views: 185
  • short-snort.jpg
    22.1 KB · Views: 181

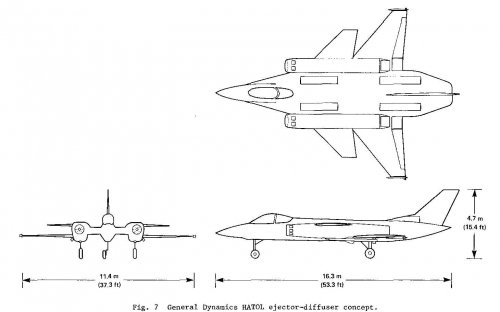

  • GD 1978 HATOL.jpg
    GD 1978 HATOL.jpg
    59.2 KB · Views: 90
  • ATS-2.jpg
    60.7 KB · Views: 100
