I just know the name of the 'thing' - it must be a small helicopter project called

Gaucher "Remicopter"

It was mentioned in Besser's Technik und Geschichte der Hubschrauber vol 1, but that's all I found. Where are the helicopter specialists ???


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,344
Reaction score
5,980
My dear boxkite,

are you sure it was a helicopter?!,I only find the Gaucher
two seat twin boom aircraft,and I don't know Gaucher
design a helicopter or not.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,344
Reaction score
5,980

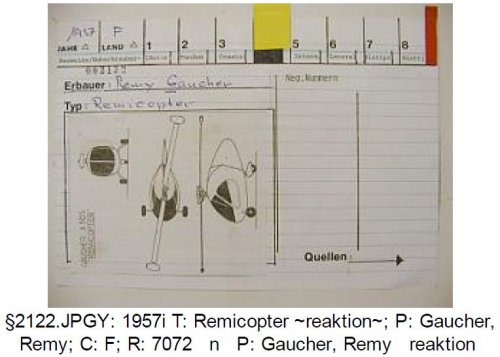

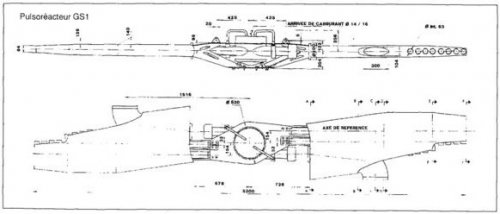

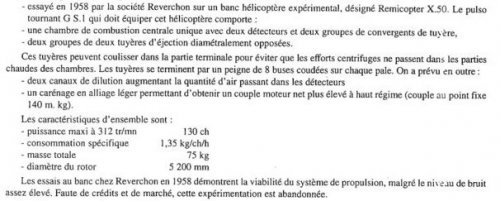

Yes my dear boxkite,

see this,


Attachments

  • gs1_171.jpg
    25.2 KB · Views: 853
  • gs1_french_196.jpg
    43.9 KB · Views: 690

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,340
Reaction score
1,497
Better late, than never ! What are just a little bit more, than five years ...

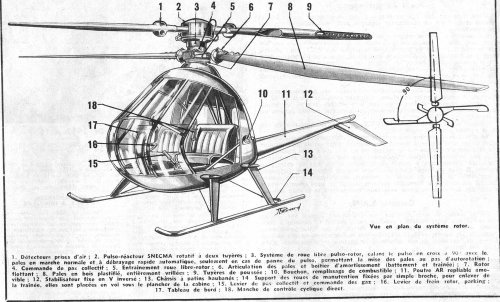

Found in Aero France, June 1958, a description and a drawing of the Rémicopter.
As far as I understand, the upper rotor was powered by the SNECMA pulsejets,
the lower one was there to control the aircraft.
And yes, the designer was R.Gaucher and the aircraft was built by the Société Reverchon.


Attachments

  • Gaucher_Rémicopter_01.jpg
    86.6 KB · Views: 508

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,340
Reaction score
1,497

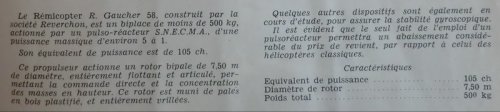

Perhaps someone of our French members can tell us, if the text gives explanations,
I have overlooked still yet ?


Attachments

  • Rémicopter_text_AeroFrance_06-58.jpg
    65.7 KB · Views: 423

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Jemiba said:
Perhaps someone of our French members can tell us, if the text gives explanations,
I have overlooked still yet ?


For me , it's OK ..

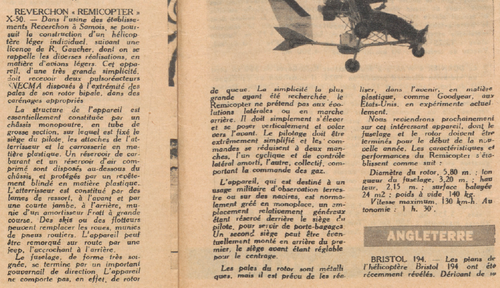

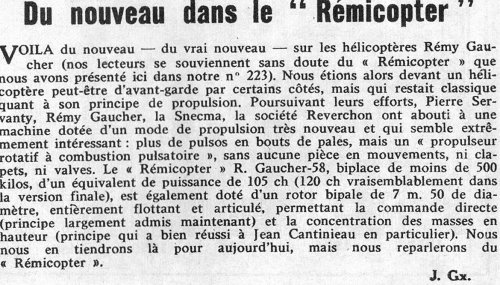

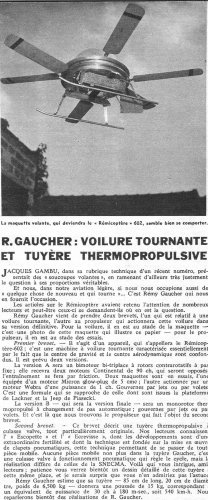

Here something more , from "Aviation Magazine" 1958 and 1959 :


Attachments

  • 4.jpg
    904.4 KB · Views: 78
  • 3.jpg
    225.9 KB · Views: 51
  • 2.jpg
    691.6 KB · Views: 65
  • 1.jpg
    593.9 KB · Views: 382

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
678
Reaction score
218
Unaware of that rare helicopter project


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,344
Reaction score
5,980

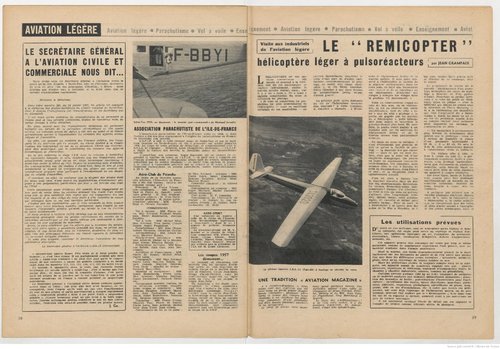

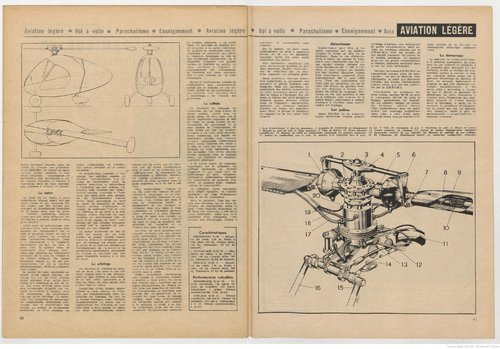

From Aviation magazine 1956,m

it seemed to be this helicopter had two variants ?.


Attachments

  • 1.png
    661.8 KB · Views: 15
  • Aviation_magazine___président-directeur_général_[...]_bpt6k5323416f_32.jpeg
    2 MB · Views: 15
  • Aviation_magazine___président-directeur_général_[...]_bpt6k5323416f_33.jpeg
    1.8 MB · Views: 12

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,851
Reaction score
1,484
Yes, there were to be two stages to Rémicopter development ... but three different layouts.

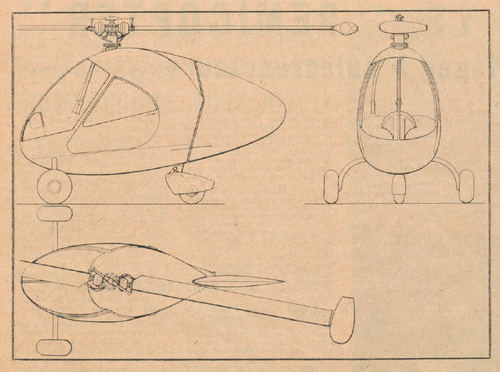

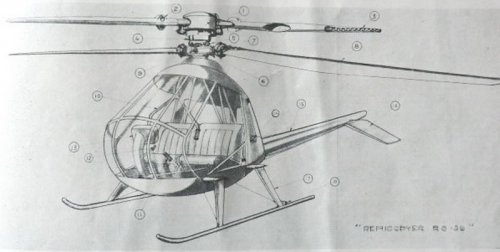

The first was to be the Rémicopter X.50 (for 'experimental'?) powered by a Continental C-90 piston engine driving 7.50 m diameter, contra-rotating rotors. The X.50 had a pod-and-boom arrangement with tail surfaces but no tail rotor. Drawings show the X.50 to be a side-by-side two-seater.

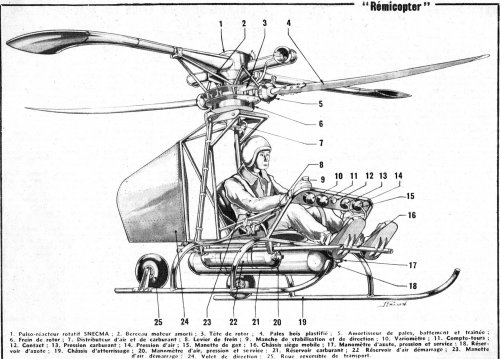

Another was described in your article as the proposed single-seat prototype with a pulsoréacteur built into the rotor hub - as illustrated above by richard. With its simple, open framework this tailless aircraft was to have contra-rotating rotors like the twin-seat X.50. But it also featured simplified jet opening. Was this single-seater also to be designated X.50? I don't know.

The proposed production-type was the Rémicopter 602 which you have illustrated in that 3-view drawing. Obviously, the Rémicopter 602 was another tailless type but now single-rotored. Like the proposed prototype, this single-rotor type was to be powered by a SNECMA pulsoréacteur - in this case, either the Escopette 3340 or Écrevisse AP503 (aka AS-11) pulse jet.
