Contests for civil aircraft in the field of the general aviation are quite rare. But
during the late fifties, the french "Ministère des Transports" started a contest
for an affordable light 2-seat aircraft with docile handling, intended for the aero-
clubs. At least 9 types were tendered, I'll start with those, which are known
to me:

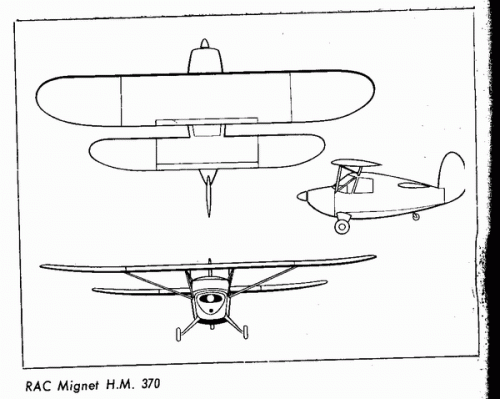

- the RAC Mignet HM370
(from FlugWelt-60-I)

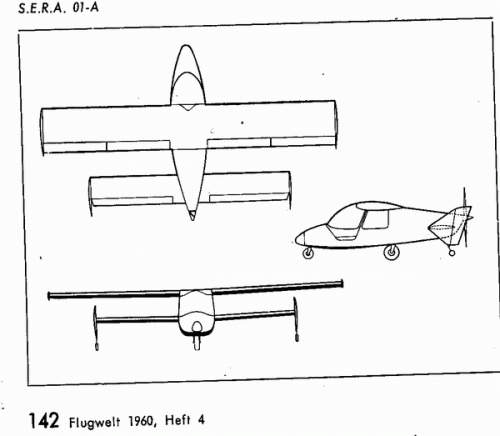

- the SERA 01A
(from FlugWelt-60-I)

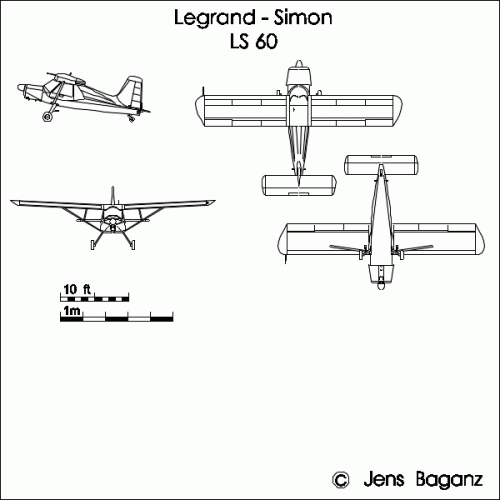

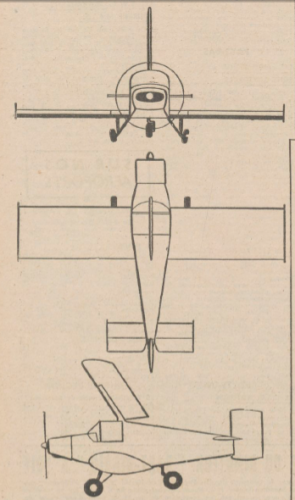

- the Legrand-Simon

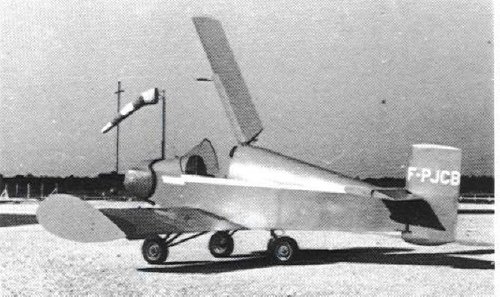

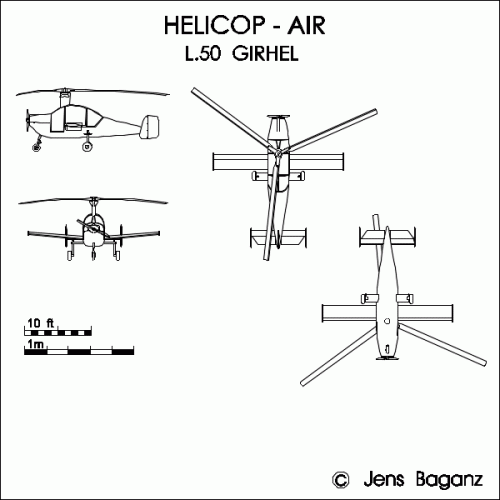

- the Helicop-Air L.50 Girhel, as an autogiro really an outsider,...


Attachments

  • Mignet370.gif
    43.3 KB · Views: 393
  • SERA-01A.gif
    36.5 KB · Views: 381
  • LS-60.GIF
    16.4 KB · Views: 361
  • Girhel.GIF
    17.8 KB · Views: 433

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

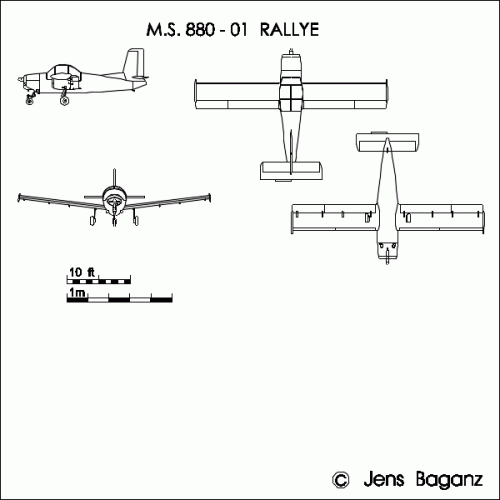

... and the type, which was eventually declared the winner, not surpringly
a very conventional, although in the event very succesful design, the Morane-
Saulnier MS.880 Rallye, hte prototype still quite different from the later
series aircraft.

Other entrants were :

- the Gatard Statoplan Hirondelle

- the Labat Nomade

- the Le Gris LG21

- and the Lemaire ARL20

Anyone with any visual information (drawings, photos of models) to these designs ?


Attachments

  • MS-880.GIF
    11.3 KB · Views: 345

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
45
hello !
As told at the " bar "I can't send any pic (even tiny 3 views ! ) to the site,but my mail runs pretty well .
I just mailed the 9 contenders to you .
The Source is " Aviation Magazine No 267 (15 janvier 1959 )
have a good day
Richard


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Jemiba, now it's your turn to post the new images :D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Of course, here are three of hte missing entrants :

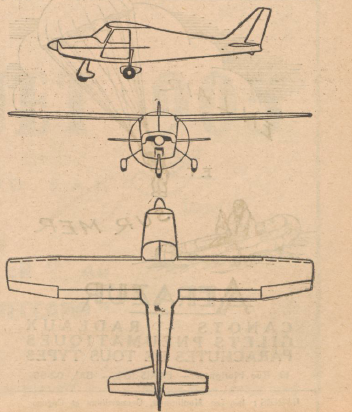

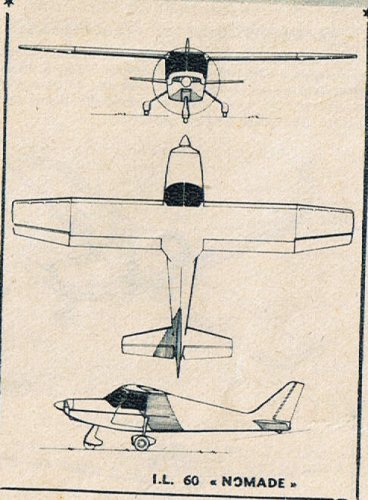

- the Labat I.L-60 Nomade

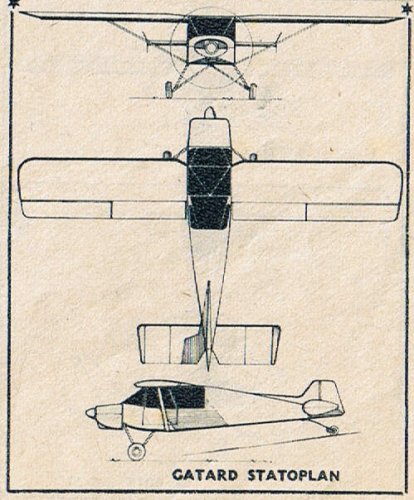

- the Gatard Statoplan

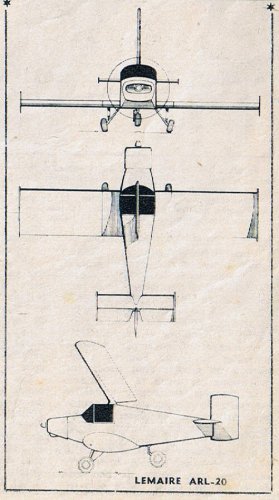

and the Lemaire ARL-20, fitted with a so-called "lateron" for directional
control

(Thanks very much Richard, Richard, sent you a mail, maybe three mails got lost.)


Attachments

  • Lemaire_ARL-20.JPG
    72 KB · Views: 113
  • Gartard_Statoplan.JPG
    57.9 KB · Views: 118
  • IL-60_Nomade.JPG
    56.7 KB · Views: 94

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

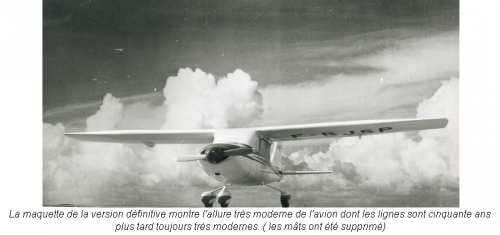

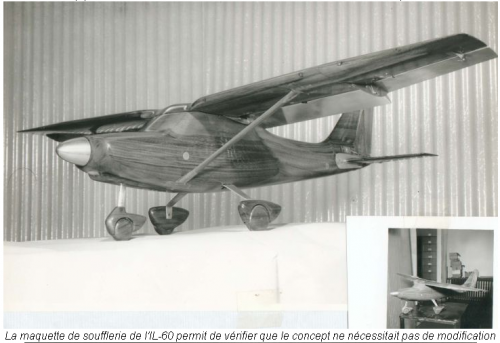

The Labat IL-60 Nomade.

http://richard.ferriere.free.fr/monograph/ls-60.htm


Attachments

  • 1.png
    442.5 KB · Views: 48
  • 2.png
    193.9 KB · Views: 51

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

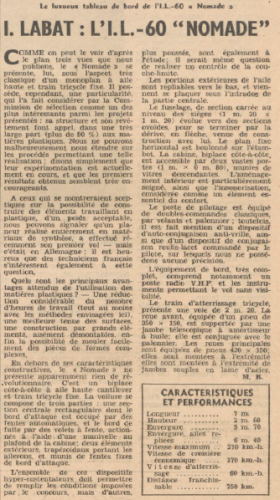

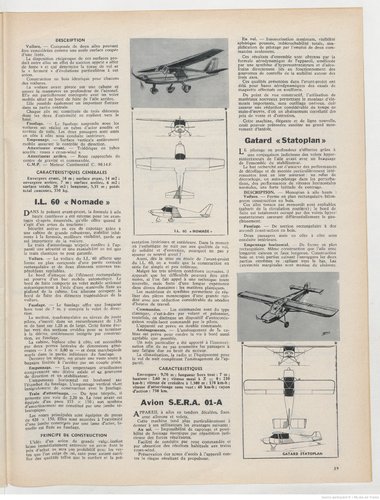

From Ailes 27/12/1958,

the Labat IL-60 Nomade.


Attachments

  • 1.png
    224.1 KB · Views: 26
  • 2.png
    430 KB · Views: 29

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
My dear Jemiba,From Aviation magazine 1958,

I think this SRCM-180 Milouin Project was submitted to this contest,am I right ?.

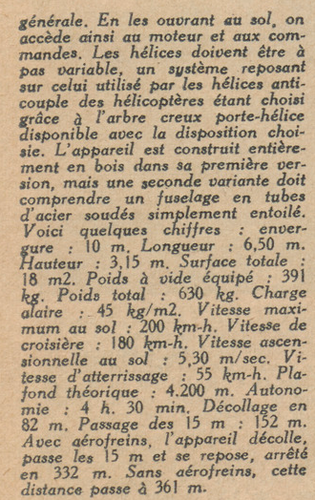

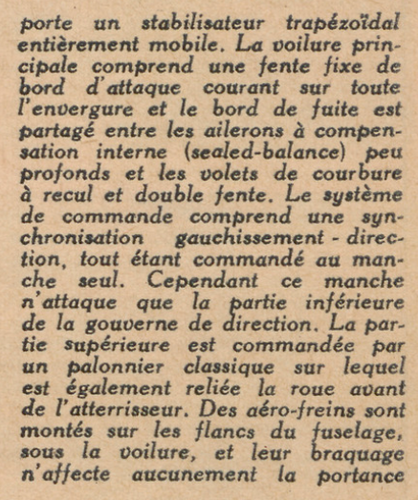

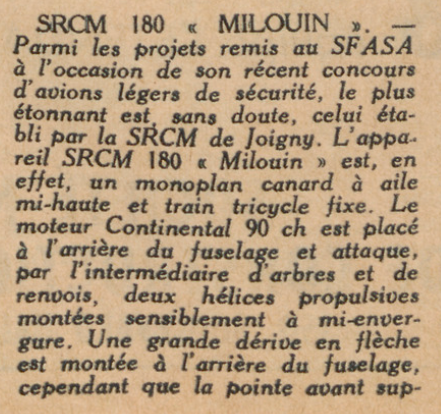

SRCM 180 "MILOUIN". -
Among the projects submitted to SFASA on the occasion of his recent competition light security aircraft,
the most Surprising is, no doubt, that established by the SRCM of Joigny. The SRCM 180 “Milouin” device
is effect, a wing duck monoplane mid-high and fixed tricycle train. The Continental 90 hp engine is placed
at the back of the fusel and attack,through trees and referrals, two propellers mounted substantially at mid-
span. A big skyrocketing is mounted at the rear of the fuselage, however that the front point supports a
trapezoidal stabilizer fully mobile. The main wing cipal includes a fixed slot of leading edge running all
over the span and the trailing edge is shared between internally compensated fins (sealed-balance)
deep and bend flaps recoil and double slit. The system control includes a warping - steering synchronization,
all being controlled by the handle only. However this sleeve only attacks the lower part of the rudder.
The upper part is controlled by a classic lifter on which is also connected the front wheel of the lander.
Air brakes are mounted on the sides of the fuselage, under the wing, and the steering does not affect lift
general. By opening them on the ground, we thus accesses the engine and controls. The propellers must be
not variable, a restful system on that used by the anti propellers couple of helicopters being chosen
thanks to the hollow propeller shaft available with the chosen layout. The device is built entirely of wood
in its first version, but a second variant must understand a tube fuselage welded steel fabric only covered.
Here are some figures: Envfu ": 10 m, Length: 6.50 m.

author: 3.15 m. Total surface :
18 m2. Empty weight equipped: 391
kg. Total weight: 630% e, Charge
wing: .45 kg / m2. Maximum ground speed: 200 km / h. Speed of
cruise: 180 km / h. Ascending speed
sional on the ground: 5.30 m / sec. Landing speed: 55 km / h. Theoretical ceiling: 4.200 m. Autonomy: 4 h. 30 min. Takeoff in
82 m. Passage of the 15 m: 152 m.
With gerobrakes, the device takes off,
passes the 15 m and rests, stopped
in 332 m. Without airbrakes, this
distance increased to 361 m.


Attachments

  • 180-1.png
    411 KB · Views: 14
  • 180-2.png
    511.9 KB · Views: 12
  • 180-3.png
    373.1 KB · Views: 23

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
110
Unfortunately the ARL-20 (and the others) were not built.

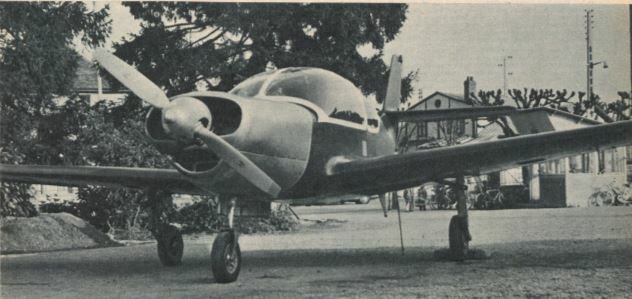

This is the single-seat ARL-11 Baby Squale which was completed/flown in 1959 to test the ARL-20 configuration.


Attachments

  • Lemaire ARL-11 Baby Squale.jpg
    Lemaire ARL-11 Baby Squale.jpg
    85.6 KB · Views: 33

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

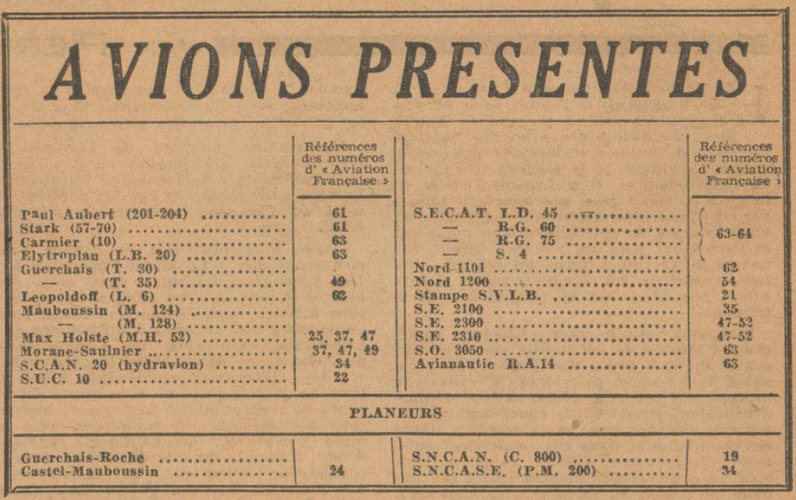

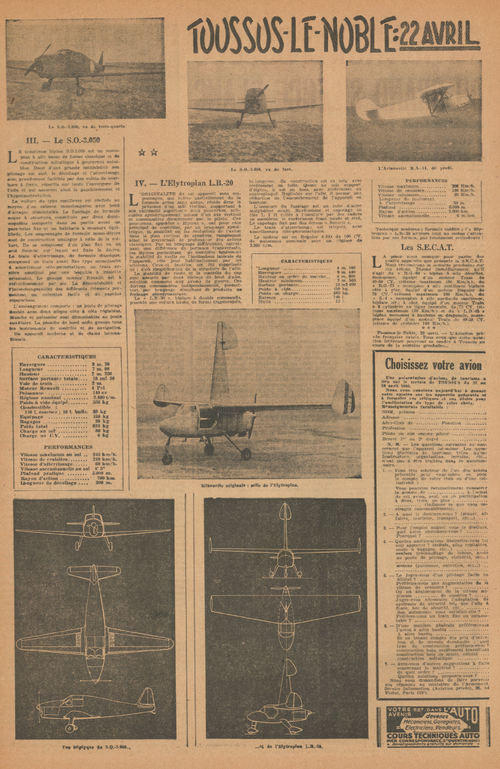

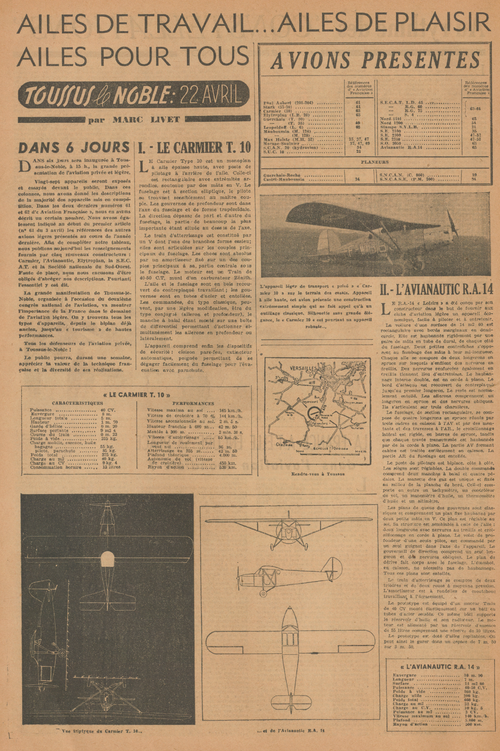

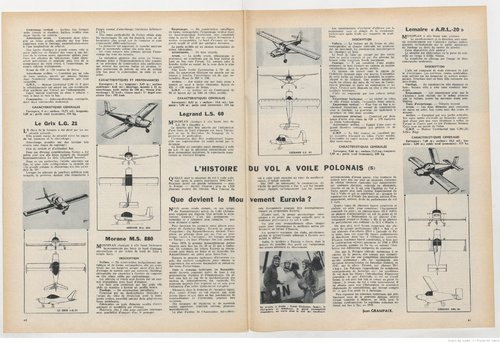

From Aviation magazine 1959.
