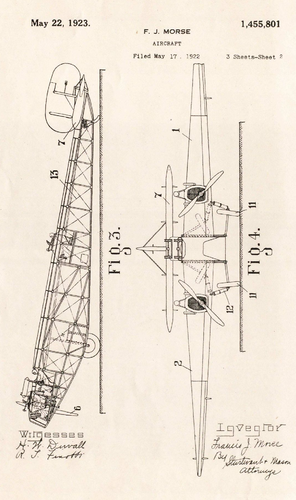

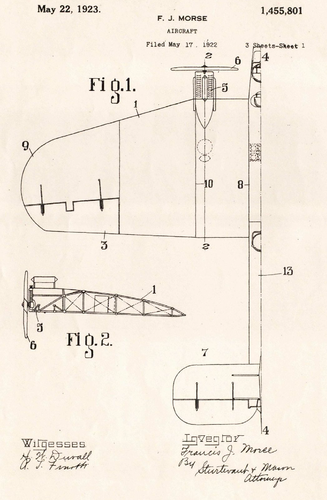

Francis J. Morse Bomber of 1923, from UK

[hesham]

Hi,

who was that designer,and if he worked for known company or not ?.

Slideshow | NASM.1993.0055_ref643



[Schneiderman]

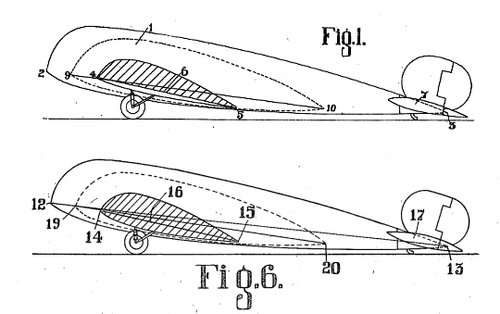

Fig 6 is virtually identical to Fig 1 in a UK patent taken out by The International All-Steel Aircraft Syndicate Ltd and Harold Bolas in 1921. Bolas was working in association with George Parnall and the Syndicate on designs derived from ideas patented by Nicholas Woyevodsky, and their combined work eventually ended up with Westland who constructed the Dreadnaught. However... at the moment I can find no reference to Francis Morse working with any of these and there does not appear to be a UK version of this patent.



[hesham]

Many thanks to you my dear Schneiderman,

and it's very close to Dreadnaught as you mentioned,and I think I saw anther patent for him ?.
