Fokker Partner twin boom aircraft

[hesham]

Hi,

I don't know this aircraft project,until I find it in Flightglobal,I can't
imagine if this aircraft actually built or not.

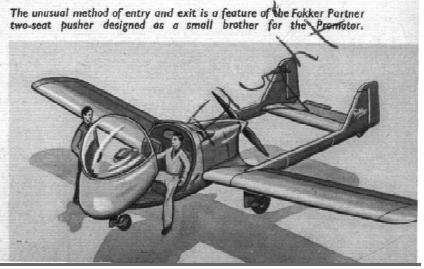

http://www.flightglobal.com/pdfarchive/view/1948/1948%20-%201805.html



[walter]

Dear hesham

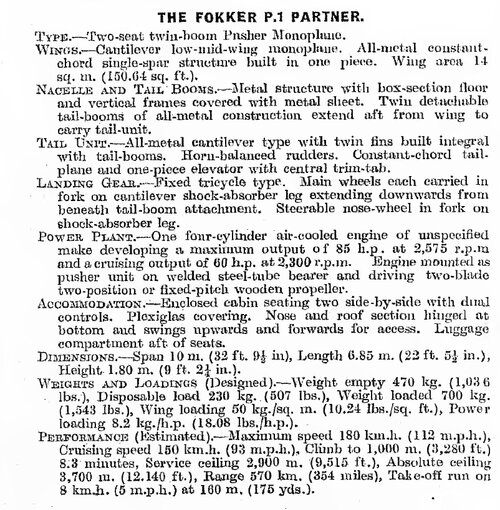

Quite a find the Fokker Partner. Unfortunately the Partner (Fokker designation P-1) never left the drawing table. It was planned to use an approximately 85hp engine (make not specified) and some brief details:
wingspan 10,00, length 6,85, height 1,80 meter. Estimated max. speed 185 km/h, cruise 150 km/h, range
570km, ceiling max. 3,700 meter.
There are reports that a full scale mock-up might have been was built.
Regards Walter



[hesham]

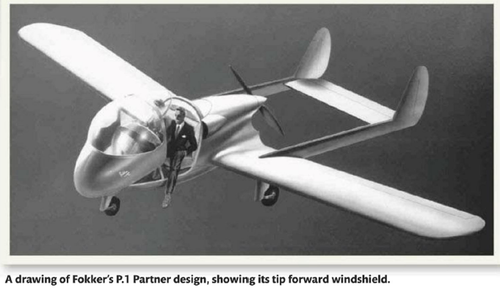

From Aeroplane monthly 2013/3,

a clearer view.
