Hi,

we have an idea about postwar Fokker airliner aircraft and projects,
such as F-26 was low wing aircraft,P.275 high wing 32-seat airliner
which was later given the designation F-27,P.335 was a new design
from F-27, the F-28 was jet airliner and F-29 was developed from
F-27; did you hear about F-290 and F-410 before ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121

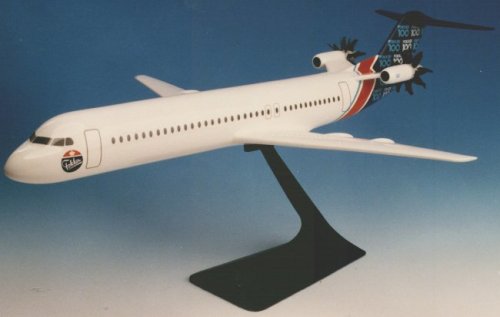

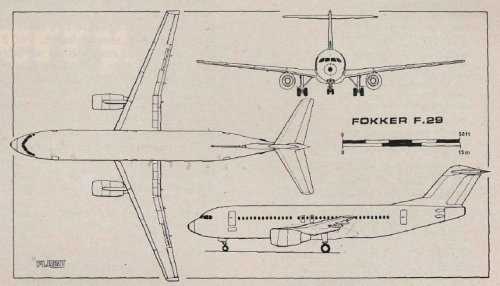

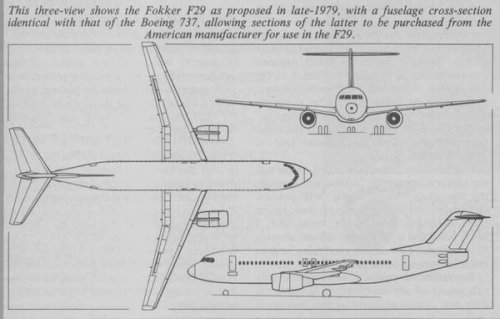

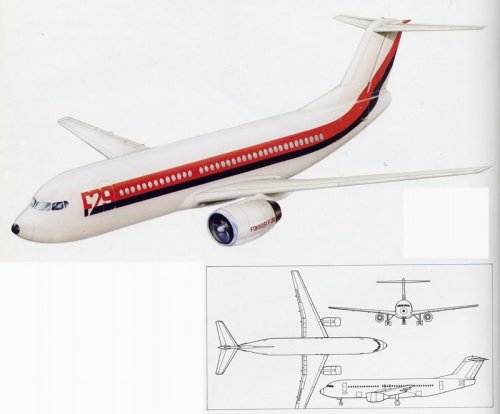

I just found the F-29 and the Super F-28 in
AIR INTERNATIONAL .2.80 and Aviation Week 1978 10-18


Attachments

  • Fokker-F29.JPG
    31.5 KB · Views: 927
  • Fokker_Super_F28.JPG
    40.7 KB · Views: 822

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
Hi all,

found this Fokker project in an old FliegerRevue. Please name it and give some technical data.


Servus Maveric


Attachments

  • 004 fokker .tif
    1.3 MB · Views: 930

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
69
Website
theavgeeks.com
A jet-powered F-27? Seems there were quite a few jet conversions of turboprop aircraft under study but few seem to have taken to the air (Beech PD290 and the Dornier 328JET being the only ones I can think of right off the top of my head at the moment........). I'd love to know more about this design.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
81
The jet powered Friendship was an early seventies study for a twin turbofan Commuter.
Powered by two Avco Lycoming ALF 502 turbofans.

Designation : P.305 Commuter.

Resemblance to the VFW 614 stopped further deveopment..

Source : Air Pictorial - August 1996.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
151
Another attempt to repeal the laws of physics. Jets on a 255 kt wing? It must have been designed here:


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
81
Where every dream comes true...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

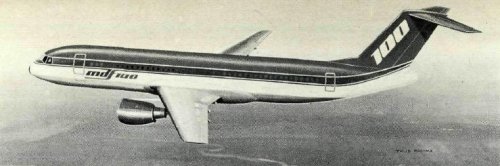

A further development of the Fokker F-29 was the McDonnell-
Douglas MDF-100.


Attachments

  • MDF-100.jpg
    10.3 KB · Views: 679

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

The Fokker P.335 was anew design from F-27 and had many
improvements,such as twin-wheel nose gear and six blade
composite propellers.


Arthur

ACCESS: Restricted
Joined
May 3, 2007
Messages
7
Reaction score
1

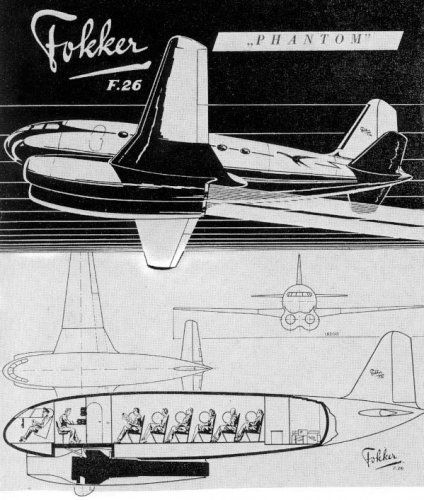

Don't know if it's been posted before, but this is the proposed Fokker F-26 Phantom. I believe it's the first jet airliner proposal/design ever, but that might just as well be a myth-to-be-busted. Nice design though - definately cabin noise wasn't an issue...


Attachments

  • Fokker F26 Phantom.jpg
    Fokker F26 Phantom.jpg
    129.5 KB · Views: 722

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,958
Reaction score
331
hesham said:
Hi,

The Fokker P.335 was anew design from F-27 and had many
improvements,such as twin-wheel nose gear and six blade
composite propellers.

didn't this become the Fokker 50 ?,

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

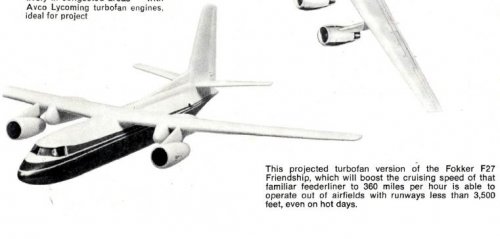

the turbofan project version of Fokker F-27.
http://www.flightglobal.com/PDFArchive/View/1973/1973%20-%201401.html?search=aircraft%20project%201973


Attachments

  • Turbofan F-27.JPG
    Turbofan F-27.JPG
    28.1 KB · Views: 605

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

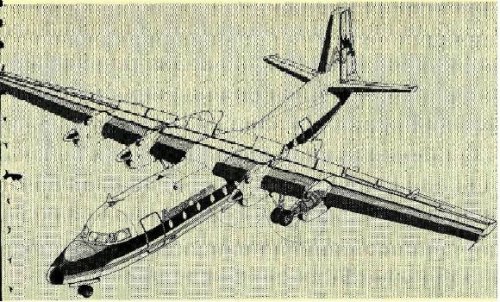

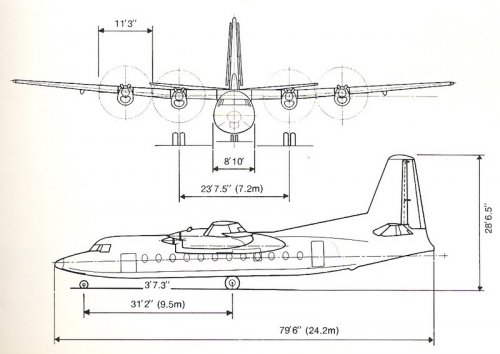

the Fokker-VFW P.301 was STOL aircraft project developed
from Fokker F.27.
http://www.flightglobal.com/pdfarchive/view/1971/1971%20-%200683.html
http://www.flightglobal.com/pdfarchive/view/1971/1971%20-%200684.html


Attachments

  • P.301.JPG
    84.3 KB · Views: 371

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

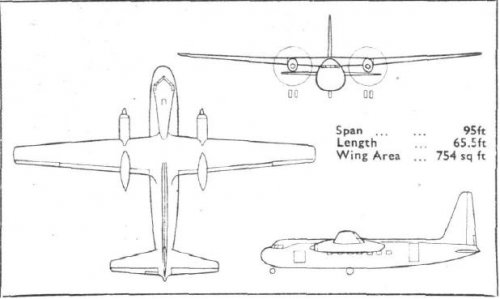

early three view for the Fokker F.27.
http://www.flightglobal.com/pdfarchive/view/1953/1953%20-%200023.html


Attachments

  • F.27.JPG
    22.5 KB · Views: 217

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12

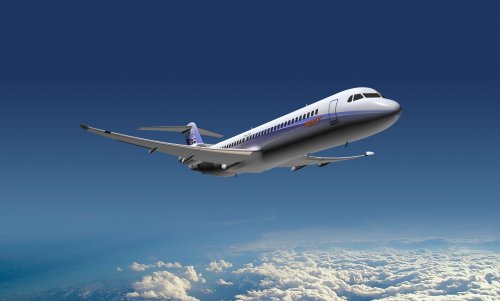

I guess this is as great a place to put it, Rekkof released a rendering of their F-100 Next Gen, reportedly has a new wing and other changes. Probably never going to be built, realistically....


Attachments

  • 01.jpg
    343.2 KB · Views: 228

datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
122
Reaction score
16
Just call me Ray said:
I guess this is as great a place to put it, Rekkof released a rendering of their F-100 Next Gen, reportedly has a new wing and other changes. Probably never going to be built, realistically....

Korstar Airlines, a new South Korean discount airline, announced on April 6th that it has agreed with Panta Holdings of the Netherlands to lease three Fokker 100 airliners by January 2009 and swap them with three new production Fokker 100s from 2010. The head of planning at Korstar said there are other customers of this new Fokker 100, although he does not know who they are.

Cheers,
Sunho


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
datafuser said:
Just call me Ray said:
I guess this is as great a place to put it, Rekkof released a rendering of their F-100 Next Gen, reportedly has a new wing and other changes. Probably never going to be built, realistically....

Korstar Airlines, a new South Korean discount airline, announced on April 6th that it has agreed with Panta Holdings of the Netherlands to lease three Fokker 100 airliners by January 2009 and swap them with three new production Fokker 100s from 2010. The head of planning at Korstar said there are other customers of this new Fokker 100, although he does not know who they are.

Cheers,
Sunho


Hmmm, well ain't that something, though it faces very stiff competition from the ARJ 21, Sukhio 100, Embraer ERJs and the Bombardier C-series (and even the larger CRJs) before the above little computerized model was even released.


I don't want to say I hope Rekkof is doomed to failure, though. If they can secure even just this one launch order, they're doing quite well for the time being :)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
hesham said:
Hi,

A further development of the Fokker F-29 was the McDonnell-
Douglas MDF-100.

Hi,

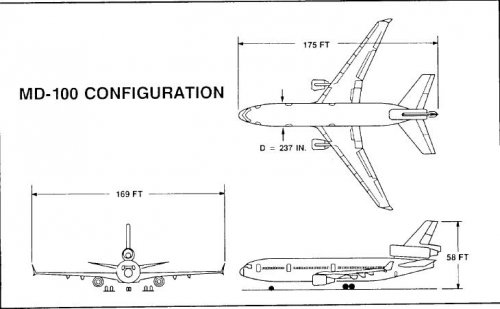

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930021242_1993021242.pdf


Attachments

  • MD-100.JPG
    35.4 KB · Views: 220

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

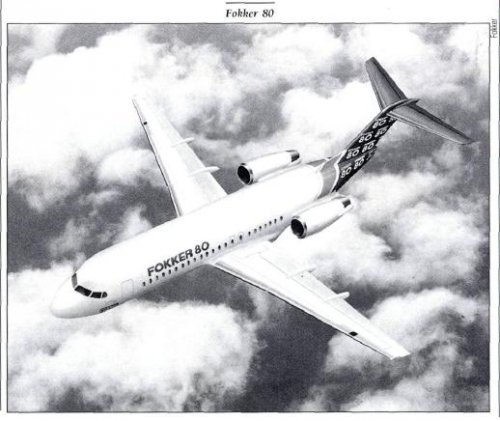

I know very well the Fokker Model-50,60,70,100 and 130,but I didn't hear
about the Model-80.
http://www.flightglobal.com/pdfarchive/view/1991/1991%20-%202322.html


Attachments

  • Fokker Model-80.JPG
    Fokker Model-80.JPG
    36.1 KB · Views: 160

norseman

ACCESS: Confidential
Joined
Jul 22, 2009
Messages
50
Reaction score
51
http://www.rekkof.nl/index.html

The new 70 and 100 look pretty interesting with good range and interiors. If the price is right you never know as the originals were popular and well liked.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,958
Reaction score
331

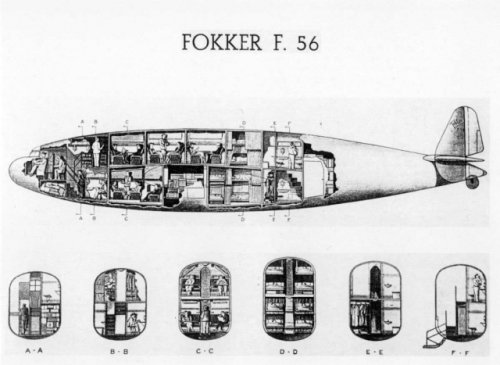

The Fokker F56 was also known as the Ontwerp 127,
see some more information in my post here :-

http://www.secretprojects.co.uk/forum/index.php/topic,2740.msg86732.html#msg86732



cheers,
Robin.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

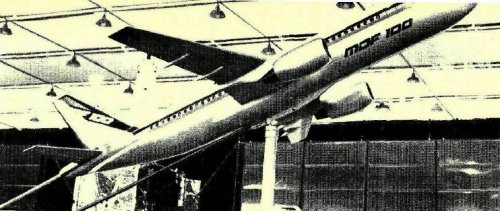

Model of McDonnell Douglas Fokker MDF-100 on display at Paris Airshow 1981.

McDonnell Douglas/Fokker show what their 150-seat MDF-100 will look like. The limitations that technology/aerodynamics/accountancy combination sets on the design means that all of the 150-seaters will look alike.

Source: "Paris Repot" Flight International June 13, 1981 p. 1815.
http://www.flightglobal.com/pdfarchive/view/1981/1981%20-%201897.html


Attachments

  • MDF100Paris.JPG
    72.1 KB · Views: 113

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

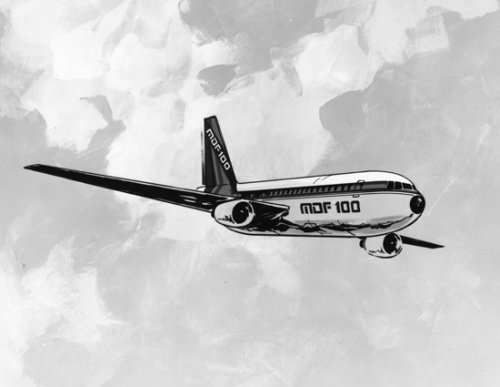

Artist's impression of McDonnell Douglas Fokker MDF-100 from the San Diego Air and Space Museum Archive.

Source: http://www.flickr.com/photos/sdasmarchives/4589912489


Attachments

  • 4589912489_b7b254b05b_o.jpg
    64 KB · Views: 107

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi Triton,

we had this topic;

http://www.secretprojects.co.uk/forum/index.php/topic,1430.msg61273/highlight,mdf-100.html#msg61273


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
hesham said:
hesham said:
Hi,

A further development of the Fokker F-29 was the McDonnell-
Douglas MDF-100.

Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930021242_1993021242.pdf


That is a picture of the McDonnell Douglas MD-100 that was developed, manufactured, and marketed as the McDonnell Douglas MD-11.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
hesham said:
Hi Triton,

we had this topic;

http://www.secretprojects.co.uk/forum/index.php/topic,1430.msg61273/highlight,mdf-100.html#msg61273

Frustrating because the aircraft was designated the Fokker F.29 and not the Fokker F-29, so I didn't have any hits when I searched. I searched F29 and F.29, never occurred to me to search for F-29. It is not my intention to create duplicate topics in the forum. Can a moderator move the new material to the existing "Fokker airliner projects" topic?


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
615
Reaction score
287
All threads never die ;)..

I've just found a more readable drawing of the P.301:

Best regards,
Piotr


Attachments

  • Fokker_P301.jpg
    73.4 KB · Views: 317

Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,506
Reaction score
802
Does somebody have a clean 3-view drawing of the F.26?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

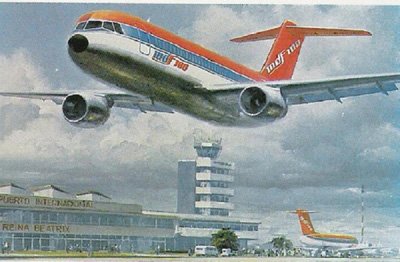

Artist's impression of McDonnell Douglas Fokker MDF-100 circa 1981.

Source:
http://atwonline.com/aircraft-engines-components/news/boeing-focusing-twin-aisle-concept-737-replacement-will-be-announce?cid=nl_atw_dn&YM_RID=lcg@bilrevyen.no


Attachments

  • DN MD F-100 from GT.jpg
    DN MD F-100 from GT.jpg
    67.3 KB · Views: 862

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Jemiba said:
I just found the F-29 and the Super F-28 in
AIR INTERNATIONAL .2.80 and Aviation Week 1978 10-18

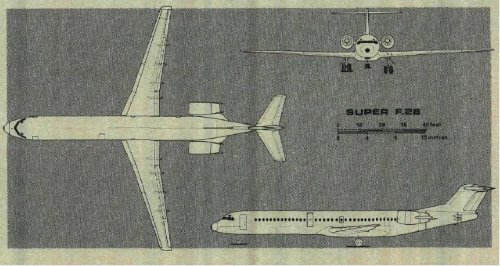

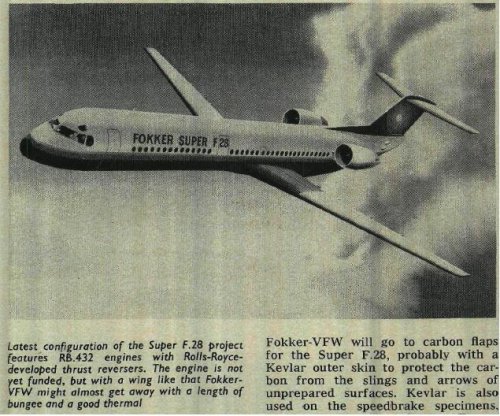

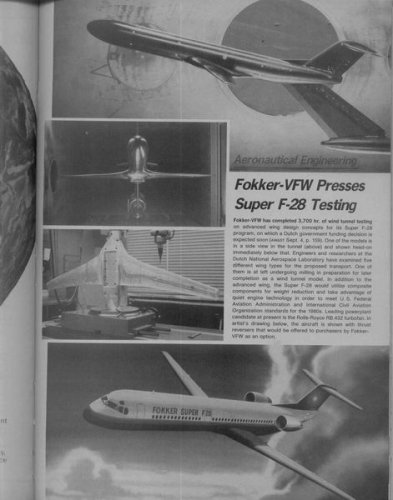

Super F.28,here is also from Flightglobal.

http://www.flightglobal.com/pdfarchive/view/1978/1978%20-%202096.html


Attachments

  • Super F.28.JPG
    Super F.28.JPG
    94.6 KB · Views: 1,043
  • Super F.28  (2).JPG
    Super F.28 (2).JPG
    107.3 KB · Views: 1,006
