Flying Boat with disc-shape rotating wing

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi,

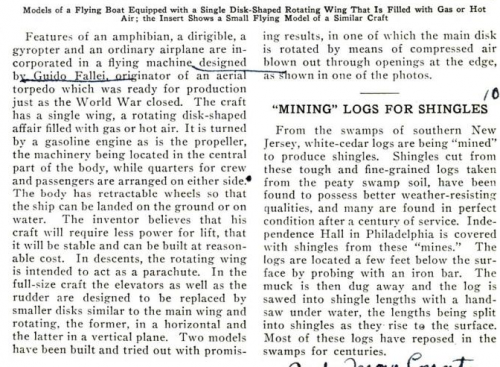

here is a flying boat with disc-shape rotating wing aircraft,designed by Guido Fallei ;




Attachments

  • 1.png
    440.7 KB · Views: 171
  • 2.png
    637.5 KB · Views: 157
  • 3.png
    381.2 KB · Views: 142
Last edited:

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
Neat that this is based on a flying model, not just fantasy, but I am very unclear on what the rotation of the circular wing would actually accomplish. Am I missing something?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
My dear Cluttonfred,


do you mean it was a real design ?.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
Not a real design, no, but at least a serious concept that seems to have been based on experimental data. I just don't see the advantage to the rotating wing vs. a similar fixed wing.


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,040
Reaction score
508
Website
www.steelpillow.com
Looking at the model, it is hard to tell which way the propeller rotates, but I would hazard a guess that the jets of gas from the rotating wing nozzles help counteract the propeller torque. The designer may have been misled into thinking that this would significantly improve a full-size craft.

But I do love the Captain Nemo style graphics.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
steelpillow said:
Looking at the model, it is hard to tell which way the propeller rotates, but I would hazard a guess that the jets of gas from the rotating wing nozzles help counteract the propeller torque. The designer may have been misled into thinking that this would significantly improve a full-size craft.

But I do love the Captain Nemo style graphics.


;D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,207
The wing was to be filled with gas or hot air, so that aircvraft would have been kind of
a hybrid. On the disk wing of the model, four scoops can be seen. Maybe they would have
acted as kind of propellor blades, I think. Otherwise, I can see no advantage of such a
rotating disk, too.


steelpillow

So many projects, so little time...
Top Contributor
Senior Member
Joined
Jun 25, 2014
Messages
1,040
Reaction score
508
Website
www.steelpillow.com
steelpillow said:
Looking at the model, it is hard to tell which way the propeller rotates, but I would hazard a guess that the jets of gas from the rotating wing nozzles help counteract the propeller torque. The designer may have been misled into thinking that this would significantly improve a full-size craft.
Sorry, I don't mean jets of gas so much as the turbulent wakes interacting asymmetrically with the main airflow.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,207
steelpillow said:
... the jets of gas from the rotating wing nozzles help counteract the propeller torque.

The article says, the wing disk is driven by a petrol engines, as is the prop.
