F333E "Lizard" or a FERRARI for the ARMY

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,754
Reaction score
852
remember the OTO Gorgona R 2.5 the Eighties wheeled AFV proposal from Italy?
there was another AFV proposal form Ferrari and Lamborghini :eek:

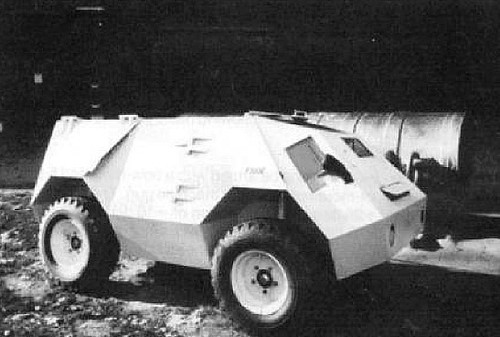

F333E "Lizard"
The Ferrari F333E Lizard was an odd little vehicle, it offered sports car performance with armored protection and special operations capabilities; had a reasonable price (one could buy several "Lizards" for the price of one Ferrari's top-end sports car) and provided a status symbol for some third-world dictators. Unfortunately it did not make any waves with the military, because of Ferrari's "absolute lack of experience in the military sales market"

Source: http://www.darkroastedblend.com/2007/03/strange-tanks.html

here is PDF (for 1.5 $ to Download) about F333E "Lizard"
http://www.dbookbooth.com/view_product.php?product=450&src_dbb=DBB_Publisher_Other_Products

wheeled AFV proposal from Lamborghini LM-002


Ranger6

ACCESS: Restricted
Joined
Feb 27, 2007
Messages
44
Reaction score
0
:D

The Ferrari isn't much, but I've got to say that I for one would join the Italain army for a shot at one of those Lambroghinis -- looks like a cross between a Humvee and a race car!

Great post!

Ranger


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34
Don't forget to look at the OTO Gorgona on
http://www.secretprojects.co.uk/forum/index.php/topic,2758.0.html


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
171
Here is some more data on the Lizard. The following information has been copied from Jane’s Light Tanks and Armoured Cars 1984 by Christopher F. Foss. It is posted here for educational purposes.

Lizard F333E Light Armoured Vehicle

Development
The Lizard F333E light armoured vehicle has been developed as a private venture by Ferrari Engineering SRL. The first of three prototypes was completed in 1980 and early in 1983 a batch of 15 pre-production vehicles was being built.

Description
The hull of the Lizard is of all-welded steel that provides the crew with protection from small arms fire and shell splinters. The floor is of double-skinned construction for increased protection against mines. Provision is made to prevent magnetic mines being attached to the hull. Its small size and low profile also increase its survivability.
The driver is seated at the front of the hull with bullet-proof windows to his front and sides. A 5.56 mm machine gun can be mounted to the right of the driver firing to the front of the vehicle. The commander and gunner are seated in the centre of the vehicle with a forward opening door being provided in each side of the hull. In the forward part of the roof is a single-piece circular hatch that opens forward where the light armament, for example, the 5.56 mm or 7.62 mm machine gun, is mounted. In the roof to the rear of the circular hatch is a two-part roof hatch that opens either side; a retractable missile launcher system can be installed at this position.
The engine compartment is in the lower part of the hull rear with the radiator at the very rear. The Lizard has permanent 4 X 4 drive and front, central and rear self locking differentials are fitted as standard.

Variants
The manufacturer has suggested the following basic variants of the F333E:

Scout
This would have a two-man crew and be armed with a bow-mounted 5.56 mm machine gun and a roof-mounted 12.7 mm machine gun. The former would have an elevation of +25 degrees, depression of -10 degrees and a total traverse of 50 degrees. A total of 2000 rounds of ammunition are carried for this weapon in boxes of 200 rounds. The roof-mounted 12.7 mm M2 HB machine gun has an eleva¬tion of +50 degrees, depression of -15 degrees and a total traverse of 360 degrees, with 500 rounds of ammunition being carried in boxes of 100 rounds.

Anti-tank
This would have a two-man crew and have the same bow-mounted 5.56 mm machine gun as the scout model. Anti-tank armament consists of a Folgore weapon with an elevation of +20 degrees, depression of -6 degrees and a total traverse of 360 degrees; 8 projectiles are carried. As an alternative to the Folgore a Euromissile MILAN ATGW launcher and four missiles can be carried.

Anti-riot/Basic fighter
This would have a two- or three-man crew and have the same bow-mounted 5.56 mm machine gun as the anti-tank and scout models. In addition, mounted on the roof is a 7.62 mm machine gun with an elevation of +45 degrees, depression of -15 degrees and a total traverse of 360 degrees, with 2000 rounds of ammunition being carried. In either side door is a firing port through which a weapon can be safely used with an elevation of +45 degrees, depression of +20 degrees and a total traverse of 90 degrees. As an alternative a flame thrower can be fitted in place of the bow-mounted 5.56 mm machine gun.

Commando
Three-man crew and fitted only with the bow-mounted 5.56 mm machine gun with a maximum payload of 200 kg being carried, including explosives, small arms and supplies.

SPECIFICATIONS

CREW 2 or 3
CONFIGURATION 4 x 4
COMBAT WEIGHT 2600 kg
UNLOADED WEIGHT 2100 kg
POWER-TO-WEIGHT RATIO 44.23 hp/tonne
GROUND PRESSURE 1 kg/cm2
TOWED LOAD 1000 kg
LENGTH 3.3 m
WIDTH 1.7 m
HEIGHT (hull top) 1.42 m
GROUND CLEARANCE 0.3 m
TRACK (front) 1.385 m (rear) 1.424 m
WHEELBASE 1.8 m
ANGLE OF APPROACH/DEPARTURE 45°/47°
MAX ROAD SPEED 120 km/h
FUEL CAPACITY 2 × 50 litres
RANGE AT 60 km/h 800 km
FORDING 0.6 m
GRADIENT 60%
ENGINE FIAT 4-cylinder petrol developing 115 hp at 5600 rpm
TRANSMISSION manual, 5 forward and 1 reverse gears
TRANSFER CASE 1, 5, 3, reduction
STEERING power assisted, rack and pinion
SUSPENSION independent, telescopic struts with double acting hydraulic shock absorbers (twin on rear wheels), four longitudinal torsion bars
TYRES 11.00 x 15 bullet-proof
BRAKES power-assisted, dual-circuit, mechanical parking brake operates on rear wheels
ELECTRICAL SYSTEM 12 V
BATTERY 1 × 12 V, 63 An

Status: Prototypes.

Manufacturer: Ferrari Engineering SRL, 10 via San Quintino, 10121 Turin, Italy.


http://i76.photobucket.com/albums/j35/abegubler/lizard01.jpg
Cutaway drawing of Lizard fitted with two anti-tank missiles in ready to launch position and Folgore anti-tank launcher on commander’s hatch

http://i76.photobucket.com/albums/j35/abegubler/lizard02.jpg
Lizard F333E light armoured vehicle with all roof hatches open

http://i76.photobucket.com/albums/j35/abegubler/lizard03.jpg
Close-up of commander's hatch fitted with Folgore anti-tank launcher

http://i76.photobucket.com/albums/j35/abegubler/lizard04.jpg
Lizard F333E showing low profile compared to M47 tank in background

http://i76.photobucket.com/albums/j35/abegubler/lizard05.jpg
Close-up of bow machine gun installation in Lizard F333E light armoured vehicle

http://i76.photobucket.com/albums/j35/abegubler/lizard06.jpg
Lizard F333E light armoured vehicle with rear roof hatches
