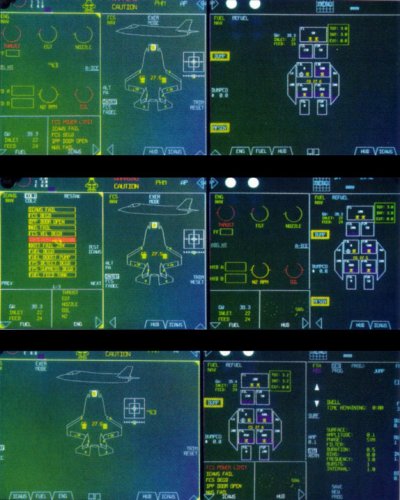

The second picture shows the flat panel display in a three different sets of display modes. There's a lot more to pilot/aircraft interface than this, as well as to the overall avionics fit.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,348
Reaction score
118
Sentinel Chicken said:
Is the absence of a HUD made up by use of a helmet-mounted sight like JHMCS?

But better, as well as a few other advanced, but well tested, items.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
elmayerle said:
Sentinel Chicken said:
Is the absence of a HUD made up by use of a helmet-mounted sight like JHMCS?

But better, as well as a few other advanced, but well tested, items.
Can you elaborate a bit further (if possible)?

I'd always wondered about the future of the HUD with items like the JHMCS coming into use.......


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,348
Reaction score
118
The JHMCS is mated/integrated with two large multi-function displays and there are some other systems to help the pilot (sorry, not sure if I can say more).


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
From Code One magazine.

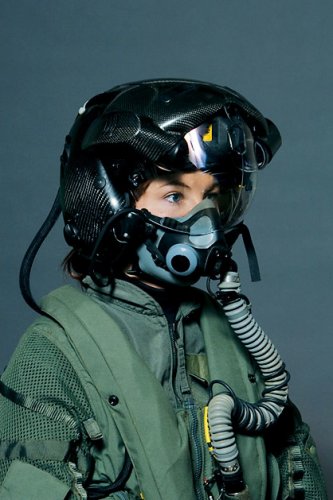

F-35 helmet-mounted display.

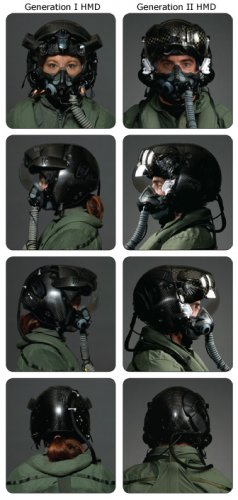

F-35 helmet-mounted display versions compairisons.

The helmet-mounted display system, or HMDS, displays head-steerable symbology, meaning the pilot's line of sight dictates the content that appears on the visor.

Source: http://www.codeonemagazine.com/gallery_slideshow.html?item_id=2


Attachments

  • f_35_hmd_01_1267828237_2190.jpg
    193.3 KB · Views: 181
  • f_35_hmd_04_1267828237_2643.jpg
    84.5 KB · Views: 193
  • f_35_hmd_03_1267828237_2867.jpg
    359.5 KB · Views: 191

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
From Code One magazine:

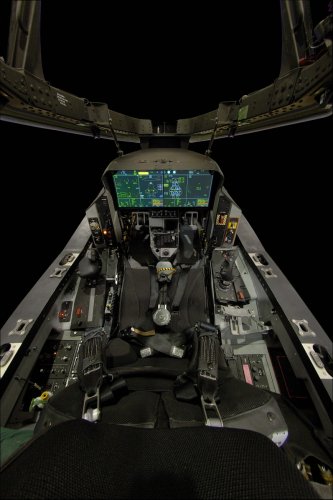

The F-35 cockpit is also the first in a production fighter to use a virtual head-up display that projects information onto the pilot’s helmet visor. The new system, called a helmet-mounted display, or HMD, was switched on in March for the first time in F-35 laboratories where it projected symbology onto the visor by way of the actual F-35 vehicle-management and display-management computers. The HMD provides HUD information as though pilots are looking through an actual HUD no matter in what direction they turn their heads
.

Source: http://www.codeonemagazine.com/gallery_slideshow.html?item_id=45


Attachments

  • Front_Office_06_1267828237_4001.JPG
    113.6 KB · Views: 35

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com
From Code One magazine:

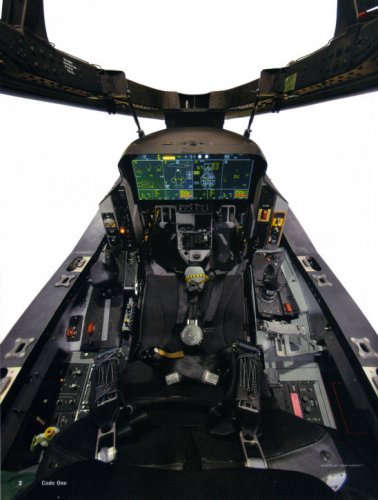

The F-35 cockpit is a generation beyond preceding aircraft, as large liquid crystal touch-screen displays feature color-coded symbology, pictographs, and digital information. Also, the head-up display has been replaced by a helmet-mounted display as the primary flight reference.

Source: http://www.codeonemagazine.com/article.html?item_id=2


Attachments

  • F35_cockpit_1267828237_7030.JPG
    253.3 KB · Views: 66
